Overview

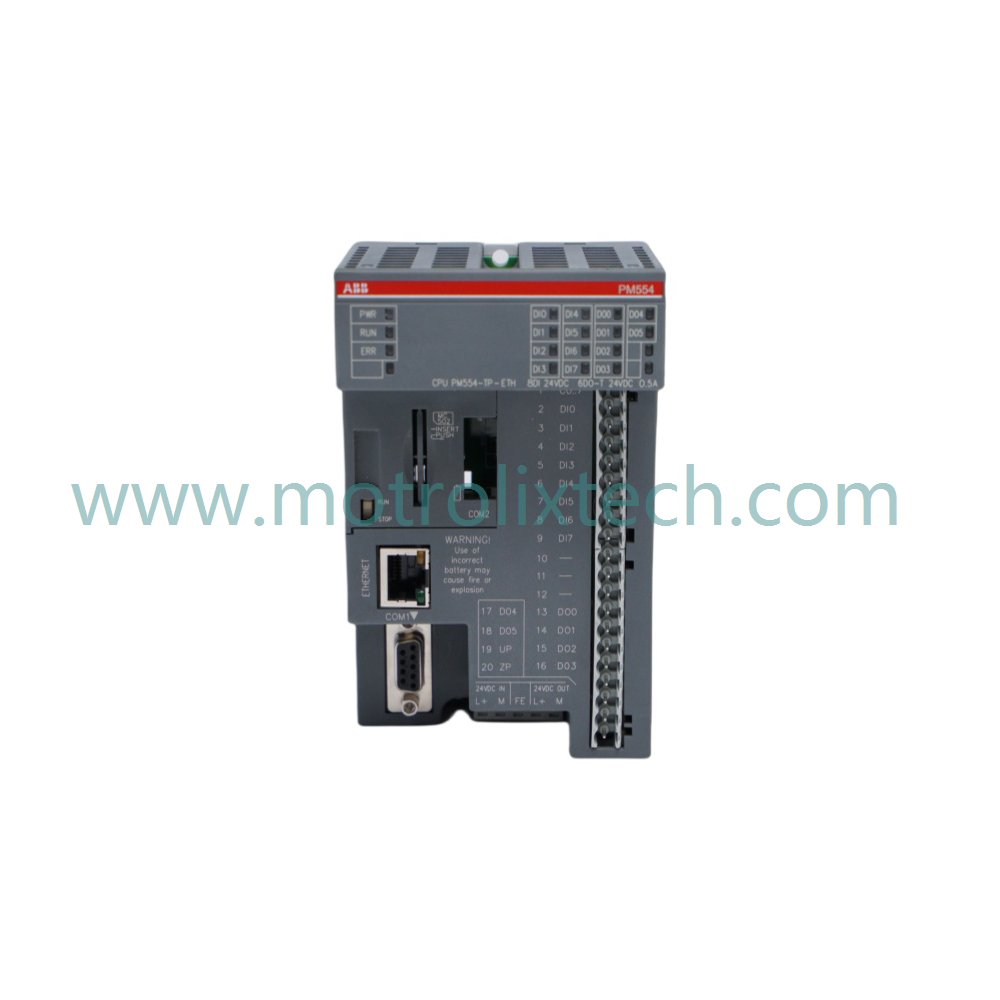

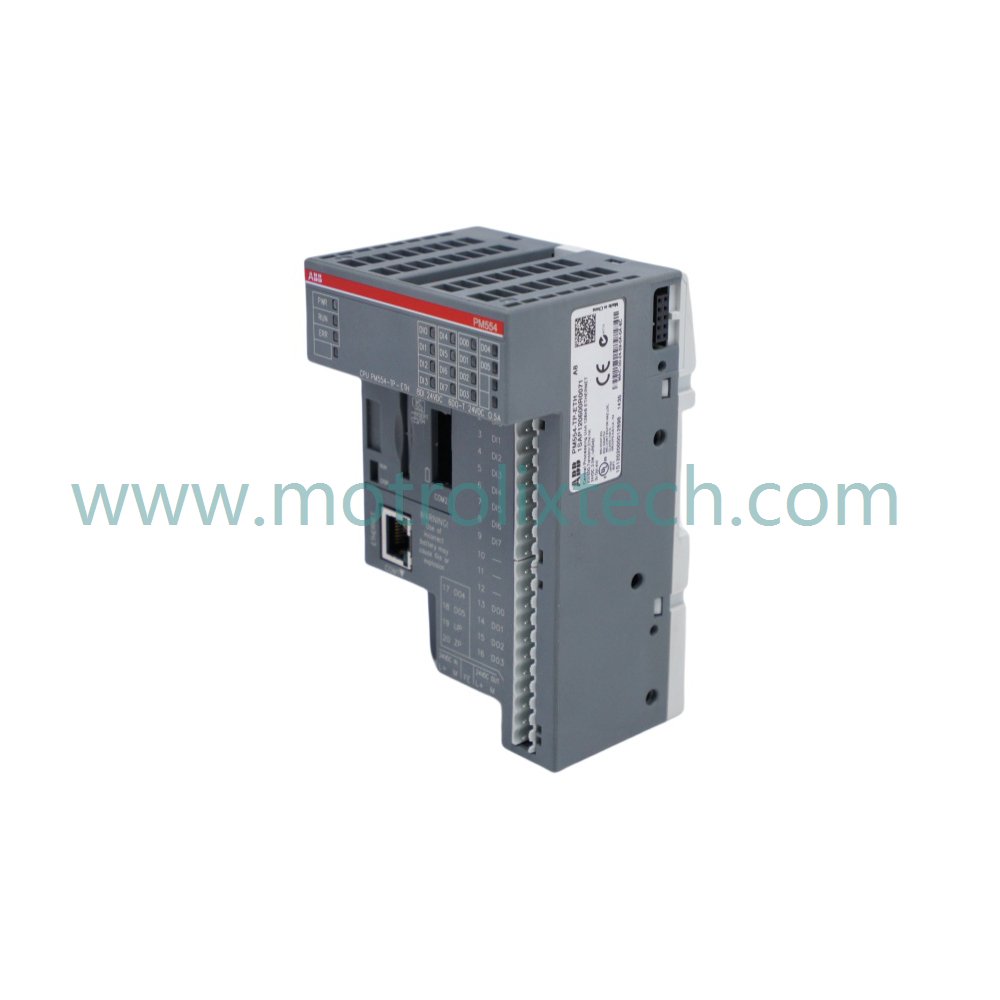

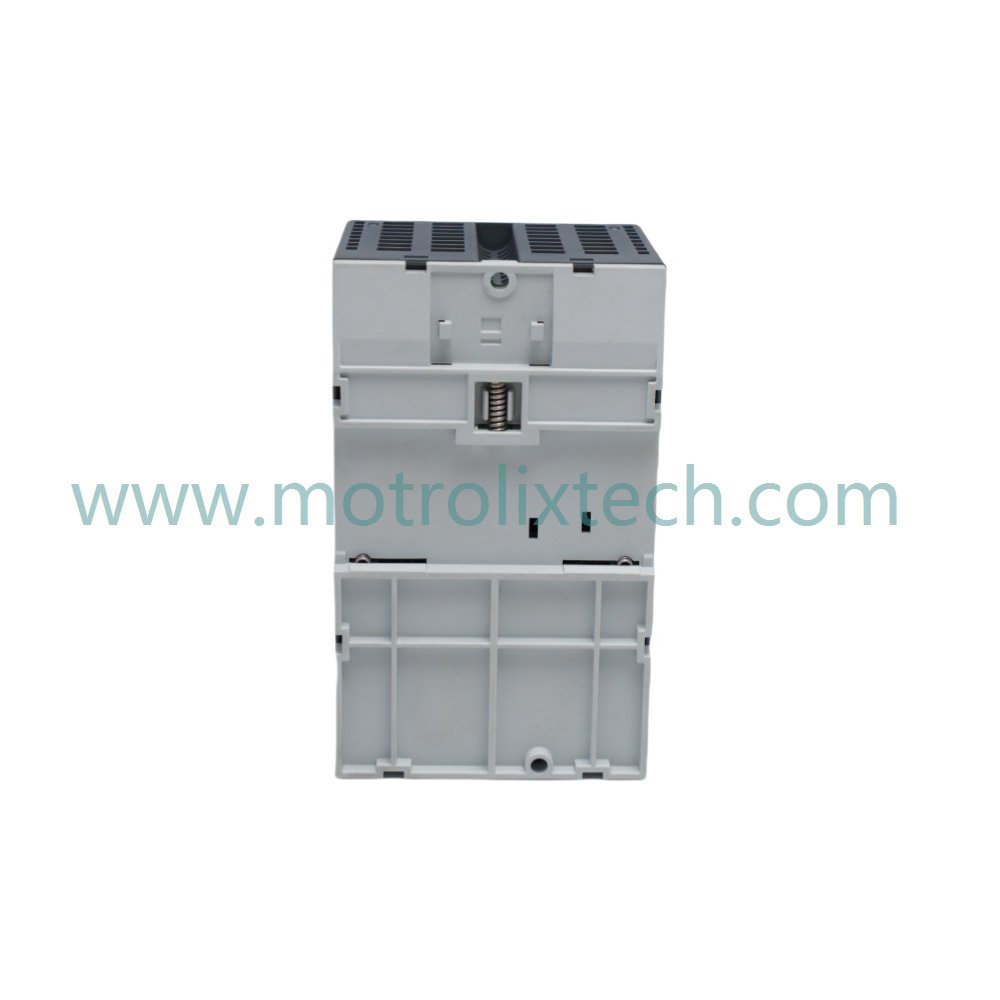

The ABB PM564-TP-ETH 1SAP120900R0071 Central Processing Unit (CPU) is a high-performance PLC module specifically designed for seamless integration within ABB's AC500 automation family. This versatile unit combines robust processing power with a compact and industrial-grade design, effectively enduring harsh operating environments while maintaining reliable performance.

Functional Highlights

The PM564-TP-ETH provides comprehensive I/O capabilities, supporting both digital and analog interfaces for flexible system integration. This versatility enables users to adapt the module for a wide range of applications, from basic control tasks to complex process automation. Additionally, its dual expansion slots allow for customized configurations, further enhancing functionality.

Moreover, the unified programming environment of the PM564-TP-ETH simplifies the development and maintenance of automation projects. This Ethernet-enabled module ensures efficient communication across automation networks, significantly reducing installation complexity.

Designed for exceptional versatility, the ABB PM564-TP-ETH CPU is ideal for manufacturing, energy, and infrastructure applications. Its combination of rugged construction and intelligent design makes it well-suited to meet modern automation challenges.

Technical Data

• Model Number: PM564-TP-ETH 1SAP120900R0071
• Module Type: Central Processing Unit
• Manufacturer: ABB
• Condition: Brand New
• Weight: 0.3 kg
• Dimensions: 8.2 x 7.3 x 13.5 cm
• HS CODE: 8537101190
• Product Origin: Sweden
• Range of Product: Advant OCS/800xA
• System Type: DCS
• Power Supply Voltage: 24 V DC
• Communication Service: Ethernet router
• I/O Configuration: Supports digital and analog interfaces

Typical Applications

The ABB PM564-TP-ETH CPU is suitable for:

• Industrial automation systems requiring reliable and efficient control.
• Manufacturing and process industries where flexibility and performance are critical.
• Smart manufacturing systems that integrate advanced control and monitoring.

FAQ

1. What is the weight of the PM564-TP-ETH CPU?
   The PM564-TP-ETH weighs 0.3 kg.

2. What are the dimensions of the PM564-TP-ETH?
   Its dimensions are 8.2 x 7.3 x 13.5 cm.

3. What type of power supply does the PM564-TP-ETH use?
   It operates on a 24 V DC power supply.

4. What communication options does the PM564-TP-ETH provide?
   It provides Ethernet communication for efficient data exchange.

5. Is the PM564-TP-ETH suitable for harsh industrial environments?
   Yes, it is designed to withstand demanding operating conditions.
