Overview

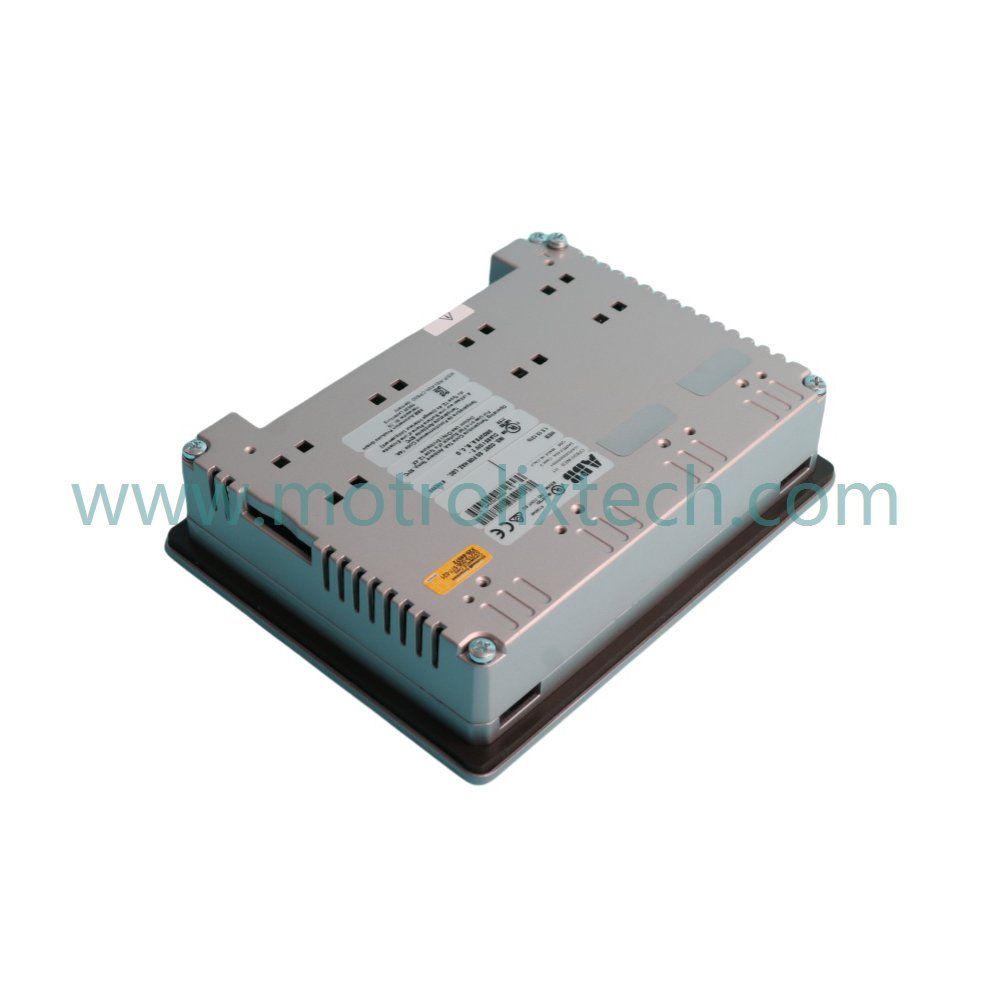

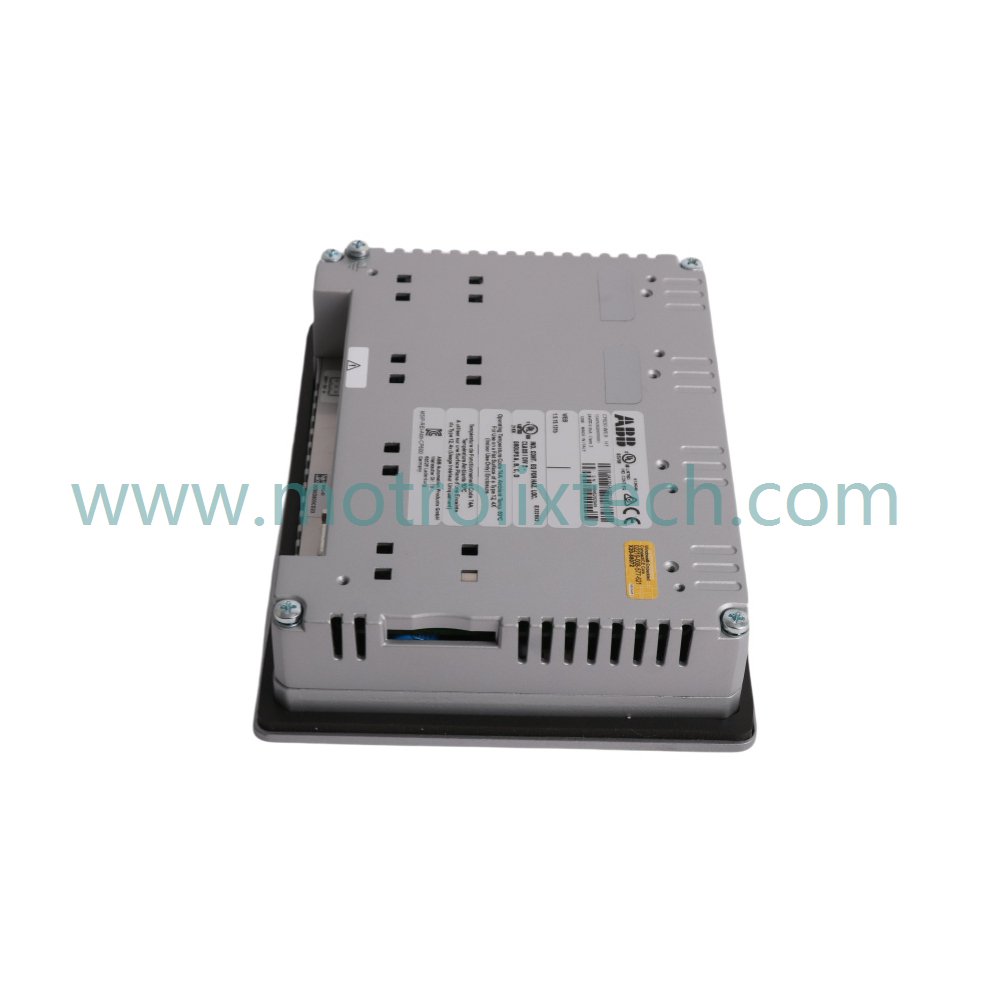

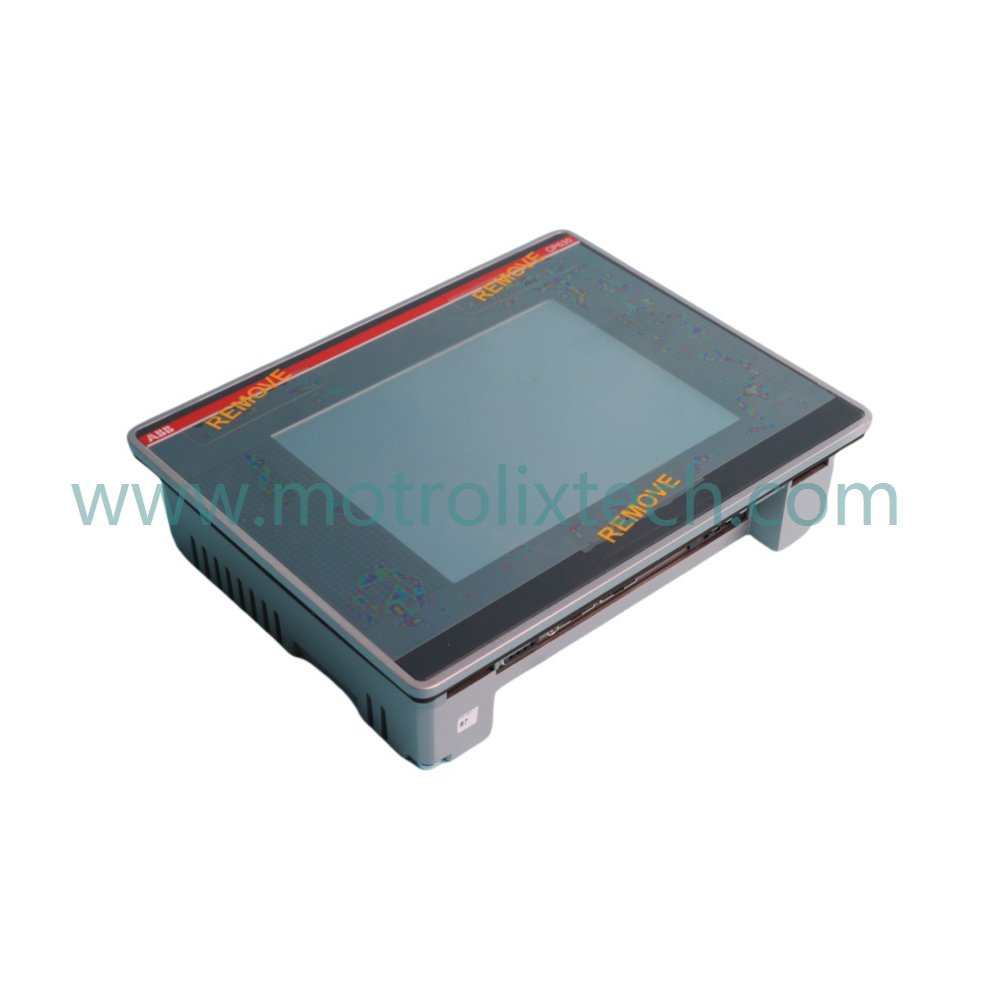

The ABB 1SAP530200R0001 CP630-WEB Control Panel is a state-of-the-art 5.7-inch TFT touch screen designed specifically for industrial automation applications. This compact and high-performance control unit provides intuitive user interaction and robust processing capabilities, making it ideal for demanding environments.

Functional Highlights

Featuring 128 MB of flash disk user memory and 256 MB of DDR RAM, the CP630-WEB ensures responsive and efficient control operations. Its typical power consumption is just 16.8 W, operating on a 24 V DC power supply with a range of 18 to 30 V DC. This makes it perfect for control cabinets and compact automation systems.

Moreover, the control panel offers two system setting modes: User Mode and System Mode. Users can access the User Mode with a simple touch-and-hold gesture, while the System Mode can be activated through a specific tapping procedure during power-up. These flexible access methods enhance usability while ensuring security.

Manufactured in Sweden, the CP630-WEB adheres to global standards and is shipped globally, ensuring reliability and quality. With robust durability and a user-friendly interface, it is a preferred choice in the ABB Control Panel 600 Series.

Technical Data

• Model Number: 1SAP530200R0001 CP630-WEB
• Module Type: Control Panel 5.7 TFT Touch Screen
• Manufacturer: ABB
• Condition: Brand New
• Product Range: Advant OCSx800A
• Weight: 1.48 kg
• Dimensions: 33.5 x 27.5 x 8 cm
• HS CODE: 8537101190
• System Type: DCS
• Status: Active
• Minimum Order Quantity: 1
• Product Origin: Sweden
• Communication Service: Ethernet router

Typical Applications

The ABB 1SAP530200R0001 Control Panel is suitable for a variety of applications, including:

• Industrial automation systems requiring user-friendly interfaces
• Control cabinets for compact automation environments
• Systems needing reliable monitoring and control capabilities
• Applications across various industries such as manufacturing, energy, and process control

FAQ

1. What is the weight of the 1SAP530200R0001 Control Panel?
   The control panel weighs 1.48 kg.

2. What are the dimensions of the CP630-WEB Control Panel?
   Its dimensions are 33.5 x 27.5 x 8 cm.

3. What is the typical power consumption of this control panel?
   The typical power consumption is 16.8 W.

4. What memory capacity does the control panel have?
   It has 128 MB of flash disk memory and 256 MB of DDR RAM.

5. How can users access the different system modes?
   Users can access User Mode via a touch-and-hold gesture, while System Mode requires a specific tapping procedure during power-up.
