Overview

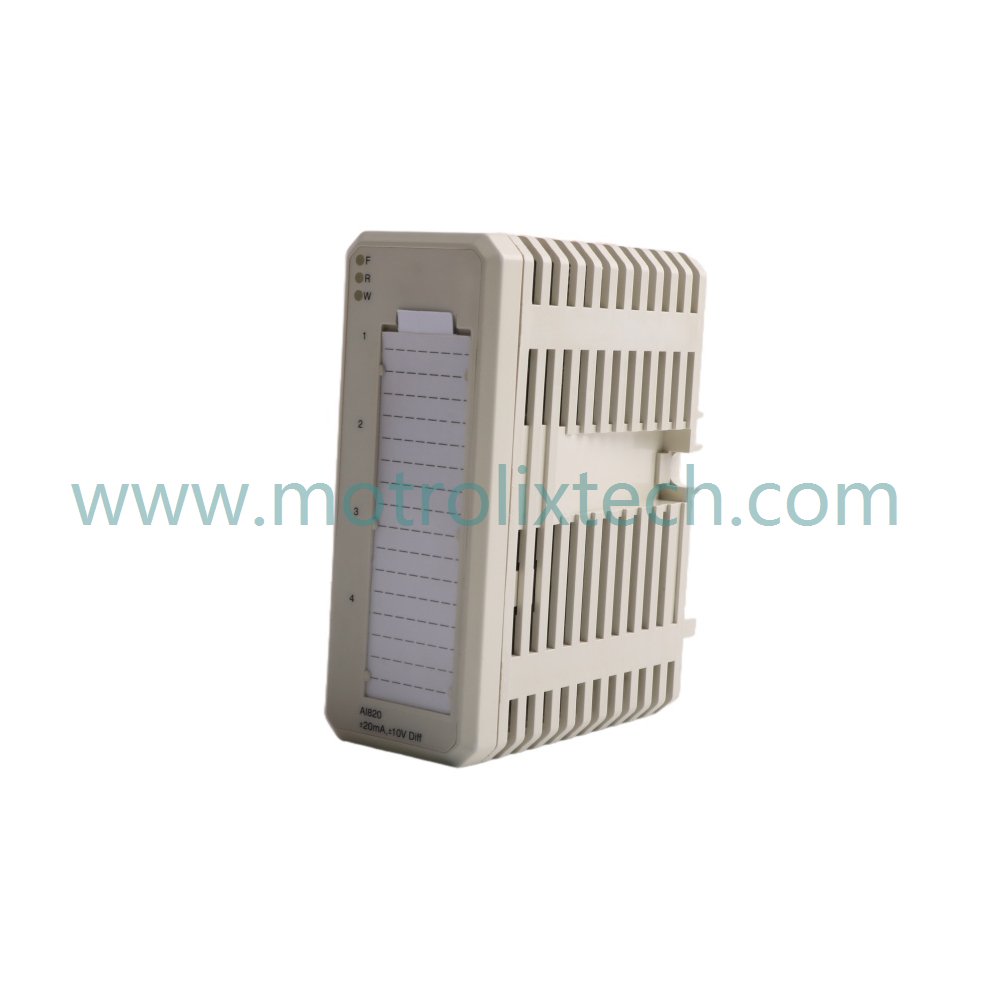

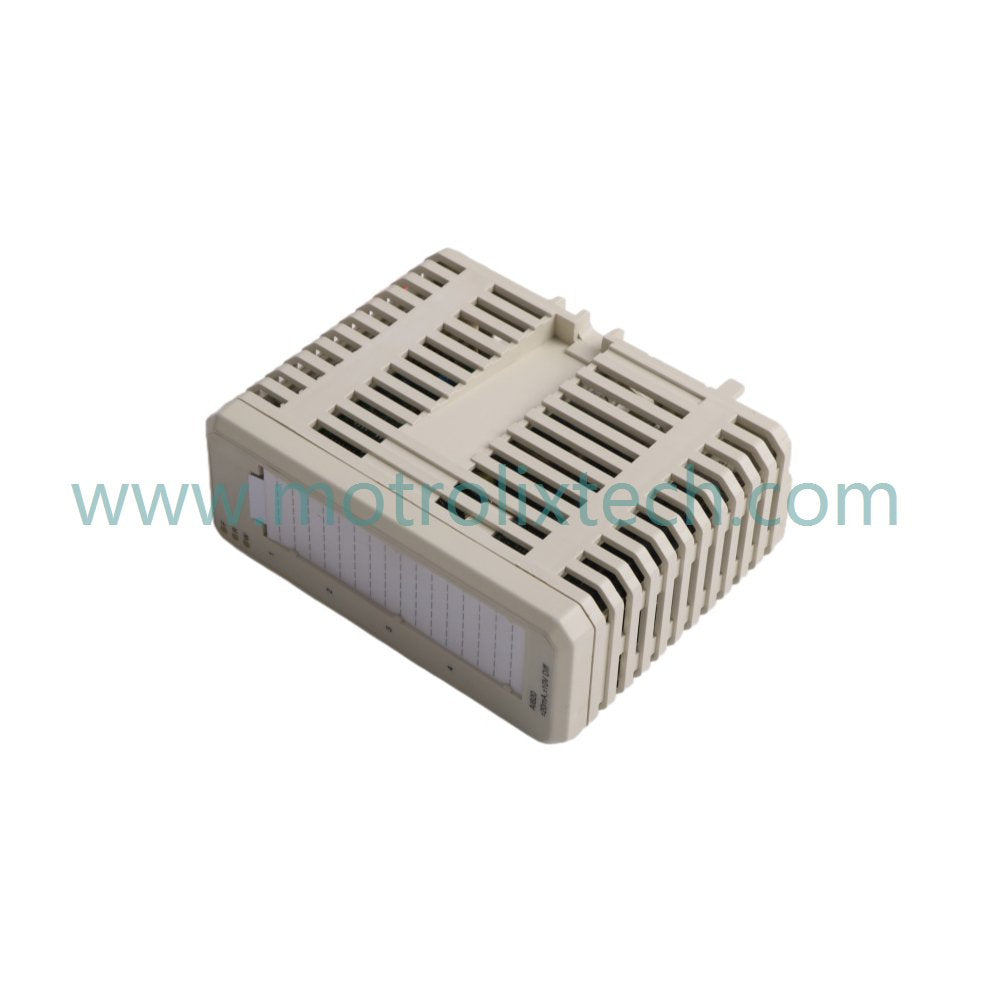

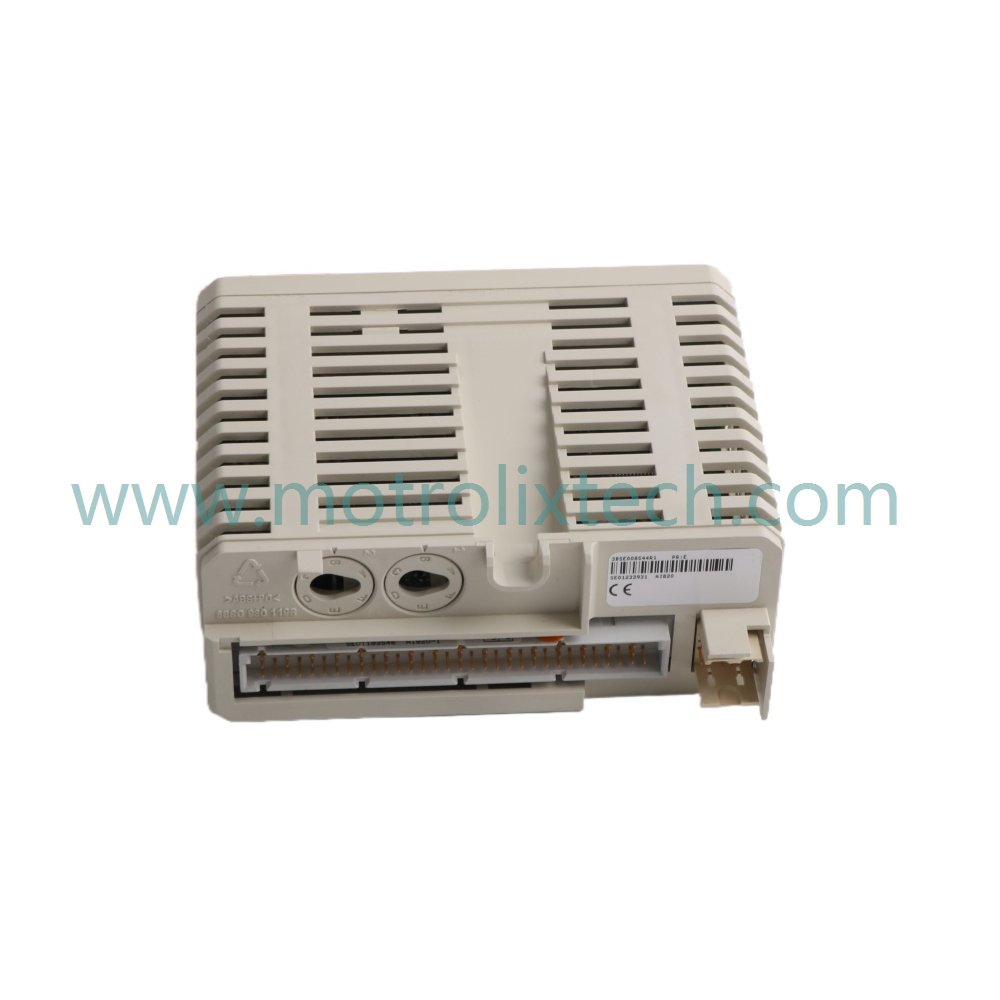

The ABB AI820 Analog Input Module is a highly versatile device designed for precise signal acquisition in AC 800M automation systems. This module features four differential and bipolar input channels, each capable of being configured for either voltage or current input. Engineered for demanding industrial environments, the AI820 ensures reliable performance and protection against accidental voltage applications.

Functional Highlights

The AI820 module supports a wide array of input signals, including ±20 mA, 0-20 mA, 4-20 mA, -10 to +10 V, 0 to 10 V, 2 to 10 V, -5 to +5 V, 0 to 5 V, and 1 to 5 V DC bipolar differential inputs. This flexibility makes it compatible with various sensors, enhancing its usability across different applications.

Moreover, this module includes robust protection features. Each channel can withstand overvoltage of up to 30 V DC, and built-in current sense resistors help safeguard the channel reliability. The AI820 also distributes external transmitter supply to each channel, simplifying the integration of two-wire transmitters without additional current limitations.

All channels are electrically isolated from the ModuleBus as a single group, maintaining signal integrity in electrically noisy environments. The module operates on a 24 V supply derived from the ModuleBus, ensuring efficient power management.

With 14-bit resolution including a sign, the AI820 provides high-precision measurements essential for process monitoring and control. Additionally, it supports HART communication, allowing for advanced diagnostics and configuration, greatly enhancing system performance and longevity.

Technical Data

• Model Number: AI820
• Module Type: Analog Input Module
• Manufacturer: ABB
• Condition: Brand New
• Weight: 1.08 kg
• Dimensions: 18.5 x 8.5 x 30.5 cm
• HS CODE: 8537101190
• Product Origin: Sweden
• System Type: DCS
• Status: Active
• Input Channels: 4 Differential/Bipolar
• Input Signal Types:
  • Current: ±20 mA, 0-20 mA, 4-20 mA
  • Voltage: -10 to +10 V, 0 to 10 V, 2 to 10 V, -5 to +5 V, 0 to 5 V, 1 to 5 V
• Max Overvoltage Protection: Up to 30 V DC
• Resolution: 14 Bits Plus Sign
• Temperature Range: 0 to 55°C
• Communication Protocol: HART

Typical Applications

The ABB AI820 Analog Input Module is ideal for:

• Process control in manufacturing and chemical plants
• Monitoring critical parameters in energy production
• Integration in systems requiring reliable and precise signal processing
• Automation applications where durability and flexibility are essential

FAQ

1. What is the weight of the AI820 Analog Input Module?
   The AI820 module weighs 1.08 kg.

2. What are the dimensions of this module?
   Its dimensions are 18.5 x 8.5 x 30.5 cm.

3. How many channels does the AI820 support?
   The module supports 4 input channels.

4. What input signal types can the AI820 accept?
   It supports both current and voltage signals across a wide range.

5. What is the operating temperature range for the AI820?
   The operating temperature range is from 0 to 55°C.
