Overview

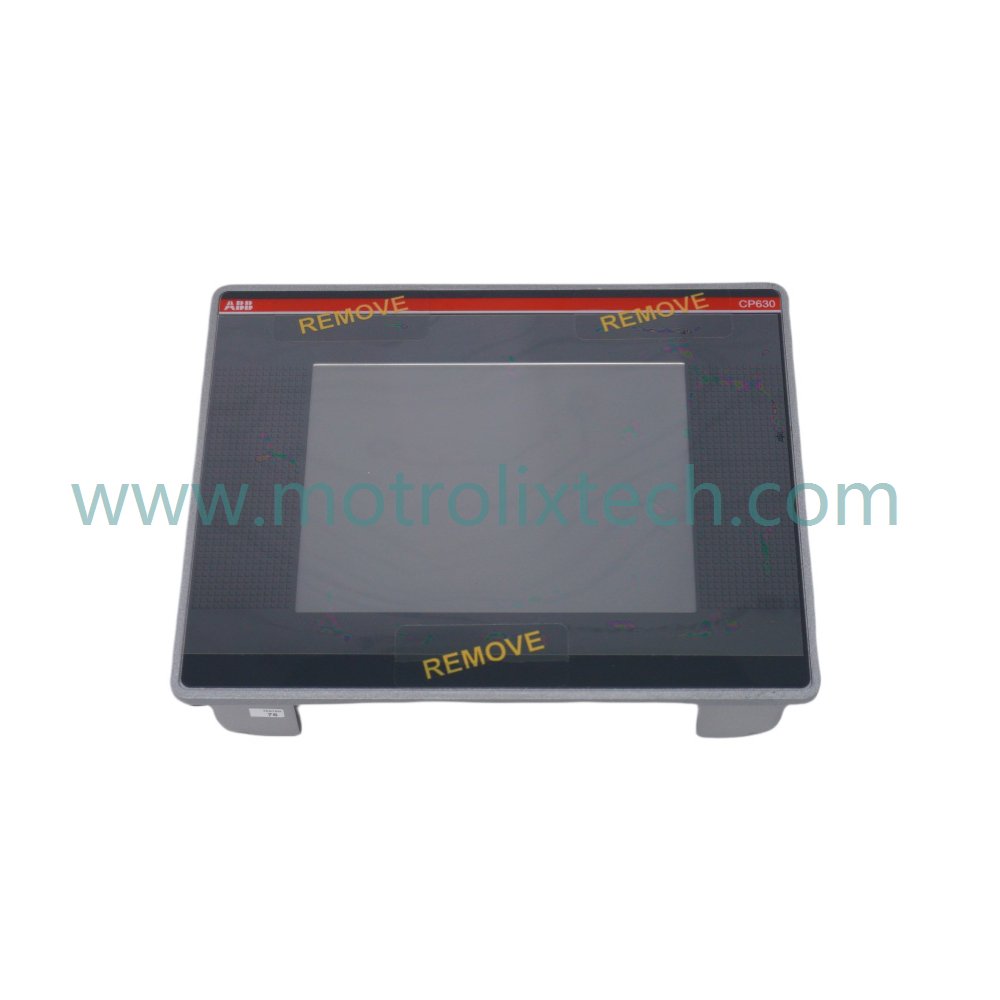

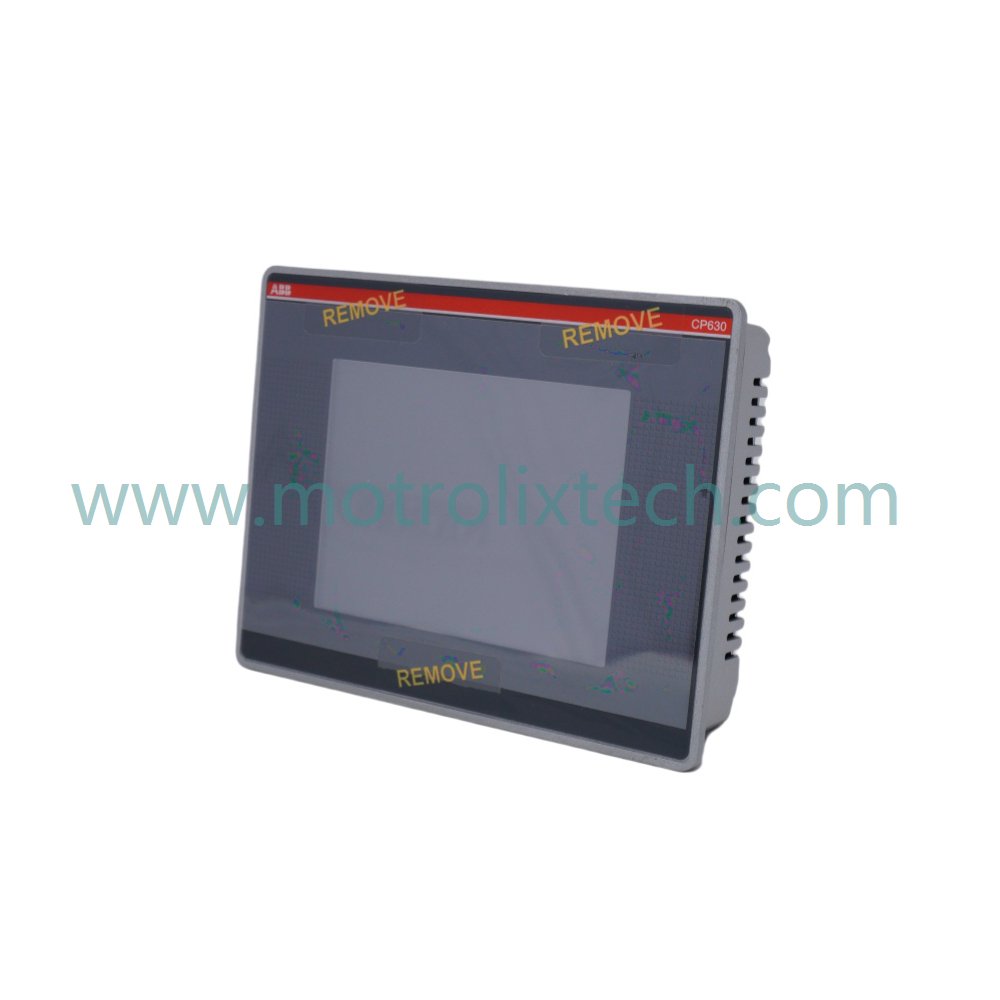

The ABB CP630 1SAP530100R0001 Touch Screen is a robust and high-performance control panel designed for industrial automation applications within the CP600 platform. With a 5.7-inch TFT LCD display featuring LED backlighting, this touch screen provides outstanding visibility and user interaction capabilities, making it ideal for various demanding environments.

Functional Highlights

This touch screen offers a resolution of 640 x 480 pixels and supports up to 65,536 colors, ensuring vivid and accurate visual representation. The resistive touchscreen technology allows for precise input, even in challenging industrial settings. With a ±60° viewing angle and a brightness of 350 cd/m², the CP630 ensures visibility from multiple positions.

The ABB CP630 is engineered for versatility, featuring multiple communication interfaces, including:

• 2x Ethernet 100 Mbit
• 1x RS232/422/485 serial port
• 2x USB 2.0 host ports
• An SD card slot
• 2 expansion slots

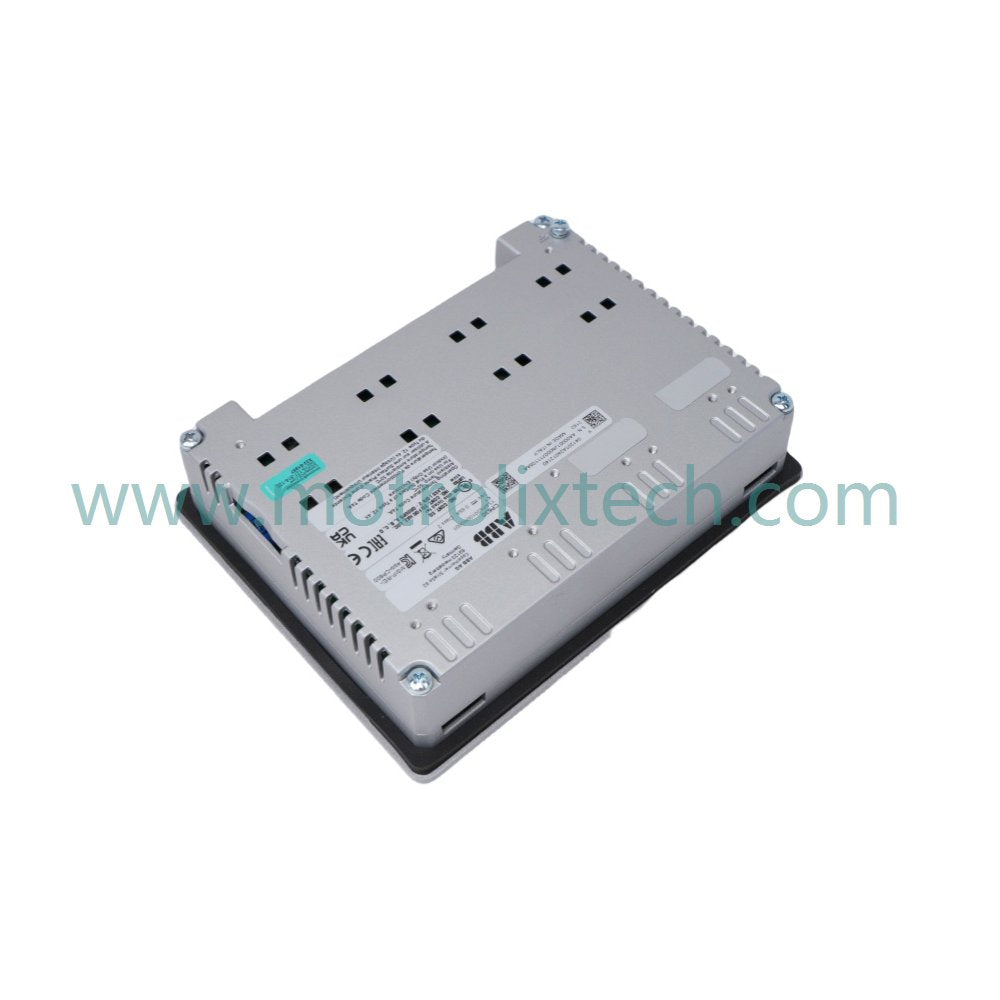

It operates on a 24 V DC input (range: 18–30 V DC) and consumes approximately 16.8 W. The rugged design features a Zamak front and aluminum rear, achieving an IP66 rating for the front and IP20 for the housing according to IEC 60529 standards.

With 128 MB of user data memory and 256 MB of DDR RAM dedicated to user programs, along with integrated flash disk memory, this touch screen supports efficient application performance. Enhanced device security is available through password protection with eight user levels, ensuring reliable access control.

Designed for industrial HMI applications, the CP630 touch screen is programmed using the PB610 Panel Builder software, making it easy to develop and deploy user interfaces. Its compact dimensions (3.6 x 31.5 x 17.7 cm) make it versatile for various installation spaces while maintaining high functionality.

Technical Data

• Model Number: CP630 1SAP530100R0001
• Module Type: Touch Screen
• Manufacturer: ABB
• Condition: Brand New
• Weight: 1.2 kg
• Dimensions: 3.6 x 31.5 x 17.7 cm
• HS CODE: 8537101190
• Product Origin: Sweden
• System Type: DCS (Distributed Control System)
• Status: Active
• Display: 5.7-inch TFT LCD
• Resolution: 640 x 480 pixels
• Color Support: 65,536 colors
• Brightness: 350 cd/m²
• Viewing Angle: ±60°
• Input Voltage: 24 V DC (18–30 V DC)
• Power Consumption: Approximately 16.8 W
• Communication Interfaces:
  • 2x Ethernet 100 Mbit
  • 1x RS232/422/485
  • 2x USB 2.0
  • SD card slot
  • 2 expansion slots
• Memory: 128 MB user data, 256 MB DDR RAM
• Protection Ratings: IP66 (front), IP20 (housing)

Typical Applications

The ABB CP630 Touch Screen is suitable for:

• Industrial HMI applications in manufacturing and automation
• Control panels in process industries
• Equipment monitoring and control systems
• Applications requiring robust and user-friendly interfaces

FAQ

1. What is the weight of the CP630 Touch Screen?
   The CP630 weighs 1.2 kg.

2. What are the dimensions of this touch screen?
   Its dimensions are 3.6 x 31.5 x 17.7 cm.

3. What resolution does the CP630 display?
   The display resolution is 640 x 480 pixels.

4. What type of communication interfaces does the CP630 support?
   It supports 2 Ethernet ports, 1 RS232/422/485 port, and 2 USB ports.

5. What is the power supply requirement for the CP630?
   It operates on a 24 V DC input, with a range of 18–30 V DC.
