Overview

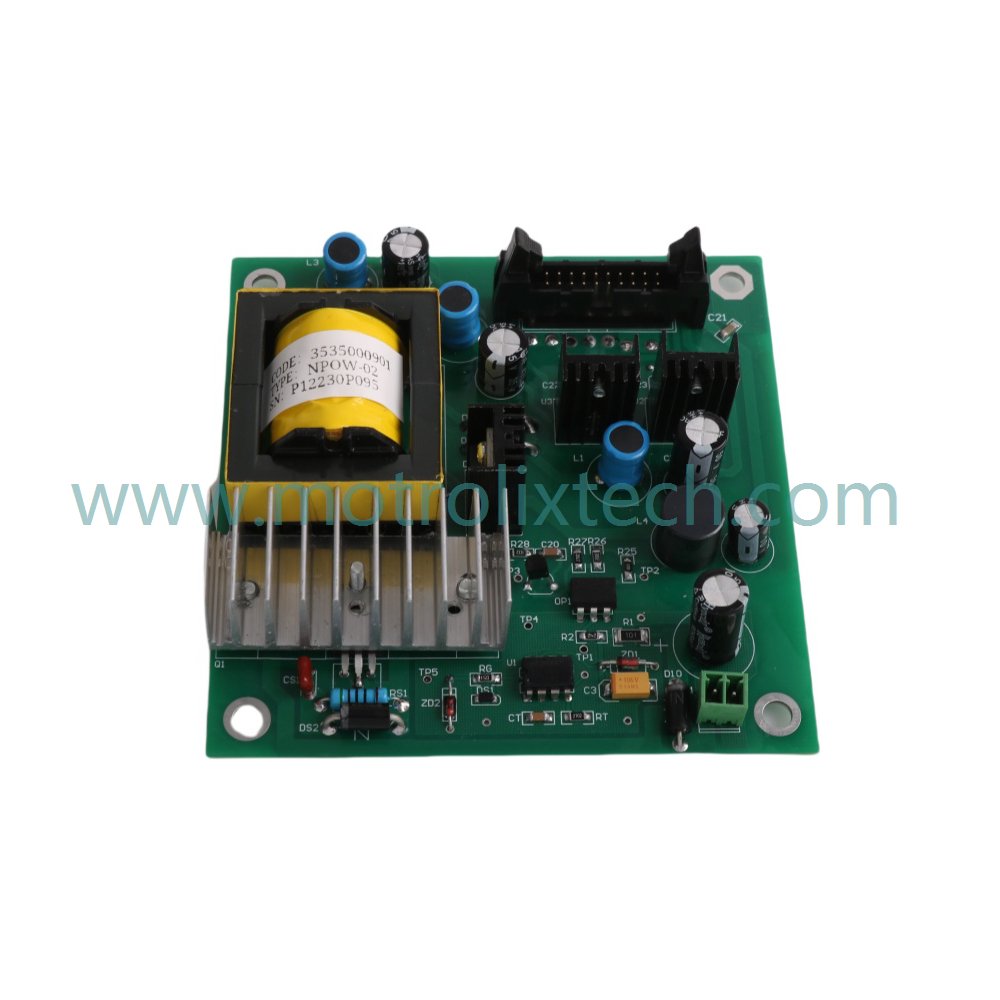

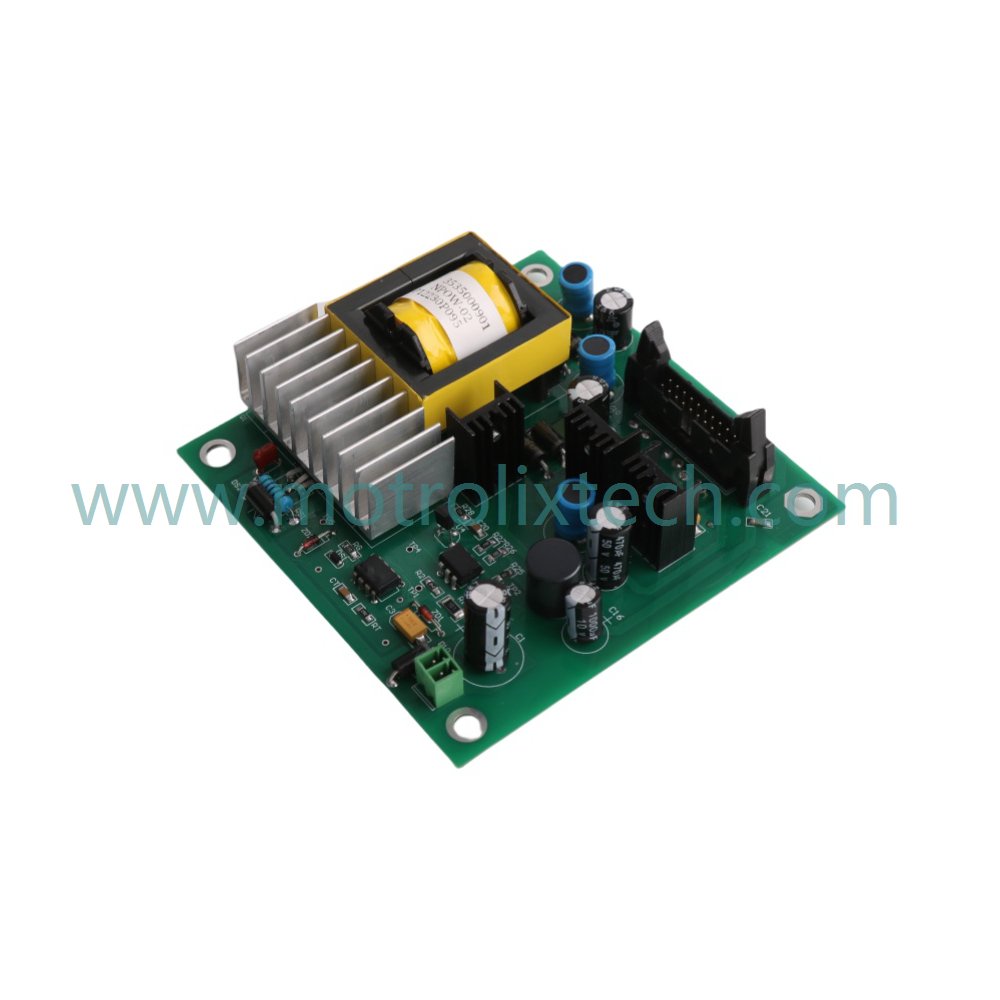

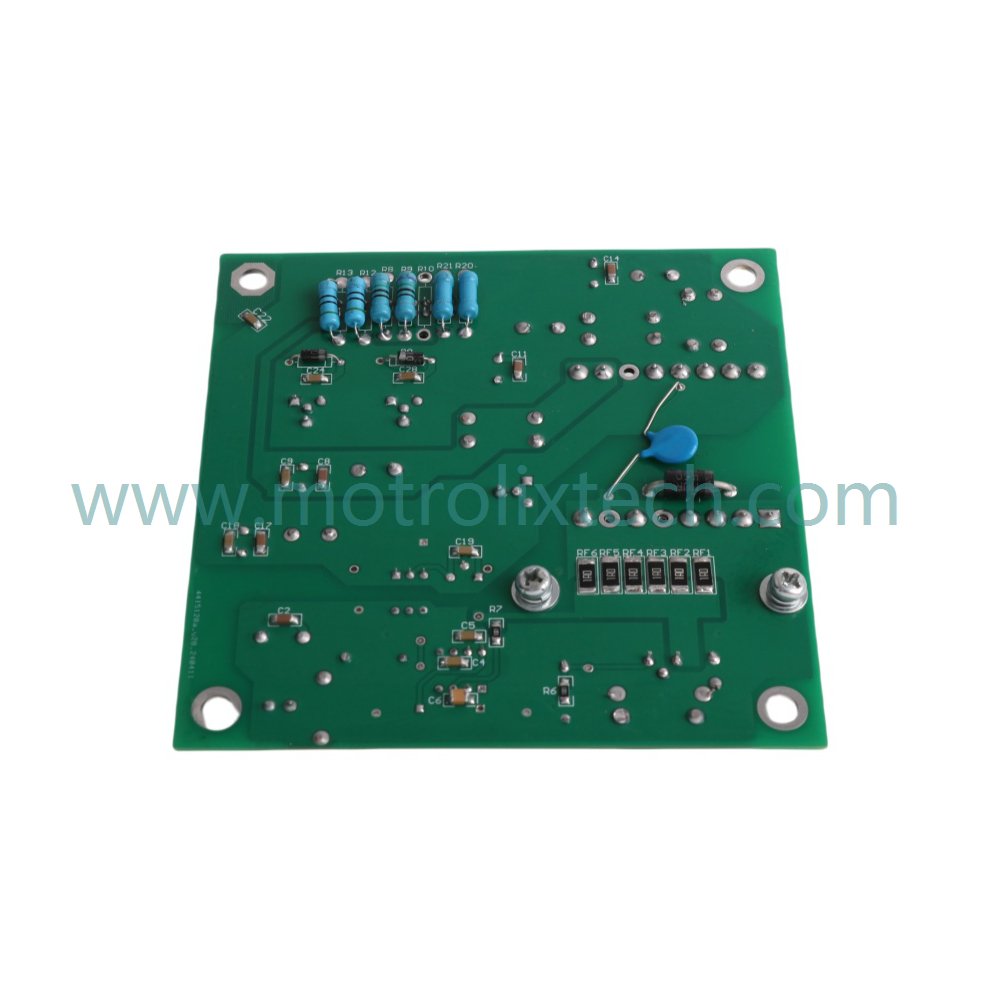

The ABB NPOW-02 3535000901 Driver Board is a robust 24VDC redundant power supply module designed for critical industrial applications. This module ensures stable power delivery in demanding automation environments, making it an essential component for various industrial control systems.

Functional Highlights

With an input voltage range of 24V DC (±10%) and an output drive voltage of 15-20V, the NPOW-02 provides reliable power management. Its hot-swappable design allows for maintenance without any system downtime, enhancing overall operational efficiency.

Additionally, this driver board features impressive 2500V AC isolation and operates effectively across a wide temperature range of -20°C to +70°C. The module’s fast <500ns propagation delay and 20kHz maximum switching frequency make it suitable for high-speed industrial control applications requiring precise performance.

Moreover, the NPOW-02 incorporates comprehensive protection features and clear LED status indicators for easy monitoring. Its rugged construction ensures long-term performance in harsh conditions, suitable for environments such as manufacturing plants and process control facilities. It can withstand extreme temperatures for storage, ranging from -40°C to +85°C, demonstrating its durability.

This driver board delivers the reliability expected in mission-critical operations, representing the ideal balance of performance and resilience for modern industrial power distribution systems.

Technical Data

• Model Number: NPOW-02 3535000901
• Module Type: Driver Board
• Manufacturer: ABB
• Condition: Brand New
• Weight: 0.25 kg
• Dimensions: 11.5 x 11.5 x 3.8 cm
• HS CODE: 8537101190
• Product Origin: Sweden
• Range of Product: Advant OCS/800xA
• System Type: DCS
• Input Voltage: 24V DC (±10%)
• Output Drive Voltage: 15-20V
• Isolation: 2500V AC
• Propagation Delay: <500ns
• Maximum Switching Frequency: 20kHz
• Operating Temperature Range: -20°C to +70°C
• Storage Temperature Range: -40°C to +85°C

Typical Applications

The ABB NPOW-02 Driver Board is suitable for:

• Industrial automation environments requiring reliable power supply solutions.
• High-speed industrial control systems needing precise power management.
• Applications in manufacturing plants and process control facilities that demand durability.

FAQ

1. What is the weight of the NPOW-02 Driver Board?
   The NPOW-02 weighs 0.25 kg.

2. What are the dimensions of the NPOW-02?
   Its dimensions are 11.5 x 11.5 x 3.8 cm.

3. What is the input voltage range for the NPOW-02?
   It operates with an input voltage range of 24V DC (±10%).

4. Does the NPOW-02 feature hot-swappable design?
   Yes, it allows for maintenance without system downtime.

5. What is the maximum switching frequency of the NPOW-02?
   The maximum switching frequency is 20kHz.
