Overview

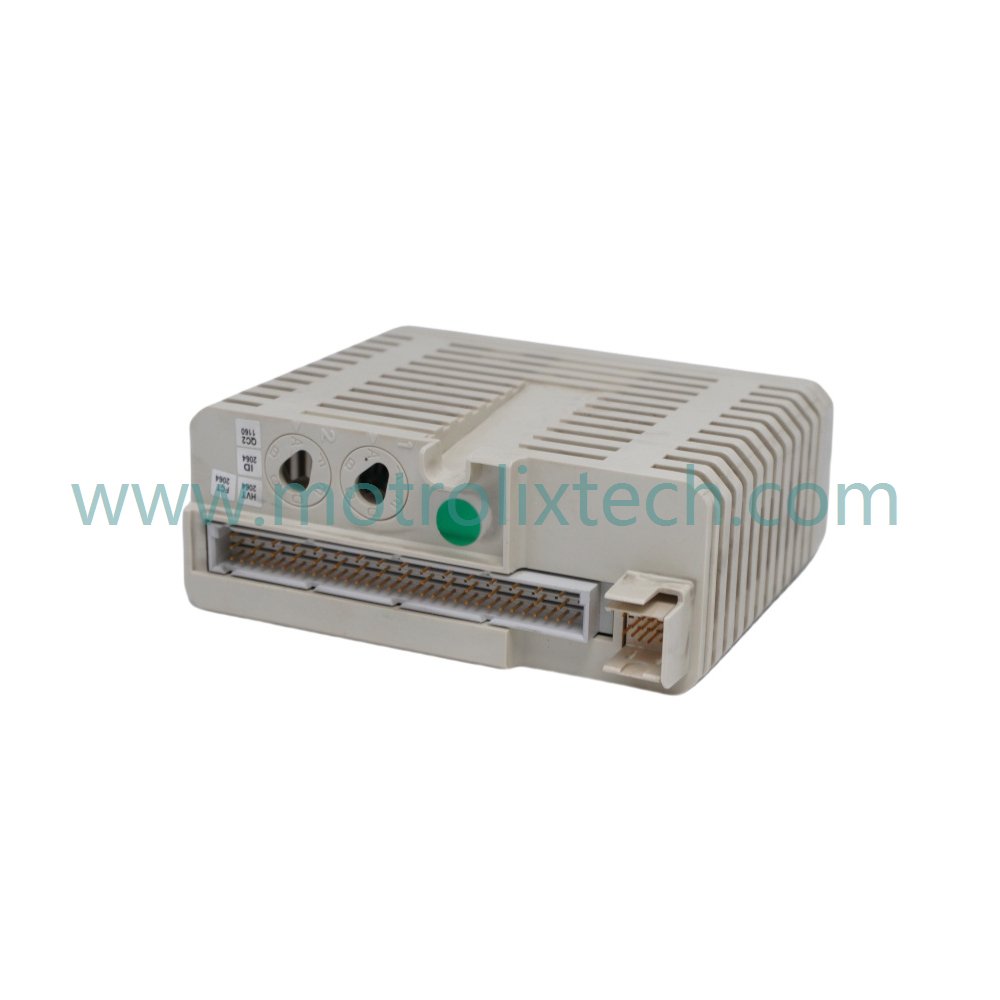

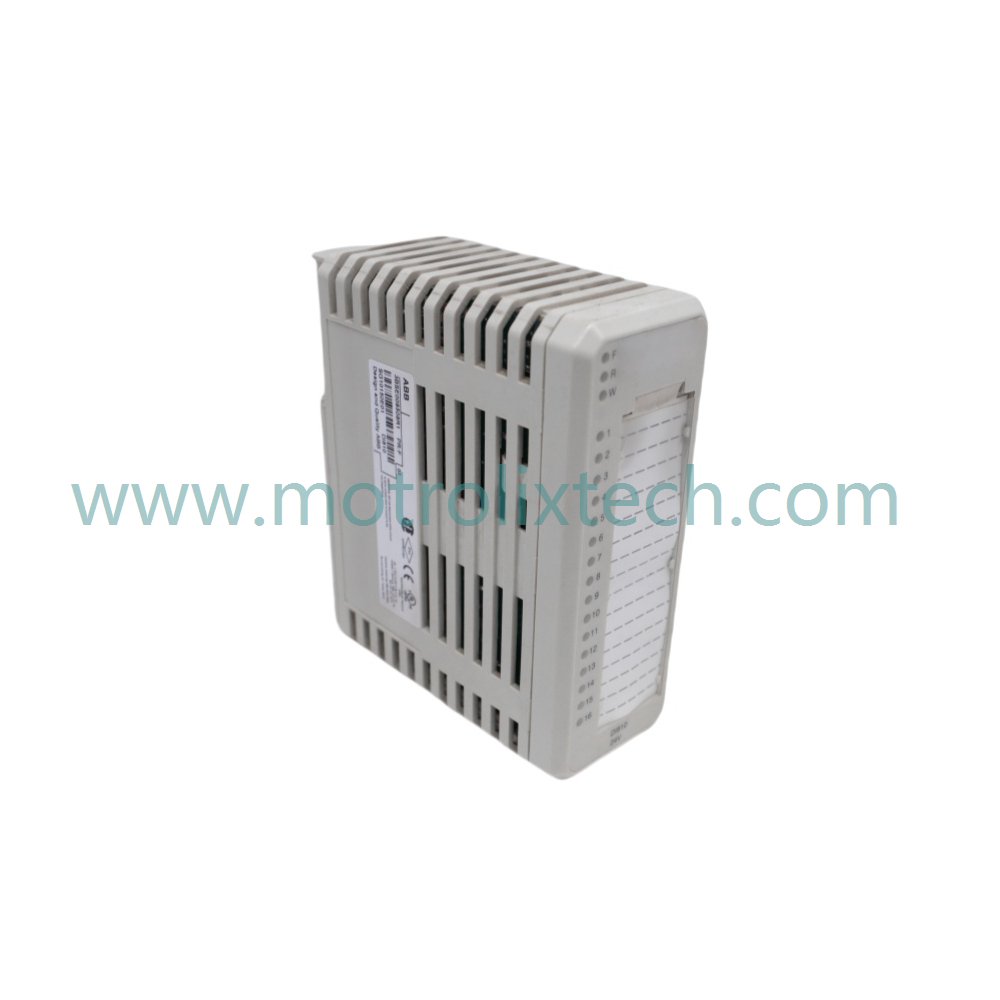

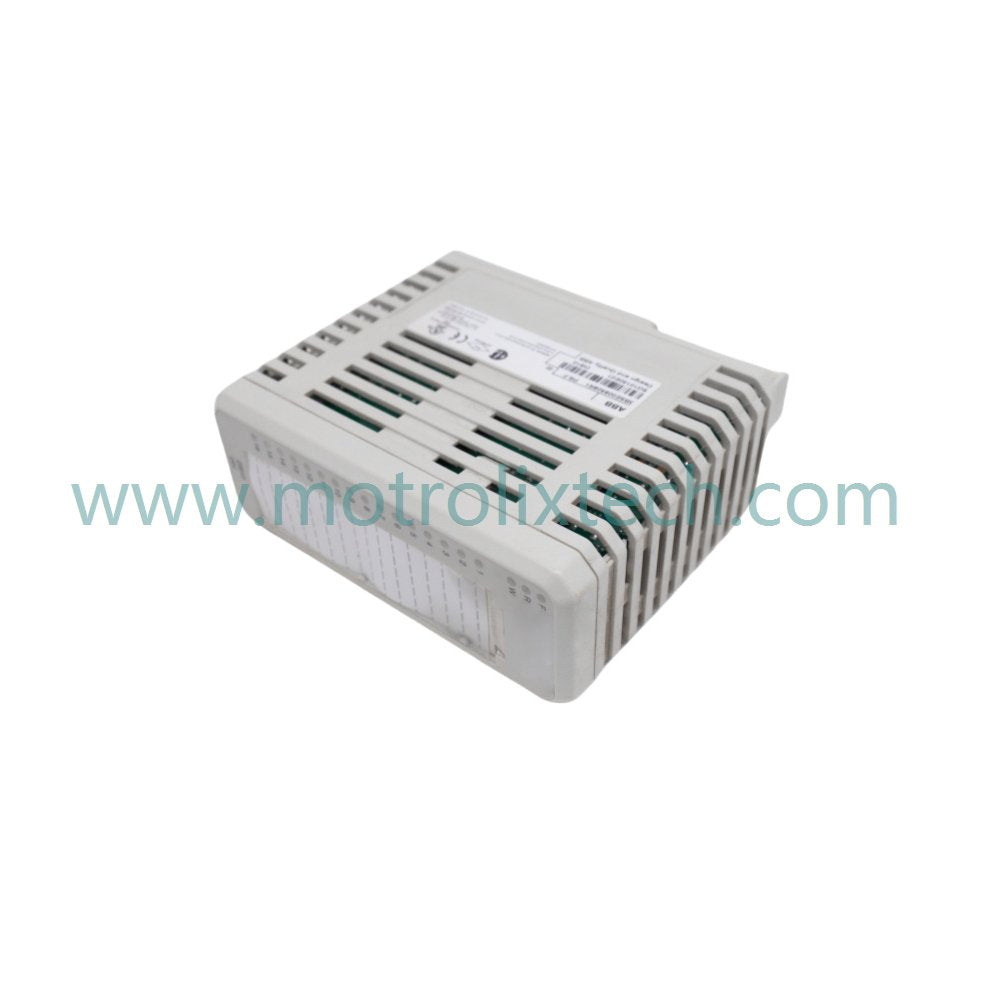

The ABB DI810 3BSE008508R1 Digital Input Module is a high-performance 16-channel module designed specifically for S800 I/O systems. This module provides reliable digital signal processing capabilities in demanding industrial environments, making it essential for process control and automation systems. Its robust design emphasizes efficiency and low power consumption, with an input voltage range of 18-30V DC and a current consumption of just 6mA at 24V.

Functional Highlights

One of the key features of the DI810 module is its advanced isolation design, which divides the 16 inputs into two independently isolated groups of eight channels each. Each group comes with a dedicated voltage supervision input that monitors the integrity of the process voltage. In case of voltage loss, the module generates error signals that can be accessed via the ModuleBus, facilitating quick fault detection and diagnostics.

Furthermore, the DI810 is equipped with multiple protection mechanisms, including current limiting components, EMC protection, and optical isolation barriers on each channel. Bright LED status indicators provide instant visual feedback for every input state, simplifying troubleshooting processes. This robust architecture ensures the module is highly durable against electrical noise and voltage fluctuations commonly encountered in industrial settings.

The ABB DI810 3BSE008508R1 excels in critical applications within power generation, oil and gas, and manufacturing industries, thanks to its combination of channel isolation, comprehensive diagnostics, and reliable construction.

Technical Data

• Model Number: DI810 3BSE008508R1
• Module Type: Digital Input Module
• Manufacturer: ABB
• Condition: Brand New
• Weight: 0.16 kg
• Dimensions: 4.5 x 10.5 x 12 cm
• HS CODE: 8537101190
• Product Origin: Sweden
• System Type: DCS (Distributed Control System)
• Status: Active
• Number of Inputs: 16 Channels
• Input Voltage Range: 18-30V DC
• Current Consumption: 6mA at 24V
• Isolation: Two isolated groups of eight channels each
• Protection Features: Current limiting, EMC protection, optical isolation
• LED Indicators: Yes

Typical Applications

The ABB DI810 Digital Input Module is ideal for:

• Industrial automation systems requiring reliable digital signal processing
• Applications in power generation and oil & gas industries
• Manufacturing processes demanding precise monitoring of digital signals
• Scenarios where voltage supervision and error signaling are critical

FAQ

1. What is the weight of the DI810 Digital Input Module?
   The module weighs 0.16 kg.

2. What are the dimensions of the DI810?
   Its dimensions are 4.5 x 10.5 x 12 cm.

3. How many input channels does the DI810 have?
   The DI810 features 16 digital input channels.

4. What is the input voltage range of this module?
   It supports an input voltage range of 18-30V DC.

5. Does the DI810 provide visual status indicators?
   Yes, it includes bright LED indicators for each input state.
