Overview

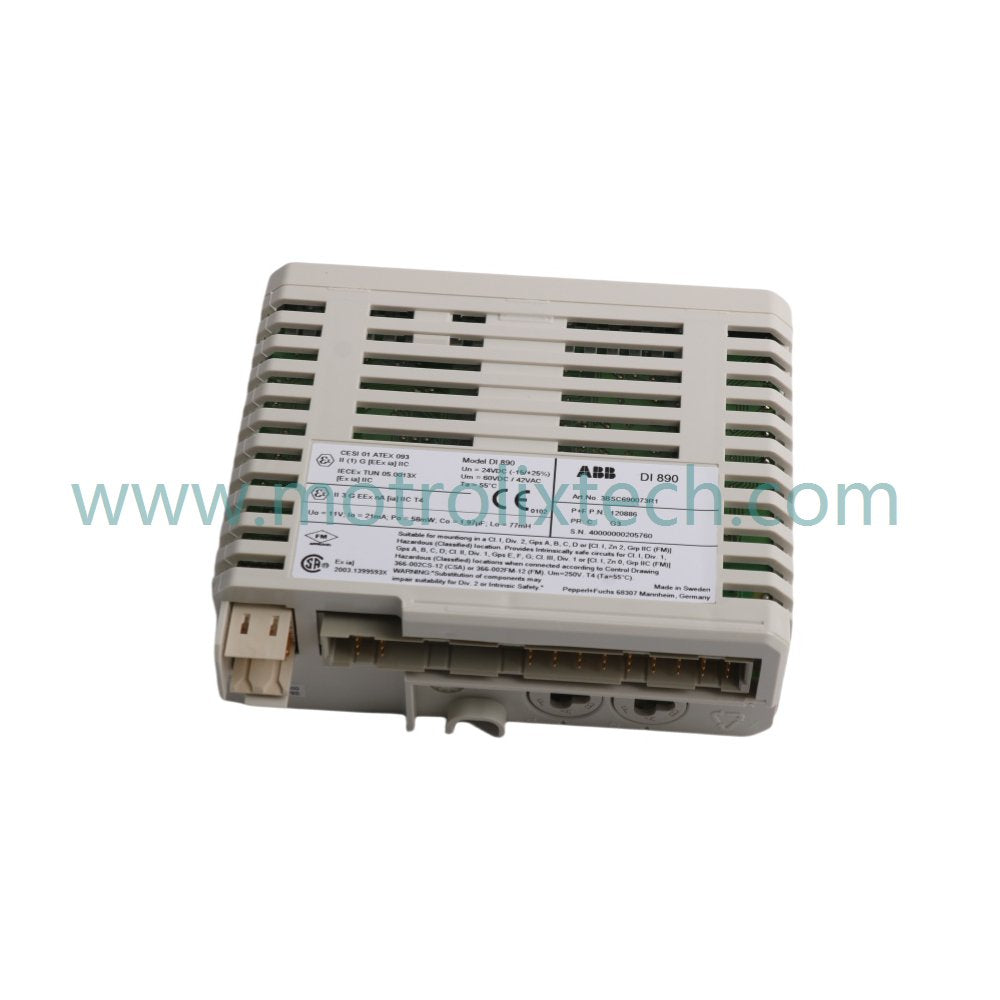

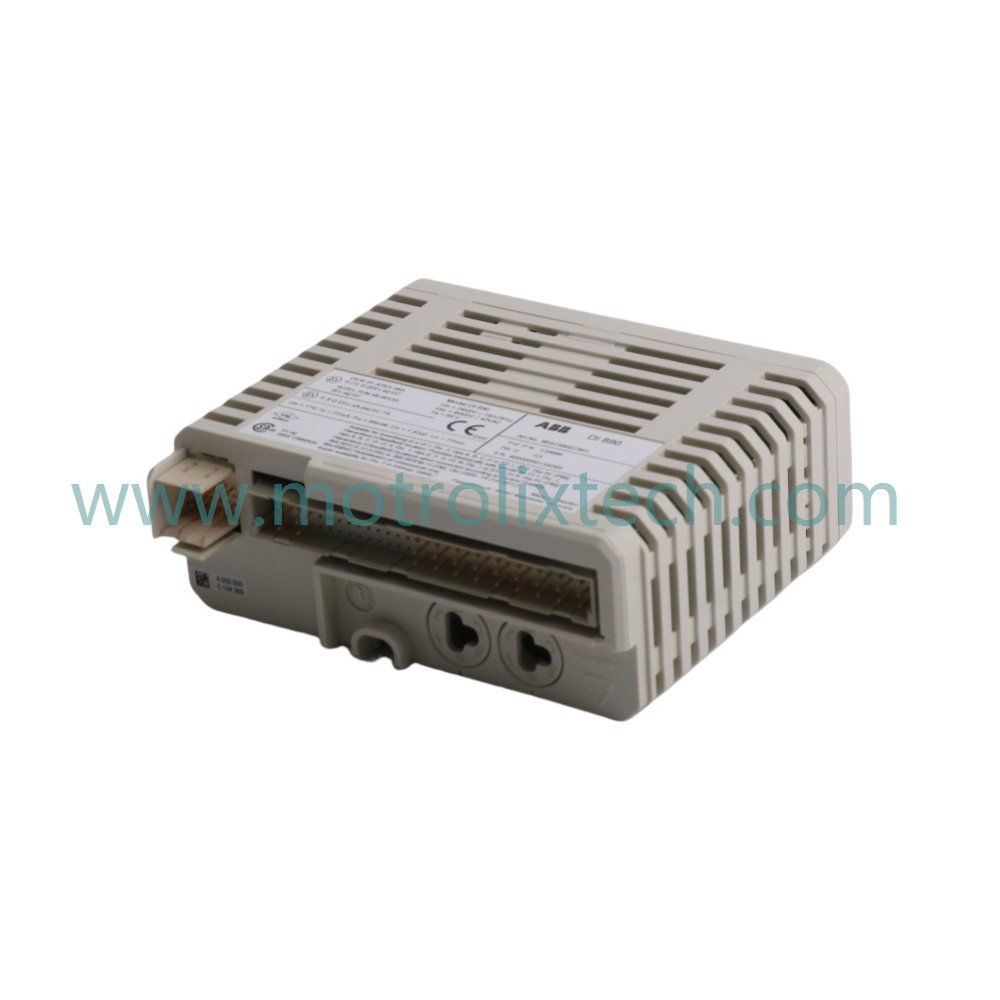

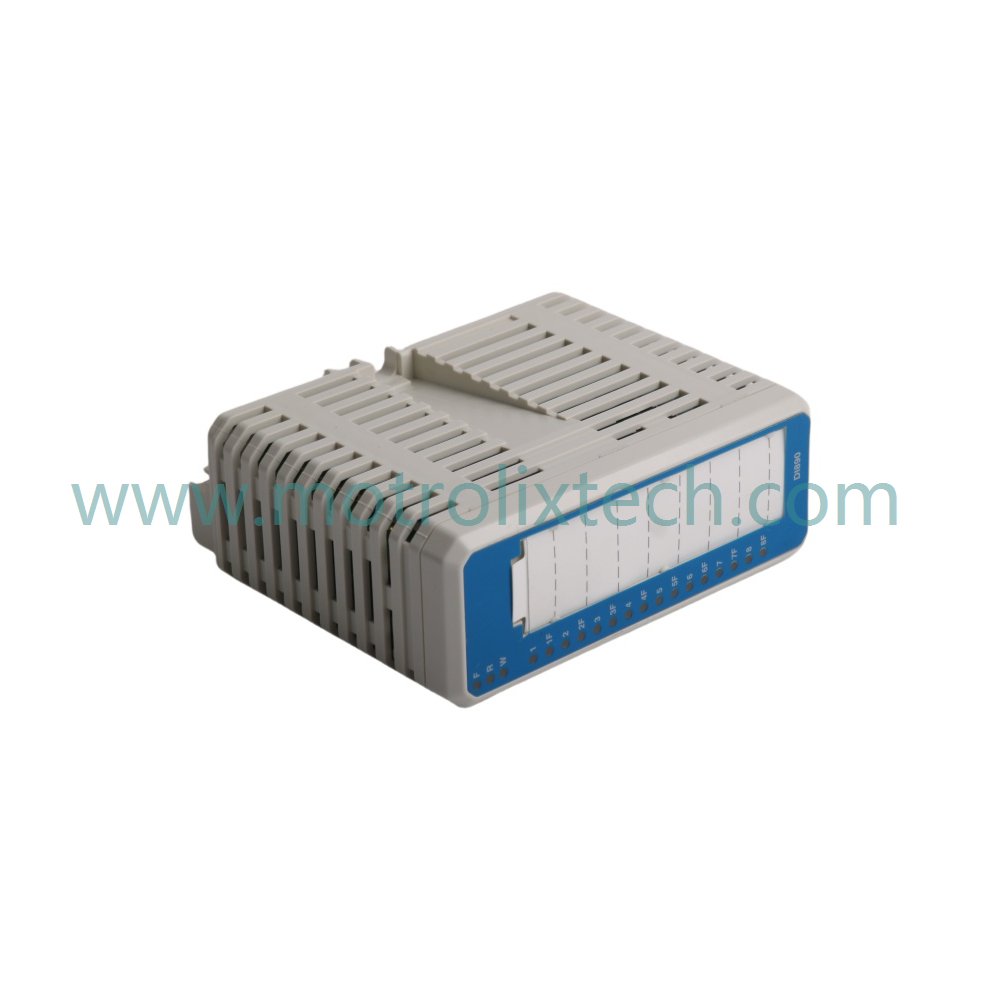

The ABB DI890 3BSC690073R1 Digital Input Module is specifically designed for hazardous area applications, providing reliable performance in demanding environments. This 8-channel digital input module features built-in intrinsic safety protection on each channel, allowing direct connections to NAMUR-compliant proximity sensors or volt-free contacts without the need for external safety barriers. Its robust design ensures optimal signal integrity and safety in explosive environments.

Functional Highlights

This module offers individual galvanic isolation between all channels, the power supply, and the ModuleBus, maximizing signal integrity and ensuring system safety. Each channel can automatically detect line faults when utilized with NAMUR sensors. For volt-free contacts, external resistors are required for fault detection.

The DI890 module is equipped with three status LEDs—red for faults, green for normal operation, and yellow for warnings—providing instant operational feedback. The power conversion from a 24V supply contributes to flexible installation options, making this module ideal for critical process automation applications.

Moreover, the DI890 works seamlessly with TU890 (Ex) and TU891 (non-Ex) Compact MTUs, enabling direct two-wire connections to field devices without additional terminals. This integration simplifies wiring and upholds the module's high safety standards, essential for industries such as oil and gas, chemical, and pharmaceuticals.

Technical Data

• Model Number: DI890 3BSC690073R1
• Module Type: Digital Input Module
• Manufacturer: ABB
• Condition: Brand New
• Weight: 0.2 kg
• Dimensions: 4.4 x 12.1 x 10.8 cm
• HS CODE: 8537101190
• Product Origin: Sweden
• System Type: S800 I/O
• Status: Active
• Number of Inputs: 8 Channels
• Operating Temperature Range: -20°C to +55°C
• Signal Processing: Intrinsic safety for hazardous areas

Typical Applications

The ABB DI890 Digital Input Module is ideal for:

• Hazardous area applications that require reliable digital input processing
• Automation systems in oil & gas and chemical processing industries
• Pharmaceutical equipment requiring accurate event logging and monitoring
• Systems where safety and performance standards are critical

FAQ

1. What is the weight of the DI890 Digital Input Module?
   The module weighs 0.2 kg.

2. What are the dimensions of the DI890?
   Its dimensions are 4.4 x 12.1 x 10.8 cm.

3. How many channels does the DI890 support?
   The DI890 supports 8 digital input channels.

4. What is the operating temperature range for the DI890?
   The operating temperature range is -20°C to +55°C.

5. Is the DI890 suitable for hazardous environments?
   Yes, it features built-in intrinsic safety protection for hazardous area applications.
