Overview

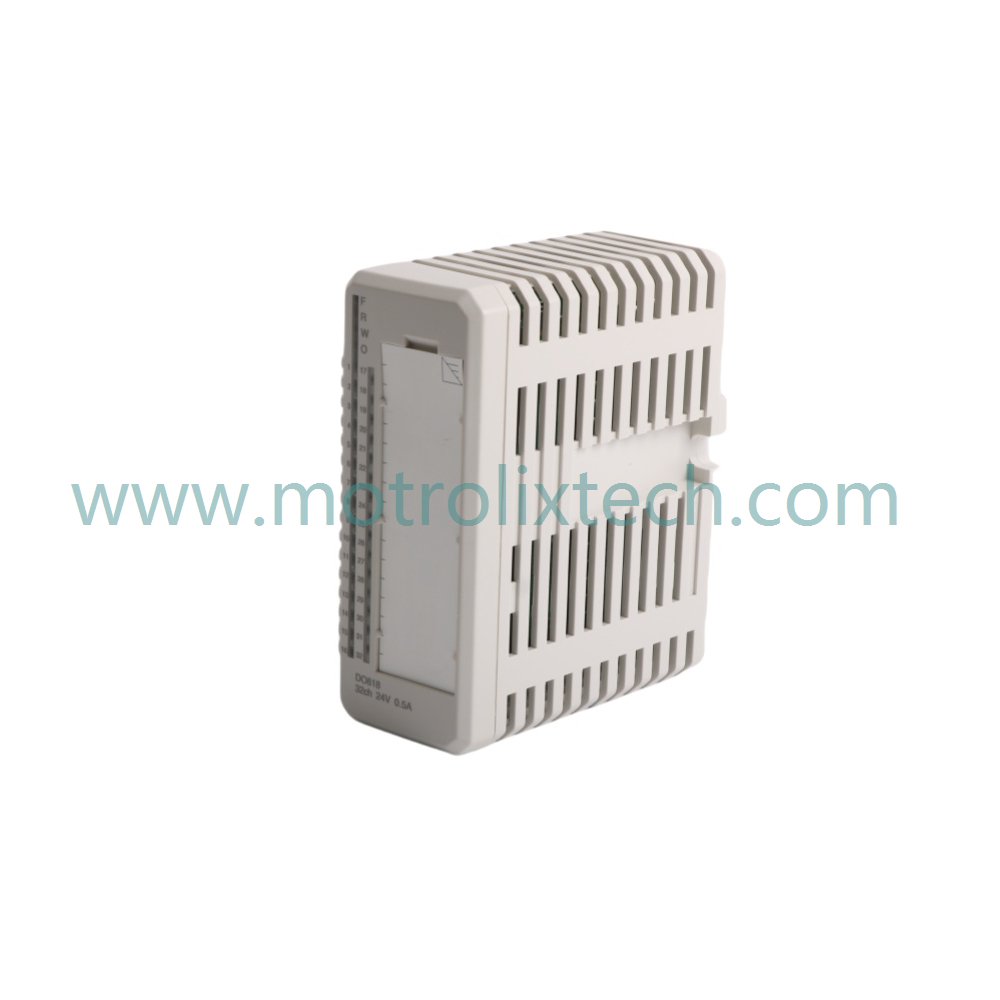

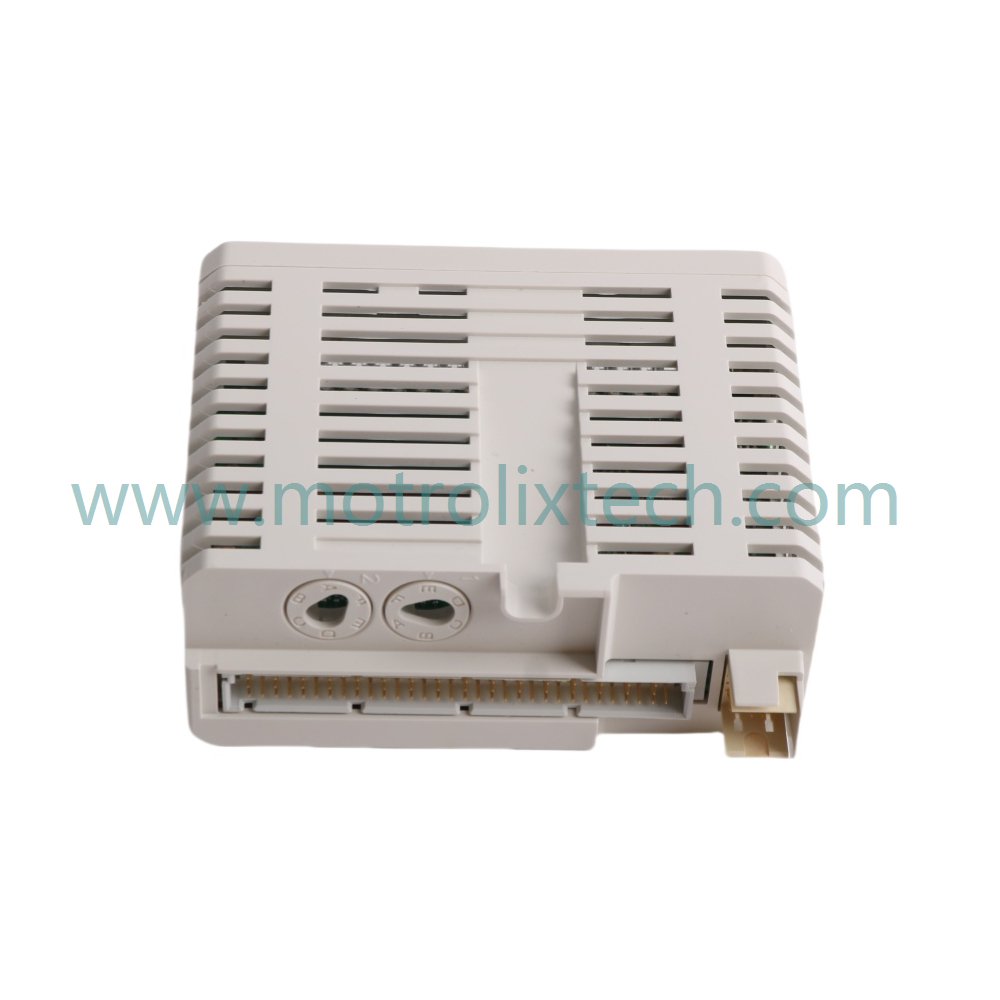

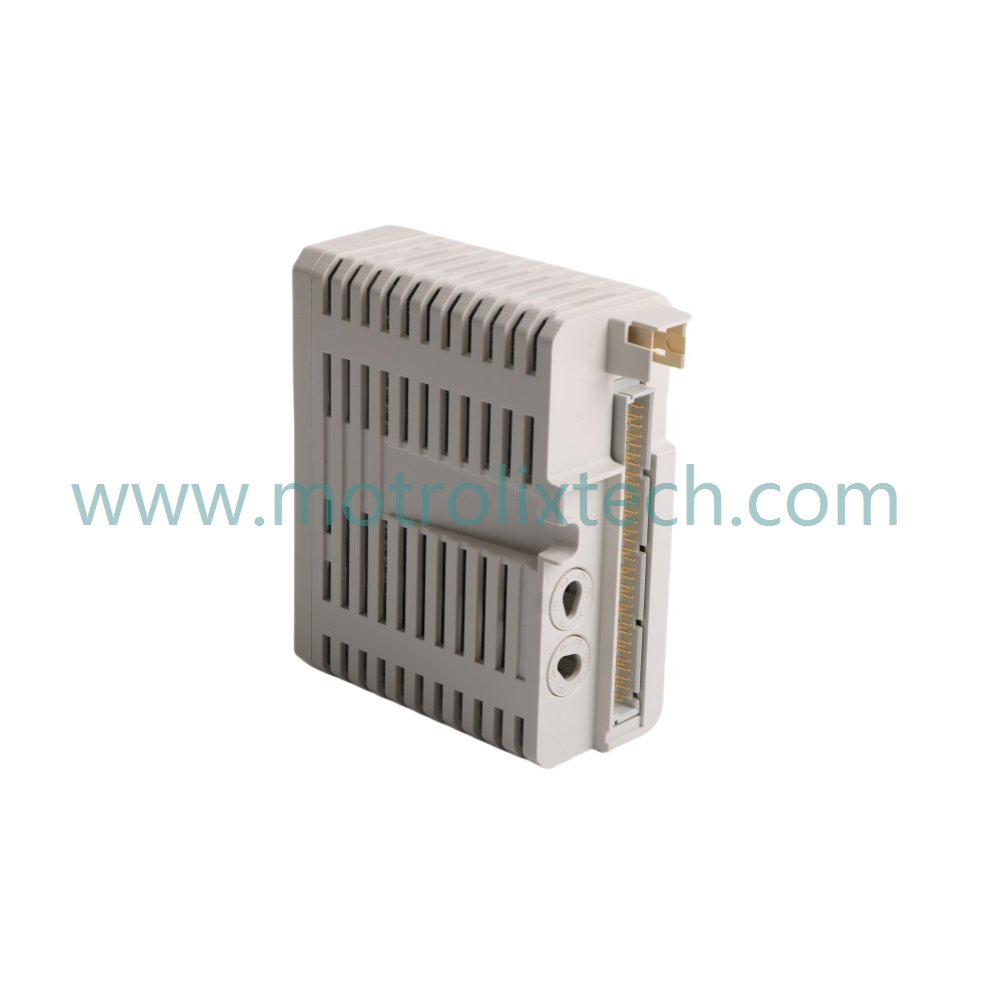

The ABB DO818 3BSE069053R1 Digital Output Module is a high-density 32-channel output solution designed for ABB's AC 800M control systems. This advanced module offers two isolated groups, each containing 16 channels with independent process voltage supervision. With a voltage range of 12-32V DC and delivering a continuous current of 0.5A per channel, the DO818 is ideal for driving relays, valves, and indicators in industrial automation applications.

Functional Highlights

Engineers appreciate the robust isolation architecture of the DO818, which prevents ground loops and enhances signal integrity in electrically noisy environments. Additionally, each channel group includes dedicated voltage monitoring inputs that enable real-time diagnostics of power supply health. The module boasts a fast switching speed of 1ms, ensuring precise output timing for time-critical control applications.

Moreover, the DO818 simplifies system integration thanks to its hot-swappable design and LED status indicators for each channel. These features facilitate quick troubleshooting and maintenance without disrupting ongoing processes. The module operates reliably across a wide temperature range and complies with major EMC standards, making it a dependable solution for various industrial environments.

For demanding applications in power generation, oil & gas, and manufacturing, the ABB DO818 3BSE069053R1 Digital Output Module provides unmatched channel density and reliability. Its combination of advanced isolation, comprehensive diagnostics, and fast response makes it particularly suitable for safety systems and distributed I/O architectures that require high-performance digital outputs.

Technical Data

• Model Number: DO818 3BSE069053R1
• Module Type: Digital Output Module
• Manufacturer: ABB
• Condition: Brand New
• Weight: 0.16 kg
• Dimensions: 4.3 x 11 x 11.8 cm
• HS CODE: 8537101190
• Product Origin: Sweden
• System Type: S800 I/O
• Status: Active
• Number of Channels: 32 Outputs
• Output Voltage Range: 12-32V DC
• Output Current: 0.5A continuous per channel
• Isolation: Two isolated groups, RIV50V rated
• Switching Speed: 1ms

Typical Applications

The ABB DO818 Digital Output Module is suitable for:

• Industrial automation systems in power generation and oil & gas sectors
• Applications requiring stringent safety measures and reliability
• Systems needing precise control of relays, valves, and indicators
• Environments with challenging electrical and environmental conditions

FAQ

1. What is the weight of the DO818 Digital Output Module?
   The module weighs 0.16 kg.

2. What are the dimensions of the DO818?
   Its dimensions are 4.3 x 11 x 11.8 cm.

3. How many output channels does the DO818 have?
   The DO818 features 32 output channels.

4. What is the maximum output current per channel?
   Each channel can deliver a continuous current of 0.5A.

5. What is the output voltage range for the DO818?
   The output voltage range is 12-32V DC.
