Overview

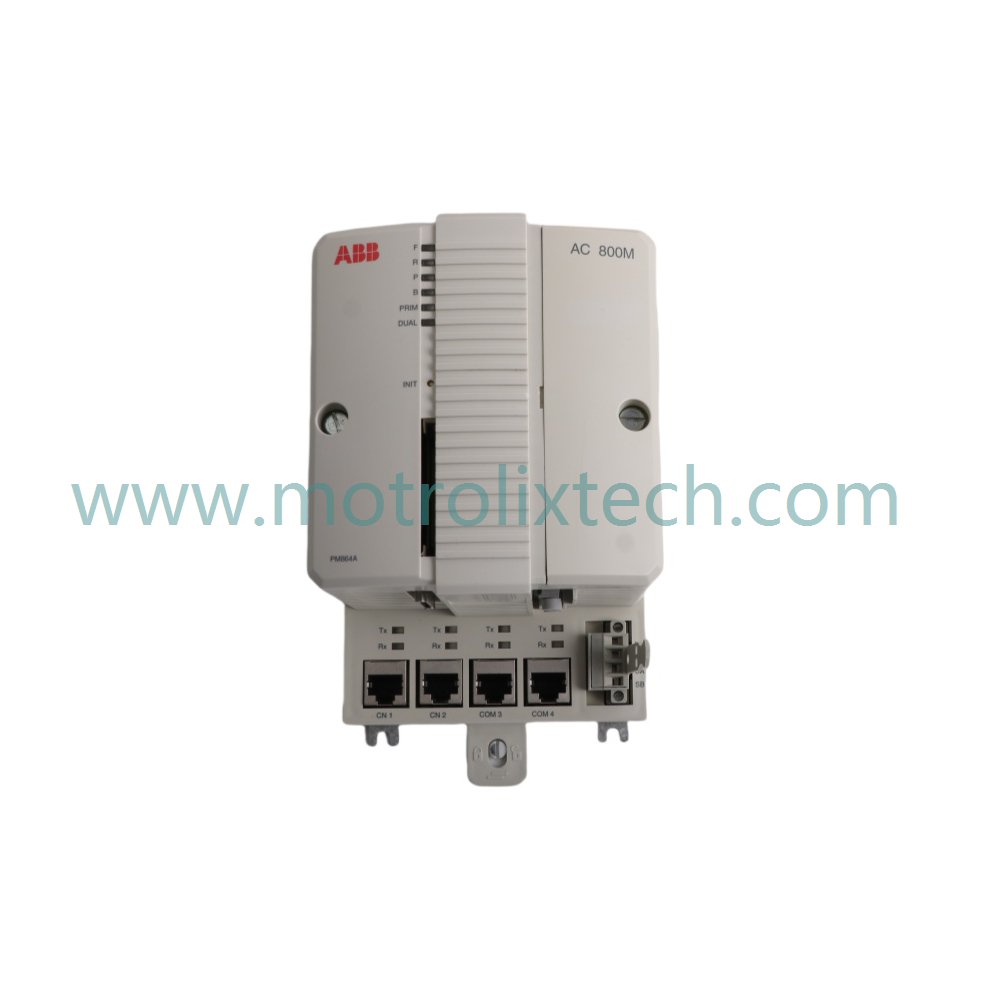

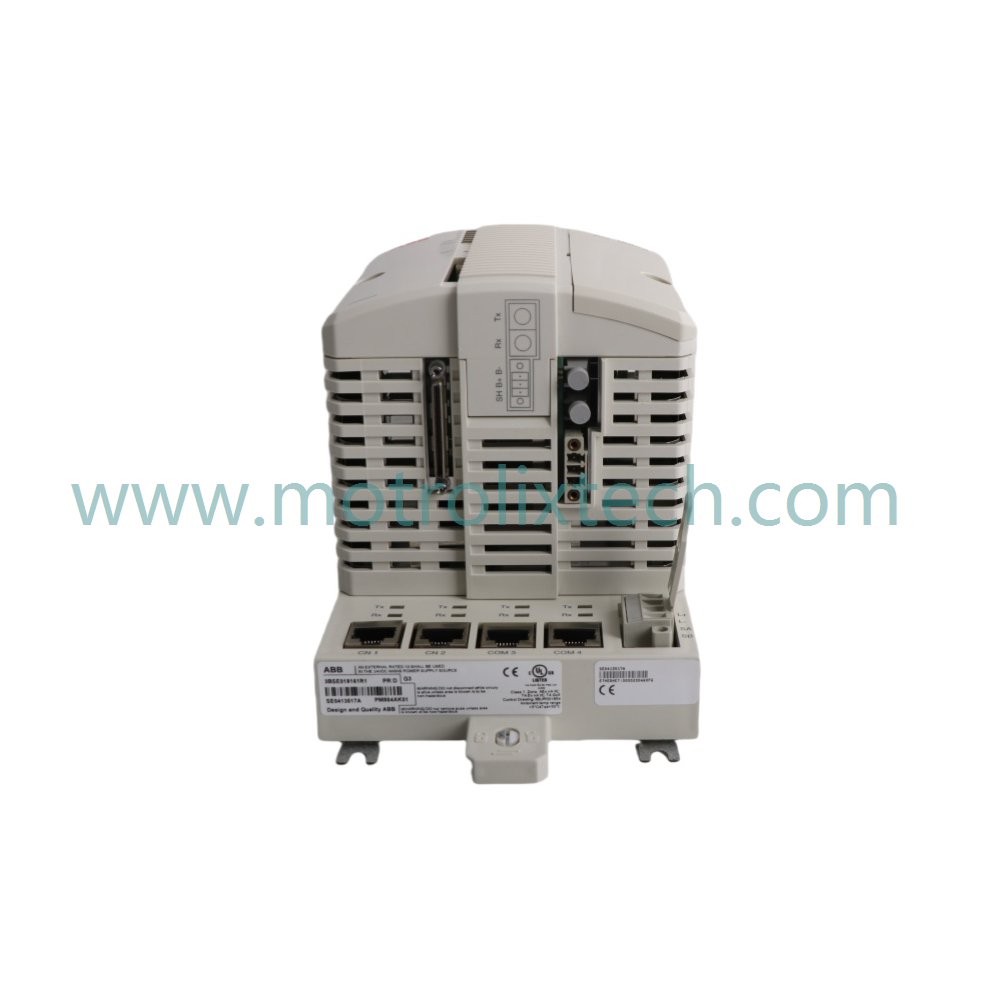

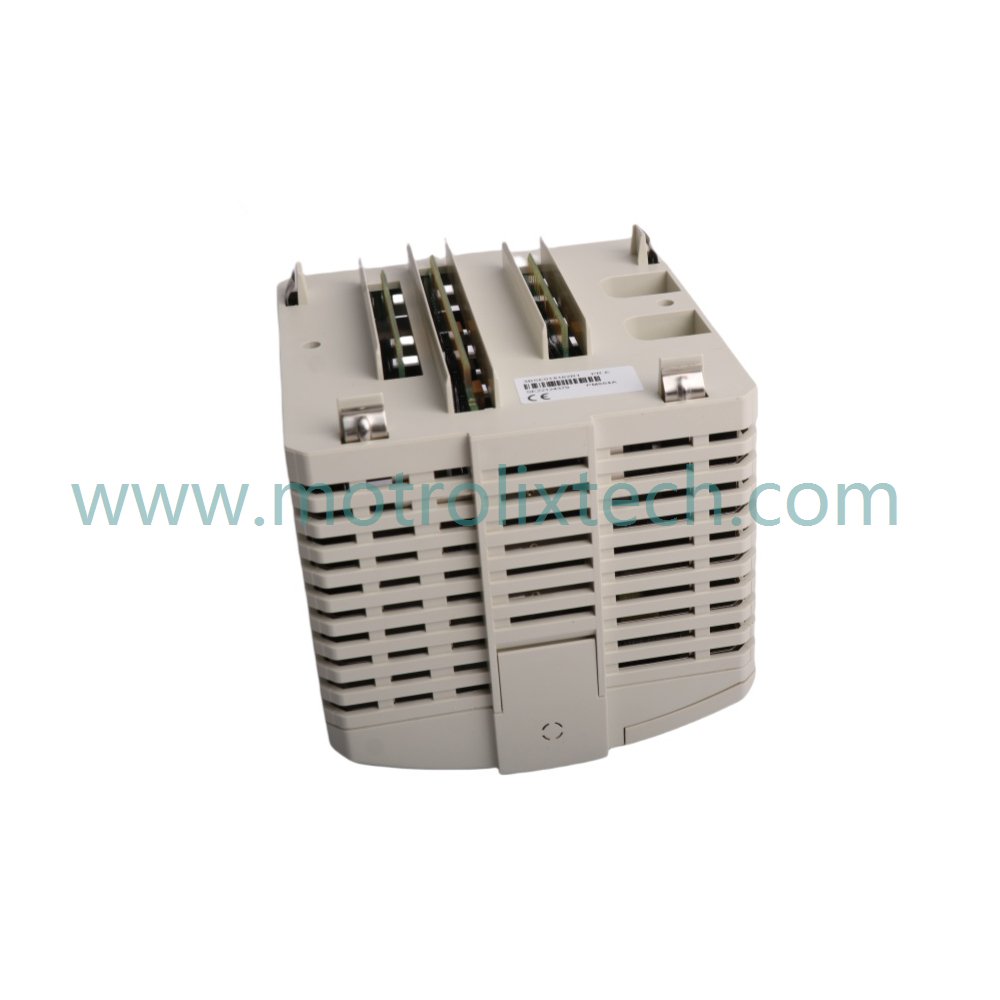

The ABB PM864 3BSE018151R1 Processor Unit is a high-performance processor module designed for precise control and monitoring in a variety of industrial automation and manufacturing applications. This central unit, part of ABB's AC 800M family, ensures exceptional performance and stable operation even in demanding environments.

Functional Highlights

Powered by a dual-core 1.2 GHz CPU and equipped with 4 GB of flash storage, the PM864 handles complex control tasks effortlessly. It supports high-speed Ethernet communication through two 10/100/1000 Mbps ports, making it ideal for data-intensive systems. Moreover, the processor operates at 24 V DC, with a typical power consumption of just 15 W, allowing for a perfect balance between efficiency and capability.

Built to withstand harsh conditions, the PM864 has an operating temperature range of 0°C to +60°C and can handle storage capabilities down to -40°C. Its robust design can endure humidity levels of 5–95% RH non-condensing, ensuring reliable performance across diverse environments. Furthermore, it is certified to meet stringent international standards, providing a trusted solution for critical process control.

Compact yet durable, the PM864 measures only 19 × 13.8 × 13.5 cm and weighs 1 kg, facilitating straightforward installation in tight panel spaces. Manufactured in Sweden and shipped from Xiamen, China, this versatile processor module integrates seamlessly into ABB’s control architecture, ensuring consistent, high-quality operation in modern automation systems.

Technical Data

• Model Number: PM864 3BSE018151R1
• Module Type: Processor Unit
• Manufacturer: ABB
• Condition: Brand New
• Weight: 1 kg
• Dimensions: 19 x 13.8 x 13.5 cm
• HS CODE: 8537101190
• Product Origin: Sweden
• Range of Product: ABB AC 800M
• System Type: DCS
• Processor: Dual-core 1.2 GHz CPU
• Flash Storage: 4 GB
• Communication Ports: 2 x 10/100/1000 Mbps Ethernet
• Operating Voltage: 24 V DC
• Power Consumption: 15 W
• Operating Temperature Range: 0°C to +60°C
• Storage Temperature Range: Down to -40°C
• Humidity Tolerance: 5–95% RH non-condensing

Typical Applications

The ABB PM864 Processor Unit is suitable for:

• Industrial automation systems requiring high reliability and performance.
• Manufacturing processes that demand precise control and monitoring.
• Environments with stringent requirements for temperature and humidity.

FAQ

1. What is the weight of the PM864 Processor Unit?
   The PM864 weighs 1 kg.

2. What are the dimensions of the PM864?
   Its dimensions are 19 x 13.8 x 13.5 cm.

3. What is the power consumption of the PM864?
   It has a typical power consumption of 15 W.

4. What is the operating temperature range for the PM864?
   The operating temperature range is 0°C to +60°C.

5. Is the PM864 suitable for harsh environments?
   Yes, it is designed to withstand humidity levels of 5–95% RH and extreme temperatures.
