Overview

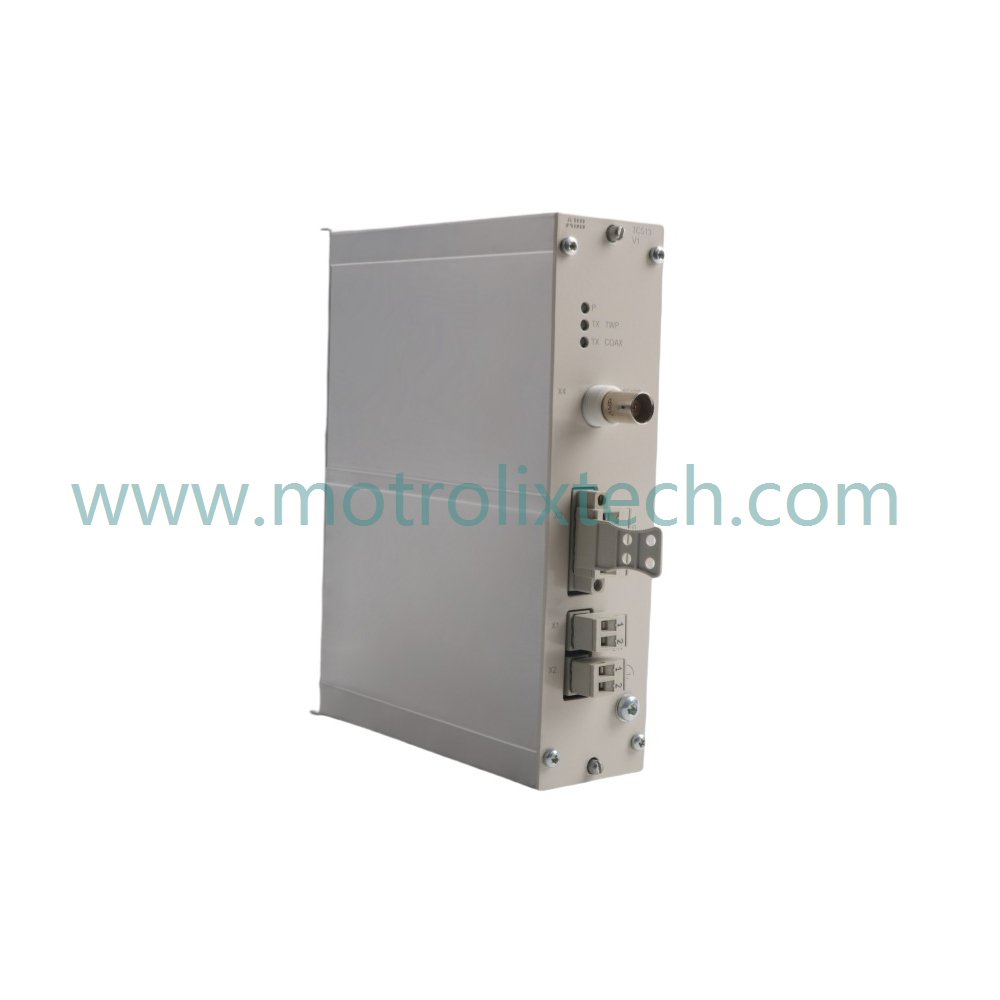

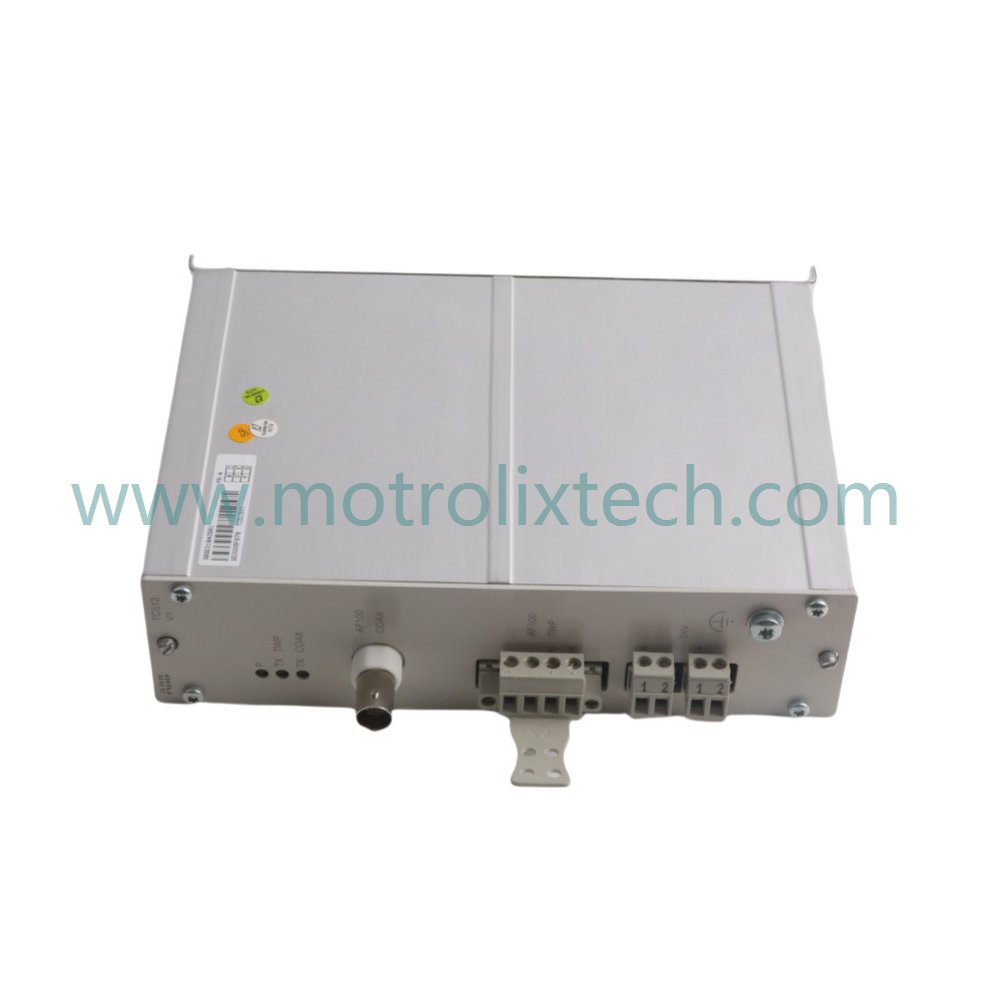

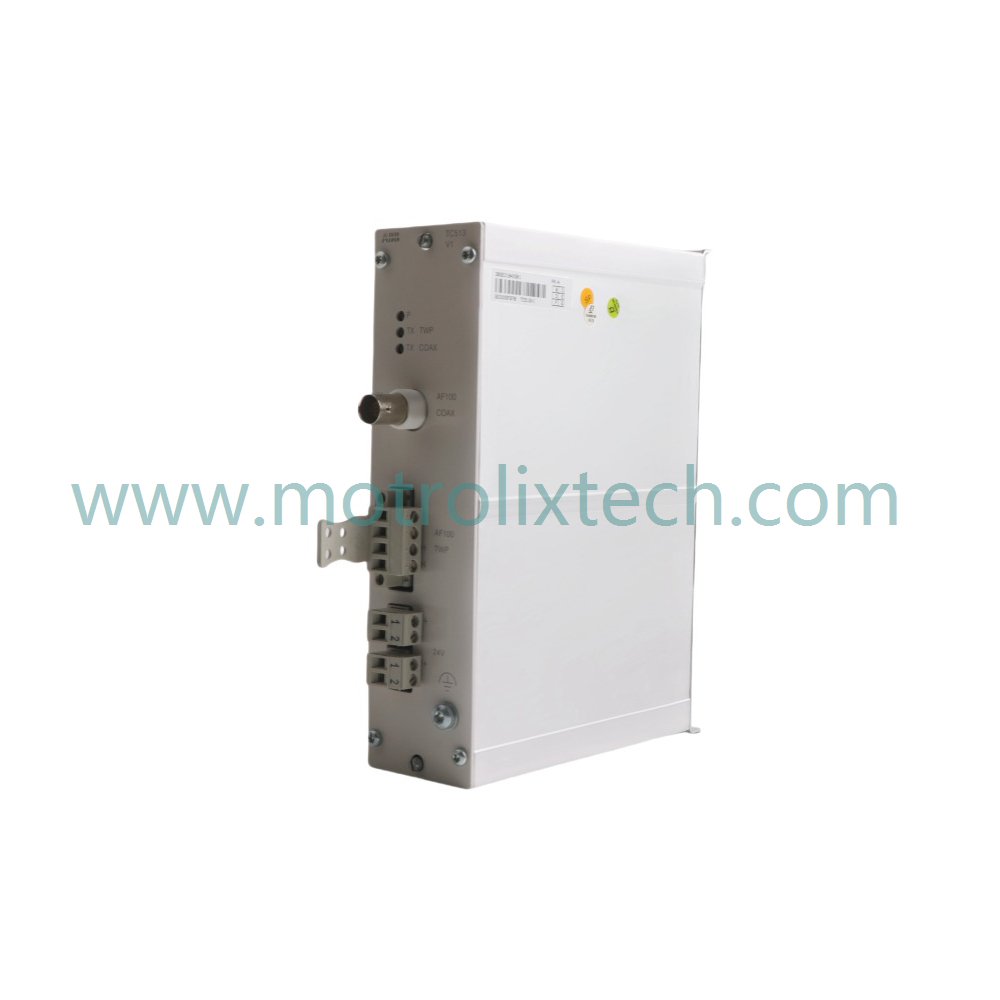

The ABB TC513V1 3BSE018405R1 AF100 Twisted Pair Coax Modem is an advanced communication device designed for industrial environments. This versatile modem supports both twisted pair and coaxial (75 Ω) cables, allowing flexible integration into a variety of automation systems. Equipped with a 24V DC power supply and a rated isolation of 50V, the TC513V1 ensures reliable data transmission even in electrically noisy conditions.

Functional Highlights

Engineered for robustness, the TC513V1 modem promises high-speed communication with a data rate of up to 1.5 Mbps. It supports twisted pair cable runs extending up to 500 meters, significantly reducing signal degradation in large-scale industrial plants.

Additionally, the low power consumption (less than 5 W) combined with compliance to the RoHS Directive 2011/65/EU demonstrates its energy efficiency and environmental safety. The ABB TC513V1 is built to withstand harsh industrial conditions, featuring galvanic isolation and EMC protection for optimal reliability.

Moreover, the plug-and-play design simplifies installation in ABB’s Advant Controller 800M systems, minimizing downtime during maintenance or upgrades. As a pivotal element of Industry 4.0 infrastructure, the TC513V1 bridges legacy and modern fieldbus systems, ensuring seamless communication.

Technical Data

• Model Number: TC513V1 3BSE018405R1
• Module Type: Coaxial Modem
• Manufacturer: ABB
• Condition: Brand New
• Weight: 0.72 kg
• Dimensions: 4.4 x 15 x 17.6 cm
• HS CODE: 8537101190
• Product Origin: Sweden
• Lead Time: In Stock
• Minimum Order Quantity (MOQ): 1
• Power Supply: 24V DC
• Data Rate: Up to 1.5 Mbps
• Cable Support: Twisted pair and coaxial (75 Ω)
• Isolation Voltage: 50V
• Distance Support for Twisted Pair: Up to 500 meters
• Power Consumption: < 5 W
• Temperature Range: -25°C to +70°C

Typical Applications

The ABB TC513V1 AF100 Twisted Pair Coax Modem is suitable for:

• Modern industrial communication networks that require reliable data transmission.
• Applications in process automation, power generation, and other critical infrastructure.
• Integration into existing structures while supporting high-speed communication.

FAQ

1. What is the weight of the TC513V1 modem?
   The TC513V1 weighs 0.72 kg.

2. What are the dimensions of the TC513V1?
   Its dimensions are 4.4 x 15 x 17.6 cm.

3. What is the maximum data rate supported by the TC513V1?
   The modem supports data rates of up to 1.5 Mbps.

4. How far can the twisted pair cable run with the TC513V1?
   It supports twisted pair cable runs up to 500 meters.

5. What power supply does the TC513V1 require?
   The modem operates on a 24V DC power supply.
