Overview

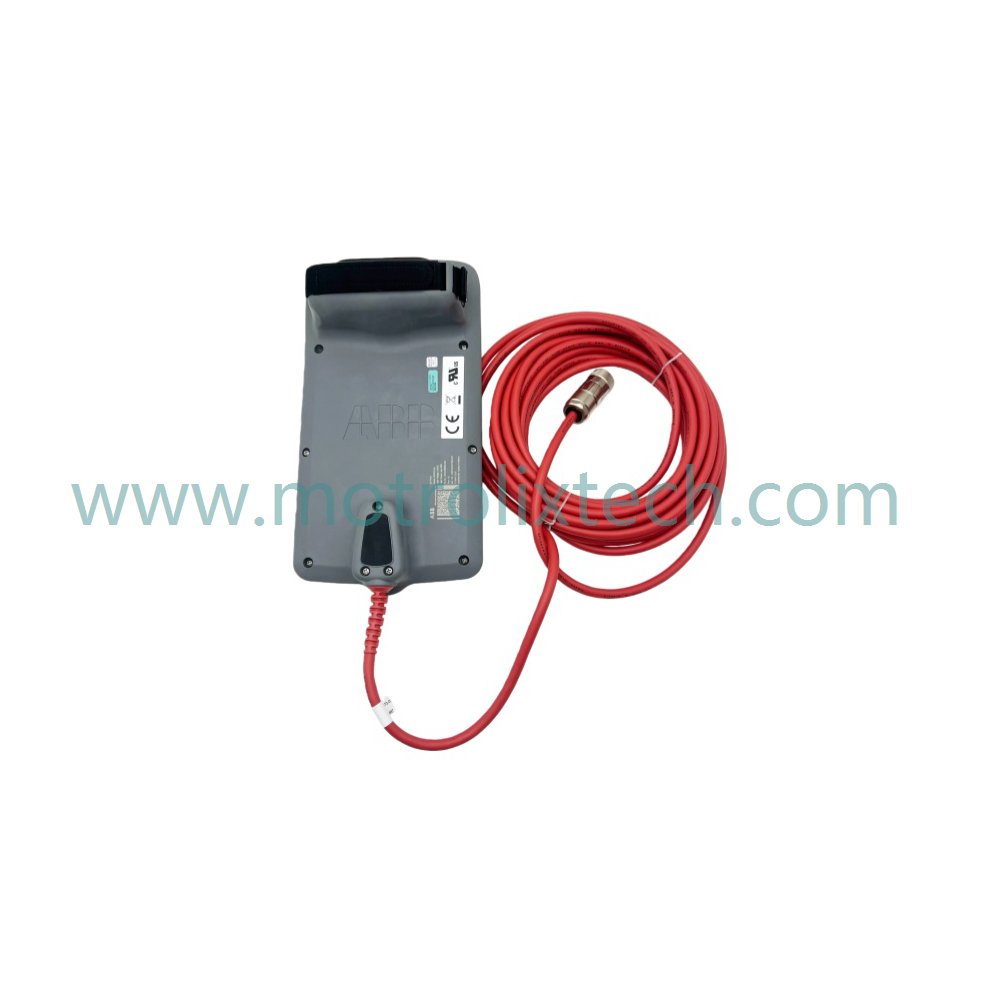

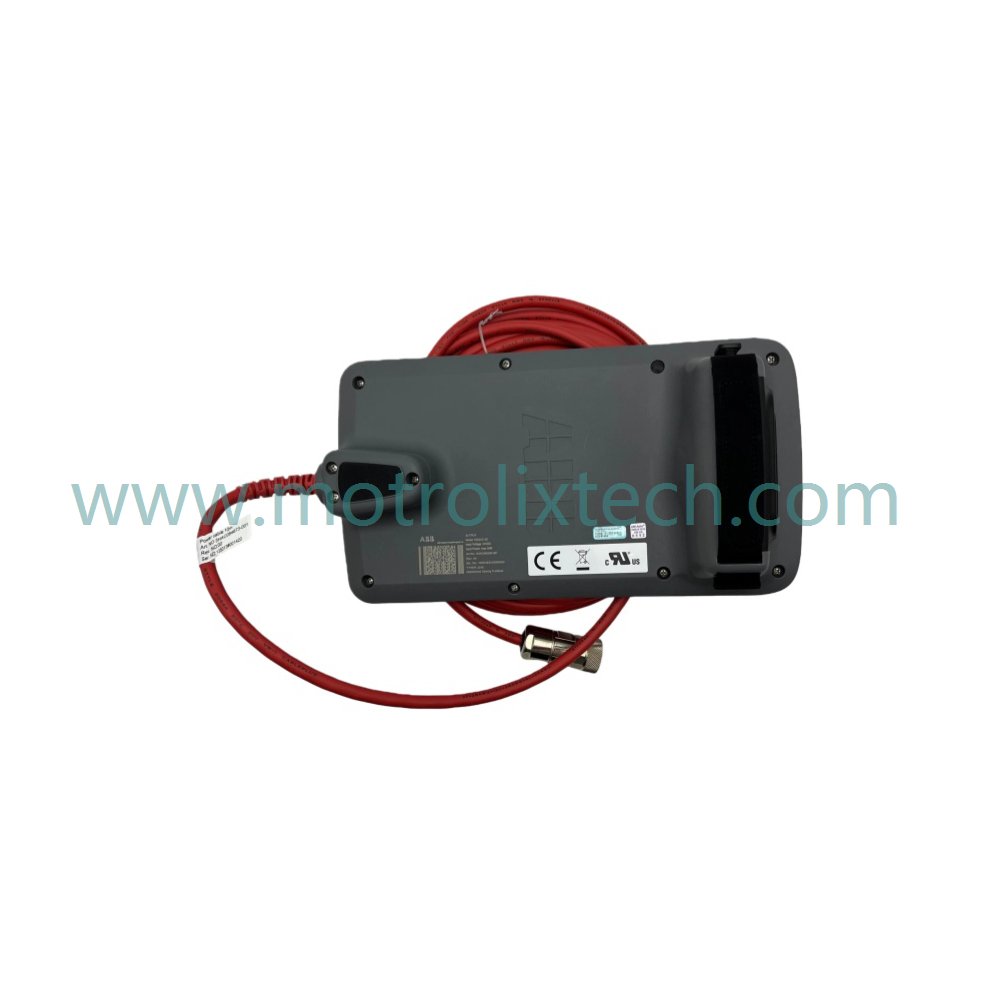

The ABB 3HAC085590-001 DSQC3120 Robotics Teach Pendant with 10m Cable, also known as the SxTPU4 FlexPendant, serves as an essential human-machine interface for ABB's IRC6 robotic controllers. Designed in Sweden, this teach pendant features ergonomic controls, including a keypad, knob, and joystick, facilitating precise programming and operation of industrial robots. Weighing only 0.4 kg and boasting compact dimensions, the DSQC3120 offers comfort and ease during extended operation periods.

Functional Highlights

This teach pendant operates with a 24V DC power supply and features minimal power consumption of ≤9W. Moreover, it incorporates advanced processing capabilities with 512 MB of DDR3-800 system memory and 4 GB of e-MMC flash storage, ensuring efficient execution of complex robotic programming tasks.

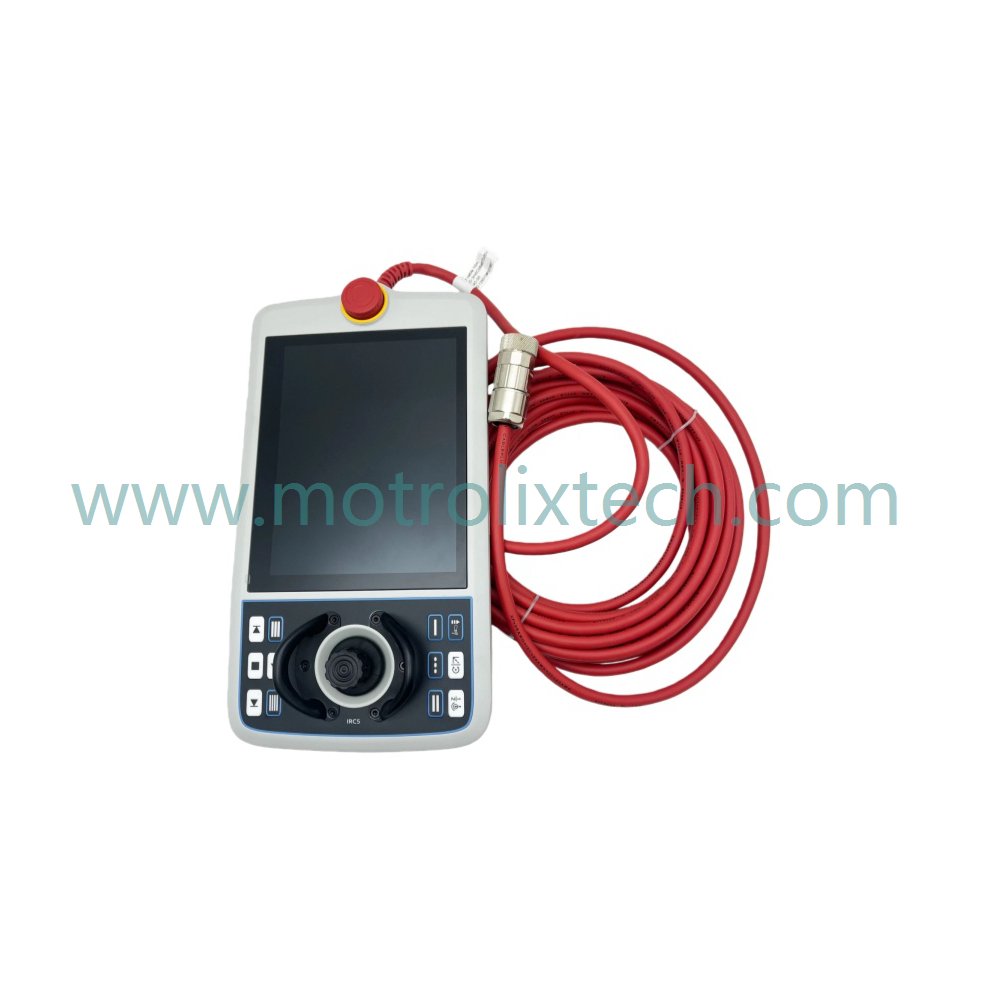

The high-resolution color touchscreen display provides clear visualization of real-time system data, operation modes, and diagnostics. It features intuitive drag-and-drop programming and customizable soft keys, allowing users to tailor the interface to specific applications. This flexibility makes it suitable for various working conditions, thereby enhancing overall productivity.

Additionally, the 3HAC085590-001 DSQC3120 enables precise trajectory teaching, parameter adjustment, and system monitoring. Its robust construction and advanced functionality enhance efficiency and precision for diverse tasks, from simple pick-and-place operations to intricate assembly processes.

Technical Data

• Model Number: 3HAC085590-001 DSQC3120
• Module Type: Robotics Teach Pendant with 10m Cable
• Manufacturer: ABB
• Condition: Brand New
• Weight: 1.22 kg
• Dimensions: 24 x 19 x 5.3 cm
• HS CODE: 8537101190
• Product Origin: Sweden
• System Type: DCS
• Status: Active
• Minimum Order Quantity: 1

Typical Applications

The ABB 3HAC085590-001 DSQC3120 Robotics Teach Pendant is suitable for:

• Robot programming and operation in manufacturing facilities
• Teaching and adjusting robotic trajectories for diverse applications
• Performing diagnostic checks and monitoring system health
• Enhancing user interaction with robotic systems through an intuitive interface

FAQ

1. What is the weight of the 3HAC085590-001 DSQC3120 teach pendant?
   The teach pendant weighs 1.22 kg.

2. What are the dimensions of the robotics teach pendant?
   Its dimensions are 24 x 19 x 5.3 cm.

3. How long is the cable of the teach pendant?
   The teach pendant comes with a 10m cable.

4. What type of power supply does the DSQC3120 use?
   It operates with a 24V DC power supply.

5. What programming features does the DSQC3120 offer?
   It features intuitive drag-and-drop programming and customizable soft keys.
