Overview

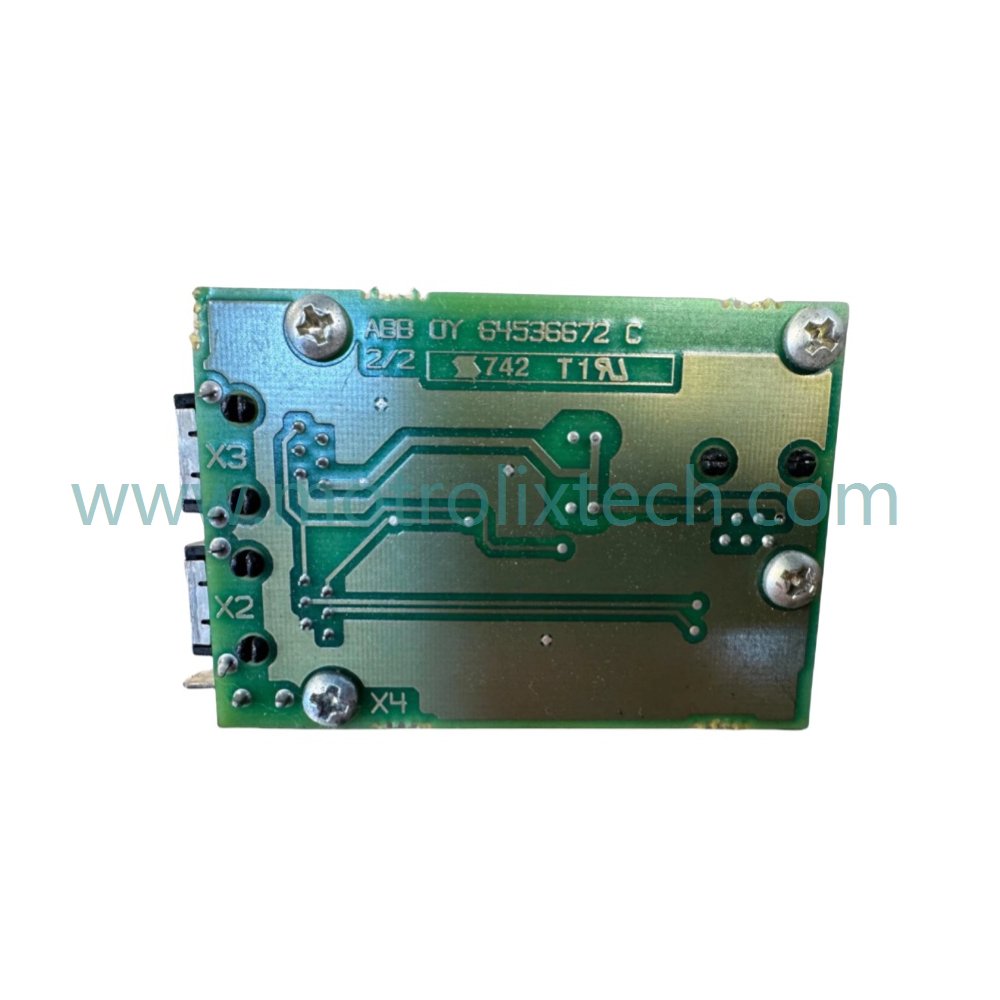

The ABB ADPI-01 Panel Interface is a robust and high-performance panel interface module designed for seamless integration in demanding industrial environments. Manufactured in Sweden, this unit plays a crucial role in process automation applications across various sectors, including power generation, oil and gas, chemical processing, and advanced manufacturing systems. Its compact form factor and solid construction make the ADPI-01 a dependable solution for modern control architectures.

Functional Highlights

Engineered for efficiency, the ADPI-01 operates on a 24V DC power supply with a typical power consumption of just 15W, promoting energy efficiency during continuous operations. It accommodates an input voltage range of 18 to 30V DC (±10%), which provides flexibility for diverse installations.

Moreover, the interface module features electrical isolation of 500V AC between ports and power, ensuring enhanced safety and long-lasting reliability, even under harsh conditions. The ADPI-01 can function reliably within an operating temperature range of 0°C to +60°C (32°F to 140°F) and tolerates relative humidity levels from 5% to 95% non-condensing.

With dimensions of approximately 2 x 25 x 24.5 cm and a lightweight design of 0.34 kg, this panel interface is easy to install in tight control cabinets while maintaining excellent accessibility for maintenance tasks.

The ADPI-01 provides a high-quality interface solution for industrial control panels. Its stable communication capabilities and robust signal handling ensure it meets the rigorous demands of today's automation landscapes, whether combined with the DeltaV™ distributed control system or integrated into standalone applications.

Technical Data

• Model Number: ADPI-01
• Module Type: Panel Interface
• Manufacturer: ABB
• Condition: Brand New
• Weight: 0.34 kg
• Dimensions: 2 x 25 x 24.5 cm
• HS CODE: 8537101190
• Product Origin: Sweden
• System Type: DCS
• Status: Active
• Power Supply Voltage: 24V DC (input range 18 to 30V DC)
• Power Consumption: 15W
• Electrical Isolation: 500V AC between ports and power
• Operating Temperature: 0°C to +60°C (32°F to 140°F)
• Humidity Tolerance: 5% to 95%, non-condensing

Typical Applications

The ABB ADPI-01 Panel Interface is ideal for various applications, including:

• Integration into control panels in power generation facilities
• Implementation in oil and gas processing systems
• Use in chemical processing plants for enhanced control and monitoring
• Support for advanced manufacturing systems that require reliable communication and signaling

FAQ

1. What is the weight of the ADPI-01 Panel Interface?
   The panel interface weighs 0.34 kg.

2. What are the dimensions of this panel interface module?
   Its dimensions are 2 x 25 x 24.5 cm.

3. What is the power supply requirement for the ADPI-01?
   It operates on a 24V DC power supply with an input voltage range of 18 to 30V DC.

4. What is the typical power consumption of this interface module?
   The typical power consumption is 15W.

5. What temperature range can the ADPI-01 operate in?
   It operates reliably from 0°C to +60°C.
