Overview

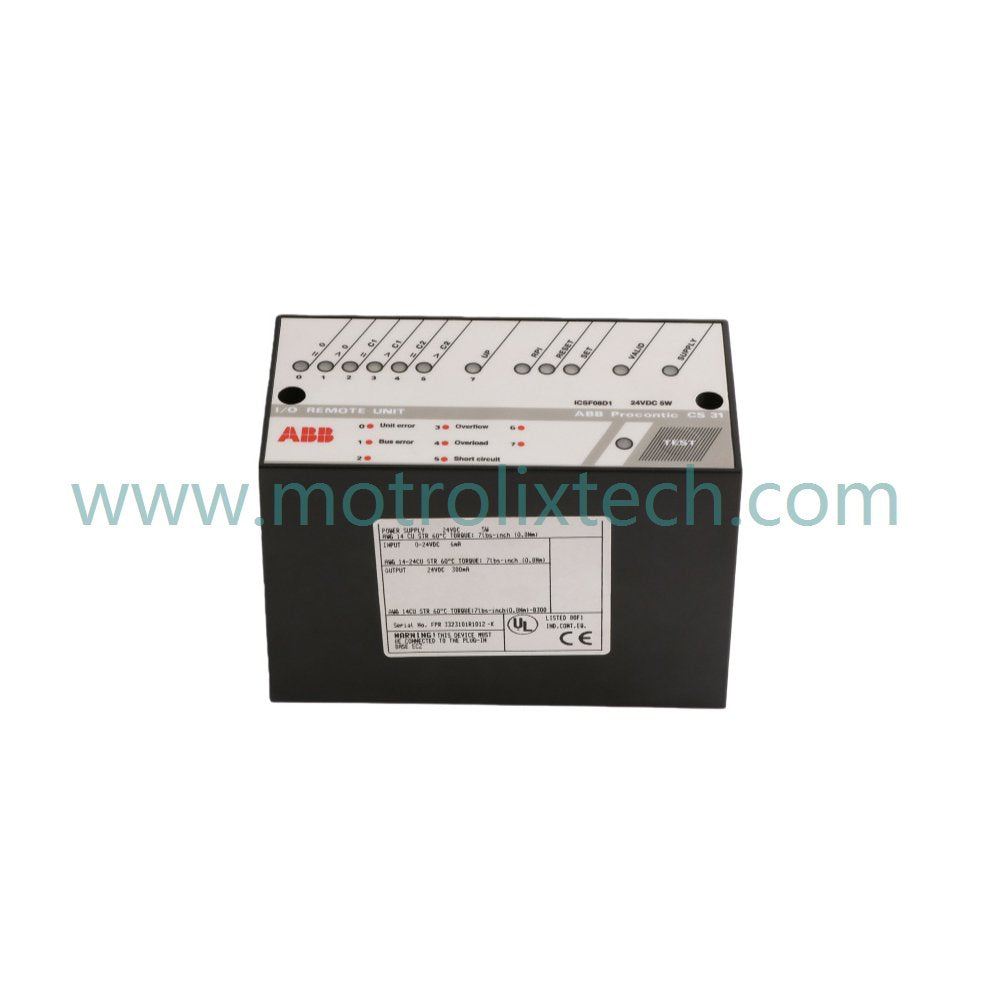

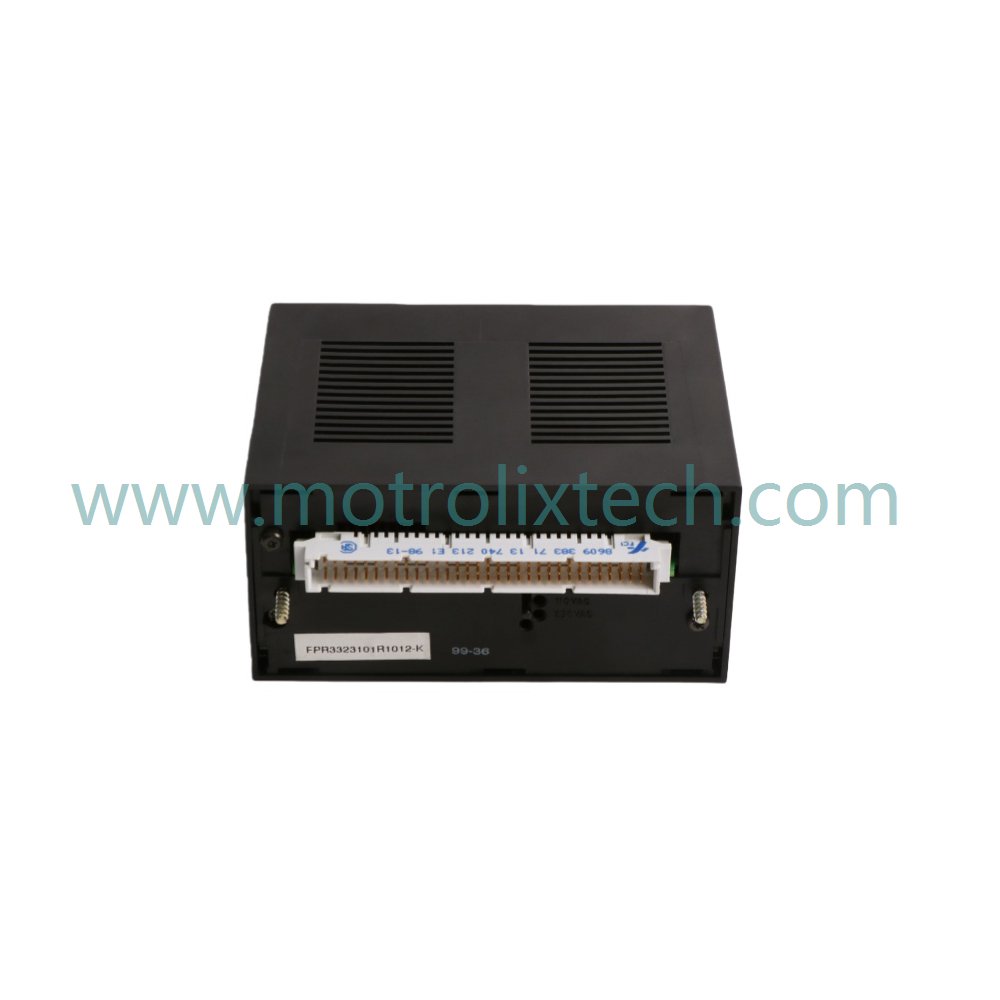

The ABB ICSF08D1 FPR3323101R1012 24 Vdc High Speed Counter is a specialized module designed for precise industrial automation applications. It operates on a 24V DC power supply and boasts a fast response time of less than or equal to 1 ms, making it ideal for monitoring and counting rapid digital pulses from sensors and encoders.

Functional Highlights

Engineered with a 16-bit resolution and an impressive accuracy of ±0.2% of full scale, the ICSF08D1 FPR3323101R1012 provides reliable measurement capabilities for high-speed production processes. This module features a rated load of 0.5A per channel at 24V DC, allowing for direct interfacing with various industrial field devices.

Moreover, its robust construction guarantees stable operation even in challenging conditions characterized by electrical noise and vibration. The design of the module focuses on seamless integration into existing ABB control systems, enabling efficient data processing and real-time monitoring. This capability enhances system functionalities for tasks such as rotational speed measurement, position tracking, and production counting.

The high-speed processing characteristics of the ICSF08D1 FPR3323101R1012 make it particularly valuable for applications in packaging, material handling, and automated assembly lines, where rapid signal processing is crucial.

Technical Data

• Model Number: ICSF08D1 FPR3323101R1012
• Module Type: 24 Vdc High Speed Counter
• Manufacturer: ABB
• Condition: Brand New
• Weight: 1.22 kg
• Dimensions: 24 x 19 x 5.3 cm
• HS CODE: 8537101190
• Product Origin: Sweden
• Power Supply: 24V DC
• Response Time: ≤ 1 ms
• Resolution: 16-bit
• Accuracy: ±0.2% of full scale
• Rated Load: 0.5A per channel
• Communication Service: Ethernet router

Typical Applications

The ABB ICSF08D1 FPR3323101R1012 24 Vdc High Speed Counter is suitable for:

• Industrial automation systems requiring accurate counting and monitoring.
• High-speed production environments where rapid pulse counting is essential.
• Applications in packaging, material handling, and automated assembly lines.
• Systems needing precise rotational speed measurement and position tracking.

FAQ

1. What is the weight of the ICSF08D1 FPR3323101R1012 High Speed Counter?
   The high-speed counter weighs 1.22 kg.

2. What are the dimensions of this module?
   Its dimensions are 24 x 19 x 5.3 cm.

3. What is the operating voltage for the ICSF08D1?
   It operates on a 24V DC power supply.

4. What is the response time of this module?
   The response time is ≤ 1 ms.

5. In what applications is this high-speed counter typically used?
   It is used in packaging, material handling, and automated assembly lines.
