Overview

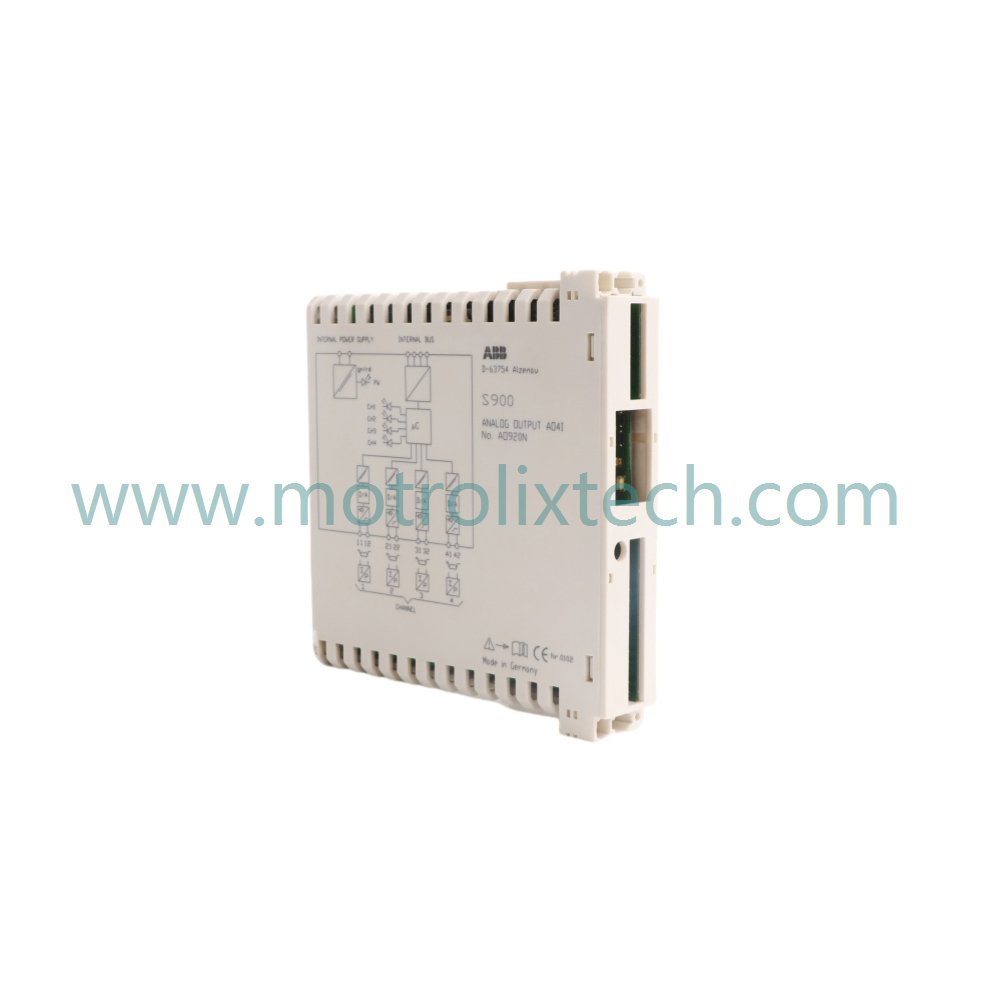

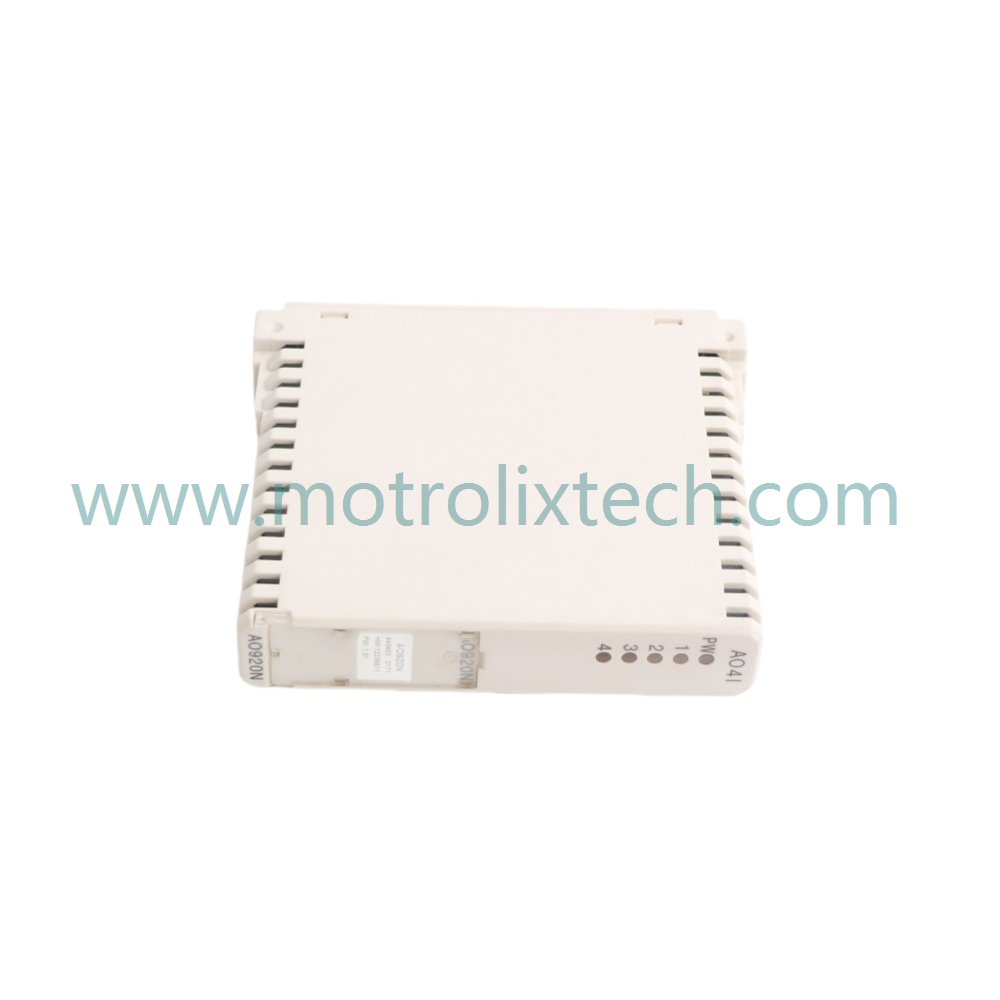

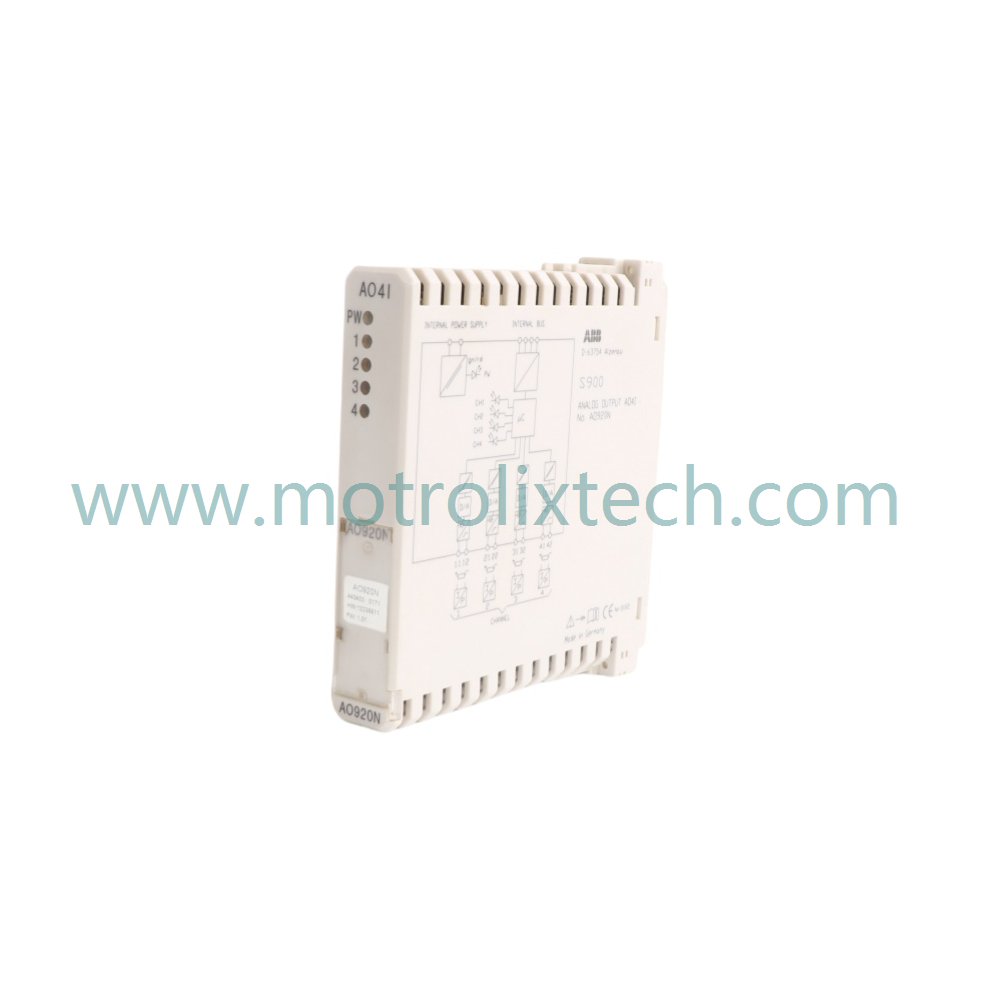

The ABB AO920N 3KDE175533L9200 Isolated Analog Output Module is designed for high-performance and reliability in industrial applications. Offering precise control, this module excels in demanding environments where robust isolation is essential. Its advanced design ensures protection against electrical interference, making it an ideal choice for sensitive systems.

Functional Highlights

This analog output module operates with a 24 V DC supply and features a 1000 V AC isolation rating, which enhances safety and durability in harsh settings. It supports a 4-20 mA current output, ensuring compatibility with a wide range of sensors and actuators, which simplifies integration into existing automation systems.

Moreover, the AO920N includes Modbus RTU communication capabilities, facilitating efficient system interfacing and improving operational efficiency. With a rapid response time of ≤ 10 ms, this module processes control signals quickly, which is crucial in dynamic environments.

The accuracy of ±1% of full scale guarantees reliable data transmission and control. Additionally, its compact design and IP20-rated enclosure provide protection against dust and water splashes, making it suitable for various industrial conditions. Operating efficiently within a temperature range of -25°C to +60°C further ensures reliability across different environmental settings.

Technical Data

• Model Number: AO920N 3KDE175533L9200
• Module Type: Isolated Analog Output Module
• Manufacturer: ABB
• Condition: Brand New
• Weight: 0.12 kg
• Dimensions: 2 x 10.5 x 11 cm
• HS CODE: 8537101190
• Product Origin: Sweden
• System Type: DCS (Distributed Control System)
• Status: Active
• Operating Voltage: 24 V DC
• Isolation Rating: 1000 V AC
• Output Type: 4-20 mA
• Communication Protocol: Modbus RTU
• Response Time: ≤ 10 ms
• Accuracy: ±1% of full scale
• Protection Rating: IP20
• Operating Temperature Range: -25°C to +60°C

Typical Applications

The ABB AO920N Analog Output Module is suitable for:

• Industrial automation systems requiring precise analog control
• Applications in process management where signal integrity is critical
• Environments needing robust electrical isolation
• Systems with a need for fast response times and reliable data transmission

FAQ

1. What is the weight of the AO920N Isolated Analog Output Module?
   The AO920N module weighs 0.12 kg.

2. What are the dimensions of this module?
   Its dimensions are 2 x 10.5 x 11 cm.

3. What type of output does the AO920N support?
   It supports a 4-20 mA current output.

4. What communication protocol does the AO920N use?
   The module uses Modbus RTU for communication.

5. What is the operating temperature range for the AO920N?
   It operates effectively between -25°C and +60°C.
