Overview

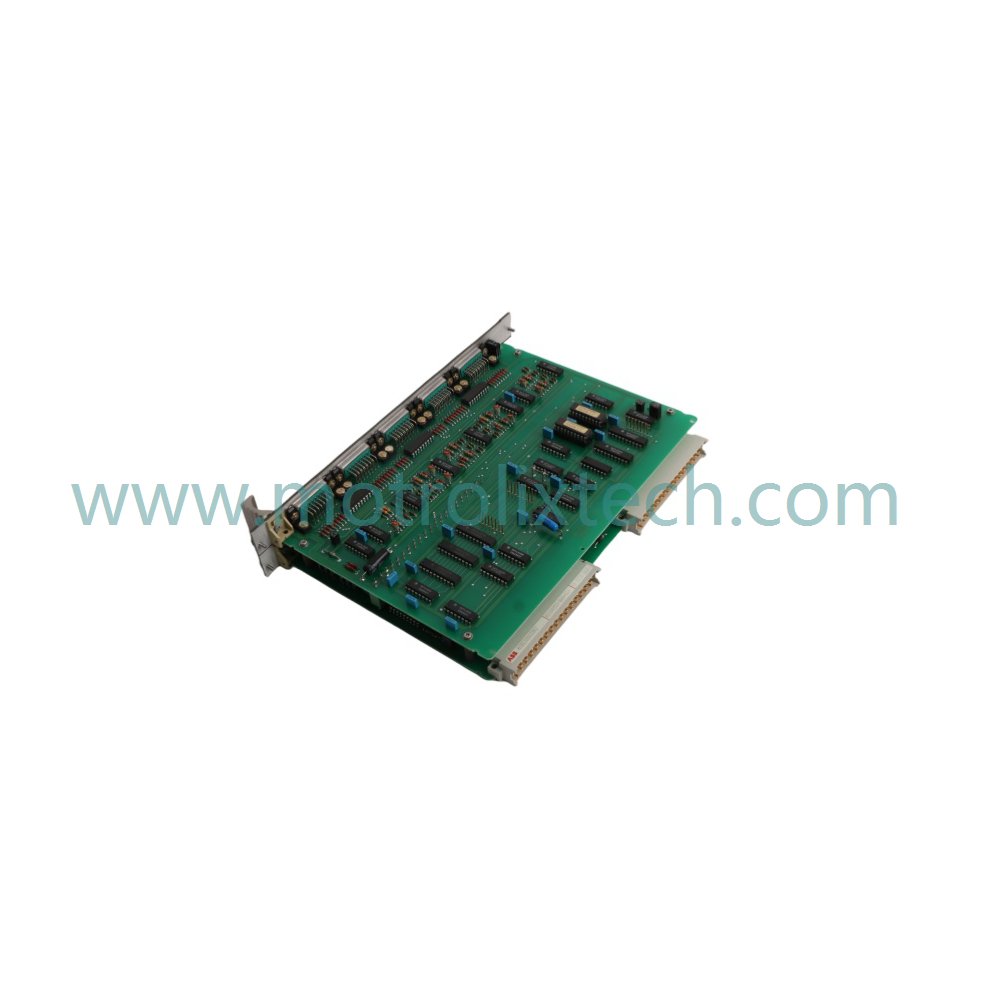

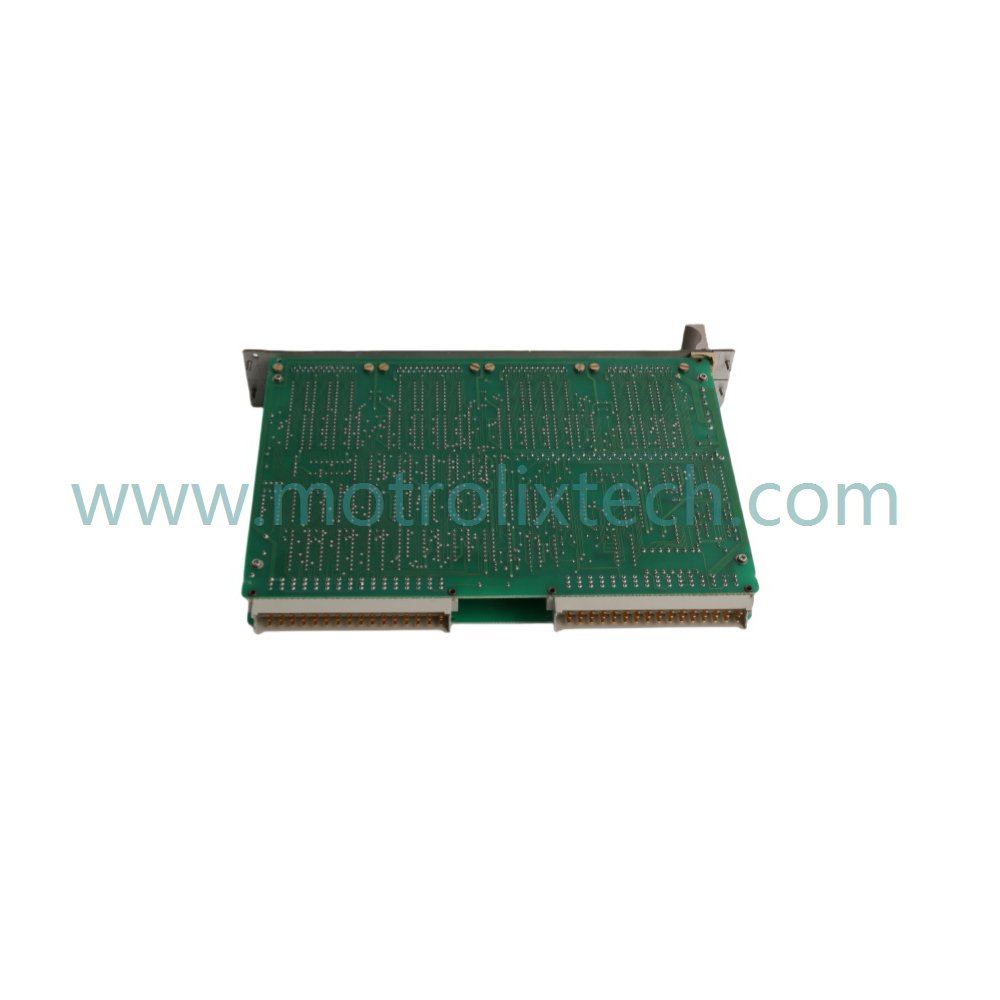

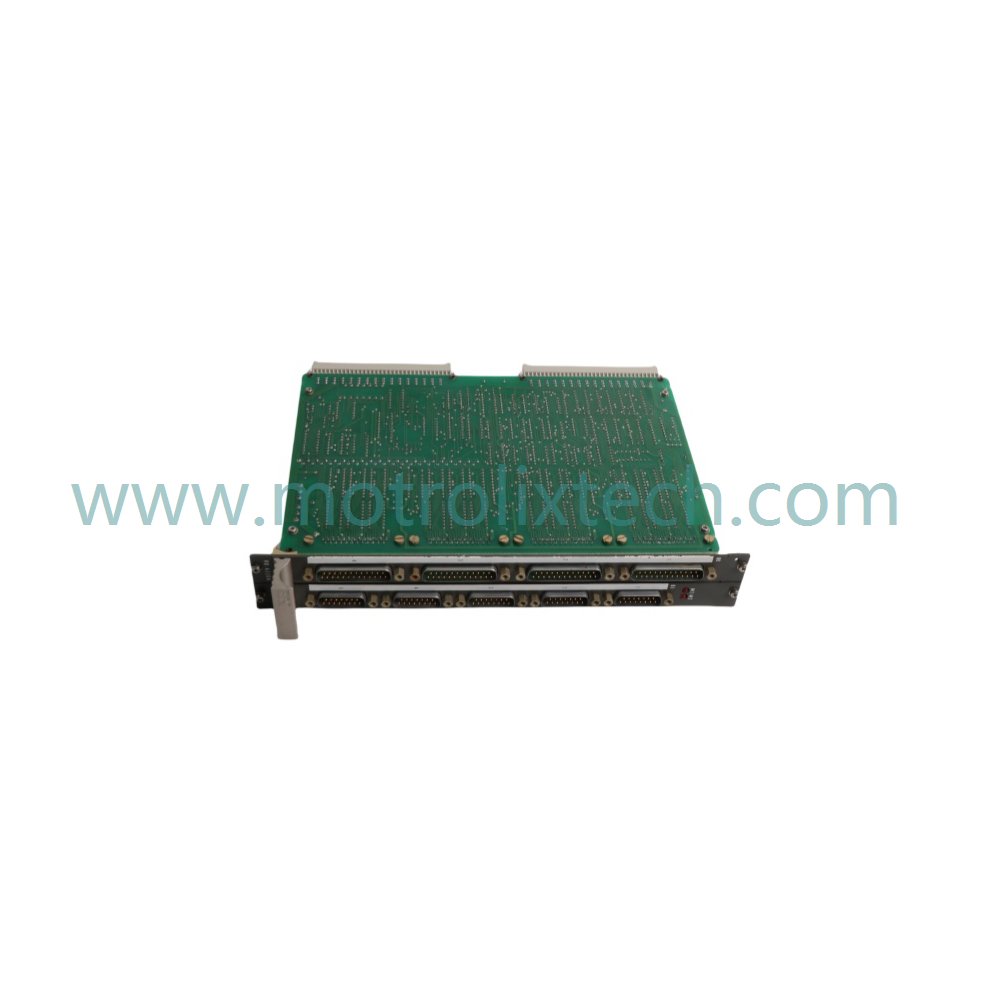

The ABB HIEE300025R2 VDA330 A02 Circuit Board is a high-performance power distribution component designed for reliable operation in demanding industrial environments. This circuit board is part of the UNITROL® 5000 series, known for its advanced features and robust construction, ensuring stability and efficiency in various applications.

Functional Highlights

The HIEE300025R2 VDA330 A02 Circuit Board is engineered for durability and exceptional reliability, making it suitable for long-term use. Its advanced thermal management technology enables stable operation across a wide temperature range of -20°C to +50°C, ensuring consistent performance under diverse industrial conditions.

With a notable efficiency rating of 95%, this circuit board minimizes energy waste and promotes sustainable operations. It supports a broad input frequency range of 47Hz to 63Hz, allowing for seamless integration into various systems. The output power capability of 1000W, combined with excellent voltage stability of +/-1% under load variations, ensures dependable power delivery to critical processes.

Built with an IP20 protection class, the VDA330 A02 circuit board provides resistance against dust and splashes, enhancing durability for operational longevity. Ease of use is a priority in its design, featuring intuitive controls and a straightforward installation process. Additionally, comprehensive documentation and technical support ensure a smooth integration experience into existing systems.

Technical Data

• Model Number: HIEE300025R2 VDA330 A02
• Module Type: Circuit Board
• Manufacturer: ABB
• Condition: Brand New
• Range of Product: UNITROL® 5000
• Weight: 0.7 kg
• Dimensions: 4 x 19.6 x 26.1 cm
• HS CODE: 8537101190
• System: DCS
• Status: Active
• Minimum Order Quantity: 1
• Product Origin: Sweden
• Communication Service: Ethernet router

Typical Applications

The ABB HIEE300025R2 VDA330 A02 Circuit Board is ideal for various applications, including:

• Power distribution in industrial automation systems
• Control systems requiring high-efficiency power management
• Energy management systems that need reliable performance
• Integration with UNITROL® 5000 series for enhanced operational flexibility

FAQ

1. What is the weight of the HIEE300025R2 VDA330 A02 Circuit Board?
   The circuit board weighs 0.7 kg.

2. What are the dimensions of this circuit board?
   Its dimensions are 4 x 19.6 x 26.1 cm.

3. What is the efficiency rating of the VDA330 A02?
   The board has a 95% efficiency rating.

4. What temperature range can the VDA330 A02 operate within?
   It operates effectively within a temperature range of -20°C to +50°C.

5. Does ABB provide support for this circuit board?
   Yes, comprehensive documentation and technical support are available.
