Overview

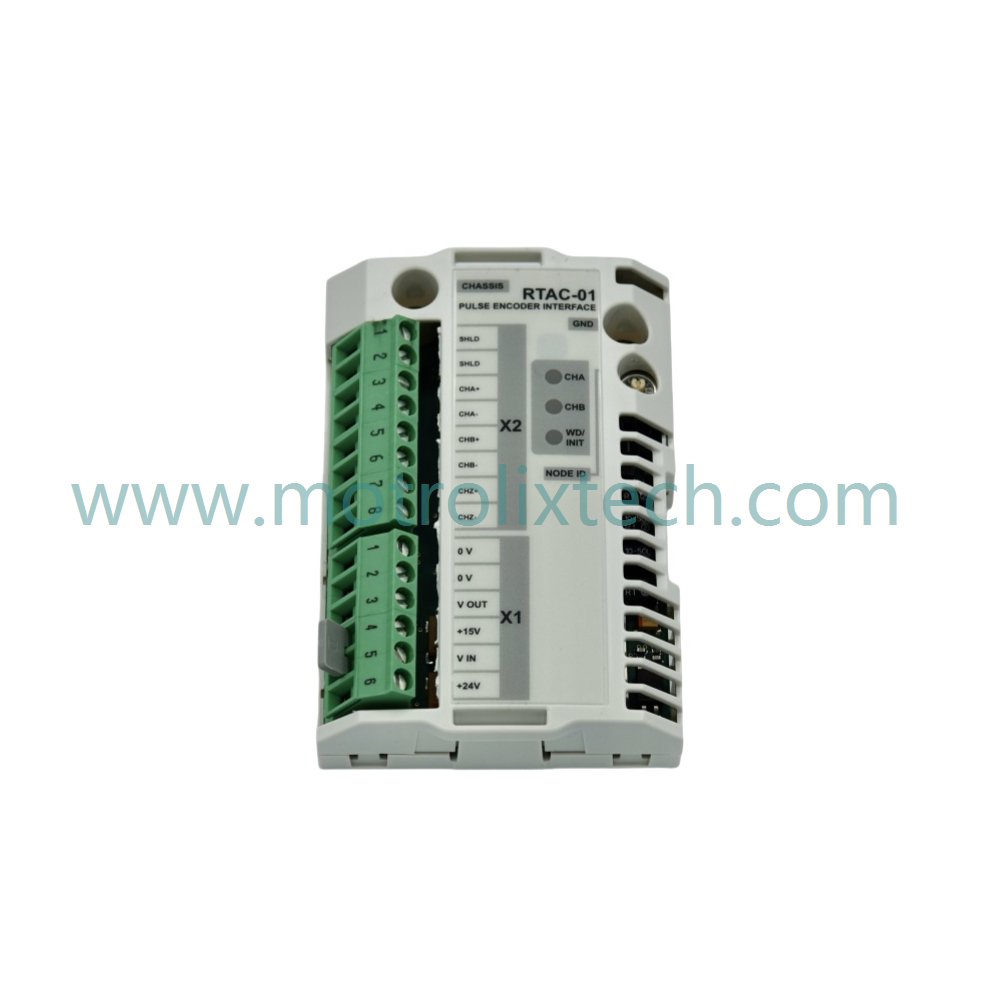

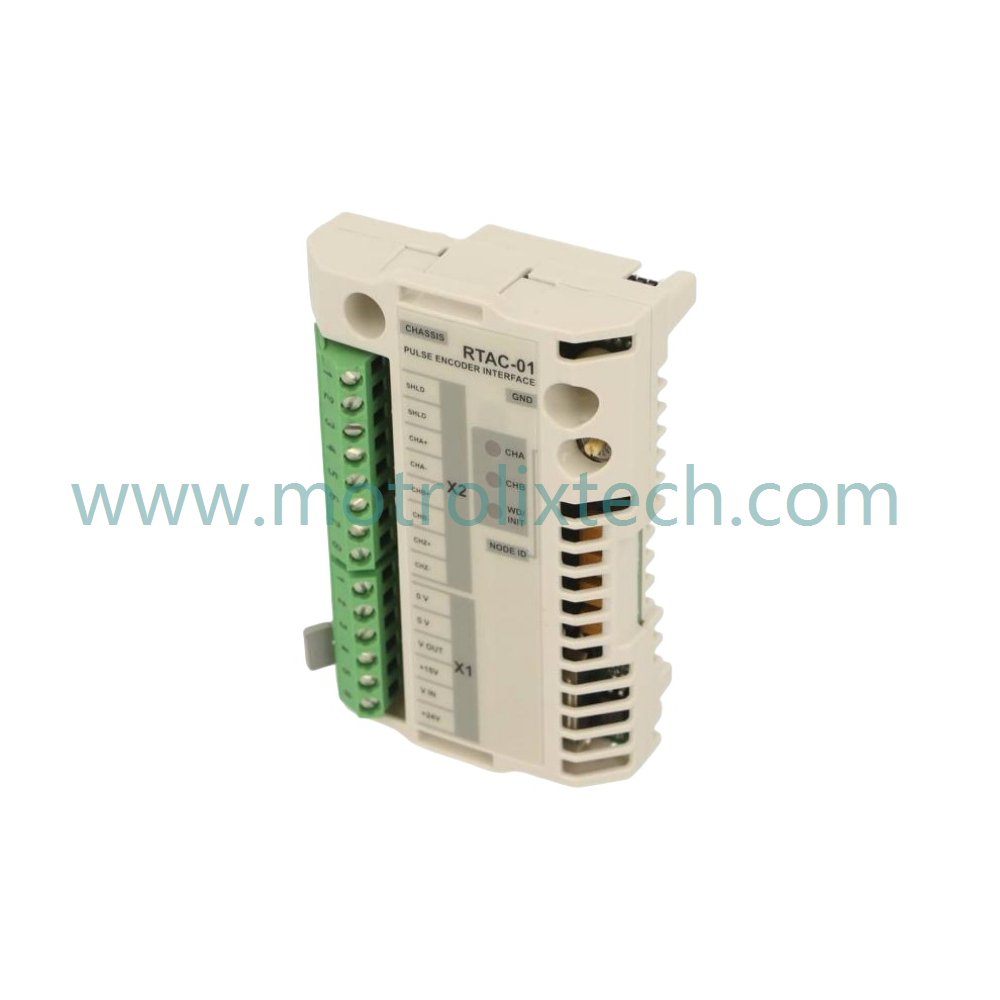

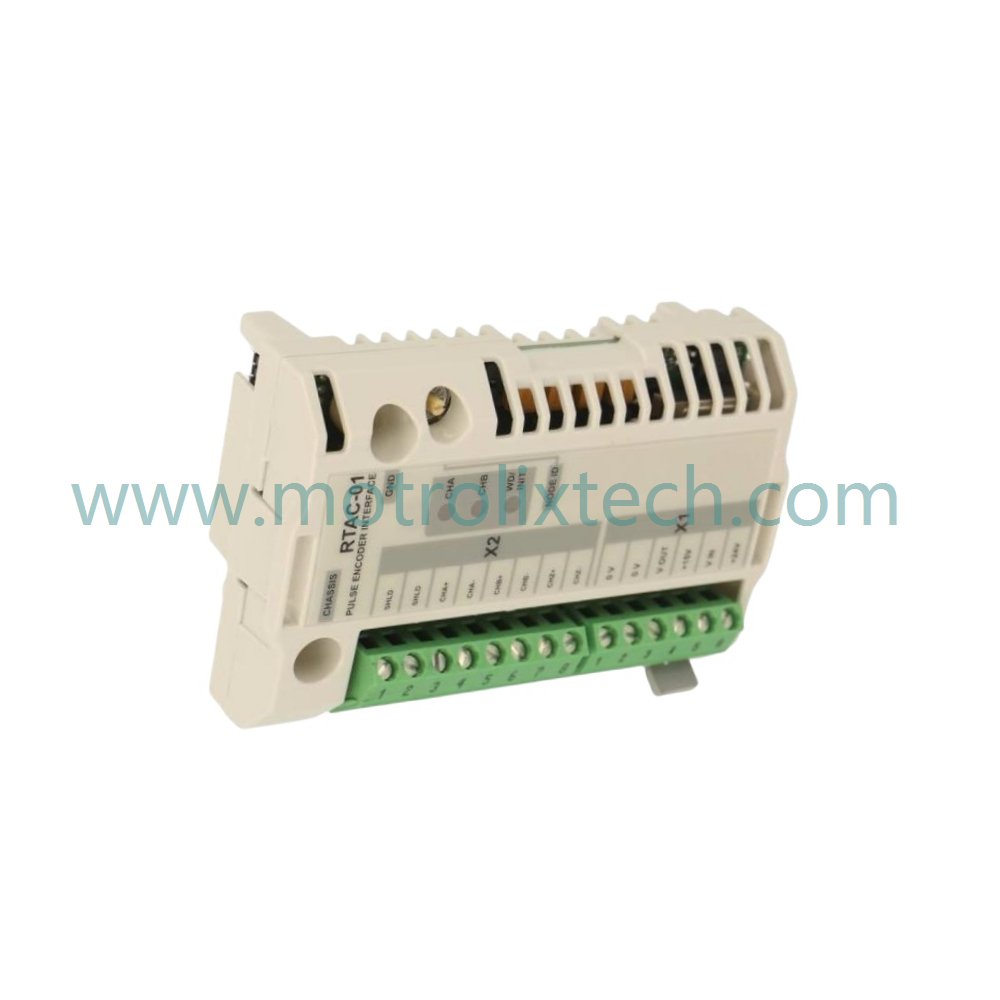

The ABB KM887571 KONE Elevator Pulse Encoder Interface Module is a compact and high-performance device specifically designed for KONE elevator systems. This module ensures precise signal transmission and synchronization between elevator control components, delivering smooth and accurate motion control in vertical transportation systems.

Functional Highlights

Engineered for reliability, the KM887571 operates with a typical power supply requirement of 24V DC and functions effectively within a wide operating voltage range of 18V to 30V DC. It supports input voltages of either 5V or 24V and can handle maximum input frequencies of up to 100 kHz. This efficiency makes it ideal for real-time elevator control tasks.

Moreover, the KM887571 is built for durability and operates well within a temperature range of -10°C to +55°C. It can safely be stored at temperatures as low as -20°C or as high as +70°C, ensuring consistent performance in diverse operational settings.

Designed for easy integration, the module's compact size (13.5 x 7.5 x 8 cm) and lightweight design (0.24 kg) make it a practical choice for elevator automation and interface applications. The ABB KM887571 is manufactured in Sweden and shipped from Xiamen, China, providing a dependable solution for your installation needs.

Technical Data

• Model Number: KM887571
• Module Type: KONE Elevator Pulse Encoder Interface Module
• Manufacturer: ABB
• Condition: Brand New
• Weight: 0.24 kg
• Dimensions: 13.5 x 7.5 x 8 cm
• HS CODE: 8537101190
• Product Origin: Sweden
• Operating Voltage: 18V to 30V DC
• Typical Power Supply: 24V DC
• Input Voltage Options: 5V or 24V
• Maximum Input Frequency: 100 kHz
• Operating Temperature Range: -10°C to +55°C
• Storage Temperature Range: -20°C to +70°C

Typical Applications

The ABB KM887571 KONE Elevator Pulse Encoder Interface Module is ideal for:

• Ensuring precise control and synchronization in KONE elevator systems.
• Supporting reliable vertical transportation in various building types.
• Enhancing performance in other industrial automation applications where precise motion control is critical.
• Integrating effectively with existing elevator control systems for operational efficiency.

FAQ

1. What is the weight of the KM887571 module?
   The module weighs 0.24 kg.

2. What are the dimensions of the KM887571?
   Its dimensions are 13.5 x 7.5 x 8 cm.

3. What voltage does the KM887571 support?
   It supports an operating voltage range of 18V to 30V DC.

4. What is the maximum input frequency the module can handle?
   It can handle maximum input frequencies of up to 100 kHz.

5. What is the operating temperature range of the KM887571?
   It operates effectively between -10°C and +55°C.
