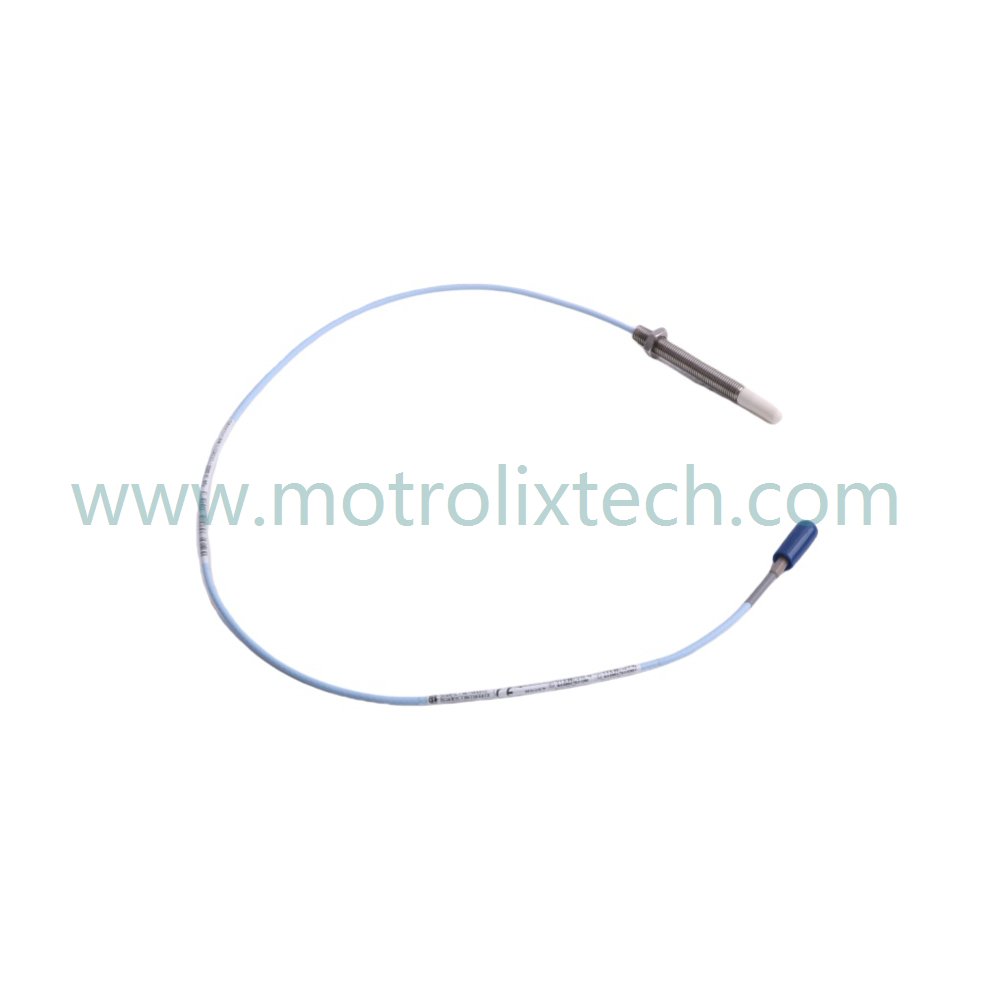

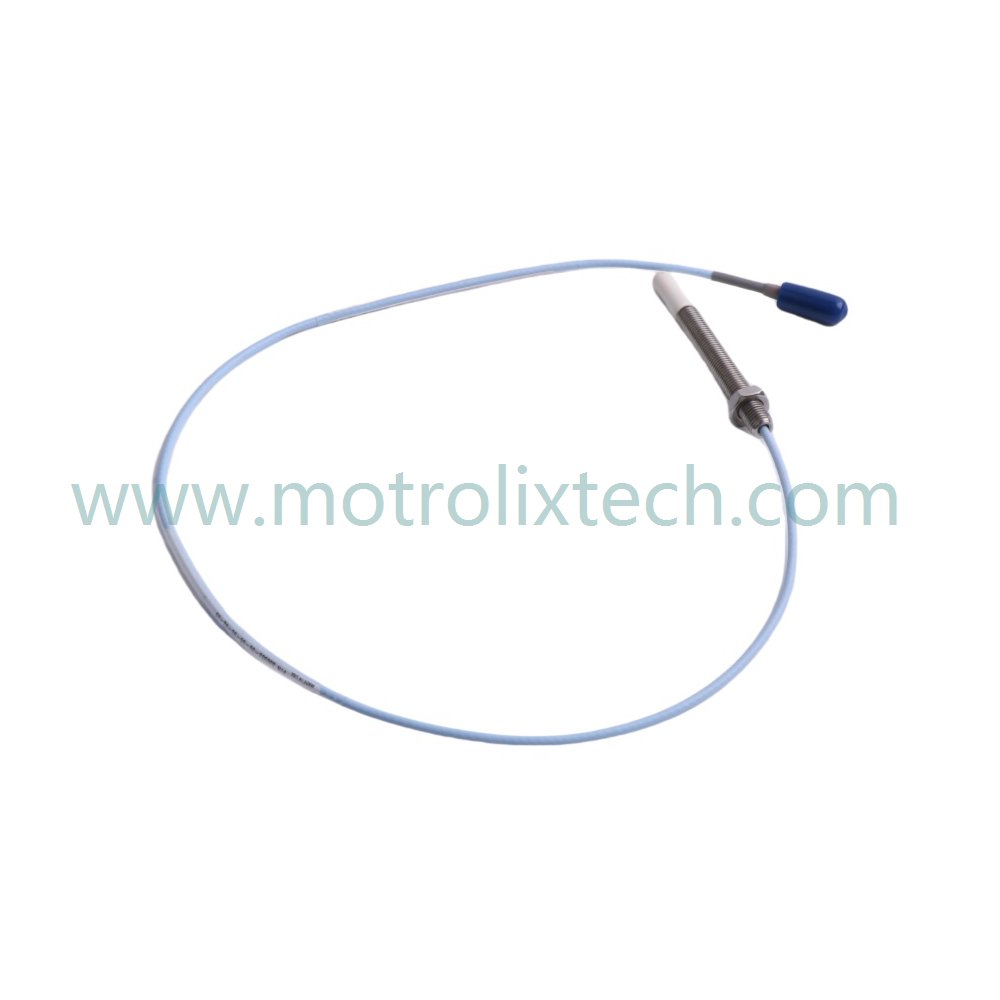

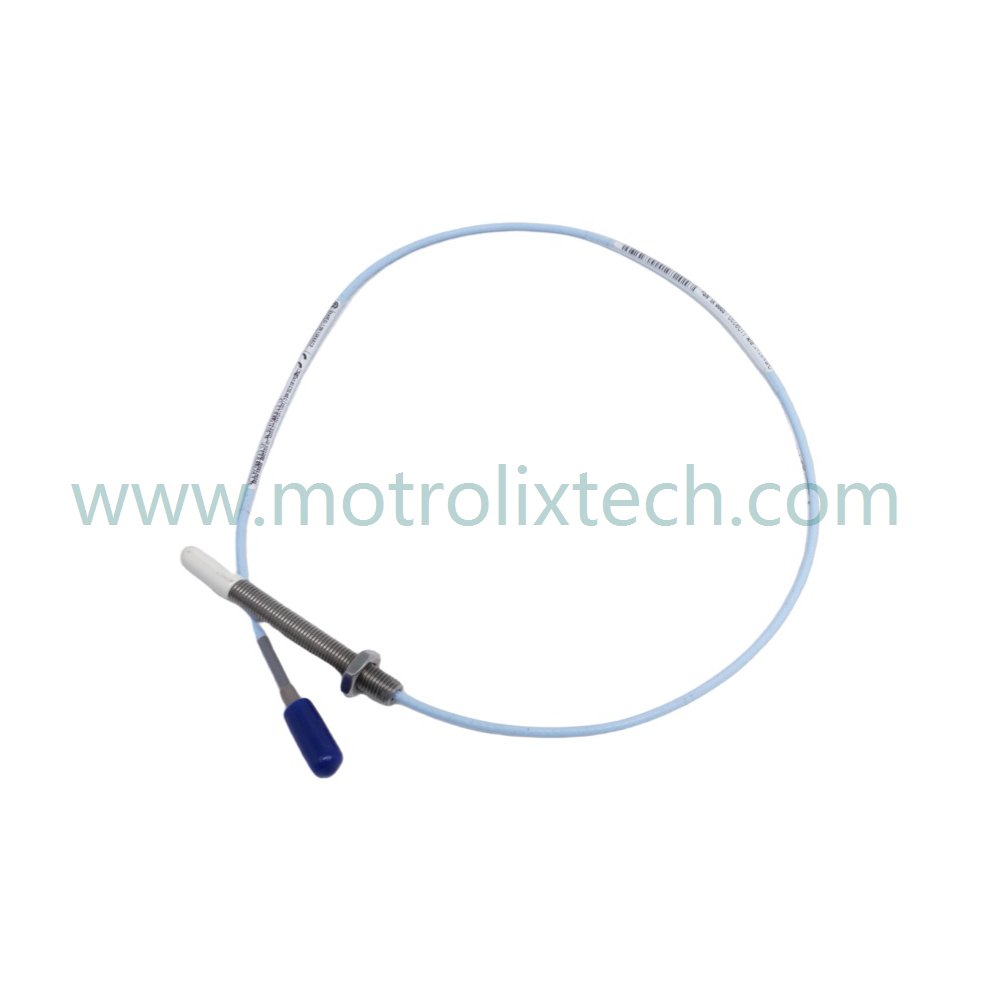

The Bently Nevada 330903-04-10-10-01-00 belongs to the specialized 3300 NSv (Narrow System vent) proximity transducer line. This high-precision sensor captures vibration and position data from rotating shafts where space is extremely limited or the target size is smaller than standard 8mm probes. It excels in monitoring centrifugal compressors, high-speed pumps, and small-diameter turbines, providing non-contact displacement measurements with microscopic accuracy.
By utilizing eddy current technology, this probe monitors the dynamic movement of the shaft without physical interaction, ensuring the longevity of both the sensor and the machinery. Its compact 5mm tip allows for installation in tight radial and axial clearances while maintaining the same rugged reliability expected in Turbine Supervisory Instrumentation (TSI). For plants prioritizing predictive maintenance, the 330903 probe provides the essential signal integrity required to detect early mechanical instability and prevent catastrophic failure.
The 330903-04-10-10-01-00 model utilizes a specific engineering code to define its physical and electrical properties:
The 04 indicates a 0.4-inch unthreaded length. This configuration allows for specific mounting depth requirements into the machine housing or bracket.
This designates a 1.0-inch overall case length. The compact 3/8-24 UNF threaded body provides a stable mounting platform while minimizing the sensor's physical footprint.
The -10 specifies a 1.0-meter (approx. 3.3 feet) total system length. Because NSv systems are highly sensitive to electrical impedance, the probe cable must match the calibrated length of the 3300 NSv Proximitor to maintain linearity.
The 01 signifies a miniature coaxial ClickLoc connector without a connector protector (standard). The 00 indicates standard global agency approvals, certifying the unit for safe operation in hazardous industrial environments.
| Feature | Specification Details |
| Probe Tip Diameter | 5.0 mm (0.197 in) |
| Thread Size | 3/8-24 UNF-2A |
| Linear Range | 1.5 mm (60 mils) |
| Nominal Sensitivity | 7.87 V/mm (200 mV/mil) |
| Linearity Error | Less than ±5% of ideal straight line |
| Operating Temperature | -51 °C to +177 °C (-60 °F to +351 °F) |
| Total System Length | 1.0 Meter |
| Pressure Rating | Sealing up to 70 psi (4.8 bar) |
Successful deployment of the 330903-04-10-10-01-00 requires precise mechanical alignment and electrical calibration:
Install the probe using a digital multimeter at the Proximitor terminals. For the 3300 NSv system, set the initial gap to approximately -10.0 VDC. This voltage typically represents the center of the 60-mil linear range. Fine-tune the probe depth until this voltage is achieved before tightening the locknuts.
The NSv system is designed for small targets. However, the target shaft diameter should ideally be at least 13 mm (0.5 in). Using a target smaller than this may reduce the linear range and shift the sensitivity (scale factor).
Proximity probes require a clear field of view. Ensure there is a minimum of 13 mm (0.5 in) of radial clearance around the probe tip. If the probe is recessed into a mounting hole too deeply, the metal surrounding the tip will "load" the sensor, causing significant measurement errors.
Small Target Precision: The 5mm tip geometry allows the probe to maintain high sensitivity (200 mV/mil) on small-diameter shafts where standard 8mm probes would experience "averaging" errors across the curved surface.
Hermetic Sealing: The PPS (Polyphenylene Sulfide) tip and stainless steel body are hermetically sealed, protecting the internal coil from moisture, lubricating oils, and chemical contaminants.
RFI/EMI Immunity: Enhanced shielding allows the 3300 NSv probe to operate in electrically noisy environments, such as near Variable Frequency Drives (VFDs) and large AC motor starters.
TSI System Integration: Fully compatible with Bently Nevada 3500 series racks, ensuring that vibration data flows seamlessly into System 1 diagnostic software for comprehensive machinery analysis.
Q1: How does the NSv probe differ from a standard 3300 XL 8mm probe?
A1: The NSv (Narrow System vent) probe has a smaller 5mm tip and is calibrated for a shorter 60-mil linear range. It is designed specifically for tight spaces and smaller shaft diameters where an 8mm probe cannot physically fit or provides inaccurate readings due to target curvature.
Q2: Can I use this 1.0m probe with a 5.0m extension cable?
A2: No. This probe is calibrated for a specific total electrical length (1.0m). It must be used with the correct 1.0m Proximitor. Adding a 5.0m extension cable will change the system impedance and result in incorrect vibration data.
Q3: Is this probe compatible with Ethernet communication?
A3: No. The probe is a passive analog sensor. While some databases mistakenly list "Ethernet router" services, the 330903 probe provides a raw analog signal to a Proximitor. Digital or network communication only occurs at the 3500 Rack or DCS level.
Q4: How do I check for probe damage?
A4: Measure the resistance between the center pin and the outer shield of the coaxial connector. For a 1.0m NSv probe, you should see a resistance between 4.0 Ω and 8.0 Ω. An infinite reading indicates a broken internal coil or cable.
