Overview

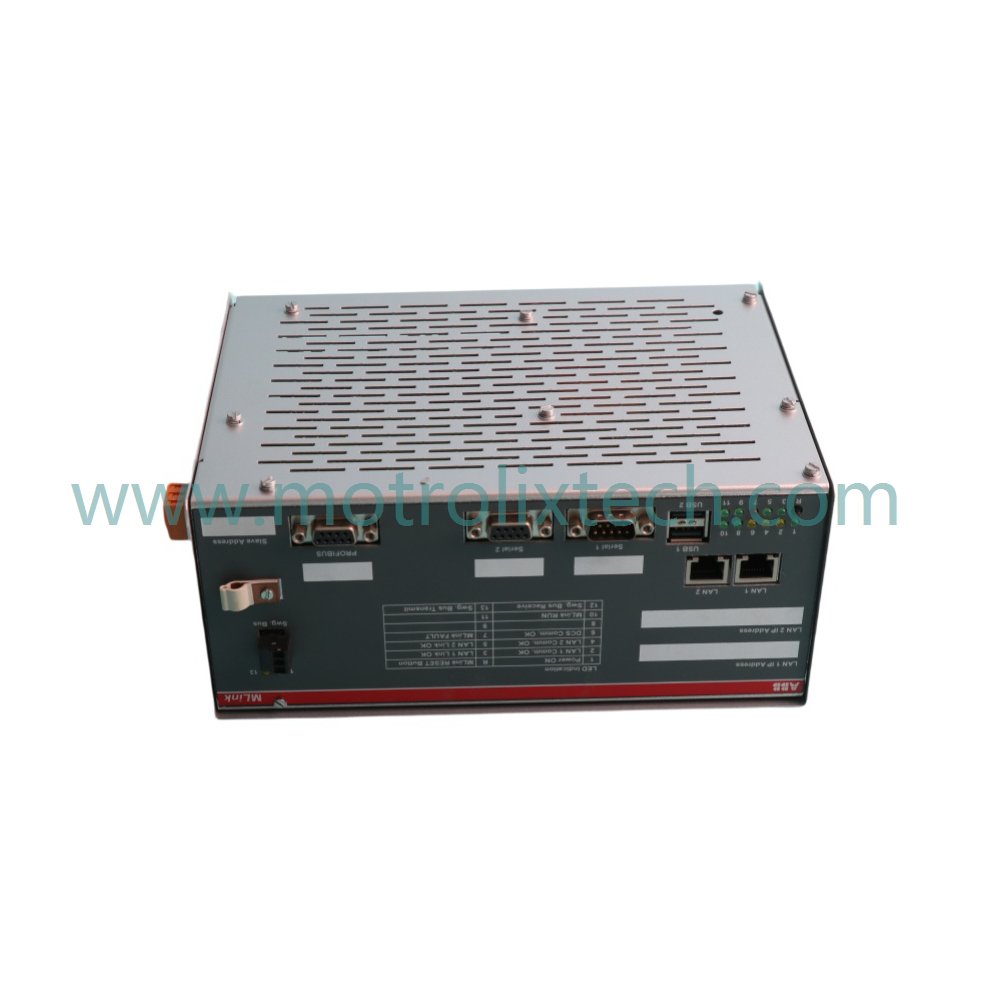

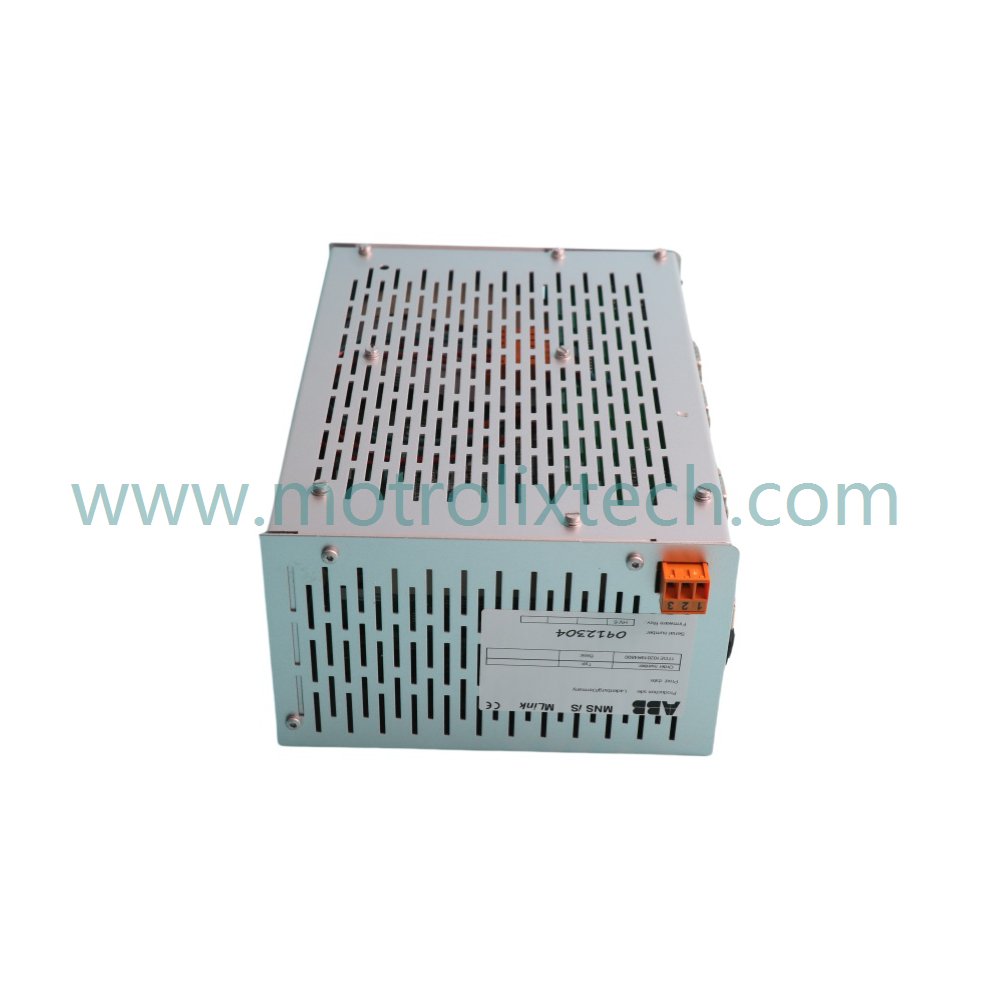

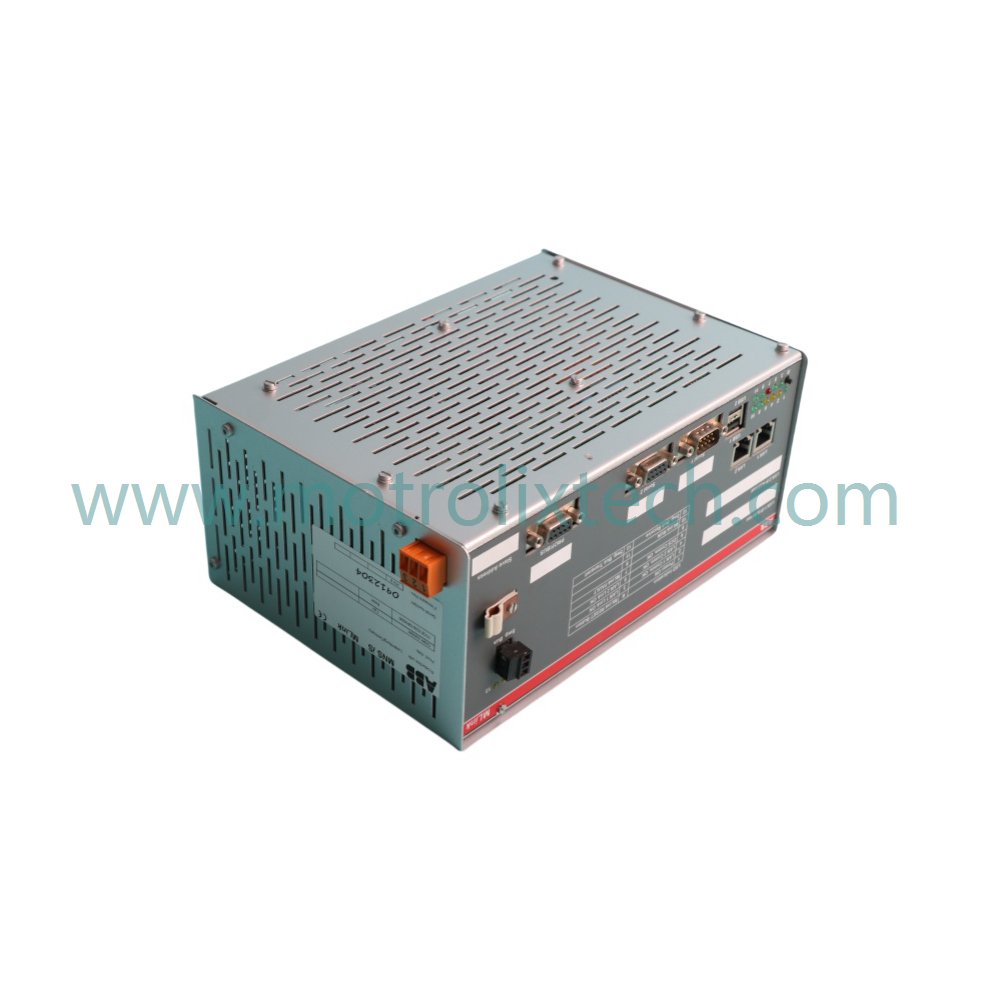

The ABB 1TGE102019R4800 Interfaces Module is a versatile 24V DC power supply module specifically designed to deliver reliable power and seamless communication for industrial control systems. With a robust 10/100 Mbps Ethernet port, this unit ensures stable TCP/IP communication while providing enhanced electrical safety through its 1500V AC isolation feature.

Functional Highlights

Engineered to perform in harsh environments, the 1TGE102019R4800 operates efficiently over a wide temperature range of -25°C to +70°C. This reliability makes it suitable for extreme conditions commonly found in industrial settings.

In addition to power conversion, this module supports multiple industrial protocols, including Modbus RTU via RS485 and Modbus TCP/IP. This flexibility allows for easy integration into various automation networks. Moreover, the RJ45 Ethernet port enhances data exchange speeds, making the module an excellent choice for modern IIoT applications.

The Interfaces Module features dual communication channels, which enable simultaneous connections to both field devices and control systems. Its compact DIN-rail mounting design, along with power surge protection, optimizes space while ensuring safety and reliability.

The 1TGE102019R4800 not only serves as a power source but also acts as a communication hub, combining 24V DC power delivery with network connectivity. This dual functionality reduces the need for additional devices, streamlining cabinet space requirements while supporting smart factory automation.

Technical Data

• Model Number: 1TGE102019R4800
• Module Type: Interfaces Module
• Manufacturer: ABB
• Condition: Brand New
• Product Range: ABB
• Weight: 1.7 kg
• Dimensions: 23.8 x 17 x 10.3 cm
• HS CODE: 8537101190
• System Type: DCS
• Status: Active
• Minimum Order Quantity: 1
• Product Origin: Sweden
• Communication Service: Ethernet router

Typical Applications

The ABB 1TGE102019R4800 Interfaces Module is suitable for various applications, including:

• Power distribution systems requiring reliable and efficient power supply
• Process control environments needing robust communication solutions
• Automation networks that utilize Modbus RTU and Modbus TCP/IP protocols
• Motor drive applications where dual functionality is advantageous

FAQ

1. What is the weight of the 1TGE102019R4800 Interfaces Module?
   The module weighs 1.7 kg.

2. What are the dimensions of this module?
   Its dimensions are 23.8 x 17 x 10.3 cm.

3. What is the operating temperature range for this device?
   It operates reliably within -25°C to +70°C.

4. What industrial protocols does it support?
   It supports Modbus RTU via RS485 and Modbus TCP/IP.

5. Is the module rated for electrical isolation?
   Yes, it offers a 1500V AC isolation for enhanced safety.
