Overview

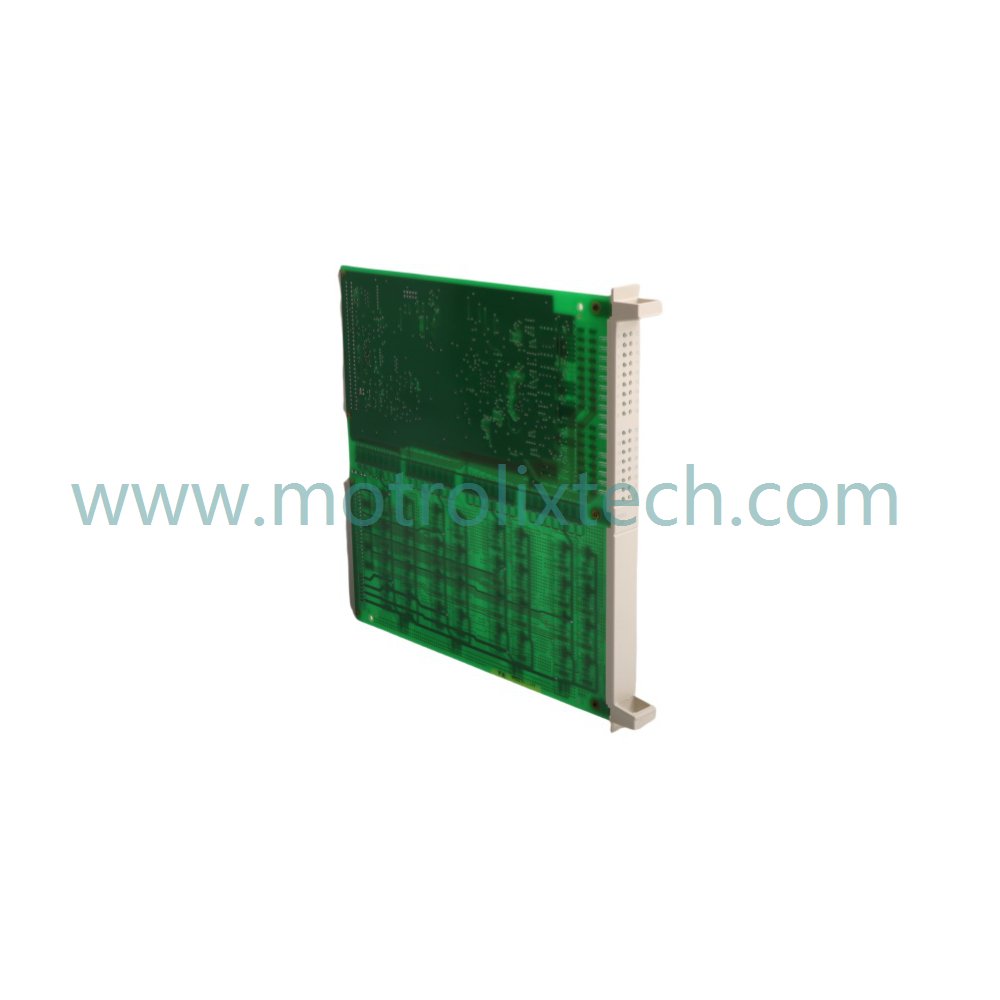

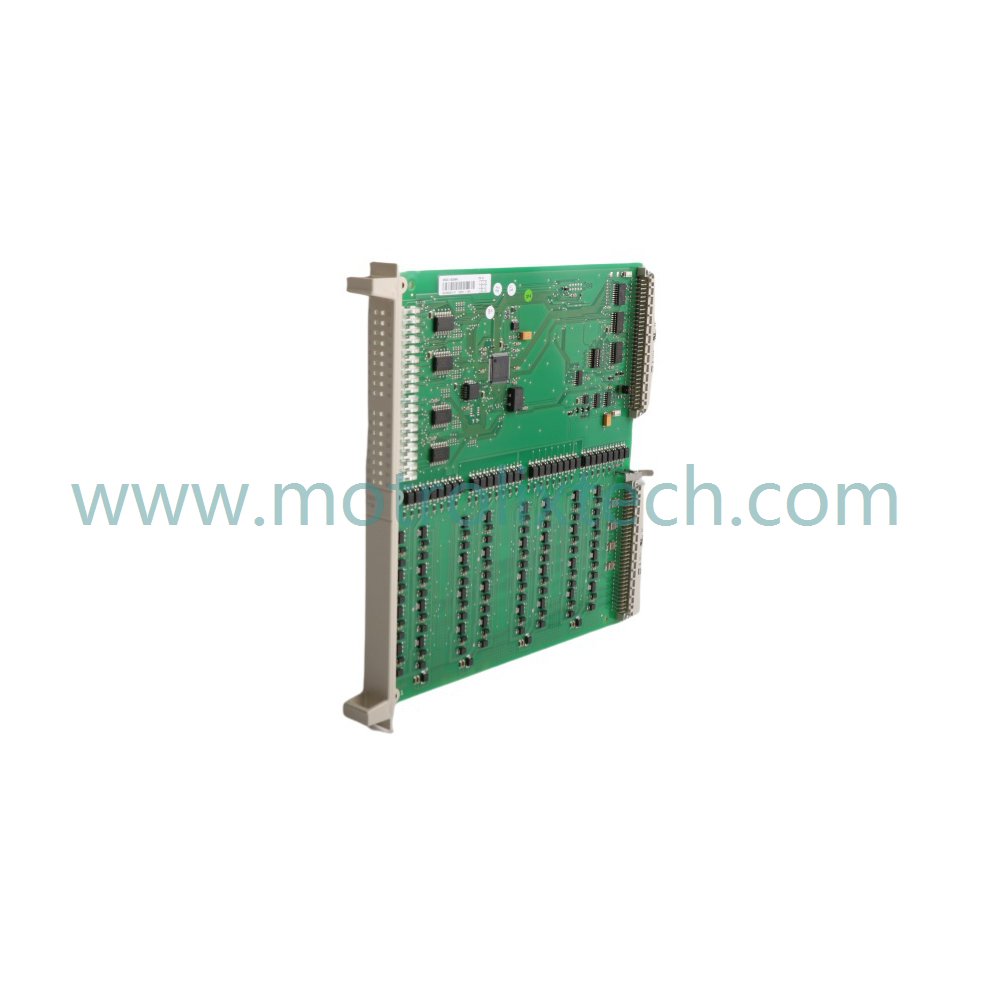

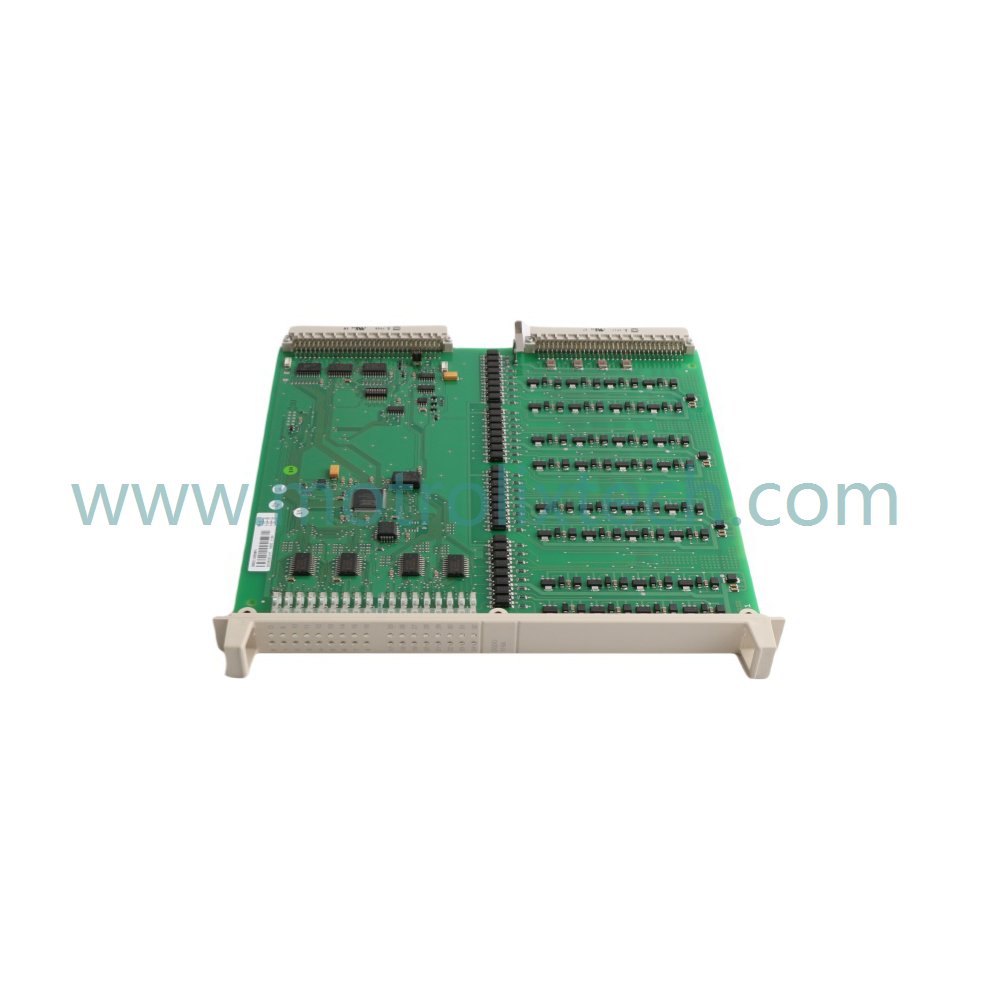

The ABB 3BSE018298R1 DSDO115A Digital Output Board is a high-performance, 32-channel bus extender designed for use with ABB's Advant OCS and S100 I/O systems. This versatile output module is ideal for a wide range of industrial applications, including process control, machine automation, and building automation.

Functional Highlights

The DSDO115A provides reliable and high-speed digital outputs, ensuring precise control over various machinery and processes. Its robust design allows it to operate efficiently in demanding industrial environments, making it an excellent choice for systems needing continuous and stable performance.

Moreover, this digital output board enhances flexibility by allowing easy integration with existing control systems. It is compatible with various automation setups, enabling seamless communication and expanding your automation infrastructure capabilities.

Featuring 32 output channels, the DSDO115A effectively handles complex automation tasks, reducing wiring complexity and improving overall system performance. Its dependable nature, combined with its versatility, makes it a valuable asset in modern industrial control and automation systems.

Key Features

1. 32 Isolated Digital Outputs: Each channel can be independently configured as sinking or sourcing, providing flexibility for driving various devices.
2. High Current Capacity: Each output can handle up to 2 Amps, suitable for controlling powerful devices.
3. Fast Switching Speed: The board offers rapid response times for applications requiring quick switching.
4. Diagnostic LEDs: Each channel includes an LED indicator for easy troubleshooting and status monitoring.
5. Optional Redundancy: Redundancy can be achieved by using two boards, enhancing system availability.
6. RoHS Compliance: Meets environmental safety standards.

Technical Data

• Model Number: 3BSE018298R1 DSDO115A
• Module Type: Digital Output Board
• Manufacturer: ABB
• Condition: Brand New
• Weight: 0.32 kg
• Dimensions: 2 x 24.9 x 24.4 cm
• HS CODE: 8537101190
• Product Origin: Sweden
• System Type: DCS
• Status: Active
• Minimum Order Quantity: 1

Typical Applications

The ABB DSDO115A Digital Output Board is suitable for:

• Process control and automation systems
• Machine and equipment control in manufacturing
• Building automation systems for HVAC and lighting control
• Applications requiring high-speed, reliable digital output solutions

FAQ

1. What is the weight of the 3BSE018298R1 DSDO115A board?
   The board weighs 0.32 kg.

2. What are the dimensions of this digital output board?
   Its dimensions are 2 x 24.9 x 24.4 cm.

3. How many output channels does the DSDO115A have?
   It features 32 isolated digital output channels.

4. What is the maximum current capacity for each output?
   Each output can handle up to 2 Amps.

5. Is the DSDO115A board RoHS compliant?
   Yes, it meets environmental safety standards.
