Overview

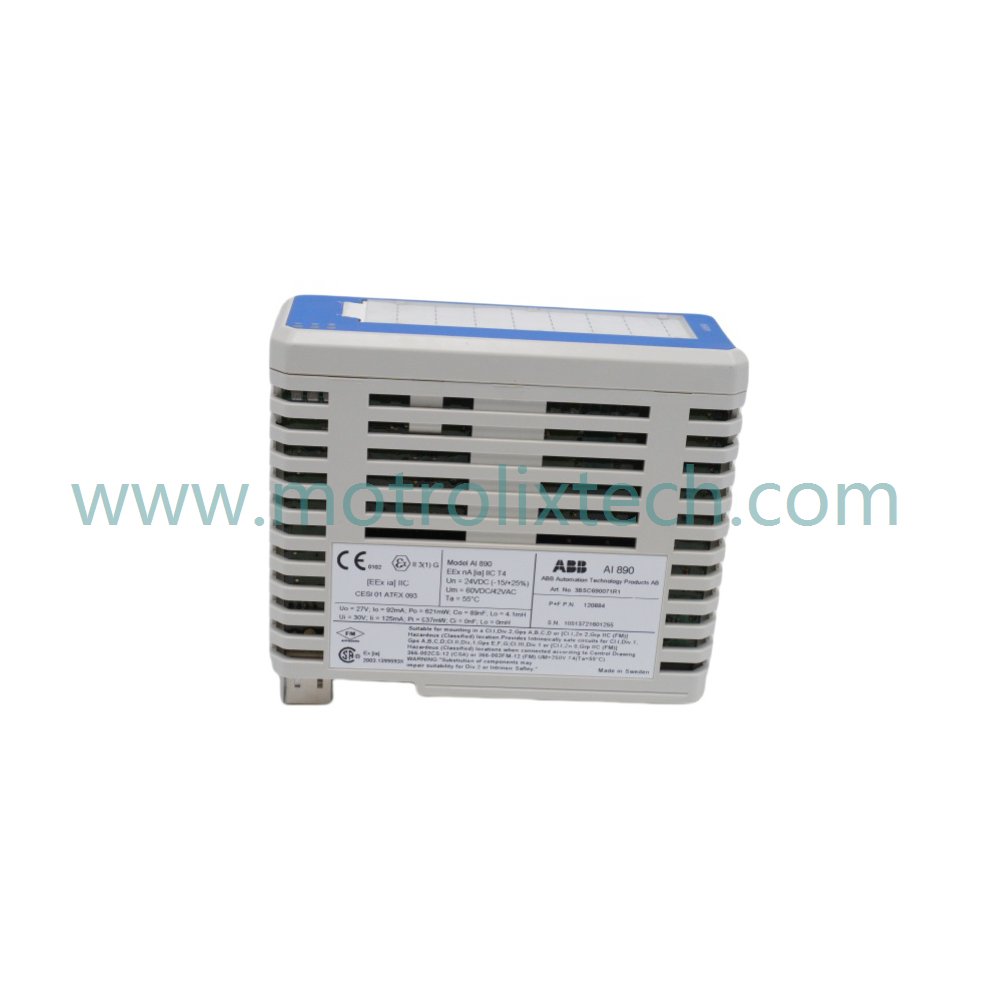

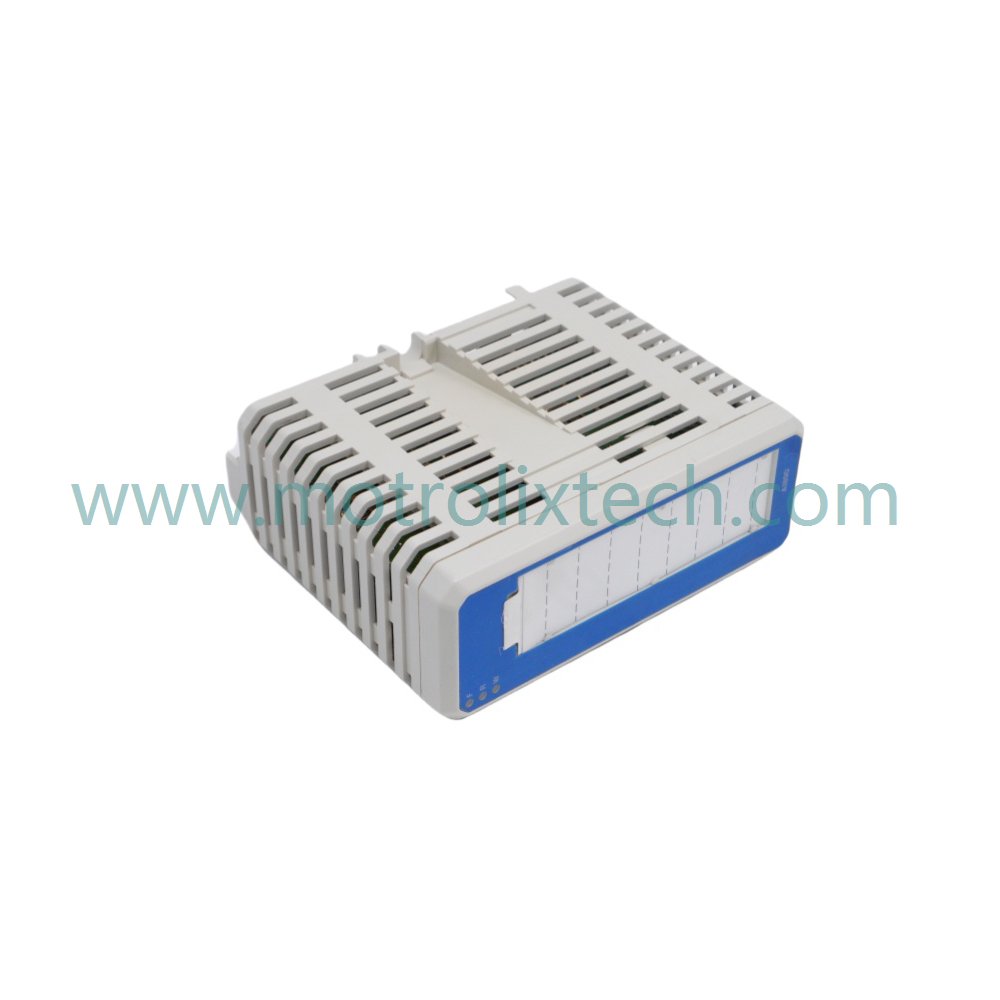

The ABB AI890 3BSC690071R1 Analog Output Module is designed to enhance the performance and reliability of industrial automation systems. This module features a robust design that ensures seamless integration into various control systems, making it a versatile choice for modern industrial applications. With its capacity to support both input and output functions, the AI890 stands out in settings that require precise control and monitoring of multiple processes.

Functional Highlights

The AI890 module is equipped with 8 input and 8 output channels, providing flexibility for a range of applications. This includes monitoring critical variables and controlling equipment and machinery efficiently. It operates on a stable 12V DC power supply, offering reliable power management with a current rating of 50mA per channel.

Moreover, the AI890 supports Profinet communication, which facilitates smooth and reliable data transfer within your industrial network. This significantly improves system performance and reduces setup time. The module operates effectively in a temperature range of -25°C to +60°C, ensuring reliability across various environmental conditions.

The IP20 protection rating of the AI890 means it can withstand challenging conditions, offering great durability and longevity. Its compact size and lightweight construction allow for easy integration into existing systems, optimizing space without sacrificing functionality.

Technical Data

• Model Number: AI890 3BSC690071R1
• Module Type: Analog Output Module
• Manufacturer: ABB
• Condition: Brand New
• Weight: 0.24 kg
• Dimensions: 4.5 x 10.5 x 12 cm
• HS CODE: 8537101190
• Product Origin: Sweden
• System Type: DCS
• Status: Active
• Input Channels: 8
• Output Channels: 8
• Power Supply Voltage: 12V DC
• Current Rating: 50 mA per channel
• Communication Protocol: Profinet
• Operating Temperature Range: -25°C to +60°C
• Protection Rating: IP20

Typical Applications

The ABB AI890 3BSC690071R1 Analog Output Module is ideal for:

• Industrial automation systems requiring flexible control solutions
• Monitoring and controlling critical variables in manufacturing environments
• Applications demanding reliable communication and data transfer in real-time
• Systems where space optimization is crucial due to its compact design

FAQ

1. What is the weight of the AI890 Analog Output Module?
   The AI890 module weighs 0.24 kg.

2. What are the dimensions of this module?
   Its dimensions are 4.5 x 10.5 x 12 cm.

3. How many input and output channels does the AI890 support?
   It supports 8 input channels and 8 output channels.

4. What is the operating temperature range for the AI890 module?
   It operates effectively within -25°C to +60°C.

5. What communication protocol does the AI890 use?
   It supports Profinet communication for reliable data transfer.
