Overview

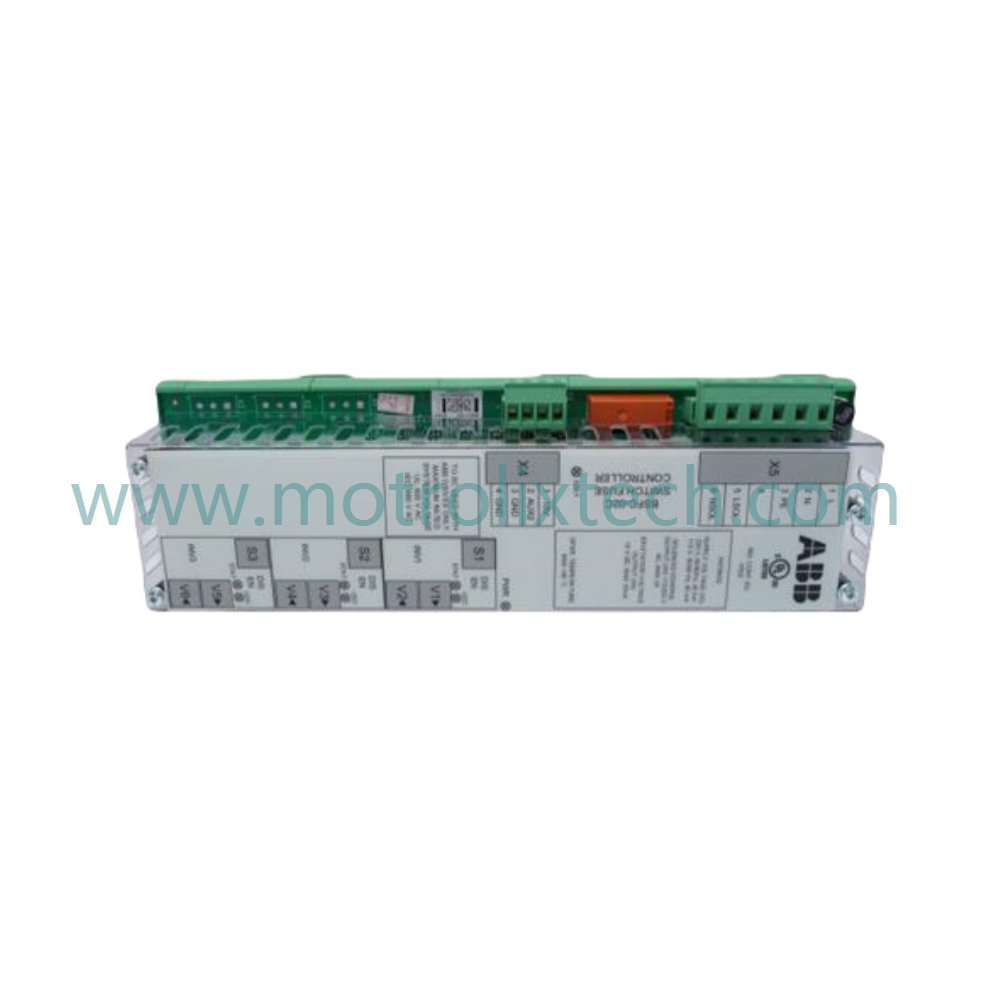

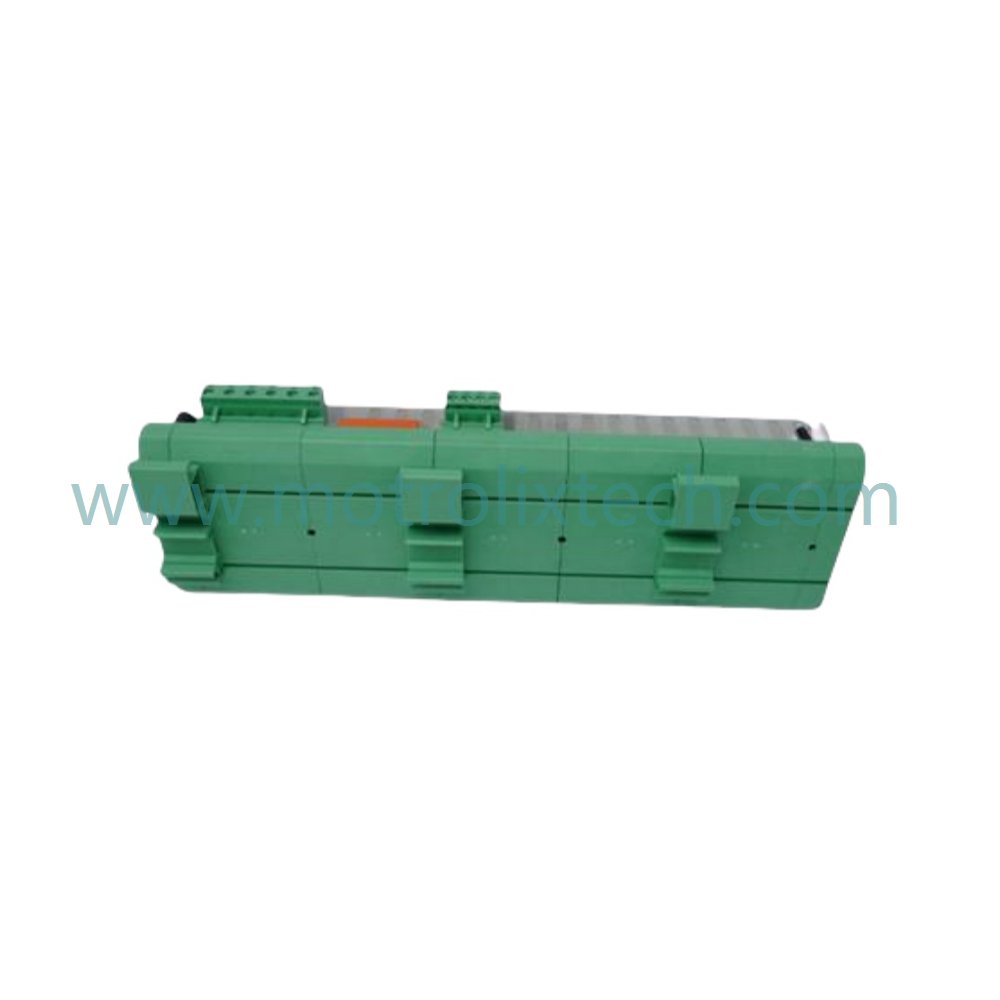

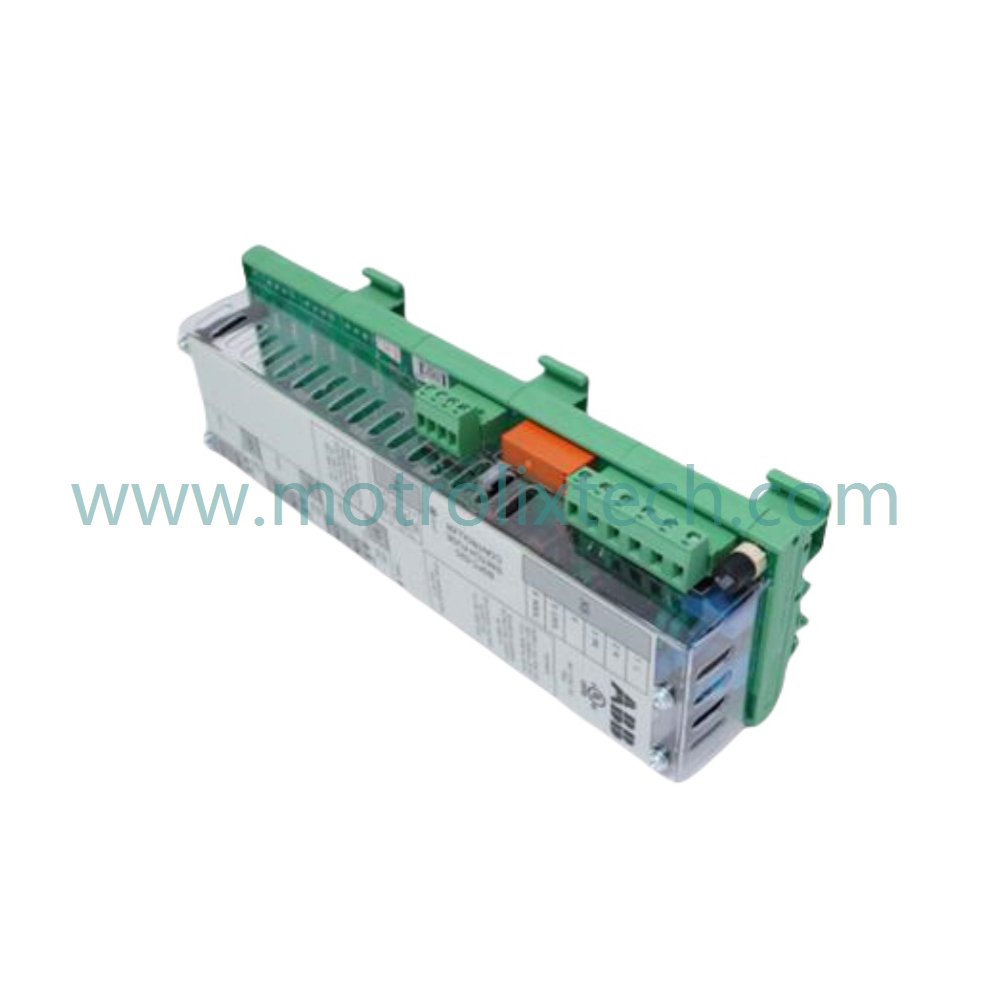

The ABB BSFC-01C 3AXD50000006072 Charging Control Board is an advanced charging solution designed for industrial power applications. This high-performance module provides precise voltage and current regulation with an input range of 380-480V AC (3-phase) and an output capability spanning 12-600V DC. With its ability to deliver charging currents from 10-100A while maintaining exceptional efficiency of over 92%, it is ideal for demanding energy conversion systems.

Functional Highlights

Manufactured in Sweden, the BSFC-01C Charging Control Board is readily available through ABB's global distribution network, including warehouses in the US, Finland, and China. The module meets international standards under tariff code 8537101190, with a compact design of 4 x 26 x 27.2 cm and a weight of 1.4 kg.

The BSFC-01C features outstanding measurement accuracy, with ±0.5% voltage and ±1% current specifications. It operates reliably across a wide temperature range of -10°C to +50°C while tolerating humidity levels of 5-95% non-condensing, making it suitable for various industrial environments. Moreover, it supports both 50/60Hz (±5%) power systems for flexible global applications.

This charging control board excels in battery charging, renewable energy systems, and industrial power supplies. Its advanced thermal management allows for operation in temperature conditions ranging from -20°C to +80°C. The standardized design simplifies the integration with both existing ABB power systems and third-party equipment.

Technical Data

• Model Number: BSFC-01C 3AXD50000006072
• Module Type: Charging Control Board
• Manufacturer: ABB
• Condition: Brand New
• Weight: 1.4 kg
• Dimensions: 4 x 26 x 27.2 cm
• HS CODE: 8537101190
• Product Origin: Sweden
• System Type: DCS (Distributed Control System)
• Status: Active
• Input Voltage: 380-480V AC (3-phase)
• Output Voltage: 12-600V DC
• Charging Current: 10-100A
• Efficiency: >92%
• Measurement Accuracy: ±0.5% voltage, ±1% current
• Temperature Range:
  • Operating: -10°C to +50°C
  • Measurement: -20°C to +80°C
• Humidity Tolerance: 5-95% non-condensing

Typical Applications

The ABB BSFC-01C Charging Control Board is ideally used for:

• Battery charging in industrial applications
• Integrating renewable energy solutions
• Power supplies in manufacturing plants
• Applications requiring precise and efficient energy management systems

FAQ

1. What is the weight of the BSFC-01C Charging Control Board?
   The BSFC-01C weighs 1.4 kg.

2. What are the dimensions of this charging control board?
   Its dimensions are 4 x 26 x 27.2 cm.

3. What input voltage does the BSFC-01C require?
   It operates with an input voltage of 380-480V AC (3-phase).

4. What is the charging current range supported by the BSFC-01C?
   It supports charging currents from 10 to 100A.

5. What is the efficiency rating of the BSFC-01C?
   It has an efficiency rating exceeding 92%.
