Overview

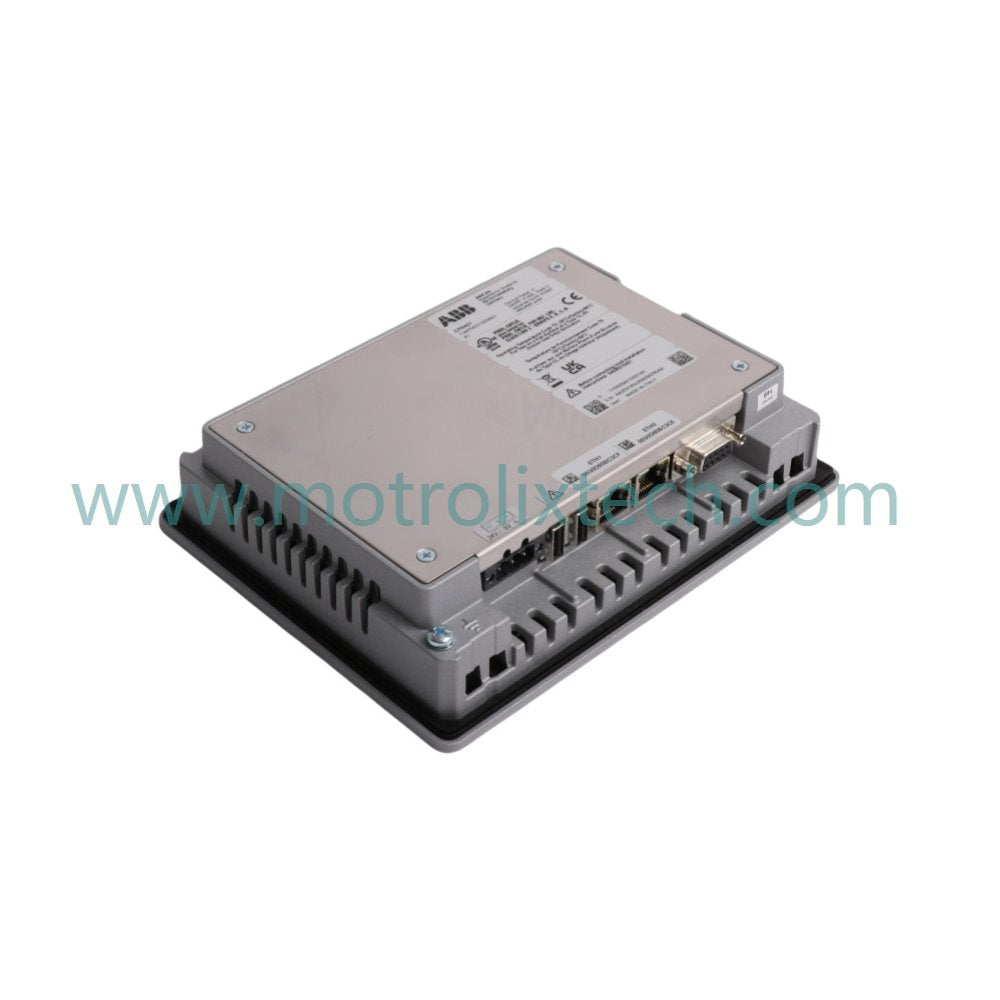

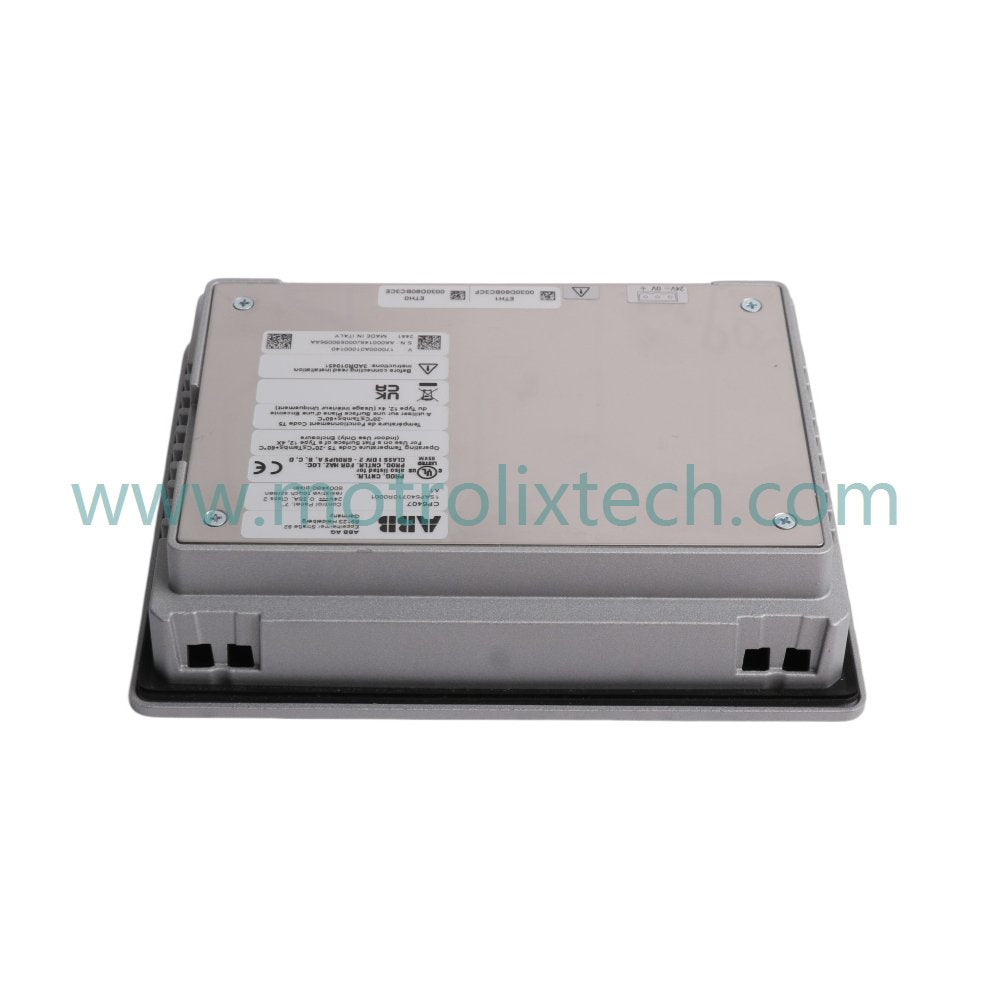

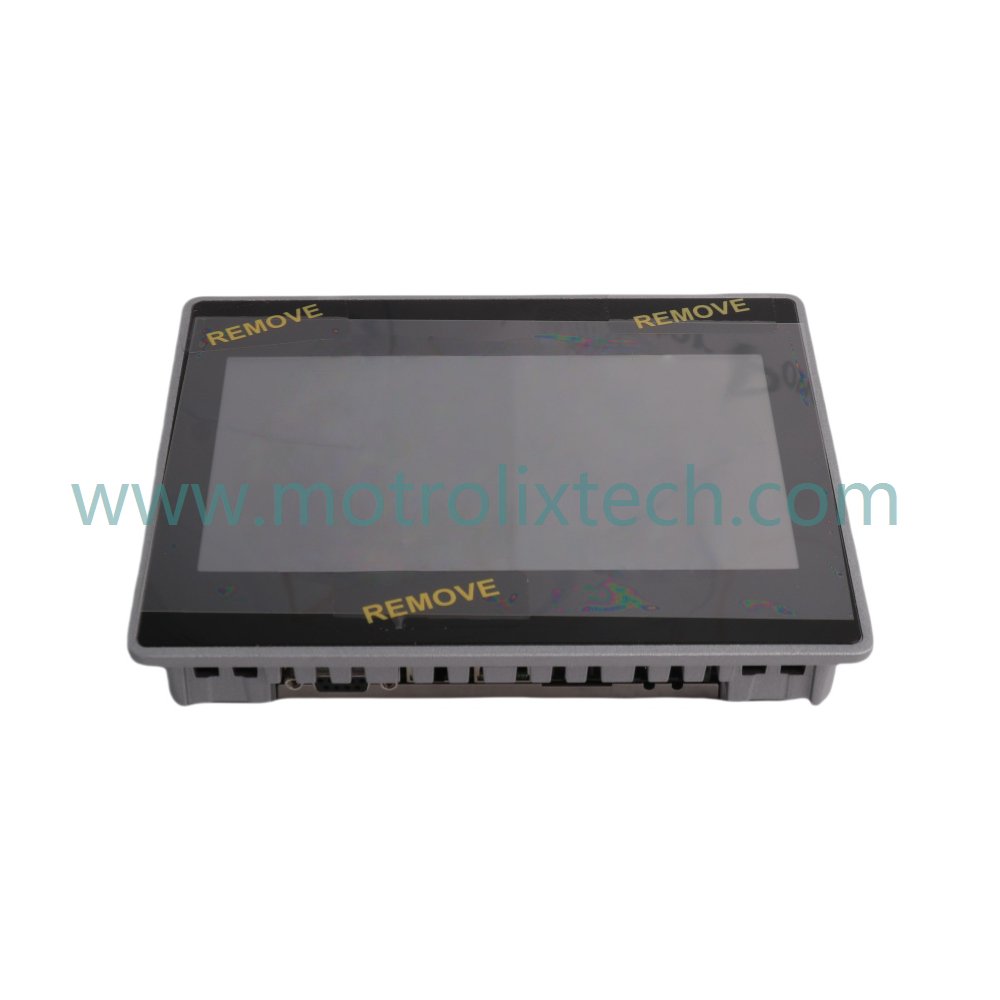

The ABB CP6407 1SAP540710R0001 Touch Screen is an advanced human-machine interface (HMI) designed for efficient process control in industrial settings. Featuring a vibrant 7-inch TFT LCD display with an 800×480 pixel resolution, this touch screen provides crisp and clear visuals for critical monitoring. It supports 65,536 colors and offers a brightness of 400 cd/m², ensuring excellent readability even in brightly lit factory environments.

Functional Highlights

This robust touch screen is built for continuous operation, boasting a ±70° viewing angle that allows for optimal visibility from various positions. The resistive touchscreen technology ensures accurate input, even when using gloves or styluses, making it versatile for various operational requirements. Housed in a durable aluminum casing with IP65 protection, the CP6407 is highly suitable for harsh environments, such as oil & gas and chemical plants.

Moreover, the CP6407 integrates seamlessly with ABB's automation systems, providing intuitive navigation for operators. Its high-contrast display renders process graphics and alarm notifications with exceptional clarity, while the rugged construction ensures resilience against vibrations and extreme temperatures. This combination of reliability and user-friendly operation makes it an ideal choice for supervisory control in energy, water treatment, and manufacturing applications.

Technical Data

• Model Number: CP6407 1SAP540710R0001
• Module Type: Touch Screen
• Manufacturer: ABB
• Condition: Brand New
• Weight: 0.95 kg
• Dimensions: 18.6 x 14.6 x 4.8 cm
• HS CODE: 8537101190
• Product Origin: Sweden
• System Type: DCS (Distributed Control System)
• Status: Active
• Display: 7-inch TFT LCD
• Resolution: 800 × 480 pixels
• Color Support: 65,536 colors
• Brightness: 400 cd/m²
• Viewing Angle: ±70°
• Protection Rating: IP65
• Touch Technology: Resistive touch

Typical Applications

The ABB CP6407 Touch Screen is ideal for:

• Energy management and process control systems
• Water treatment facilities needing reliable interface solutions
• Manufacturing industries requiring durable and effective HMIs
• Environments with bright lighting where high readability is crucial

FAQ

1. What is the weight of the CP6407 Touch Screen?
   The CP6407 weighs 0.95 kg.

2. What are the dimensions of this touch screen?
   Its dimensions are 18.6 x 14.6 x 4.8 cm.

3. What is the resolution of the CP6407 display?
   The display resolution is 800 x 480 pixels.

4. What type of touch technology does the CP6407 use?
   It uses a resistive touchscreen, suitable for operation with gloves or styluses.

5. What is the protection rating of the CP6407?
   It has an IP65 protection rating, making it suitable for harsh industrial environments.
