Overview

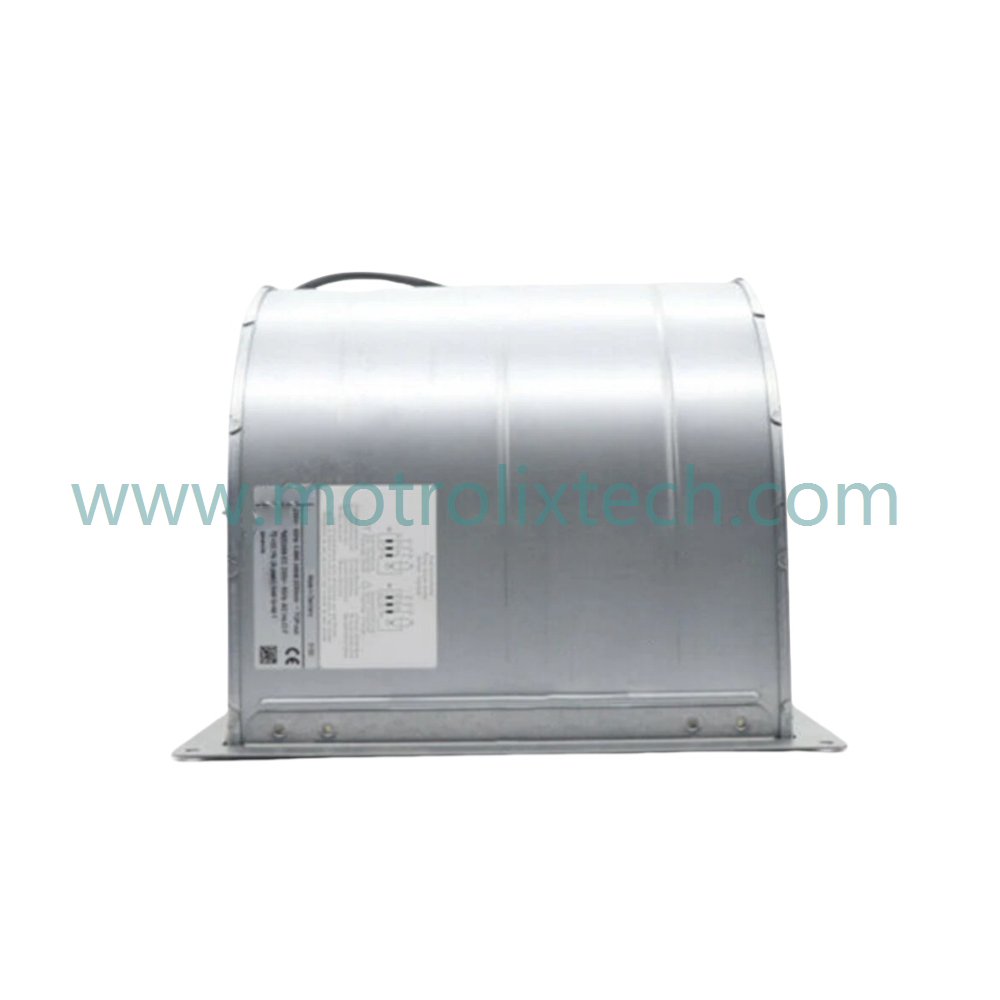

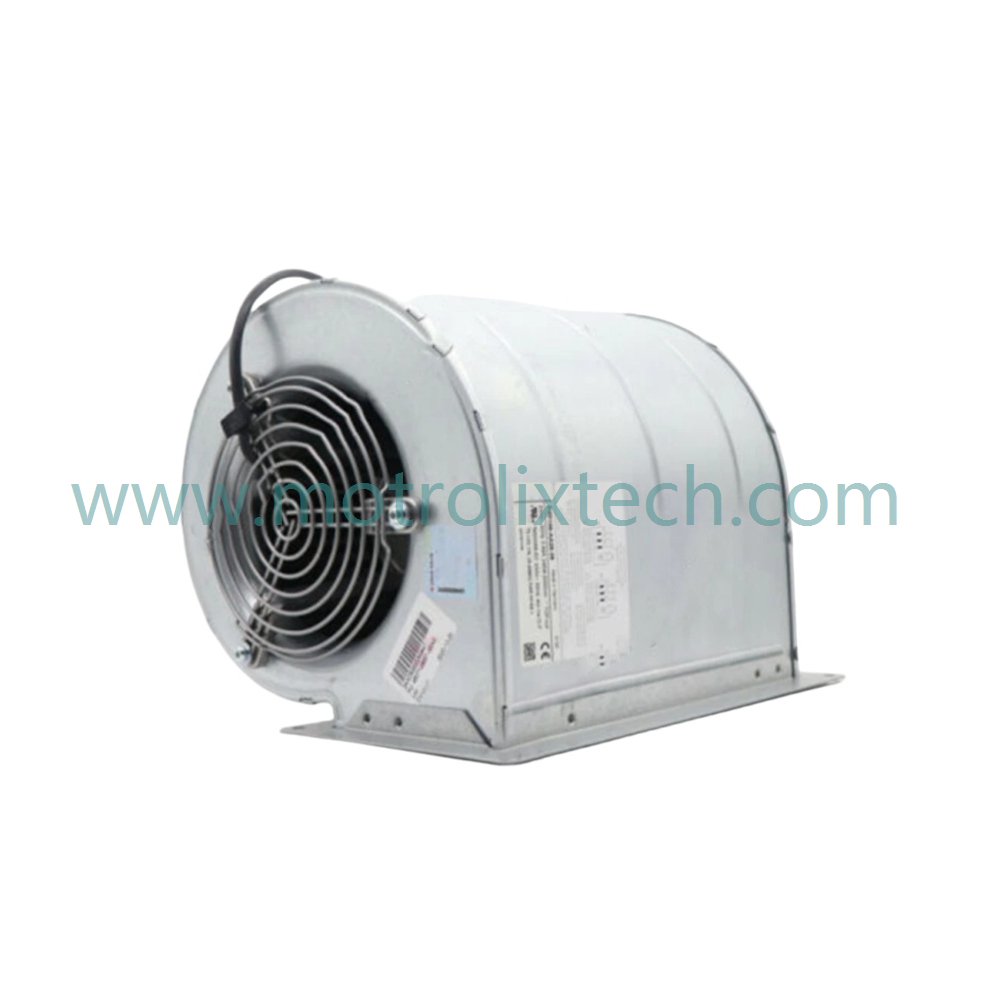

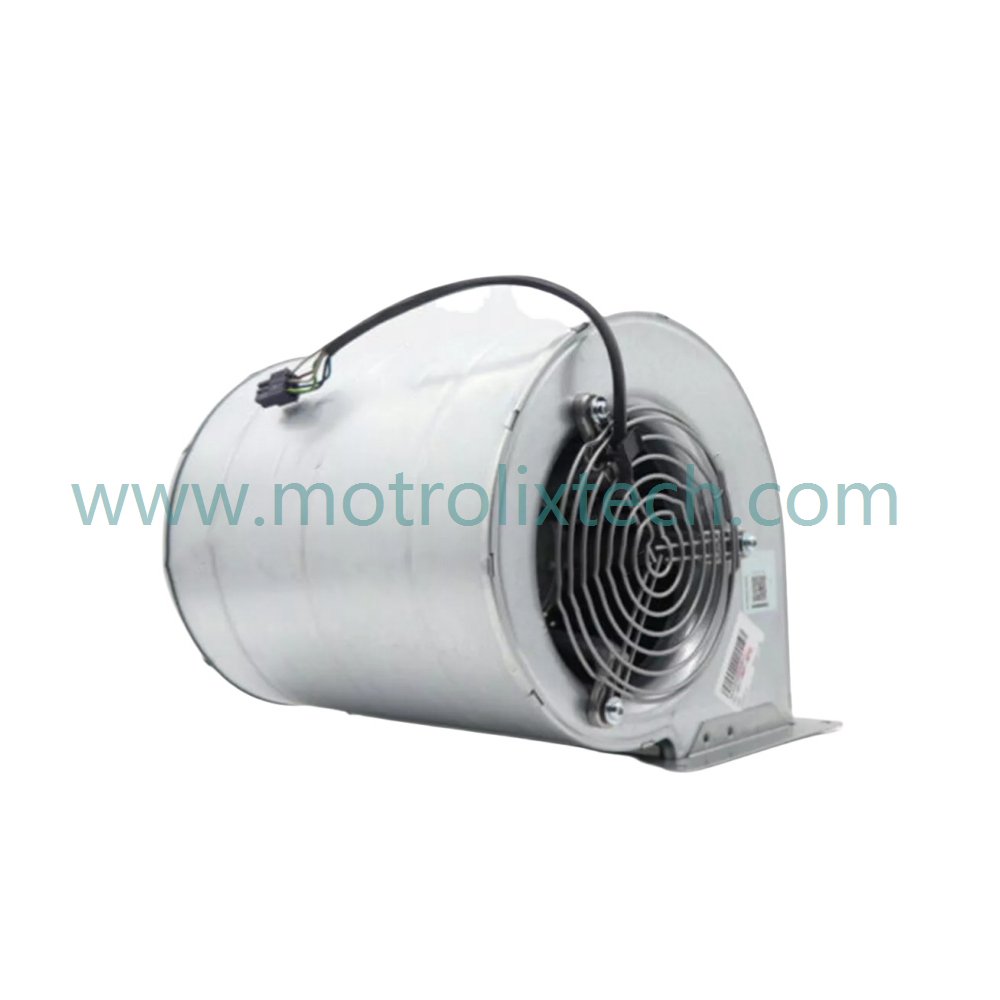

The ABB D2D146-AA02-22 Centrifugal Fan is a high-quality solution tailored for industrial applications that demand efficient airflow and reliable operation. Designed to deliver consistent performance, this centrifugal fan operates at a nominal voltage of 230 VAC with a frequency of 50 Hz, ensuring optimal function in various environments.

Functional Highlights

With a power consumption of 290 watts and a current draw of approximately 0.81 amps, the D2D146-AA02-22 maintains a rated speed of 2250 RPM. This promotes effective ventilation and cooling, making it suitable for demanding industrial conditions. The fan is engineered to maintain a minimum back pressure of 275 Pa, ensuring stable airflow under challenging operational conditions, which contributes significantly to the longevity and reliability of connected equipment.

Weighing 4.8 kg and measuring 36 x 26 x 25 cm, this centrifugal fan is compact yet robust, allowing for flexible installation while handling continuous operation. Its durable design prioritizes efficiency and reliability, reducing both maintenance needs and downtime.

Moreover, the drive mount design simplifies integration into various automation and manufacturing systems, making it a versatile choice across different industries. The proven reliability of the D2D146-AA02-22 empowers facilities to optimize their operations with confidence.

Technical Data

• Model Number: D2D146-AA02-22
• Module Type: Centrifugal Fan
• Manufacturer: ABB
• Condition: Brand New
• Weight: 4.8 kg
• Dimensions: 36 x 26 x 25 cm
• HS CODE: 8537101190
• Product Origin: Sweden
• System Type: DCS (Distributed Control System)
• Status: Active
• Nominal Voltage: 230 VAC
• Frequency: 50 Hz
• Power Consumption: 290 watts
• Current Draw: Approximately 0.81 amps
• Rated Speed: 2250 RPM
• Minimum Back Pressure: 275 Pa

Typical Applications

The ABB D2D146-AA02-22 Centrifugal Fan is ideal for:

• Industrial ventilation systems requiring consistent airflow
• Cooling systems in manufacturing and processing environments
• Applications needing reliable performance under high back pressure
• Automation and manufacturing setups where integrated solutions are essential

FAQ

1. What is the weight of the D2D146-AA02-22 Centrifugal Fan?
   The fan weighs 4.8 kg.

2. What are the dimensions of this centrifugal fan?
   Its dimensions are 36 x 26 x 25 cm.

3. What voltage does the D2D146-AA02-22 operate at?
   It operates at a nominal voltage of 230 VAC.

4. What is the rated speed of the fan?
   The rated speed is 2250 RPM.

5. What is the minimum back pressure it maintains?
   It maintains a minimum back pressure of 275 Pa.
