Overview

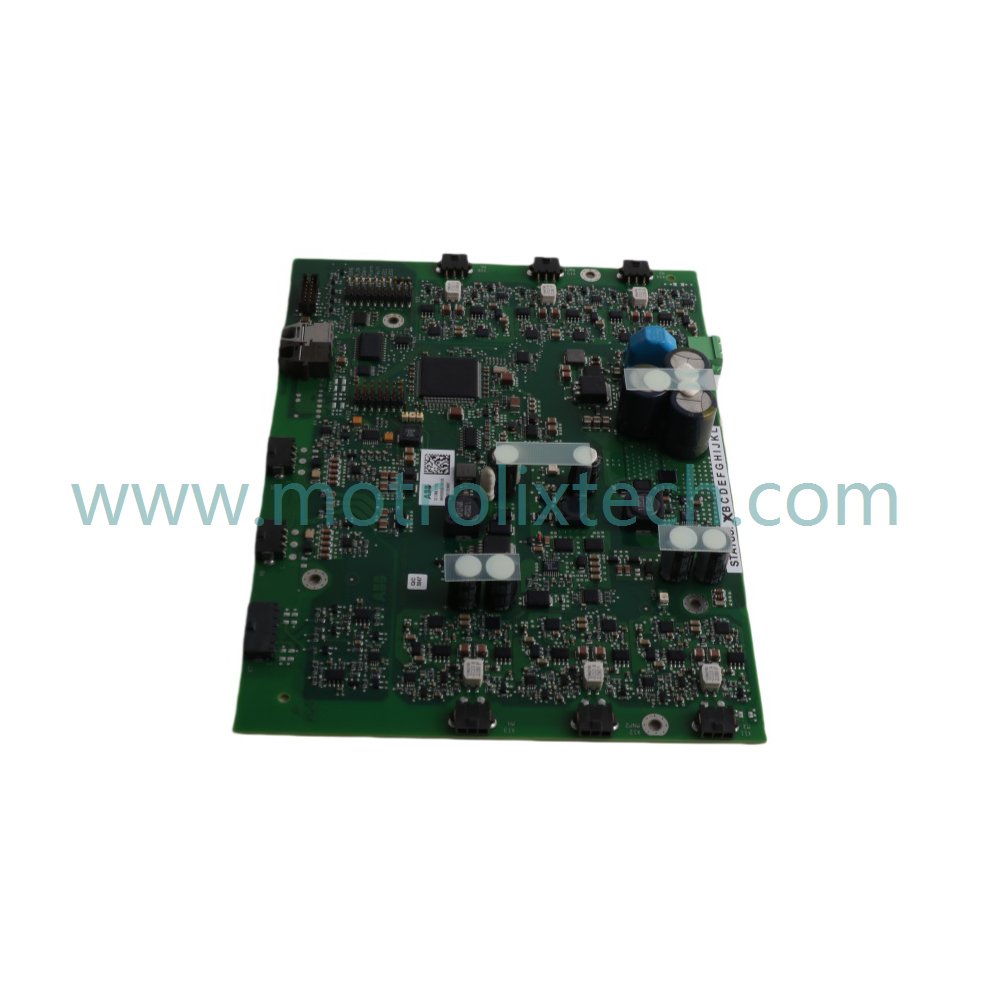

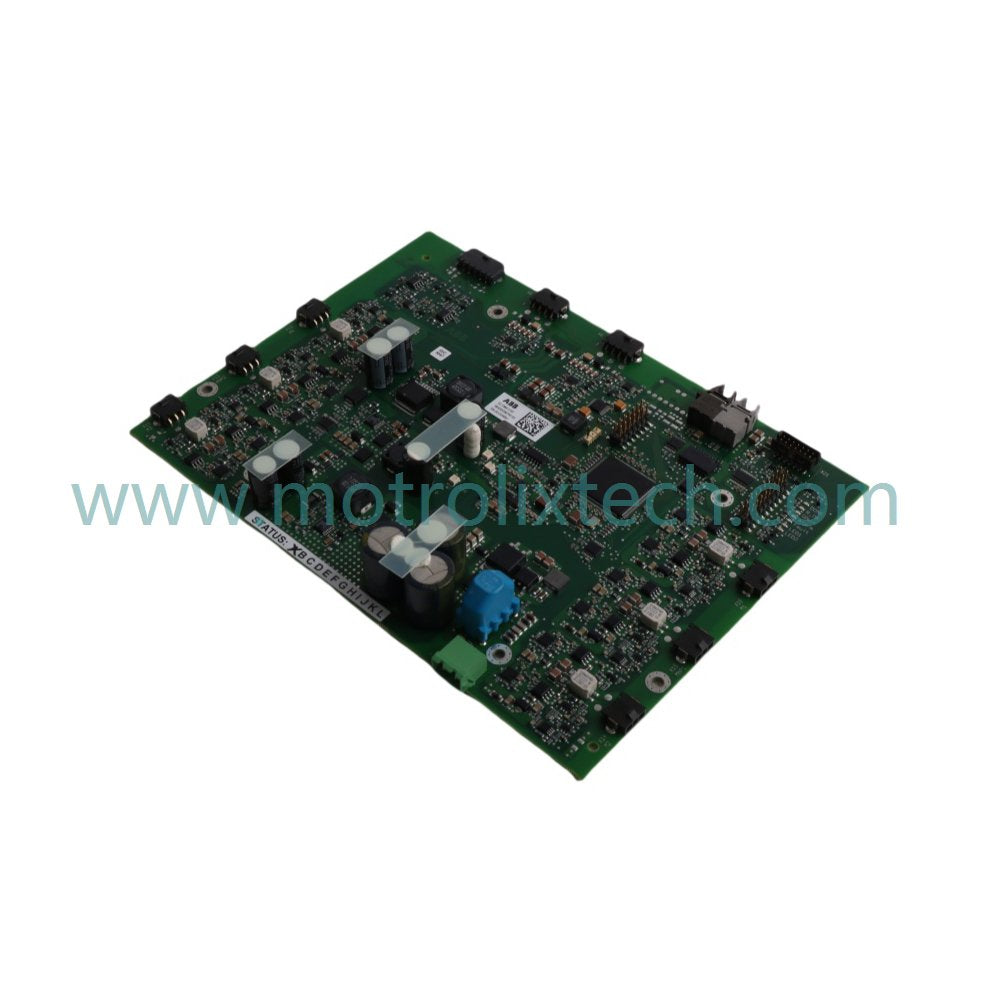

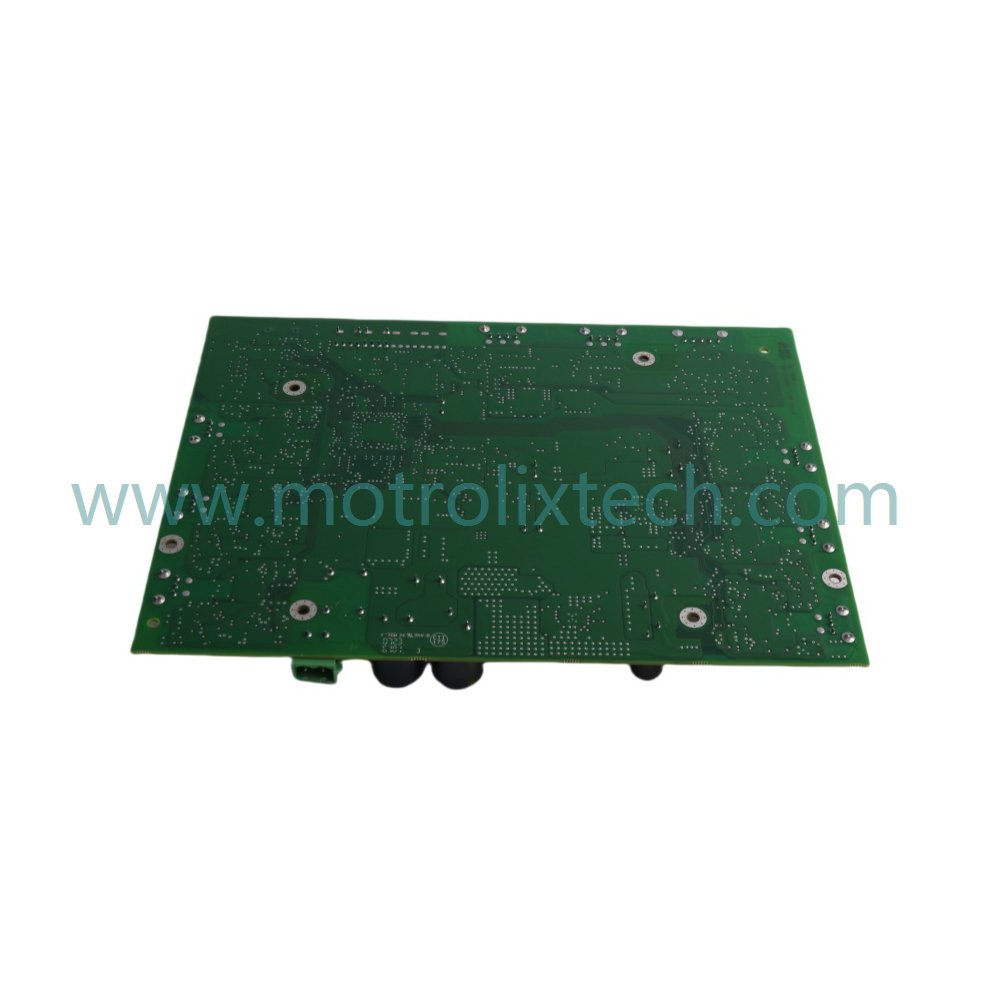

The ABB GCC960C103 3BHE033067R0103 Controller Module is a sophisticated control solution designed specifically for critical power generation and grid management applications. Engineered for high performance, this module features rapid measurement update speeds and robust electrical isolation, making it essential for modern energy systems.

Functional Highlights

Boasting a measurement update speed of less than 40 ms, the GCC960C103 ensures real-time responsiveness, allowing for precise power control in demanding environments. The module emphasizes electrical isolation on a channel-wise basis, providing superior signal integrity while protecting against interference, particularly in complex electrical setups.

Additionally, the controller module is designed with safety and reliability in mind. It features a rating voltage of 250 Veff, compliant with EN 50020 standards. The intelligent electronic current limiting system ensures stable operation, making this module suitable for high-voltage applications. The minimal connected load of just 600 mW contributes to its overall efficiency.

Moreover, the GCC960C103 has a low no-load voltage (Uo ≤21 V), enhancing energy efficiency without compromising safety. These features make it an outstanding choice not only for conventional power plants but also for renewable energy systems.

As a part of ABB's advanced power automation solutions, the GCC960C103 integrates cutting-edge technology with proven durability, ensuring optimal performance in today's power distribution and grid management applications.

Technical Data

• Model Number: GCC960C103 3BHE033067R0103
• Module Type: Controller Module
• Manufacturer: ABB
• Condition: Brand New
• Weight: 0.2 kg
• Dimensions: 21.1 x 15.6 x 2.5 cm
• HS CODE: 8537101190
• Product Origin: Sweden
• Voltage Rating: 250 Veff
• Max Current Limiting: Ik ≤28.5 mA
• Measurement Update Speed: <40 ms
• Connected Load: 600 mW
• No-load Voltage: Uo ≤21 V

Typical Applications

The ABB GCC960C103 Controller Module is suitable for:

• Power generation systems requiring dependable control and monitoring
• Grid management applications that benefit from high-speed responsiveness
• Renewable energy systems, including wind and solar farms
• Industrial settings needing robust electrical signal integrity and isolation

FAQ

1. What is the weight of the GCC960C103 Controller Module?
   The module weighs 0.2 kg.

2. What are the dimensions of the controller module?
   Its dimensions are 21.1 x 15.6 x 2.5 cm.

3. What is the voltage rating of this module?
   The voltage rating is 250 Veff.

4. How quickly does the GCC960C103 update measurements?
   It has a measurement update speed of less than 40 ms.

5. What is the connected load of the GCC960C103?
   The connected load is just 600 mW.
