Overview

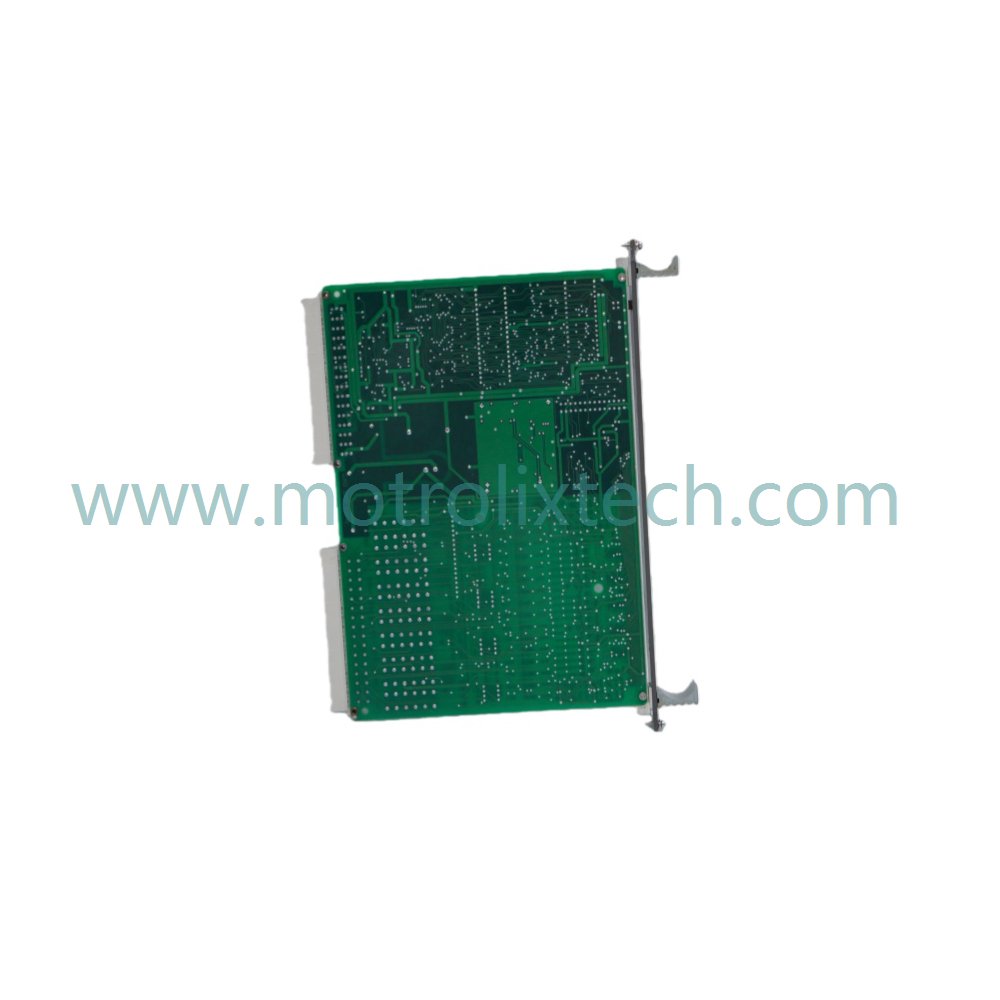

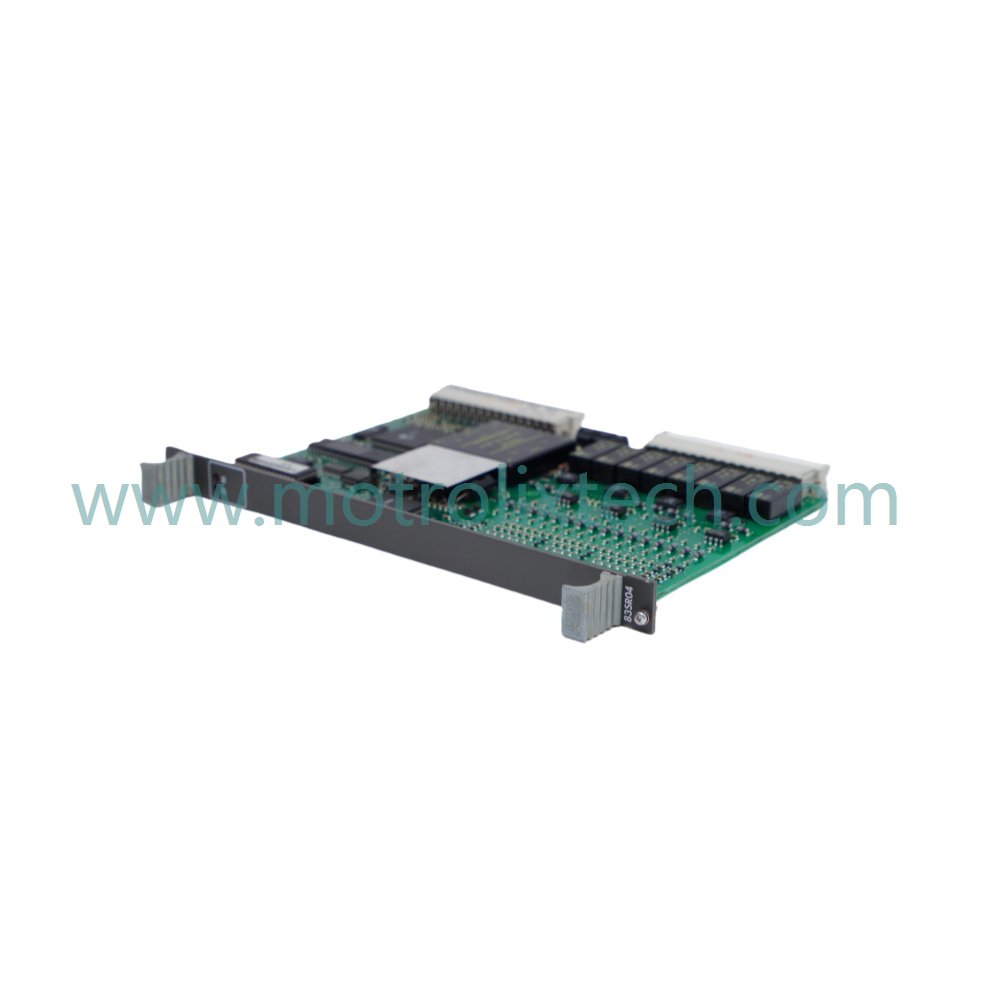

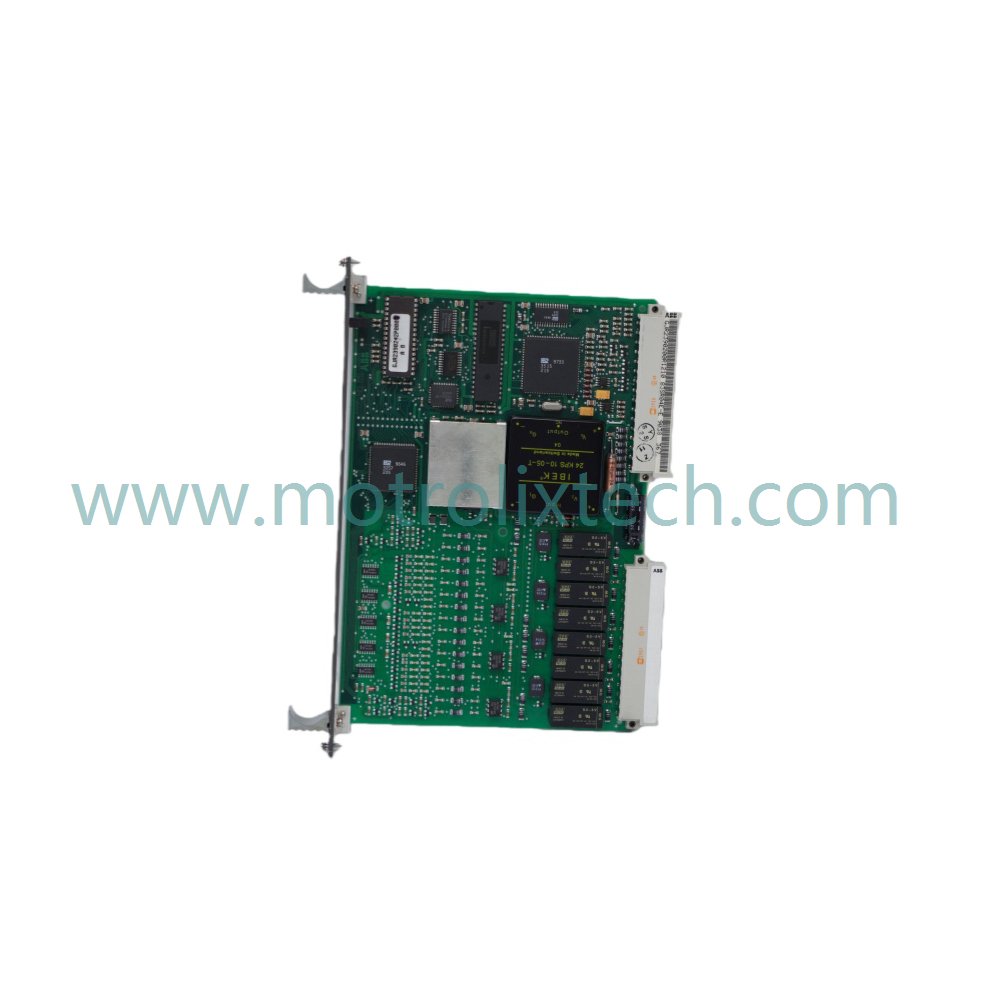

The ABB GJR2390200R1210 83SR04D-B Control Card is a versatile control module designed for sophisticated binary and analog control applications within the Procontrol P14 system. This advanced module excels in managing operational levels across drive, group, and unit controls, allowing seamless automation in various industrial settings.

Functional Highlights

This control card supports multiple operational modes that include:

• Binary control with variable cycle times.
• Analog control with fixed cycles.
• Dedicated signal conditioning functions.

The flexible architecture of the GJR2390200R1210 enables diverse control strategies, ranging from basic drive control to complex three-step regulation. Furthermore, it connects efficiently with multipurpose processing stations and operator interfaces.

Moreover, the module accommodates various actuator types, including electrohydraulic, electropneumatic, and electric motors. The sophisticated programming environment allows users to configure up to four independent control loops or function groups within a single module.

In addition, the analog control capabilities of the GJR2390200R1210 feature precise cycle timing, allowing a 100ms update for single actuator operations and 200ms for dual actuators. The module's robust communication with higher-level master control systems enhances its versatility and reliability.

Technical Data

• Model Number: GJR2390200R1210 83SR04D-B
• Module Type: Control Card
• Manufacturer: ABB
• Condition: Brand New
• Weight: 1.22 kg
• Dimensions: 24 x 19 x 5.3 cm
• HS CODE: 8537101190
• Product Origin: Sweden
• System Compatibility: Procontrol P14
• Operational Modes: Binary and analog control
• Cycle Time: 100ms (single actuator), 200ms (dual actuator)

Typical Applications

The ABB GJR2390200R1210 83SR04D-B Control Card is ideal for:

• Industrial automation systems requiring flexible multi-mode control.
• Applications that demand precise control over various actuator types.
• Systems needing robust real-time monitoring and signal conditioning.
• Operational environments where reduced downtime is essential for productivity.

FAQ

1. What is the weight of the GJR2390200R1210 Control Card?
   The control card weighs 1.22 kg.

2. What are the dimensions of this module?
   Its dimensions are 24 x 19 x 5.3 cm.

3. What types of control modes does this module support?
   It supports binary and analog control modes.

4. How many independent control loops can this module support?
   The GJR2390200R1210 can configure up to four independent control loops.

5. What is the cycle time for analog control operations?
   The cycle time is 100ms for single actuators and 200ms for dual actuators.
