Overview

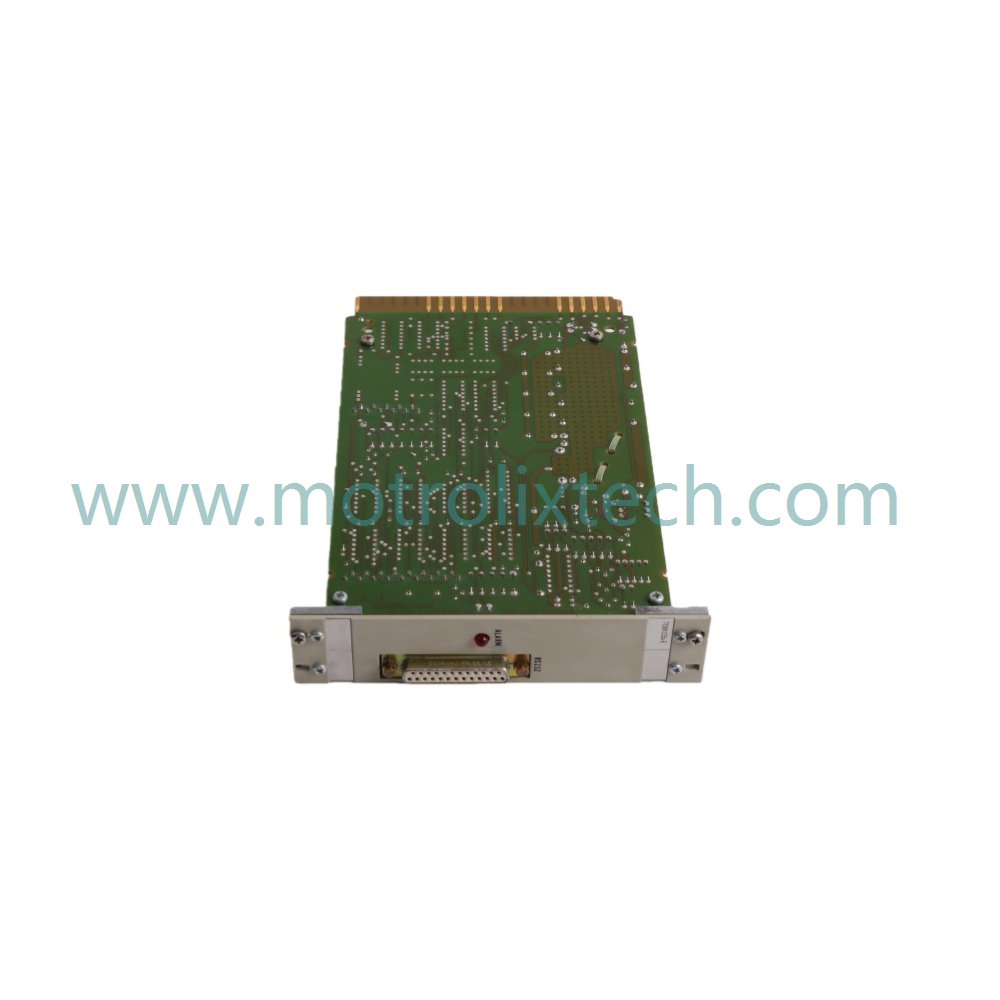

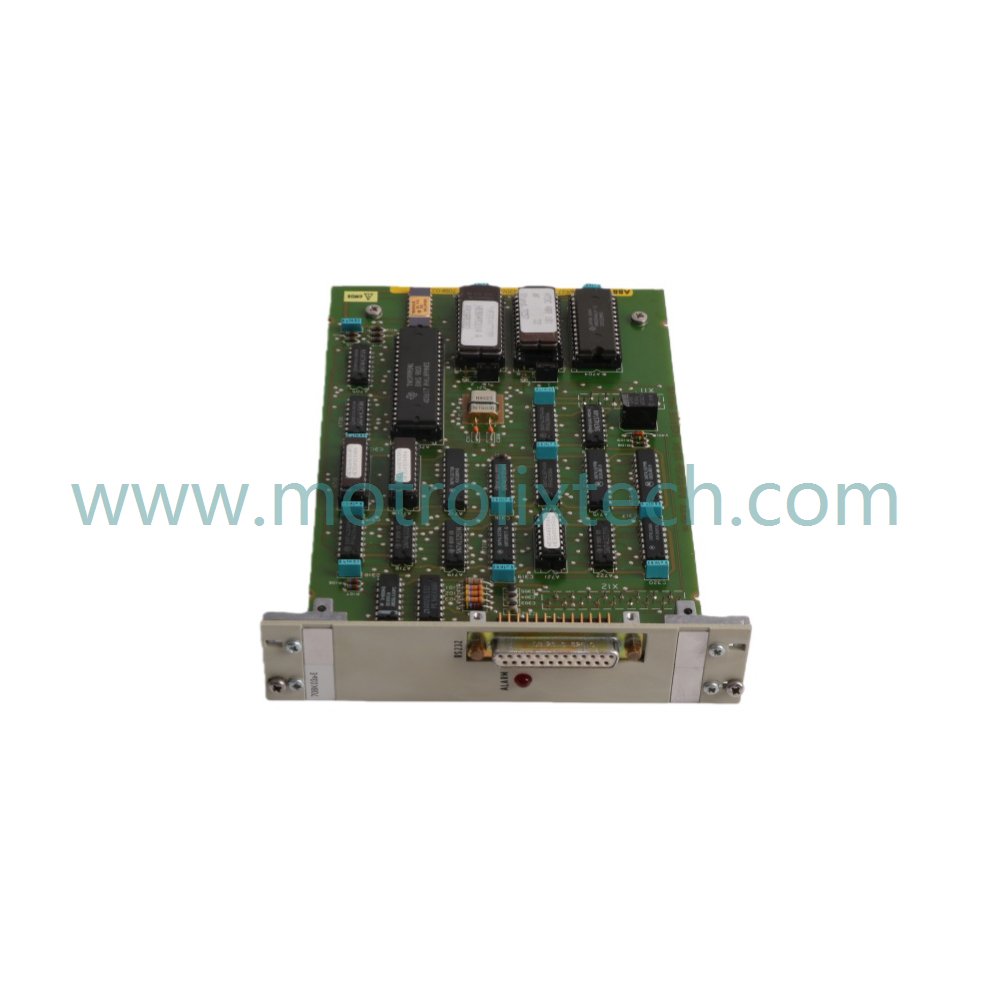

The ABB HESG446933R2 70AB02B-E Analog Output Module is a versatile component of the Procontrol P13 system, designed to measure a wide range of signals. This module effectively handles voltage, current, temperature, and pressure measurements from various process instrumentation applications.

Functional Highlights

One of the key advantages of the HESG446933R2 70AB02B-E is its high accuracy of 0.1% and rapid response time of less than 100 ms. This ensures precise and timely data acquisition, which is crucial for effective process control.

The module features robust 2 kVrms channel isolation, protecting the system from ground loops and potential faults. This safety measure enhances reliability, especially in demanding industrial environments. Moreover, configuration is streamlined through ABB's Control Builder software, which simplifies setup and integration into existing automation architectures.

Equipped with eight isolated input channels, the HESG446933R2 70AB02B-E offers excellent point density, optimizing cabinet space and reducing overall system costs. Its ability to handle diverse signal types makes it an ideal solution for comprehensive process monitoring and control applications. Additionally, the operational stability of this analog output module is proven across a wide temperature range from -20 to +70 °C.

Technical Data

• Model Number: HESG446933R2 70AB02B-E
• Module Type: Analog Output Module
• Manufacturer: ABB
• Condition: Brand New
• Weight: 1.22 kg
• Dimensions: 24 x 19 x 5.3 cm
• HS CODE: 8537101190
• Product Origin: Sweden
• System Compatibility: DCS
• Communication Service: Ethernet router

Typical Applications

The ABB HESG446933R2 70AB02B-E Analog Output Module is suitable for:

• Process monitoring and control in manufacturing environments.
• Applications requiring accurate measurement of multiple signal types.
• Industries where reliable and quick data acquisition is critical, including power generation and chemical processing.
• Systems that must operate reliably across a wide temperature range.

FAQ

1. What is the weight of the HESG446933R2 70AB02B-E Module?
   The module weighs 1.22 kg.

2. What are the dimensions of this analog output module?
   Its dimensions are 24 x 19 x 5.3 cm.

3. What kind of signals can it measure?
   It can measure voltage, current, temperature, and pressure signals.

4. What is the accuracy and response time of the module?
   It has an accuracy of 0.1% and a response time of less than 100 ms.

5. What safety features does the module include?
   It features 2 kVrms channel isolation to prevent ground loops and enhance reliability.
