Overview

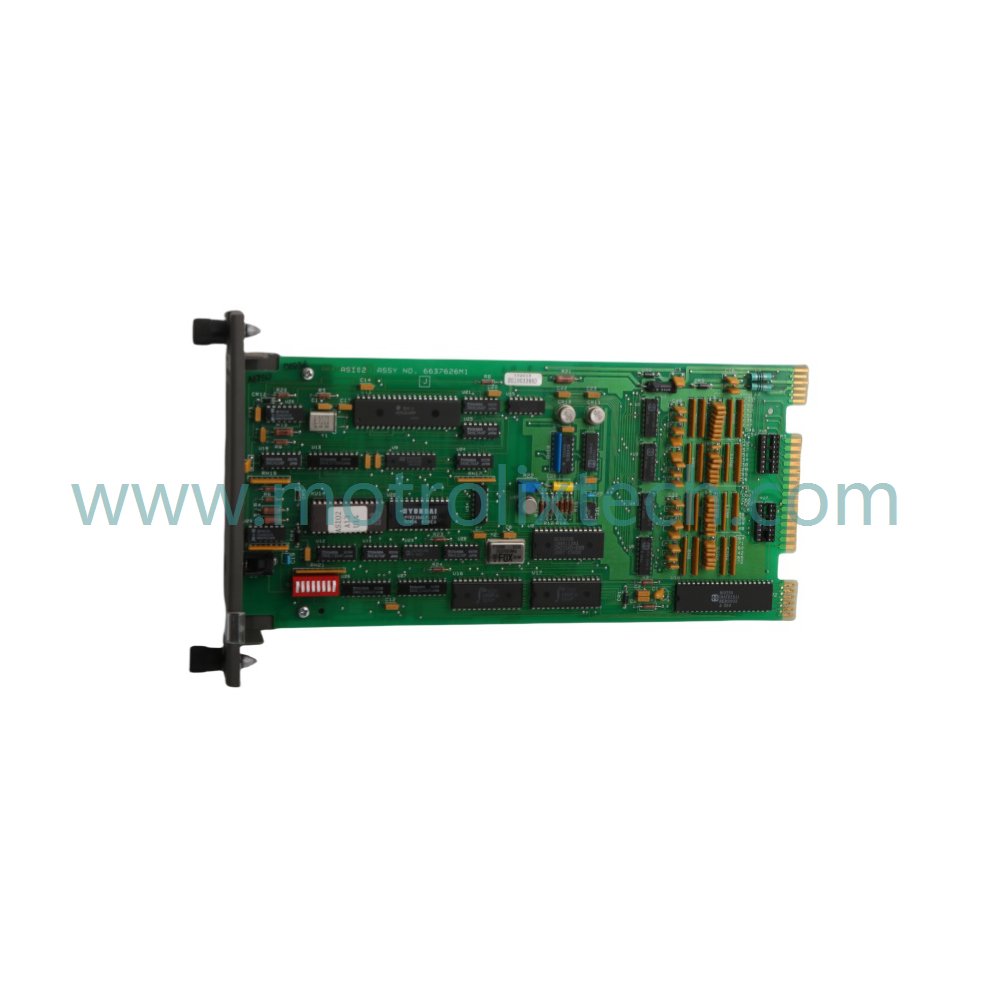

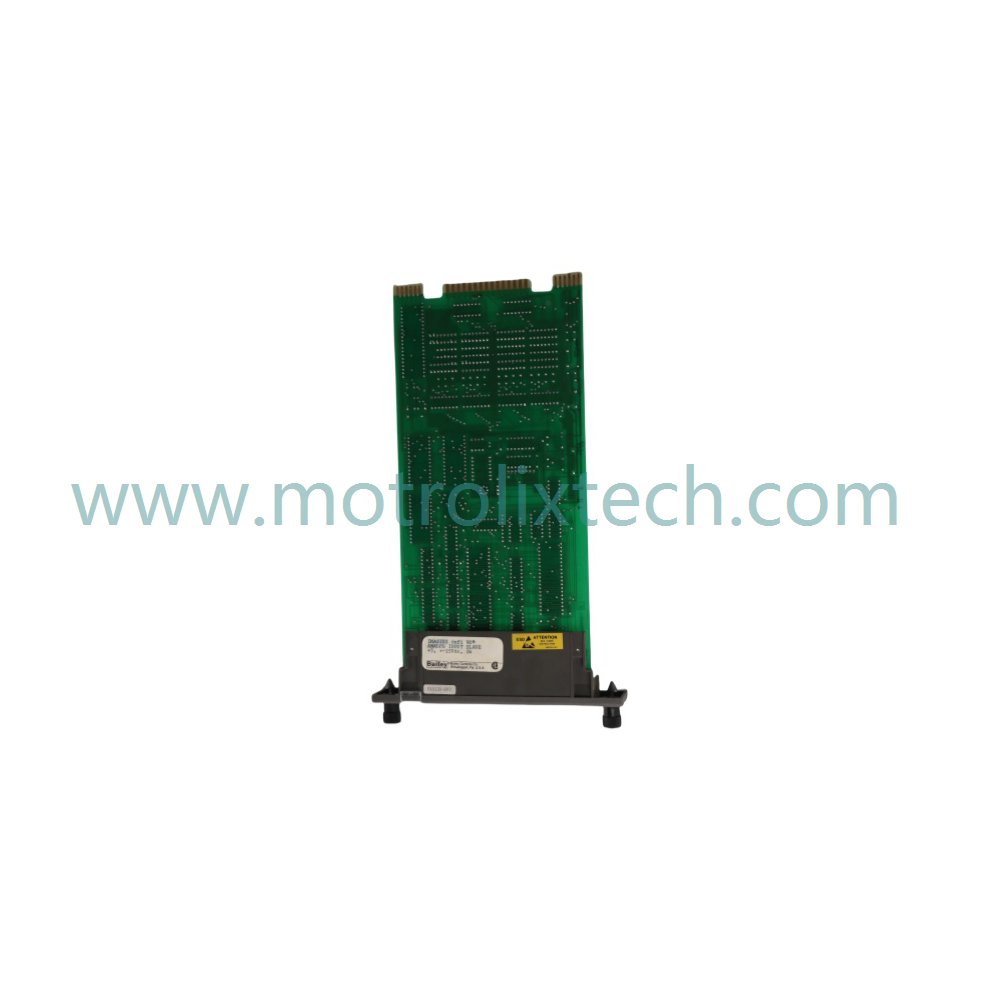

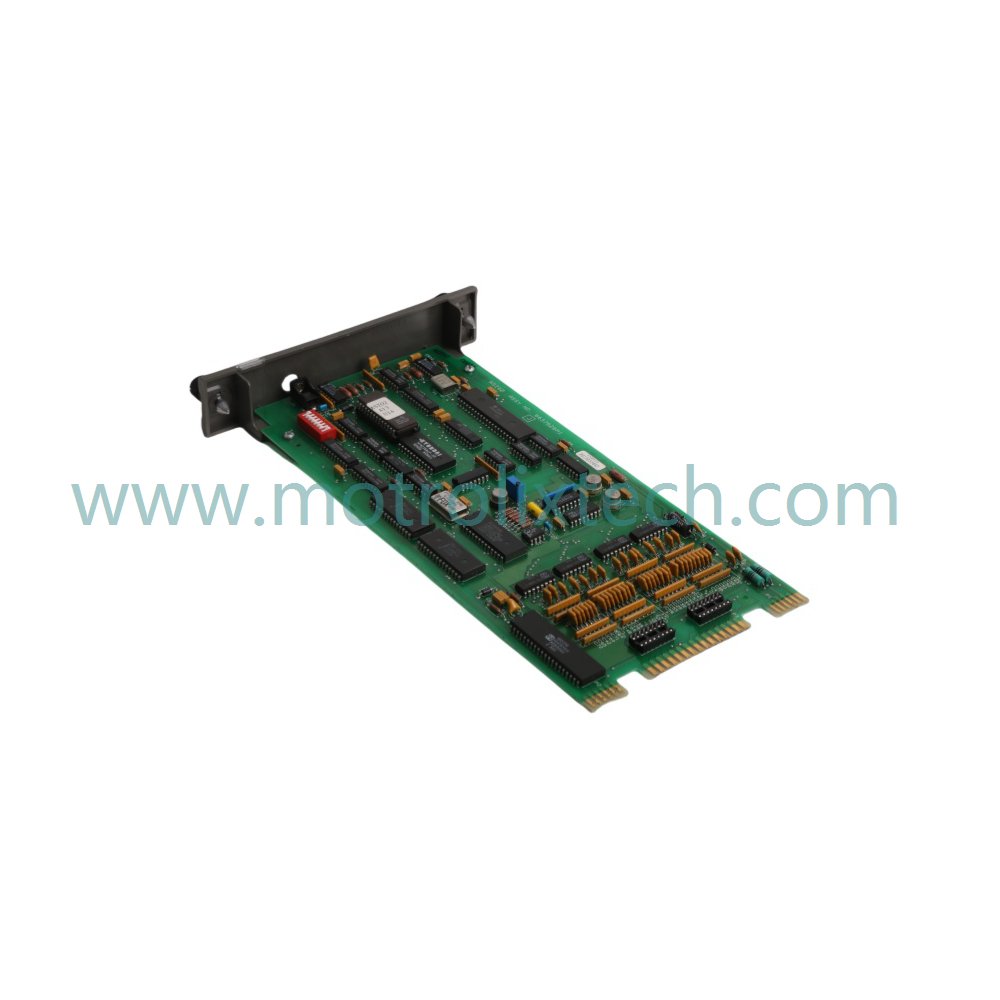

The ABB IMASI02 Bailey Analog Input Module is engineered for precise and reliable data acquisition, making it an essential tool for various industrial applications. This robust module features seamless compatibility with the Infi 90 communication protocol, allowing for easy integration into existing automation systems and ensuring smooth and efficient operations.

Functional Highlights

The IMASI02 module provides 32 high-precision analog input channels to meet the demands of complex monitoring and control tasks across industries such as manufacturing, energy, and process control. It supports a wide voltage range of -10V to +10V, ensuring versatility across different environments and applications.

Moreover, the IMASI02 operates effectively within an impressive temperature range of -40°C to +70°C. This capability guarantees continuous performance in harsh conditions, making it suitable for both outdoor and industrial process control tasks. Additionally, its low power consumption contributes to enhanced energy efficiency and long-term cost savings.

The module is equipped with a BNC connector that simplifies installation and maintenance. Its compact size (31 x 17.5 x 3.5 cm) and lightweight design (0.28 kg) make it easy to install in space-constrained areas. With ABB’s commitment to quality and reliability, the IMASI02 serves as a superior solution for improving productivity and operational efficiency.

Technical Data

• Model Number: IMASI02
• Module Type: Analog Input Module
• Manufacturer: ABB
• Condition: Brand New
• Weight: 0.28 kg
• Dimensions: 3.5 x 31 x 17.5 cm
• HS CODE: 8537101190
• Product Origin: Sweden
• Range of Product: HR Series (Harmony Rack) I/O
• System Compatibility: DCS
• Input Channels: 32
• Voltage Range: -10V to +10V
• Operating Temperature Range: -40°C to +70°C
• Power Consumption: Low

Typical Applications

The ABB IMASI02 Analog Input Module is ideal for:

• Data acquisition in industrial automation systems within manufacturing and energy sectors.
• Integration into process control systems that require high-precision monitoring.
• Applications in environments with extreme temperature variations.
• Enhancing operational efficiency in space-constrained installation areas.

FAQ

1. What is the weight of the IMASI02 module?
   The module weighs 0.28 kg.

2. What are the dimensions of the IMASI02?
   Its dimensions are 3.5 x 31 x 17.5 cm.

3. How many analog input channels does the IMASI02 have?
   It features 32 high-precision analog input channels.

4. What is the voltage range supported by the IMASI02?
   The module supports a voltage range of -10V to +10V.

5. Is the IMASI02 suitable for extreme environments?
   Yes, it operates reliably within a temperature range of -40°C to +70°C.
