Overview

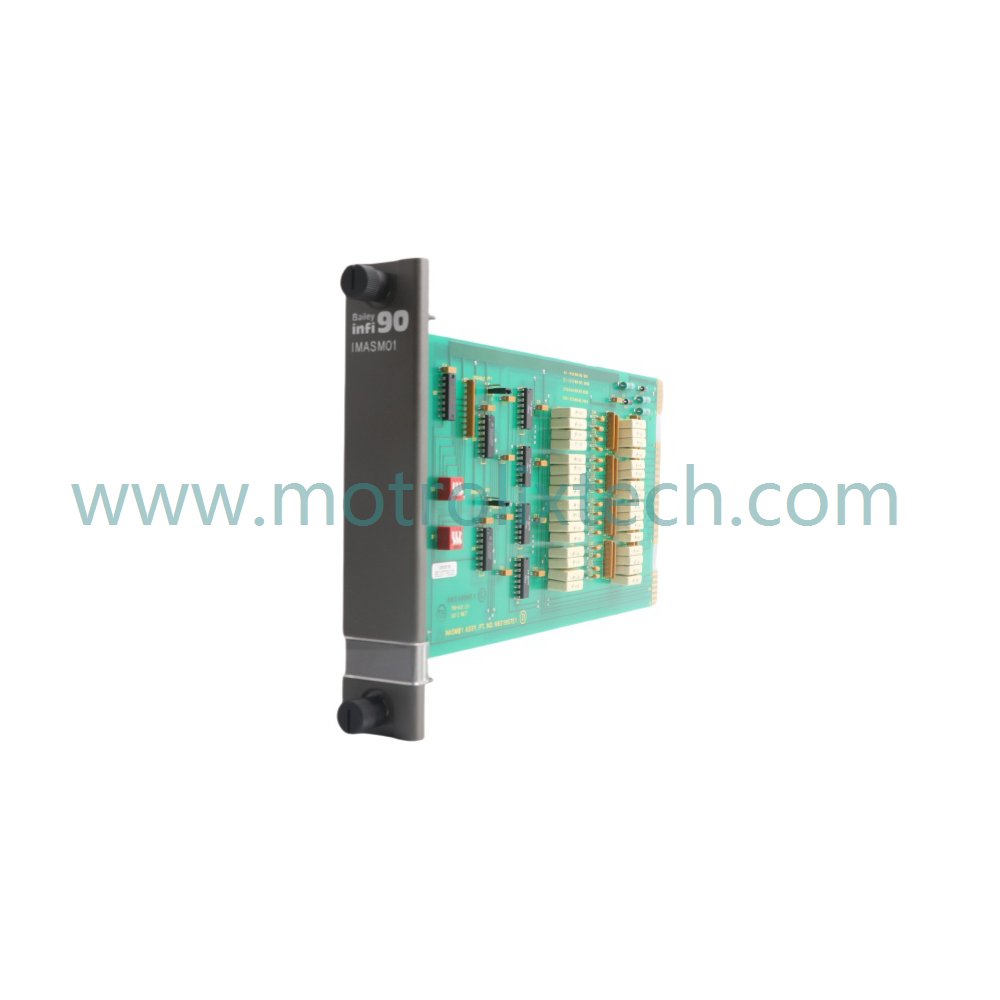

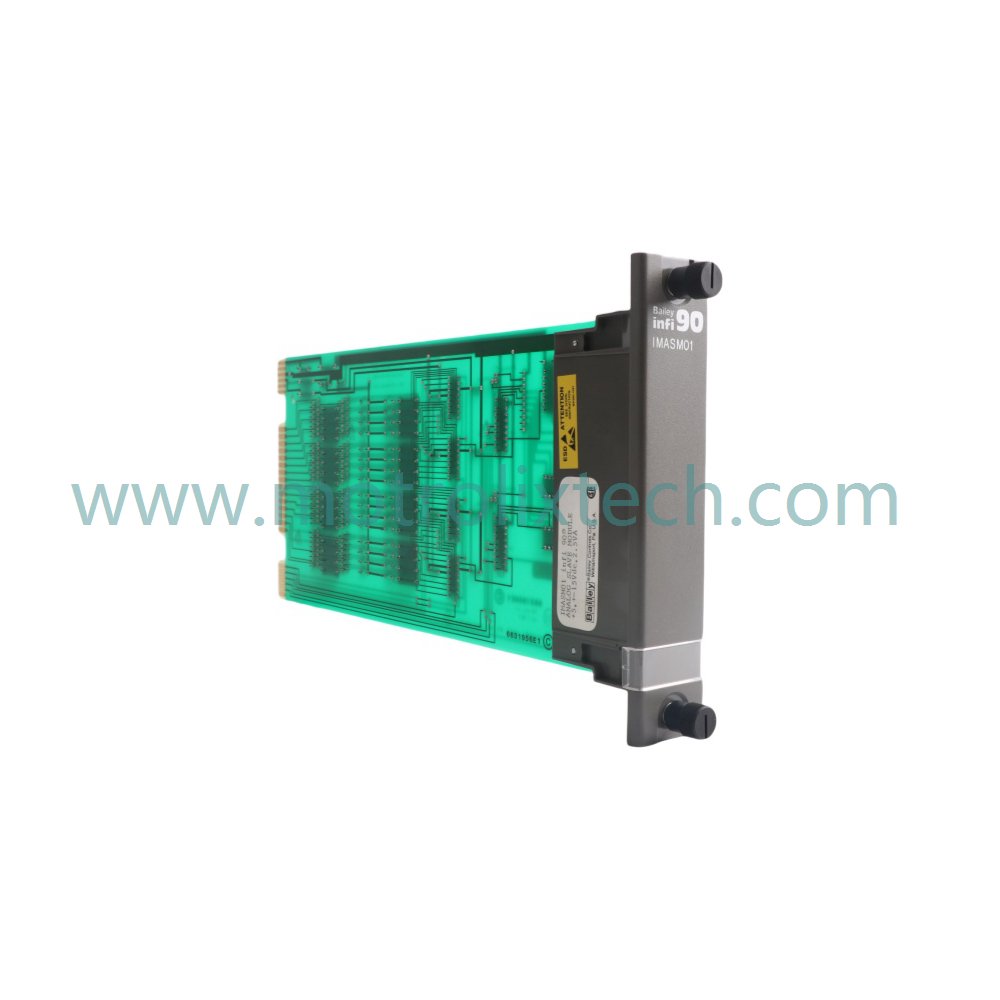

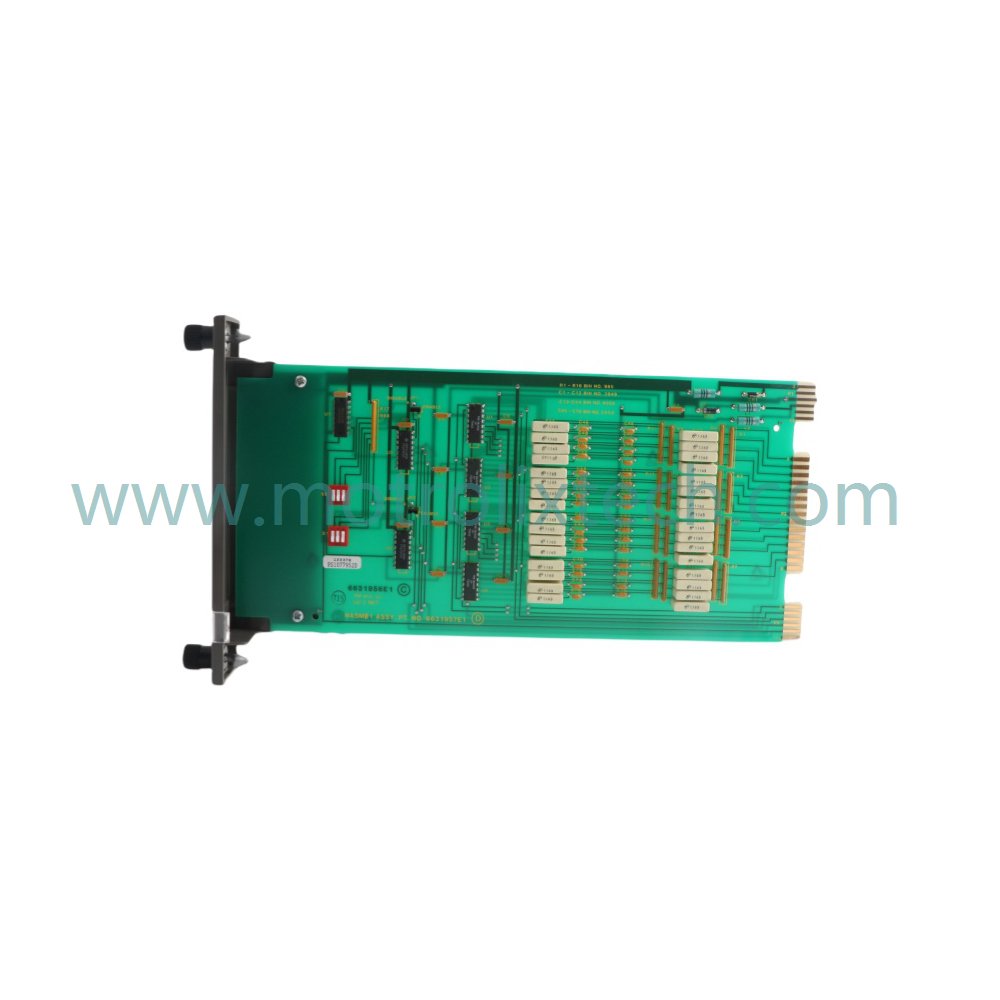

The ABB IMASM01 Analog Input Board is meticulously engineered to meet the demanding needs of modern industrial automation systems. This module serves as a reliable platform for managing input and output signals, significantly enhancing system reliability and operational efficiency.

Functional Highlights

Featuring a cutting-edge modular design, the IMASM01 integrates seamlessly with various control systems, simplifying both installation and configuration. Its support for multiple communication protocols ensures interoperability, making it compatible with existing infrastructure.

Moreover, the IMASM01 is designed to operate within a wide voltage range and offers exceptional temperature tolerance. This capability makes it well-suited for diverse industrial applications, from harsh manufacturing environments to controlled laboratory settings. The inclusion of relay contacts enhances its versatility, allowing users to control actuators and alarms directly from the module.

Constructed from durable materials, the IMASM01 is built for long-lasting, continuous operation. This construction minimizes downtime while maintaining optimal performance. Its compact size and efficient heat dissipation design further enhance reliability and durability.

Additionally, the IMASM01 comes with comprehensive documentation and robust support resources. This feature enables fast setup and hassle-free troubleshooting, ensuring smooth operation and reduced maintenance costs.

Technical Data

• Model Number: IMASM01
• Module Type: Analog Input Board
• Manufacturer: ABB
• Condition: Brand New
• Weight: 0.24 kg
• Dimensions: 3.5 x 31 x 17.5 cm
• HS CODE: 8537101190
• Product Origin: Sweden
• Range of Product: HR Series (Harmony Rack) I/O
• System Compatibility: DCS
• Operating Voltage Range: Wide range
• Temperature Tolerance: Exceptional
• Relay Contacts: Yes

Typical Applications

The ABB IMASM01 Analog Input Board is ideal for:

• Industrial automation systems requiring reliable signal management.
• Integration into existing control systems needing high compatibility.
• Applications in environments with varying temperatures and conditions.
• Projects that utilize actuators and alarms for enhanced control.

FAQ

1. What is the weight of the IMASM01 module?
   The module weighs 0.24 kg.

2. What are the dimensions of the IMASM01?
   Its dimensions are 3.5 x 31 x 17.5 cm.

3. What types of communication protocols does the IMASM01 support?
   It supports multiple communication protocols for seamless integration.

4. Is the IMASM01 suitable for use in harsh environments?
   Yes, it is designed to operate reliably in demanding industrial conditions.

5. What additional resources are provided for the IMASM01?
   Comprehensive documentation and support resources assist with setup and troubleshooting.
