Overview

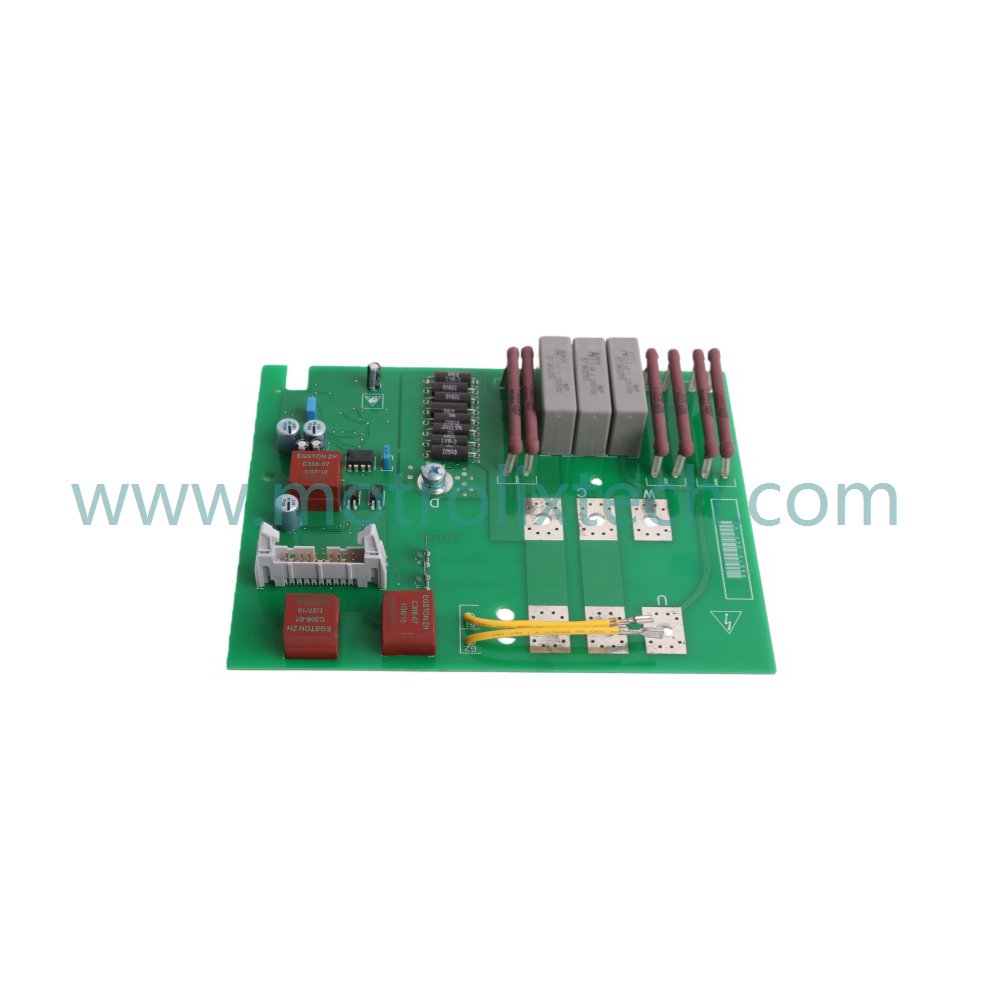

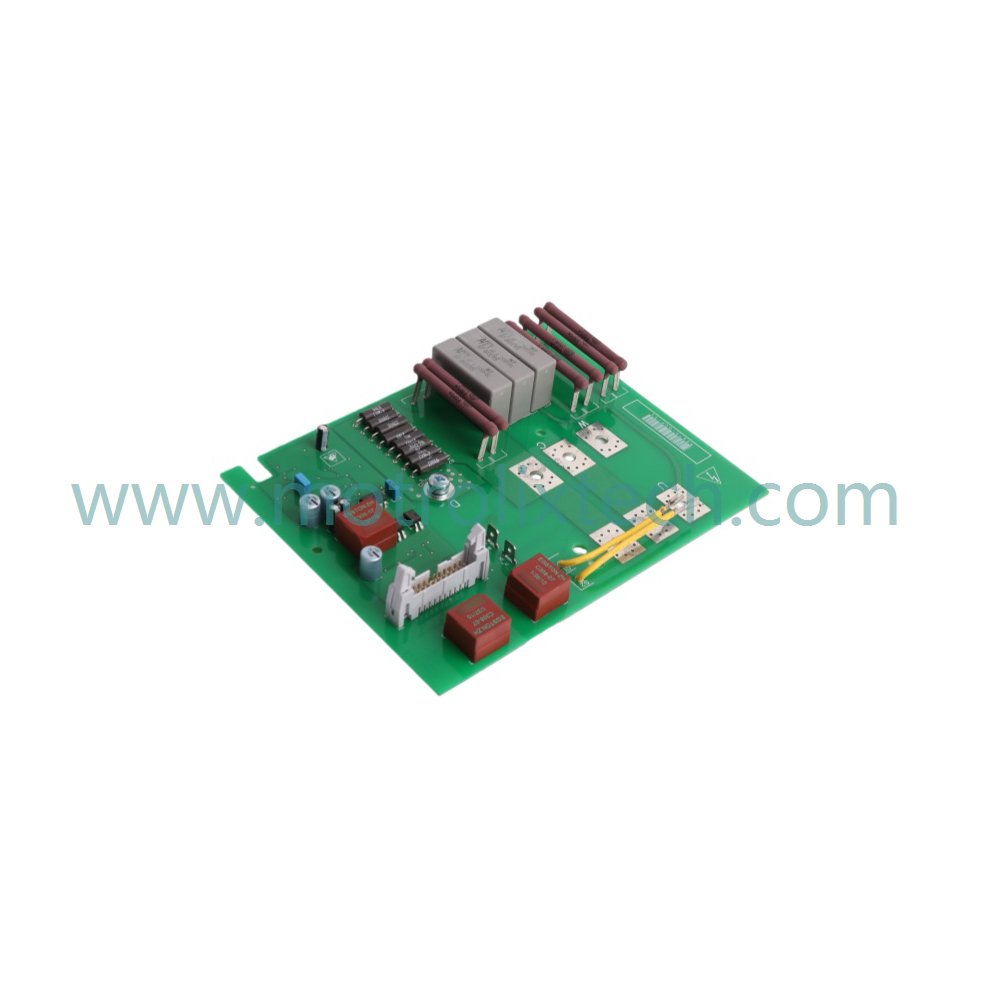

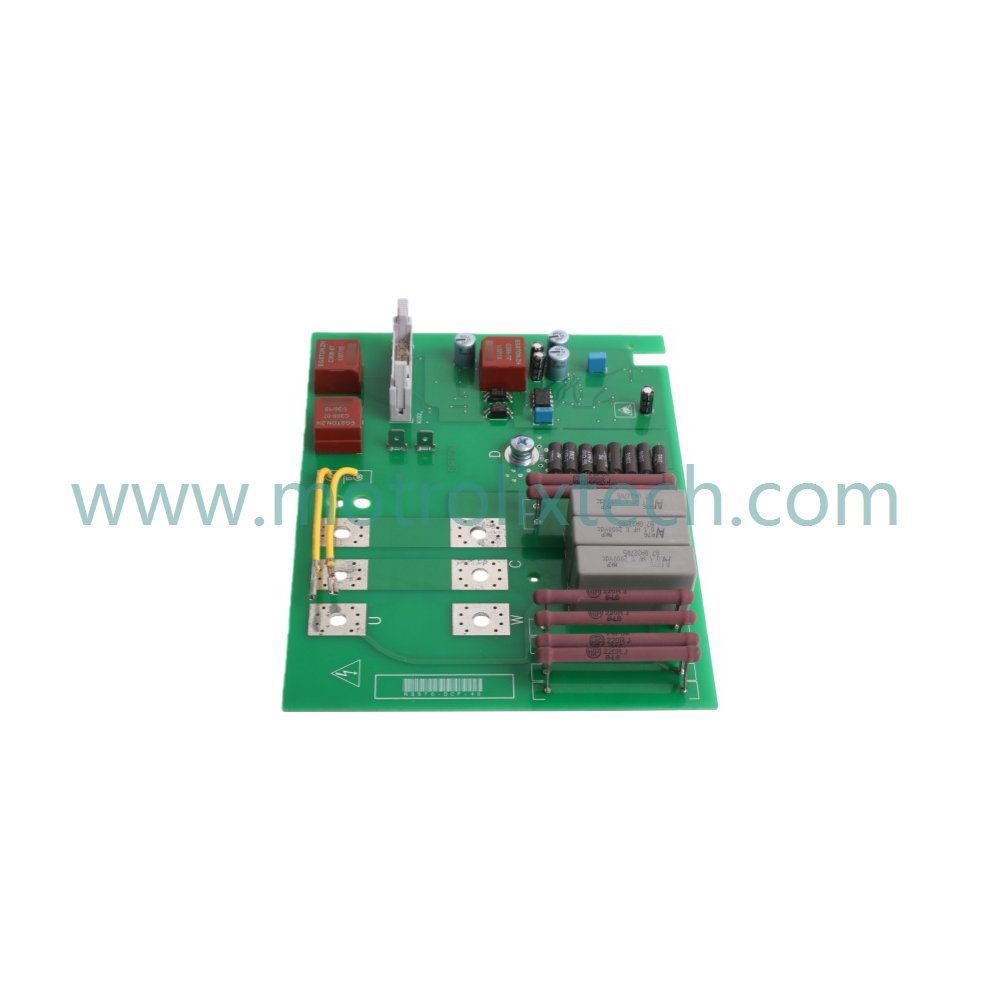

The ABB RSS70-DCF-40 C98043-A7044-L1-6 PC Board is a highly specialized printed circuit board designed for accurate voltage detection and monitoring in industrial automation systems. As an integral part of ABB's extensive range of industrial control devices, this board delivers reliable performance under the most demanding operational conditions.
Functional Highlights
The RSS70-DCF-40 PC Board is capable of monitoring both AC and DC voltages within a range of 0-600V, maintaining measurement accuracy of ±1% of the reading. This board operates on a 24V DC power supply, typically consuming between 3 to 8 watts. Its logic circuits are designed to function at standard 3.3V and 5V DC levels, ensuring compatibility with modern industrial control ecosystems.
Furthermore, the board can operate within a temperature range of 0°C to +60°C, with storage capabilities extending from -40°C to +85°C, showcasing its rugged and durable construction.
The compact dimensions of the RSS70-DCF-40, measuring 19.1 x 18.8 x 6.5 cm and weighing only 1.22 kg, facilitate easy integration into control panels and equipment racks. This makes it ideal for environments with space constraints while continuing to perform essential functions in power monitoring applications.
Technical Data
Typical Applications
The ABB RSS70-DCF-40 C98043-A7044-L1-6 PC Board is particularly suitable for:
FAQ
What is the weight of the RSS70-DCF-40 PC Board?
The RSS70-DCF-40 weighs 1.22 kg.
What are the dimensions of the RSS70-DCF-40 PC Board?
Its dimensions are 24 x 19 x 5.3 cm.
What voltage range does the RSS70-DCF-40 monitor?
It monitors both AC and DC voltages within 0-600V.
What is the temperature range for operation?
It operates effectively from 0°C to +60°C.
How is this board powered?
The RSS70-DCF-40 operates on a 24V DC power supply.
