Product Overview:

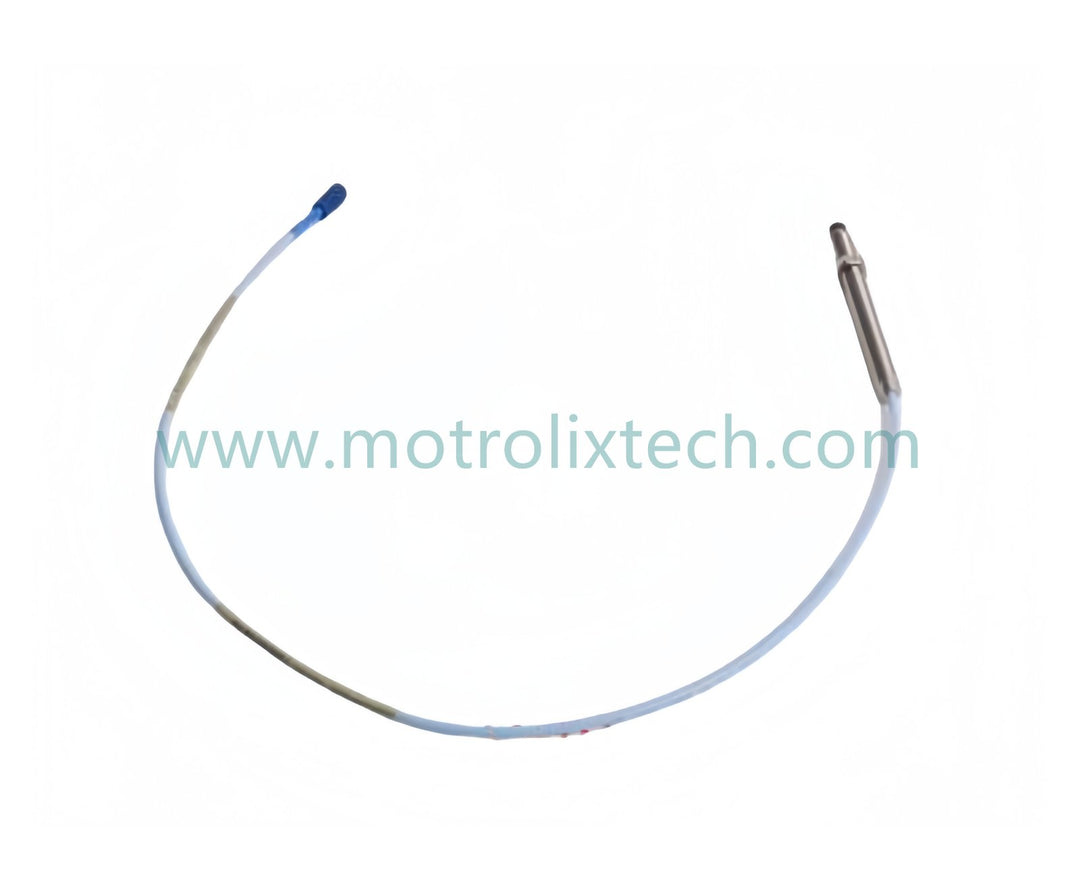

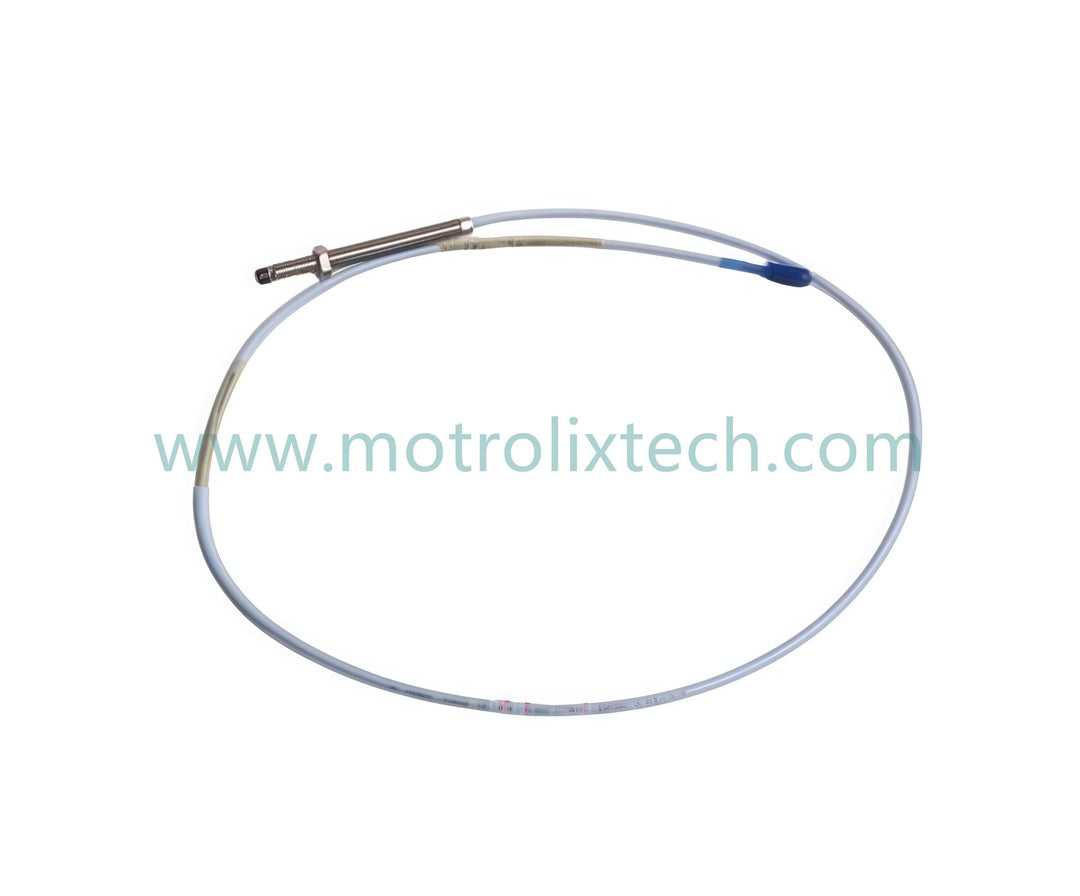

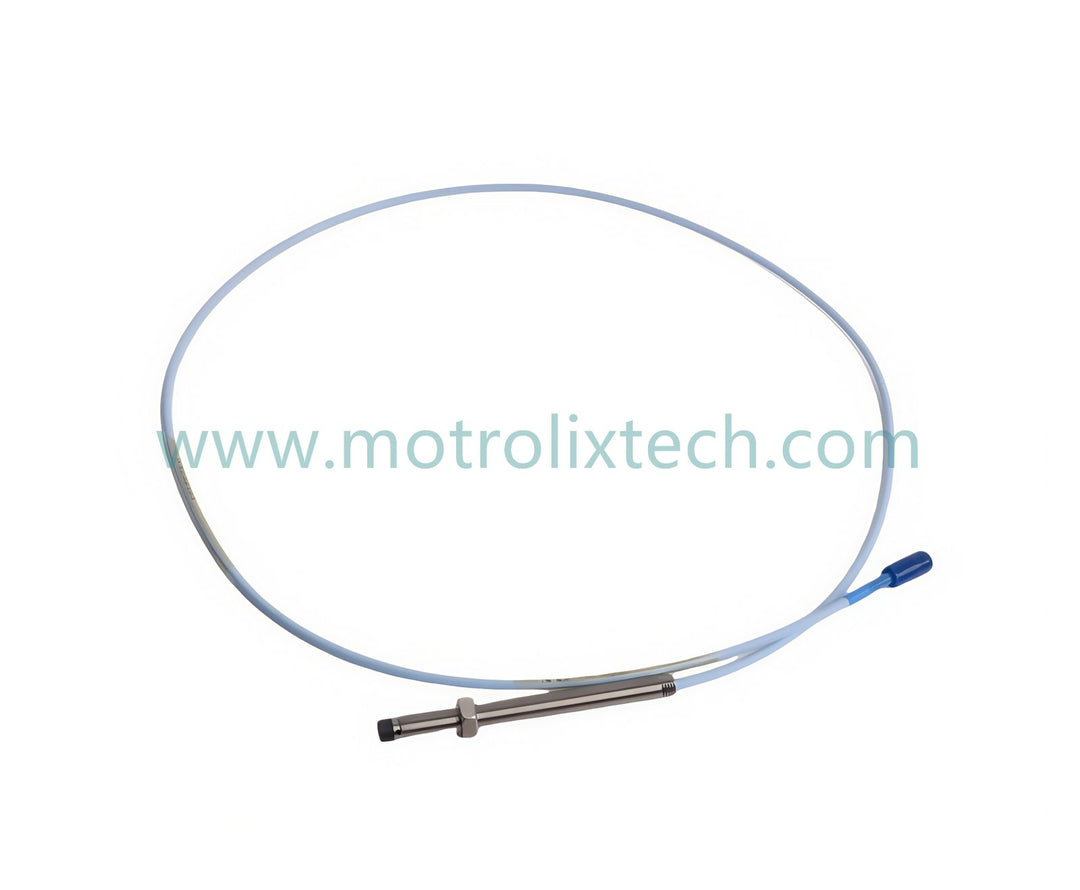

The Bently Nevada 330101-00-47-90-02-00 3300 XL 8 mm Proximity Probes provide an advanced solution for precise vibration monitoring and position measurement in fluid-film bearing machinery applications. This comprehensive transducer system includes the probe, extension cable, and Proximitor Sensor, delivering accurate voltage outputs proportional to the distance from the target. Designed to meet stringent API 670 standards, these probes ensure reliability and performance in demanding industrial environments.

Technical Specifications:

• Model Number: 330101-00-47-90-02-00

• Module Type: 3300 XL 8 mm Proximity Probes

• Manufacturer: Bently Nevada

• Condition: Brand New

• Product Range: Bently Nevada

• Lead Time: In Stock

• Weight: 0.1 kg

• Dimensions: 1.5 x 1.3 x 119 cm

• HS CODE: 8537101190

• Product Origin: USA

• System: TSI

• Communication Service: Ethernet Router

• Interchangeability: Compatible with non-XL 3300 series components

• Cable Pull Force Resistance: 330N

• Connectors: Gold-plated ClickLoc connectors

• Extended Temperature Range: Probes operate up to 218°C and cables up to 260°C

Model Code Breakdown:The model number 330101-00-47-90-02-00 can be decoded as follows:

• 330101: Identifies the specific model within the Bently Nevada product lineup.

• 00: Indicates the standard version of the probe without any additional modifications.

• 47: Refers to key design features or specifications related to the functionality of the probe.

• 90: Signifies relevant details about configuration or operational capability.

• 02: Represents the model's specific variants or applications.

Installation Recommendations and Wiring Guide:To ensure optimal performance of the Bently Nevada 330101-00-47-90-02-00 Proximity Probes, follow these installation steps:

1. Identify Installation Location: Choose a well-suited location for the probe that allows effective monitoring of rotating machinery.

2. Secure the Probe: Use the provided mounting tools to firmly attach the probe in alignment with the target for accurate readings.

3. Connect Wiring: Utilize the gold-plated ClickLoc connectors for secure and tool-free wiring connections to streamline the installation process.

4. Conduct Performance Testing: After installation, perform testing to ensure that the probe operates effectively and integrates seamlessly with the monitoring system.

Frequently Asked Questions (FAQ):

• Q: What is the main function of the Bently Nevada 330101-00-47-90-02-00 Proximity Probes?
  A: These probes are designed for accurate vibration and position monitoring in fluid-film bearing applications.

• Q: Are these probes suitable for harsh industrial environments?
  A: Yes, the probes are built to withstand extreme operating conditions, with temperature ratings up to 218°C.

• Q: What benefits do the ClickLoc connectors offer?
  A: The gold-plated ClickLoc connectors allow for a secure, tool-free installation, enhancing ease of use and reliability.

• Q: Can I use this probe in place of older 5mm probes?
  A: Yes, the system is backward compatible with non-XL 3300 series components, suitable for space-constrained installations.

• Q: How do I ensure proper installation?
  A: Follow the installation guide provided and conduct performance tests to ensure accurate monitoring post-installation.
