Product Overview:

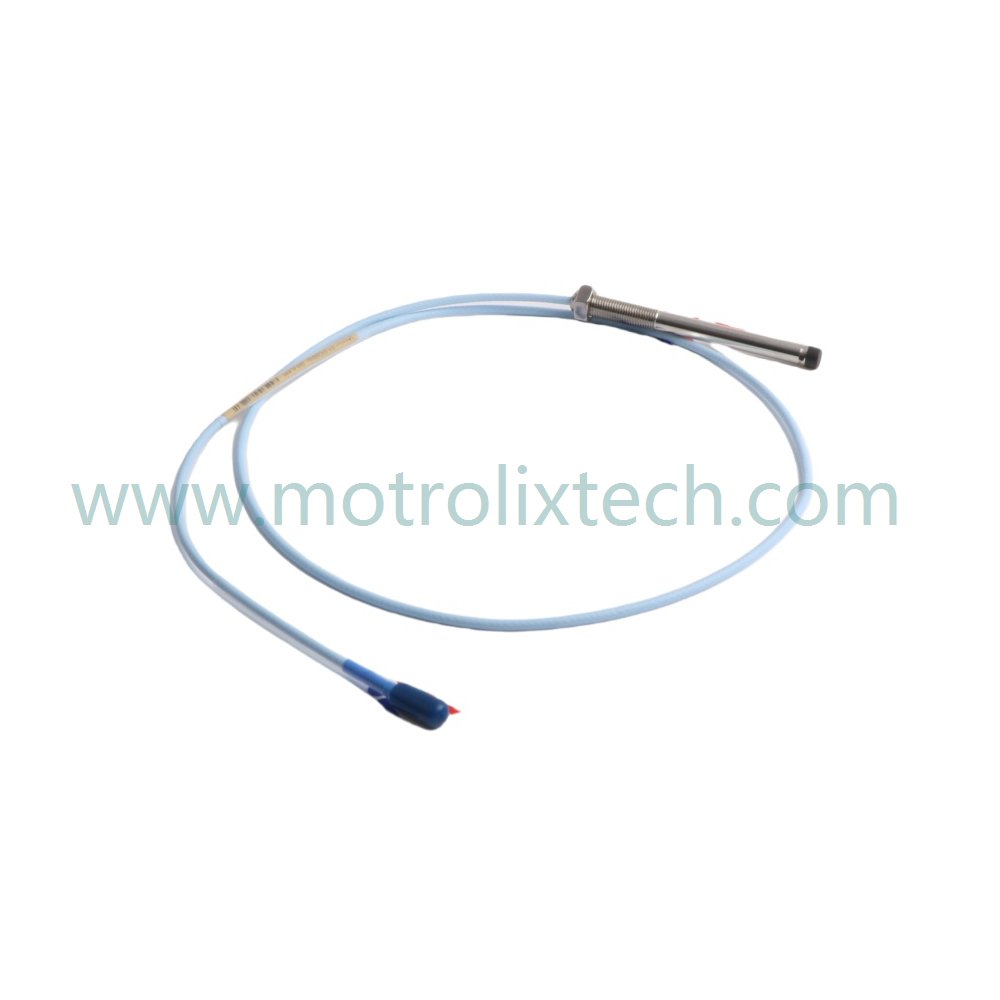

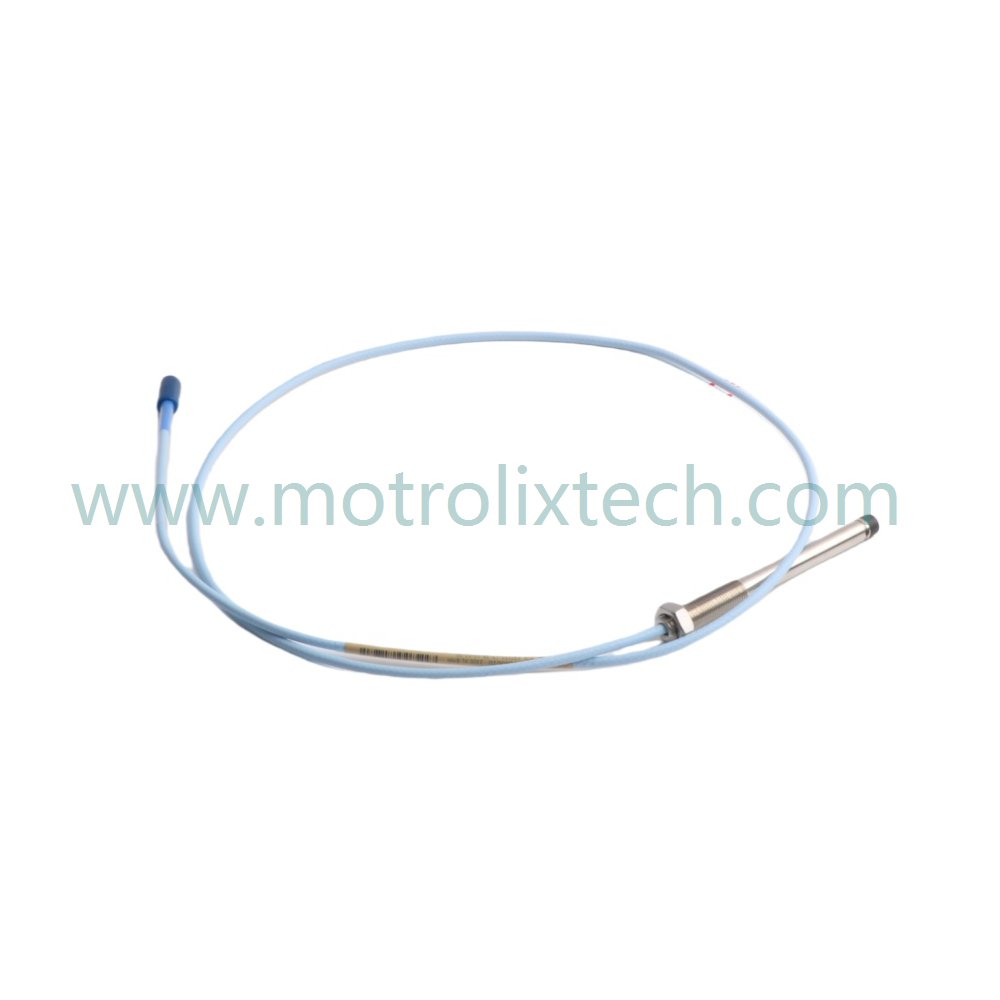

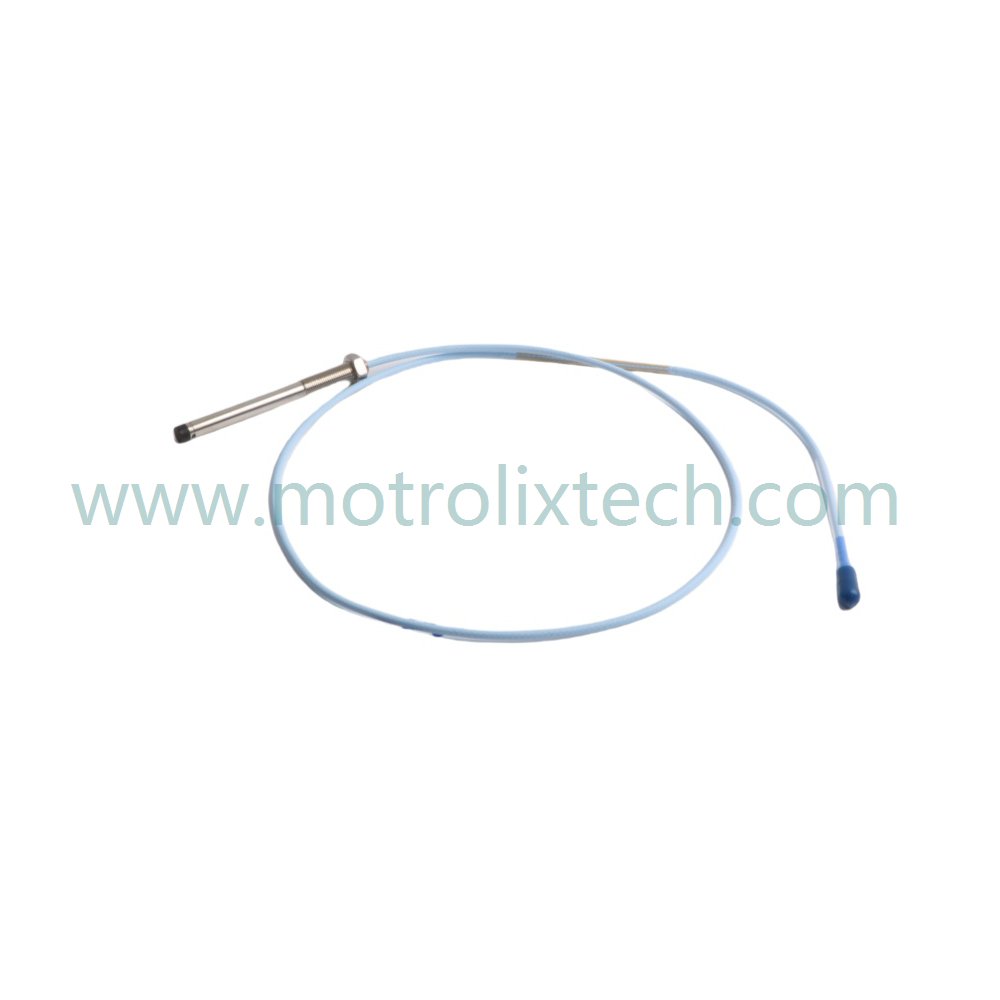

The Bently Nevada 330101-23-34-10-02-05 3300 XL 8 mm Proximity Probes are industrial-grade eddy current proximity transducers engineered for precise machinery protection in demanding environments. Designed specifically for critical rotating equipment such as gas turbines, steam turbines, and centrifugal compressors, these probes provide accurate vibration and position measurements. Their rugged stainless steel construction allows them to withstand extreme temperatures and harsh conditions, making them ideal for applications in power generation and hydrocarbon processing.
Technical Specifications:
Model Number: 330101-23-34-10-02-05
Module Type: 3300 XL 8 mm Proximity Probes
Manufacturer: Bently Nevada
Condition: Brand New
Product Range: 3300 System
Lead Time: In Stock
Weight: 0.12 kg
Dimensions: 20.5 x 22.4 x 3.7 cm
HS CODE: 8537101190
Product Origin: USA
System: TSI
Communication Service: Ethernet Router
Model Code Breakdown:The model number 330101-23-34-10-02-05 can be dissected as follows:
330101: Indicates compatibility with the Bently Nevada 3300 series.
23: Represents specific configurations or variants of the probe within the series.
34: Denotes the temperature range or environmental specifications.
10: Specifies the output type and relay configuration.
02-05: Indicates any additional features or options related to the probe.
Installation Recommendations and Wiring Guide:To ensure optimal performance of the Bently Nevada 330101-23-34-10-02-05 Proximity Probes, follow these installation steps:
Selection of Installation Location: Choose a stable and accessible site for mounting the probe, ensuring a suitable position relative to the machinery being monitored.
Mounting the Probes: Securely attach the probes using the provided mounting hardware, ensuring alignment for accurate measurements.
Connecting Wiring: Utilize the 4-20mA output for connection to the monitoring system. Make sure all connections are secure to prevent any issues with signal integrity.
Conducting Initial Testing: After installation, verify proper functionality by testing the probes to ensure they operate accurately within the specified frequency range of 0 to 10 kHz.
Frequently Asked Questions (FAQ):
Q: What is the primary function of the Bently Nevada 330101-23-34-10-02-05 Proximity Probes?
A: These probes provide precise vibration and position monitoring for critical rotating machinery, ensuring reliability in operational performance.
Q: What environmental conditions can these probes withstand?
A: They are designed to operate in extreme environments, capable of withstanding temperatures up to 150°C (302°F) and exposure to corrosive fluids.
Q: How does the temperature compensation technology work?
A: The advanced temperature compensation technology maintains ±1% linearity across the full measurement range, ensuring accurate readings under varying temperature conditions.
Q: What installation advantages does this transducer have?
A: The modular quick-connect design reduces installation time by 30% compared to conventional transducers, facilitating flexible configuration.
Q: Can these probes be integrated into existing monitoring systems easily?
A: Yes, they are compatible with Bently Nevada’s 3500 monitoring systems through standard 4-20mA outputs.
