Product Overview:

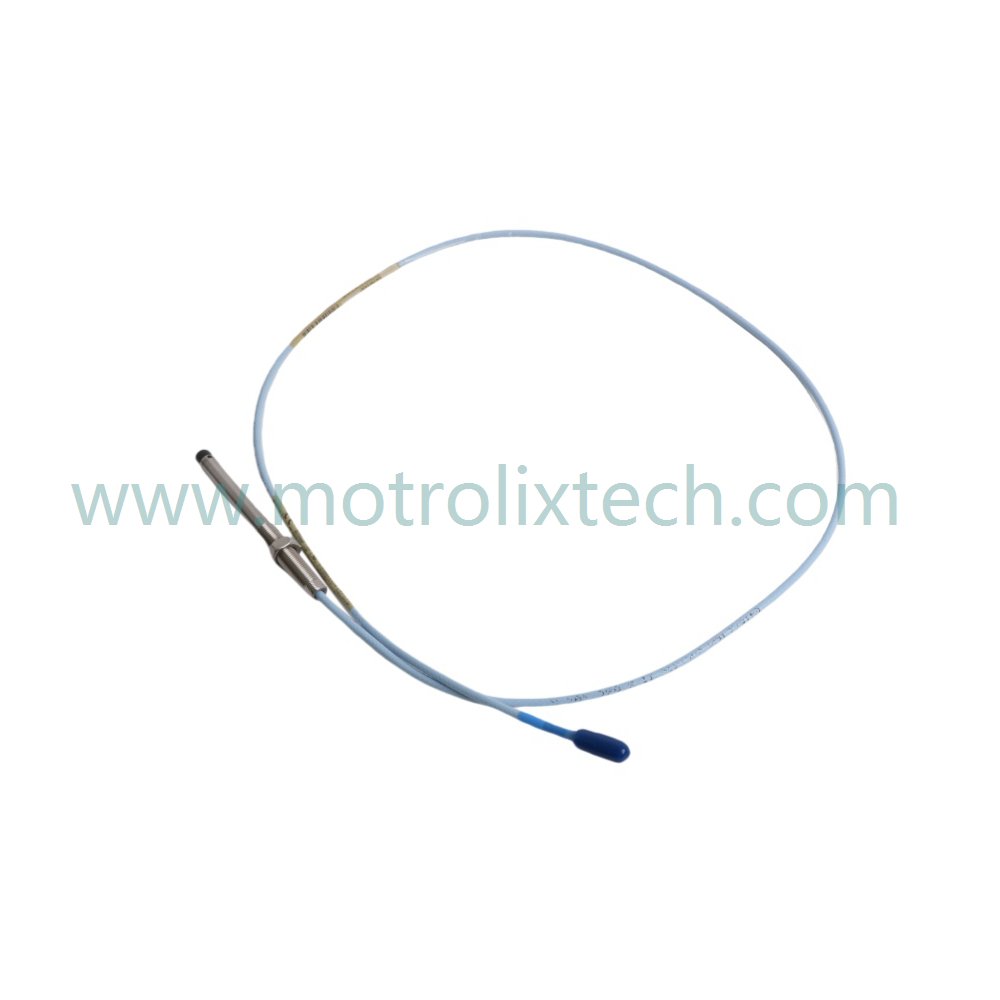

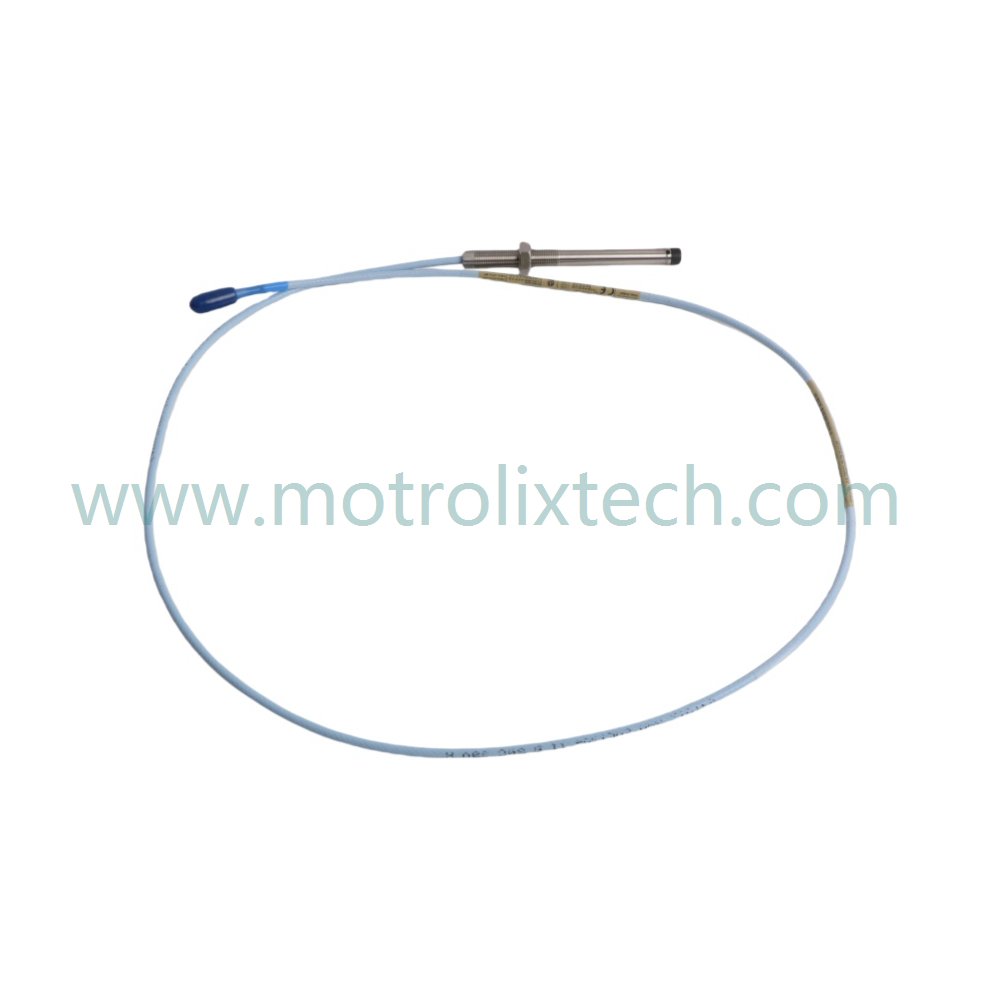

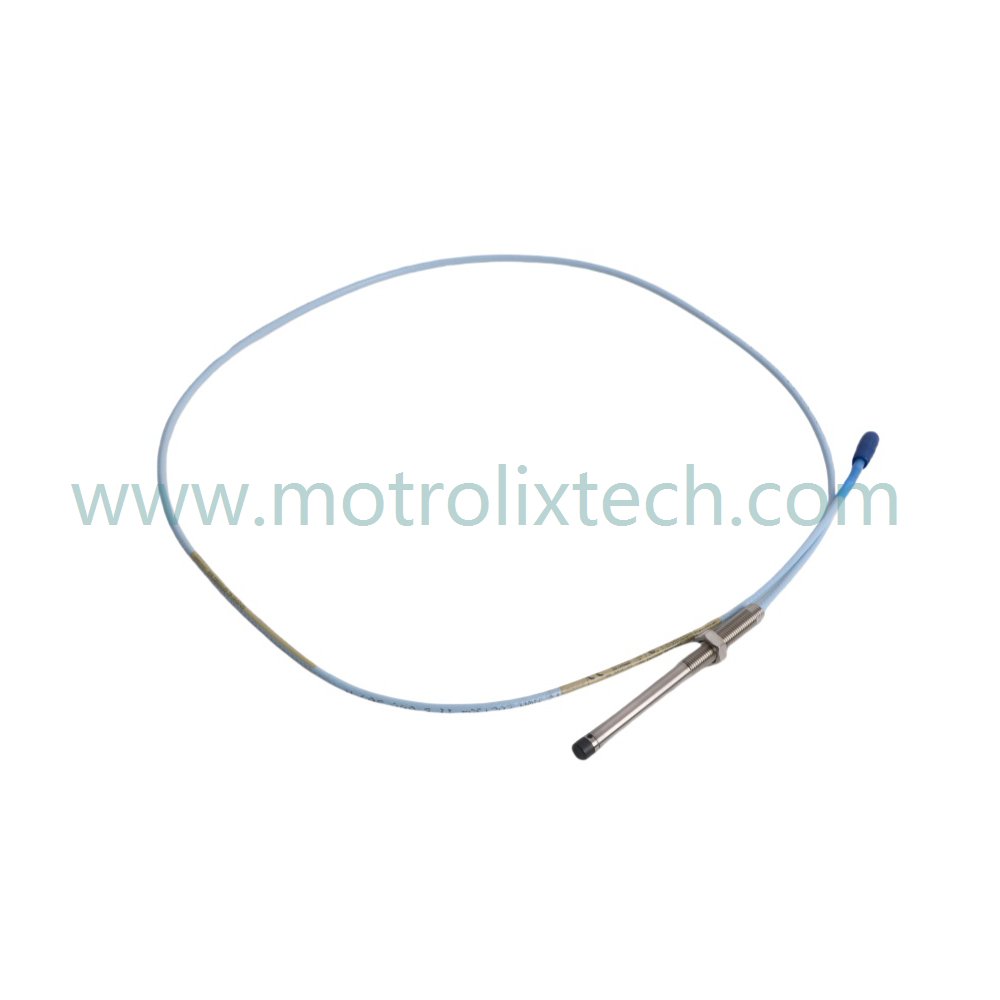

The Bently Nevada 330101-25-44-10-02-05 3300 XL 8 mm Proximity Probe is a state-of-the-art eddy current probe designed for precise vibration and position monitoring in rotating machinery. Featuring a 25-foot (7.6 m) armored cable, this probe delivers reliable performance in demanding applications. It generates an output voltage directly proportional to the gap between the probe tip and target surface, enabling accurate measurements of static position (±1% accuracy) and dynamic vibration (up to 10 kHz).
Technical Specifications:
Model Number: 330101-25-44-10-02-05
Module Type: 3300 XL 8 mm Proximity Probes
Manufacturer: Bently Nevada
Condition: Brand New
Product Range: 3300 Proximity Transducer System
Lead Time: In Stock
Weight: 0.08 kg
Dimensions: 1.6 x 1.3 x 112 cm
HS CODE: 8537101190
Product Origin: USA
System: TSI
Communication Service: Ethernet Router
Model Code Breakdown:The model number 330101-25-44-10-02-05 can be dissected as follows:
330101: Identifies this as part of the Bently Nevada 3300 series of proximity probes.
25: Indicates the length of the armored cable (25 feet).
44: Refers to the specific design or application characteristics of the probe.
10: Specifies the system configuration or calibration settings.
02-05: Suggests additional features or compatibility with existing systems.
Installation Recommendations and Wiring Guide:To ensure optimal performance of the Bently Nevada 330101-25-44-10-02-05 Proximity Probe, consider the following installation tips:
Select Installation Location: Choose a suitable location for the probe where it can effectively measure the gap to the target surface without obstruction.
Secure Mounting: Ensure the probe is securely mounted to avoid misalignments that could affect measurement accuracy.
Wiring Connections: Use the provided wiring diagrams for proper connections to the monitoring system, ensuring all connections are tight and well-insulated.
Calibration and Testing: After installation, conduct thorough tests and calibrate the system to confirm accurate operation and reliable data collection.
Frequently Asked Questions (FAQ):
Q: What is the primary function of the Bently Nevada 330101-25-44-10-02-05?
A: It serves as an eddy current proximity probe for accurate vibration and position monitoring in rotating machinery.
Q: How much does this probe weigh?
A: The probe weighs approximately 0.08 kg.
Q: What are the dimensions of the 330101-25-44-10-02-05?
A: Its dimensions are 1.6 x 1.3 x 112 cm.
Q: How does this probe contribute to predictive maintenance?
A: It provides crucial measurements that enable early detection of mechanical issues, enhancing preventive maintenance strategies.
Q: Is this probe compatible with older 3300 series components?
A: Yes, this probe offers full backward compatibility with legacy 3300 series components and interchangeable probes/cables.
