Product Overview:

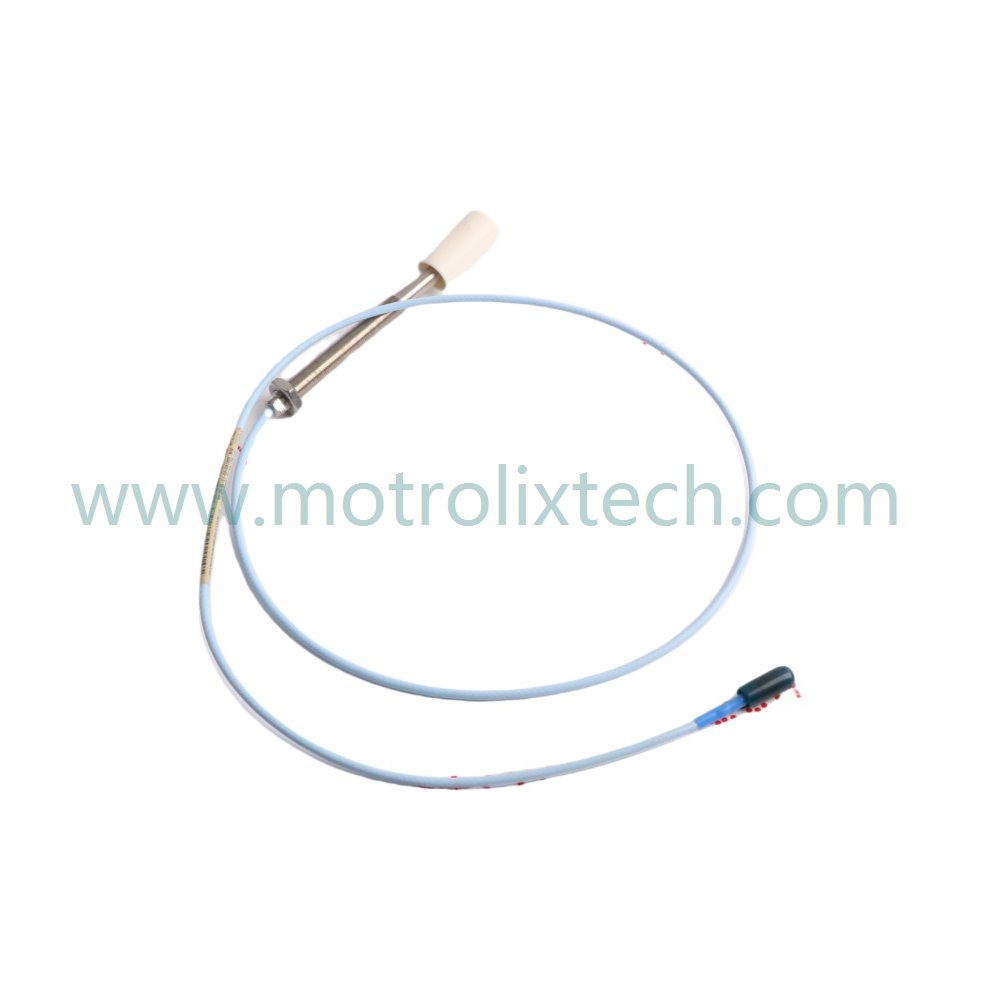

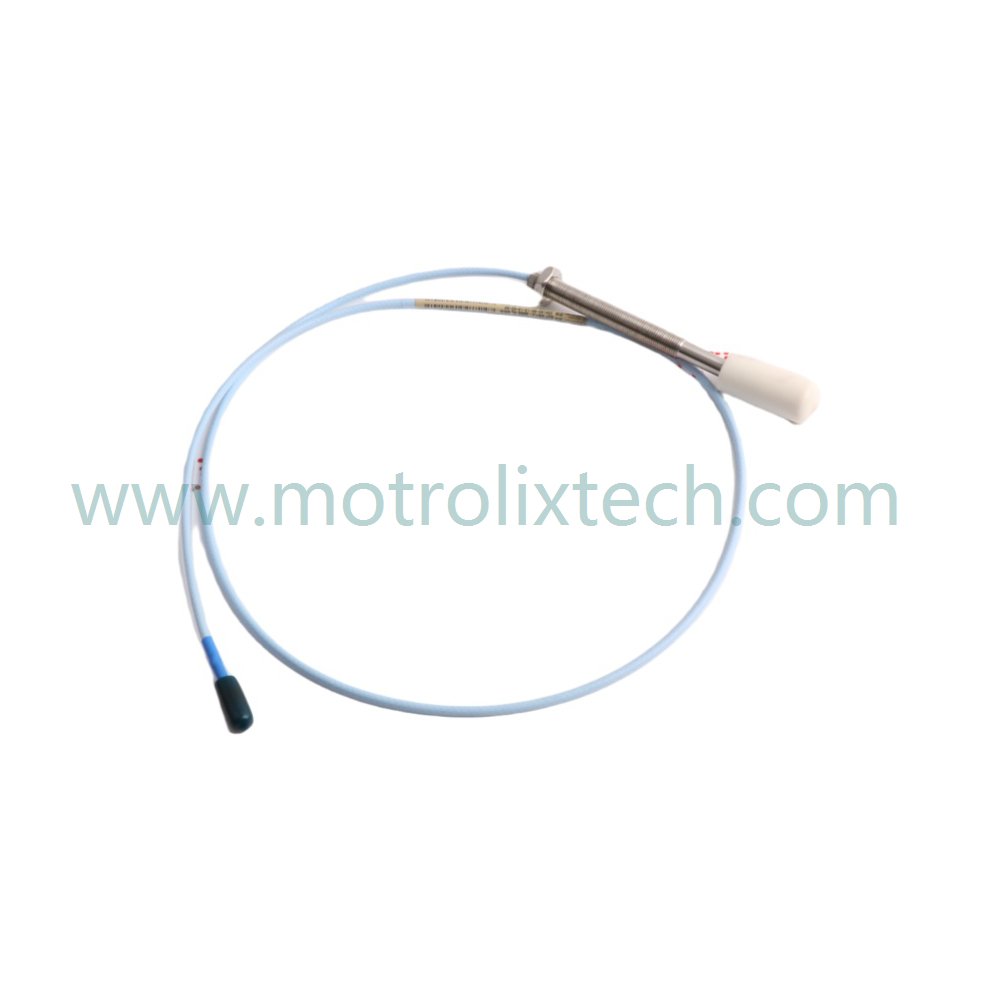

The Bently Nevada 330103-05-13-10-02-00 3300 XL 8 mm Proximity Probe is a vital component for industrial machinery protection, offering precise vibration monitoring to ensure equipment safety and reliability. As part of Bently Nevada's highly respected 3500 series, this proximity probe is specifically designed for use with turbines, compressors, and other rotating machinery in the power generation and oil & gas sectors. Its robust construction allows for continuous operation in harsh industrial environments while maintaining exceptional measurement accuracy.
The Bently Nevada 330103-05-13-10-02-00 enhances predictive maintenance programs, providing facilities with the ability to detect faults early. Facilities utilizing this module report a significant increase in early fault detection for critical assets like turbines. Advanced vibration measurement capabilities and a reliable output configuration ensure compatibility with both traditional control systems and modern SCADA networks, which are essential for operations prioritizing minimal downtime and uninterrupted service.
Technical Specifications:
Model Number: 330103-05-13-10-02-00
Module Type: 3300 XL 8 mm Proximity Probe
Weight: 0.1 kg
Dimensions: 2 x 1.5 x 115 cm
Lead Time: In Stock
HS CODE: 8537101190
Product Origin: USA
System: TSI
Operating Temperature Range: -40°C to +85°C
Measurement Range: ±20mA with 0.1% accuracy
Model Code Breakdown:The model number 330103-05-13-10-02-00 can be analyzed as follows:
330103: Identifies the product family within the Bently Nevada 3500 series, specifically related to the proximity probes.
05: Denotes the hardware revision level, indicating enhancements or updates from previous models.
13: Specifies advanced vibration measurement capabilities, reinforcing the probe's effectiveness in ensuring equipment reliability.
10-02-00: Indicates relay and output configurations tailored for compatibility with existing monitoring systems.
Installation Recommendations and Wiring Guide:To ensure optimal performance with the Bently Nevada 330103-05-13-10-02-00 Proximity Probe, consider the following installation guidelines:
Select Installation Location: Position the probe to facilitate accurate monitoring without obstructions from other machinery or equipment.
Secure Mounting: Utilize the appropriate mounting hardware to securely attach the probe, ensuring correct alignment for accurate readings.
Wiring Connections: Follow the manufacturer’s wiring schematics for compatibility with your monitoring system, ensuring tight and insulated connections to maintain signal integrity.
Calibration and Testing: After installation, perform calibration and testing to confirm the probe operates correctly and delivers accurate measurements.
Frequently Asked Questions (FAQ):
Q: What is the primary function of the Bently Nevada 330103-05-13-10-02-00?
A: It serves as an 8 mm proximity probe for precise vibration monitoring in industrial applications.
Q: How much does the probe weigh?
A: The probe weighs approximately 0.1 kg.
Q: What are the dimensions of the 330103-05-13-10-02-00?
A: The dimensions are 2 x 1.5 x 115 cm.
Q: What temperature range can this probe operate in?
A: It operates effectively between -40°C and +85°C.
Q: How does the standardized part number benefit maintenance?
A: It allows quick identification of the probe's features and capabilities, improving operational efficiency.
