Product Overview:

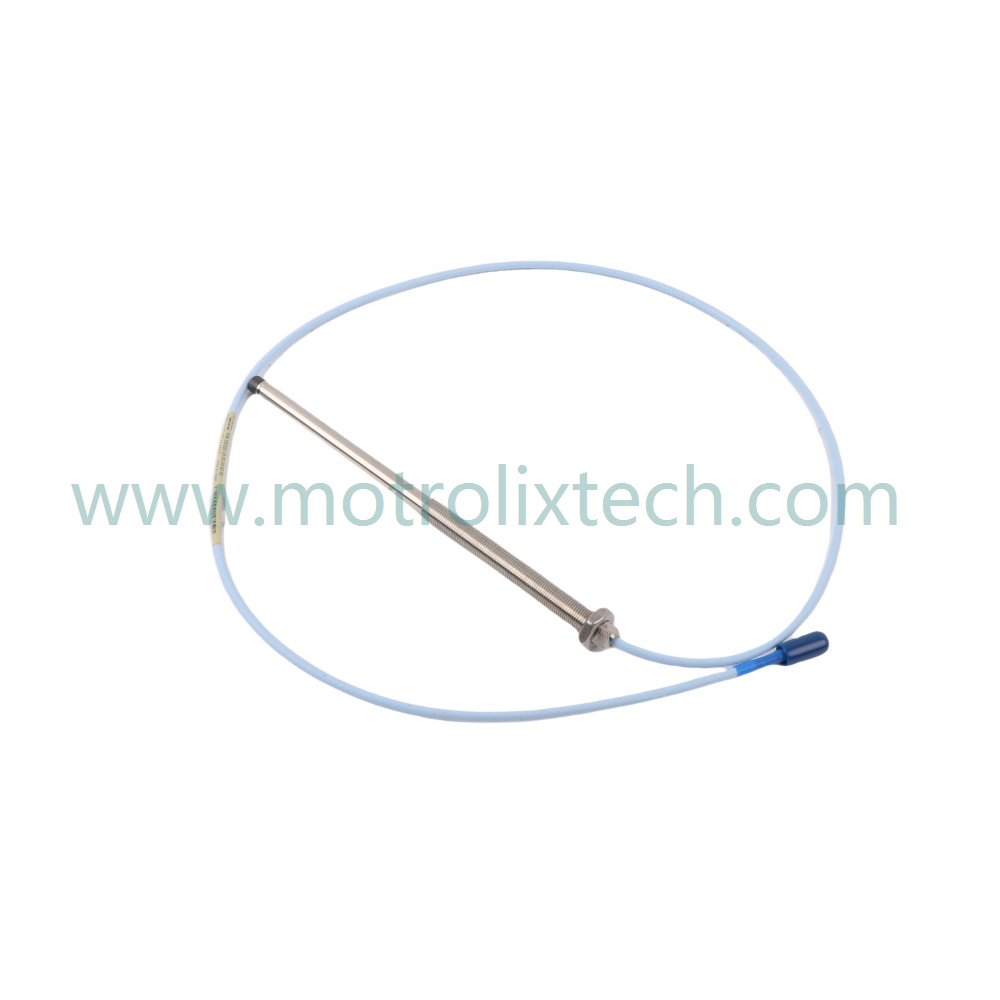

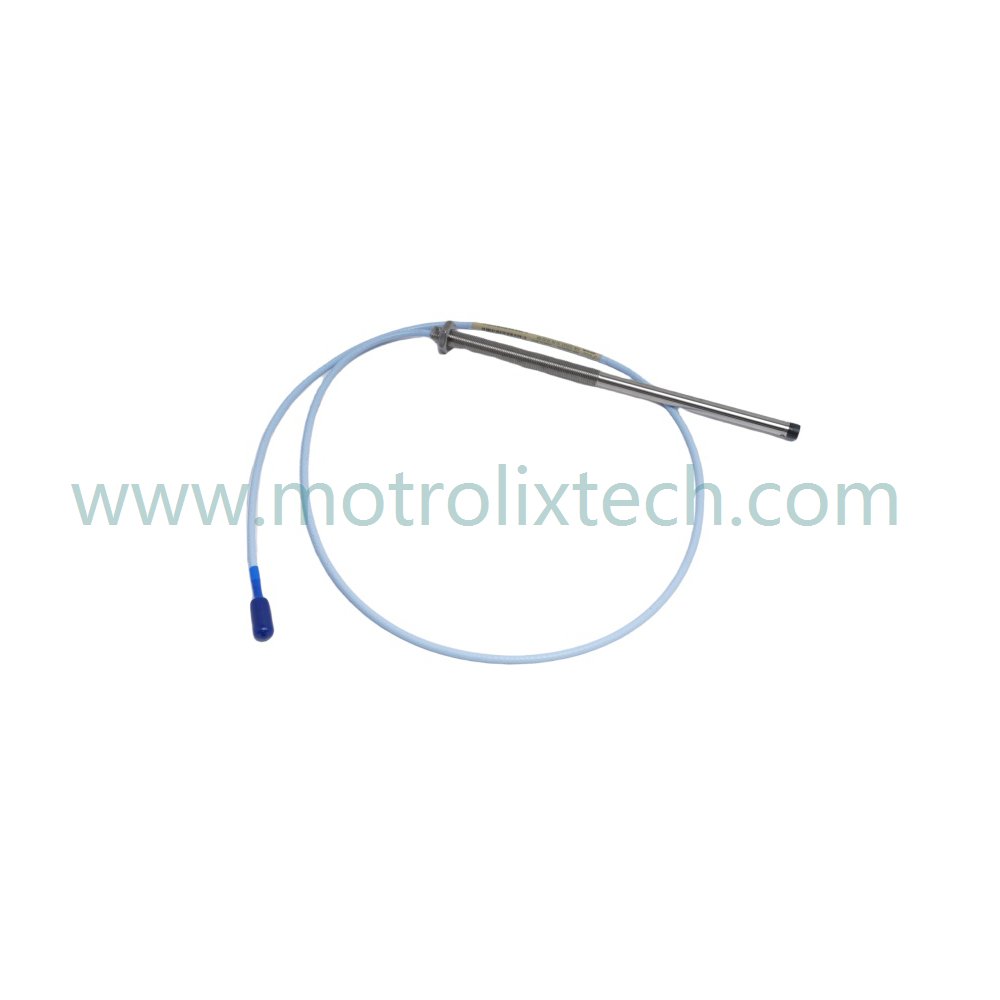

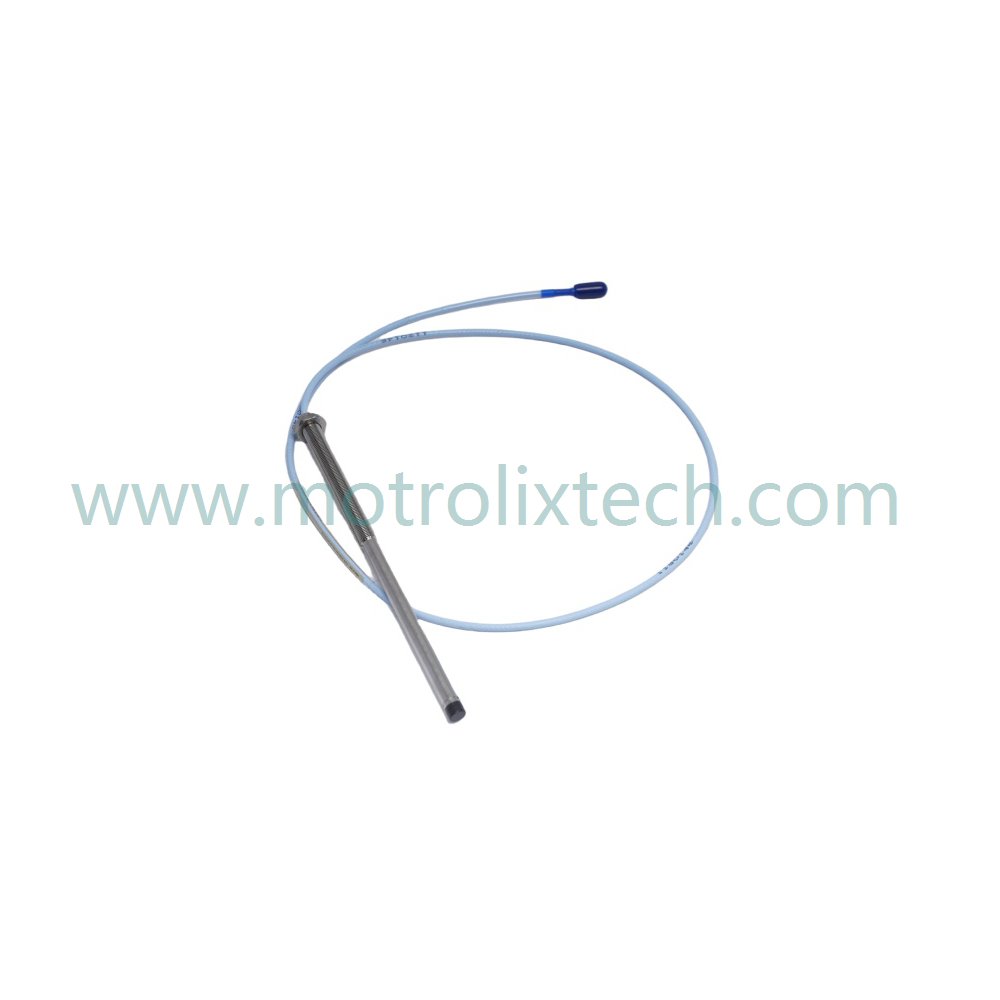

The Bently Nevada 330103-10-20-10-02-00 Proximity Transducer is a high-performance 8 mm proximity probe specifically designed for rigorous industrial monitoring applications. This advanced transducer integrates patented TipLoc and CableLoc technologies, significantly enhancing its durability and ensuring a secure connection for its cable, thus providing a reliable interface for measurement. As a key member of the 3300 XL series, the 330103-10-20-10-02-00 delivers precise and dependable measurement data, which is crucial for effective machinery health monitoring and predictive maintenance strategies across various sectors, including power generation, oil and gas, and heavy manufacturing.
Equipped with a miniature coaxial ClickLoc connector and standard cable, this probe offers a robust and user-friendly interface for connecting to monitoring systems. The transducer is designed to measure the distance to a conductive surface without physical contact, protecting delicate machinery parts while ensuring accurate readings. The incorporation of TipLoc and CableLoc technologies ensures a strong bond between the probe tip and body, as well as secure attachment of the cable to the probe tip, contributing to the probe’s ability to withstand harsh industrial environments and ensuring reliable performance and consistent measurements over extended periods.
Technical Specifications:
Model Number: 330103-10-20-10-02-00
Module Type: Proximity Transducer
Weight: 0.1 kg
Dimensions: 1.8 x 1.6 x 112 cm
Lead Time: In Stock
HS CODE: 8537101190
Product Origin: USA
System: TSI
Communication Service: Ethernet Router
Model Code Breakdown:The model number 330103-10-20-10-02-00 can be analyzed as follows:
330103: Identifies the product family within the Bently Nevada 3300 series, which focuses on proximity transducers.
10: Indicates specific features or configurations related to this transducer model.
20: Refers to the engineering or design characteristics that enhance its functionality.
10: Represents the type of connector or interface used in conjunction with the probe.
02-00: Further details about the manufacturing standards and compliance of this version.
Installation Recommendations and Wiring Guide:To ensure optimal performance with the Bently Nevada 330103-10-20-10-02-00 Proximity Transducer, consider the following installation guidelines:
Select Installation Location: Choose a position that allows effective monitoring of machinery while preventing physical interference with other equipment.
Secure Mounting: Utilize the appropriate mounting hardware to securely attach the probe, ensuring it is correctly aligned for accurate readings.
Wiring Connections: Follow manufacturer wiring diagrams to connect the transducer to your monitoring system, ensuring all connections are tight and securely insulated.
Calibration and Testing: After installation, perform a calibration and functional test to verify that the transducer operates correctly and provides accurate distance measurements.
Frequently Asked Questions (FAQ):
Q: What is the primary function of the Bently Nevada 330103-10-20-10-02-00?
A: It operates as a proximity transducer for monitoring distance to conductive surfaces in industrial equipment.
Q: How much does this proximity transducer weigh?
A: The transducer weighs approximately 0.1 kg.
Q: What are the dimensions of the 330103-10-20-10-02-00?
A: Its dimensions are 1.8 x 1.6 x 112 cm.
Q: What technologies enhance the durability of this transducer?
A: The probe incorporates TipLoc and CableLoc technologies for improved durability and connection security.
Q: In what environments can this probe be effectively used?
A: It is designed for harsh industrial environments, making it suitable for critical applications in various sectors.
