Product Overview:

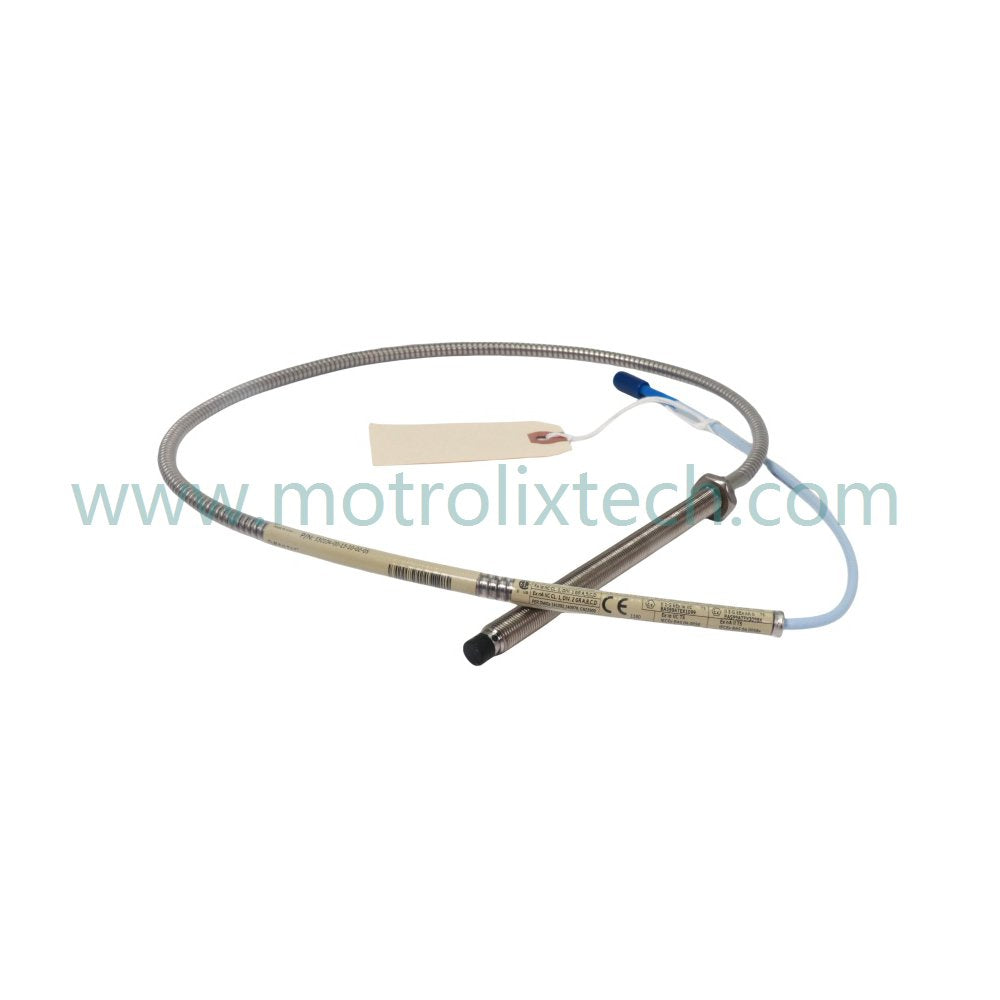

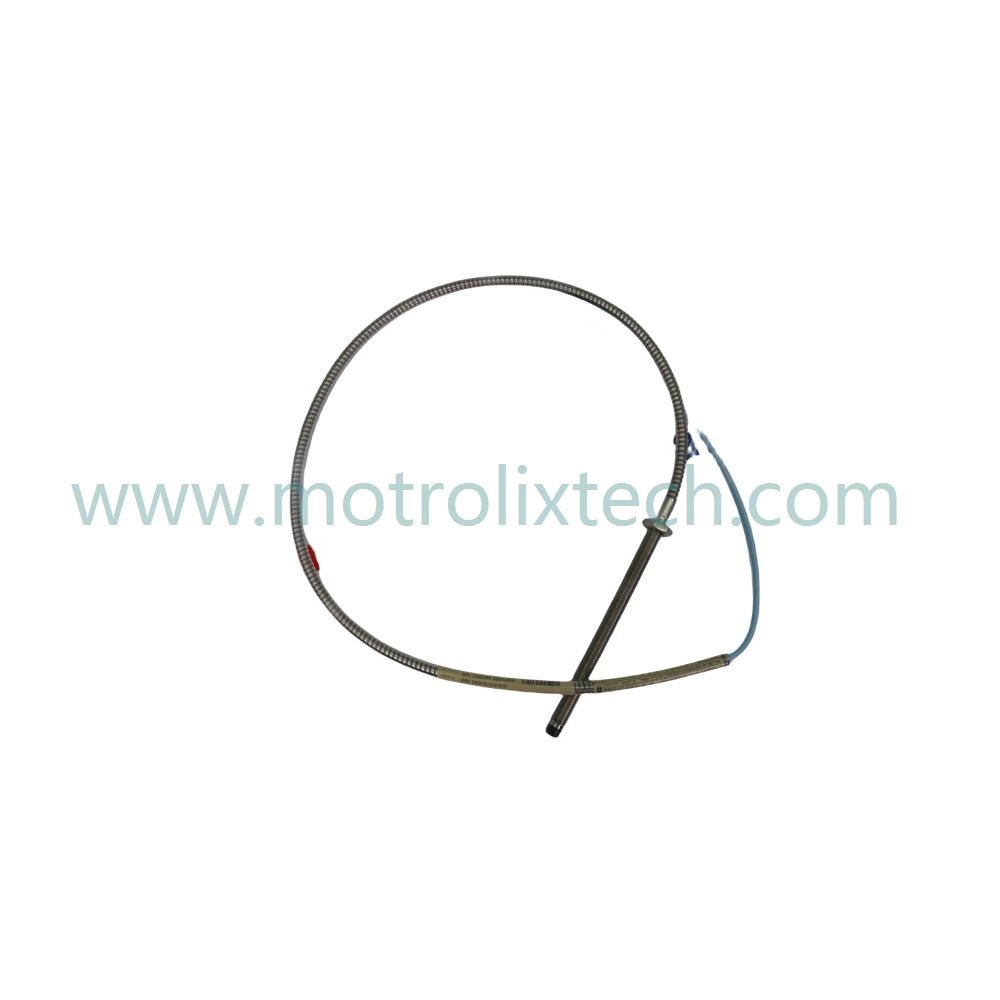

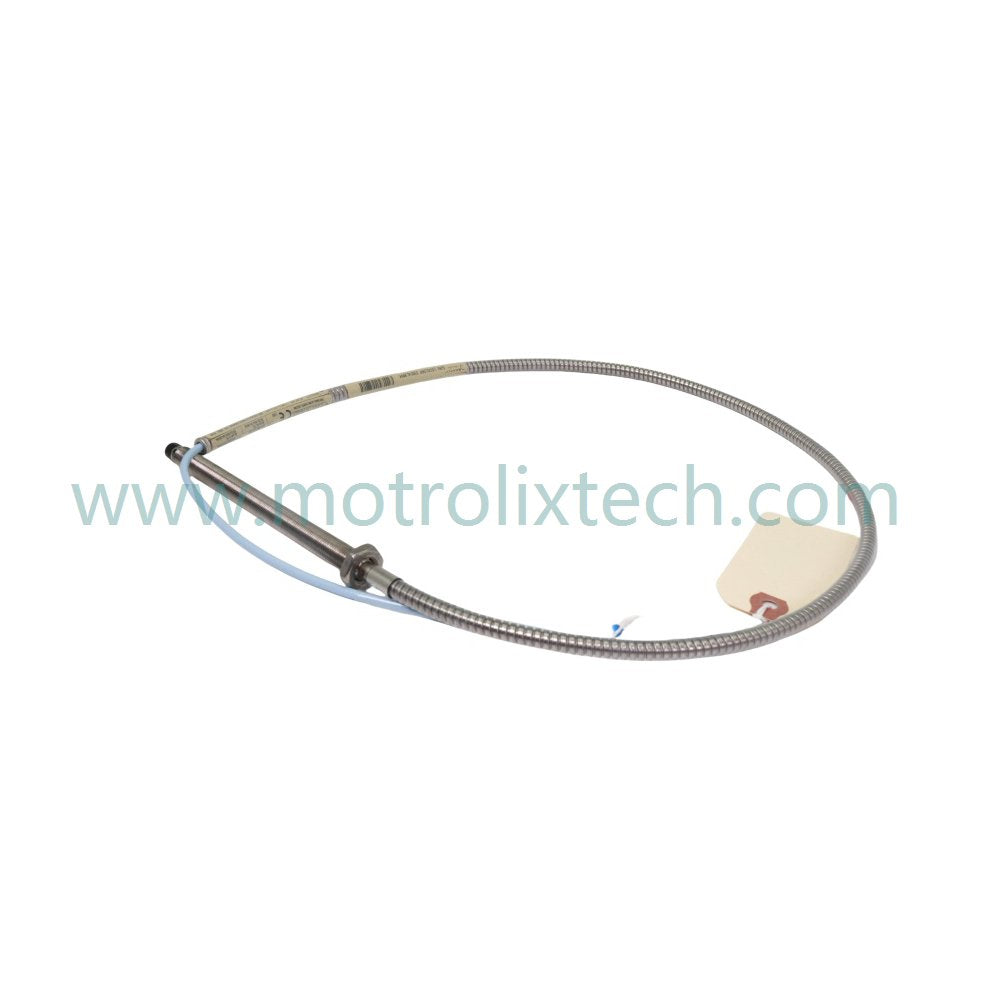

The Bently Nevada 330104-00-13-10-02-05 Proximitor Sensor is a vital component of the 3300 XL 8 mm proximity sensor system. This advanced sensor excels at measuring the distance between its probe tip and any conductive surface, converting this measurement into a proportional output voltage. Designed for accuracy and reliability, it is suitable for various industrial applications, ensuring that operations are efficient and safe.
This Proximitor Sensor is capable of both static and dynamic measurements, allowing it to effectively indicate component positions and monitor vibrations in machinery. This dual functionality makes it an essential tool for assessing the health and performance of equipment, especially those utilizing fluid-film bearings, in environments that demand precise vibration and positional feedback.
The Bently Nevada 330104-00-13-10-02-05 adheres to stringent industry standards, including the American Petroleum Institute's (API) 670 Standard, Fourth Edition. Compliance with these standards guarantees high accuracy, stability across temperature variations, and reliable mechanical configurations, making it suitable for mission-critical applications that require precise phase and speed measurements. With its durable construction, this sensor provides stability in harsh industrial environments, ensuring long service life and consistent performance.
Technical Specifications:
Model Number: 330104-00-13-10-02-05
Module Type: Proximitor Sensor
Weight: 0.2 kg
Dimensions: 20.5 x 22.4 x 3.3 cm
Lead Time: In Stock
HS CODE: 8537101190
Product Origin: USA
System: TSI
Compliance: API 670 Standard (4th Edition)
Model Code Breakdown:The model number 330104-00-13-10-02-05 can be analyzed as follows:
330104: Denotes the product family within the Bently Nevada 3300 series, focusing specifically on proximitor sensors.
00: Refers to specific design features or configurations relevant to this sensor model.
13: Indicates the sensor's intended application focus.
10-02-05: Provides additional details about the sensor's certification or specific capabilities associated with its operation.
Installation Recommendations and Wiring Guide:To ensure optimal performance with the Bently Nevada 330104-00-13-10-02-05 Proximitor Sensor, consider the following installation guidelines:
Select Installation Location: Choose a mounting location that allows for easy access to the sensor while ensuring it can accurately measure the distance to the conductive surface.
Secure Mounting: Properly mount the sensor to prevent movement during operation. Ensure it is aligned correctly for precise measurements.
Wiring Connections: Connect the sensor to the monitoring system according to the manufacturer's wiring diagrams, ensuring that all connections are secure and insulated to maintain signal integrity.
Calibration and Testing: After installation, conduct a calibration and performance test to ensure the sensor operates effectively and provides accurate data.
Frequently Asked Questions (FAQ):
Q: What is the primary function of the Bently Nevada 330104-00-13-10-02-05?
A: Its main function is to measure the distance to conductive surfaces and convert that measurement into a voltage output.
Q: How does this sensor ensure accurate measurements?
A: It utilizes advanced eddy current technology and complies with API 670 standards to guarantee measurement accuracy.
Q: What is the weight of this Proximitor Sensor?
A: The sensor weighs approximately 0.2 kg.
Q: What environments is the 330104-00-13-10-02-05 suited for?
A: It is designed for harsh industrial environments where accurate monitoring is critical.
Q: Can it measure both static and dynamic conditions?
A: Yes, it supports static position measurements as well as dynamic vibration monitoring.
