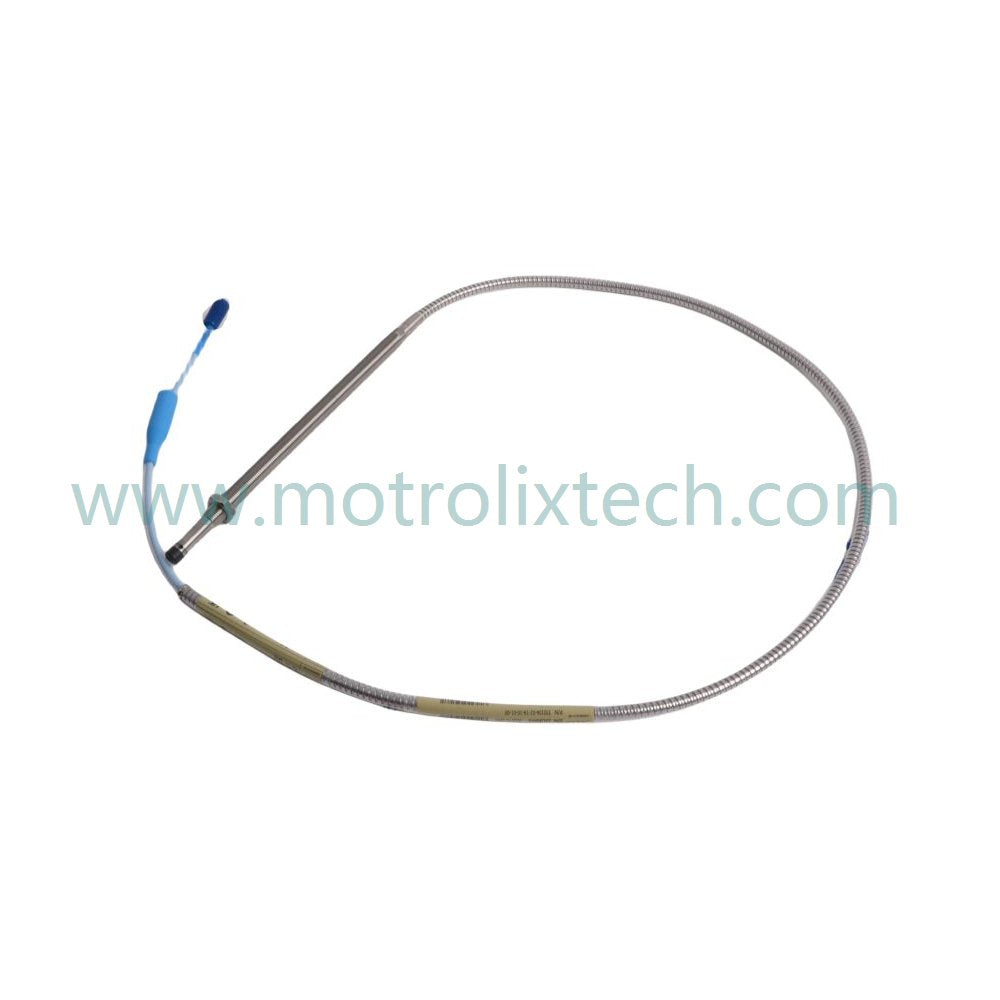

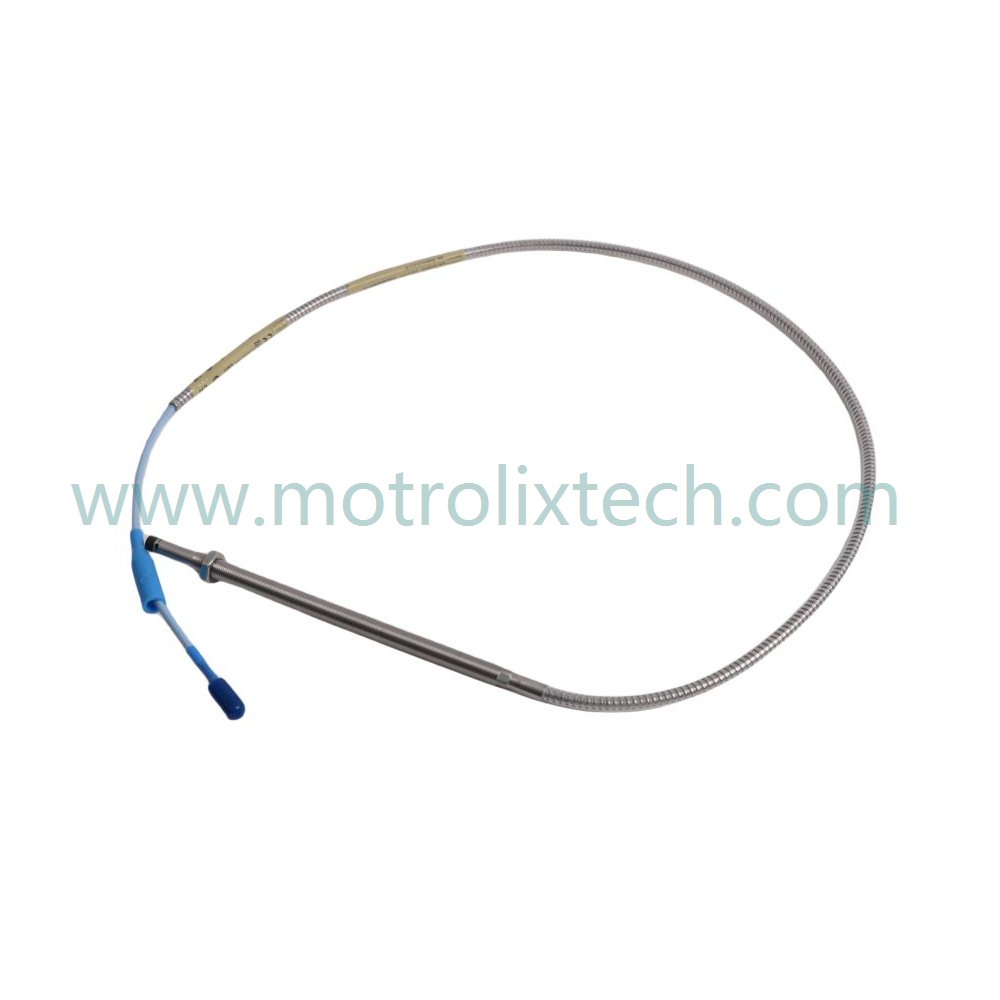

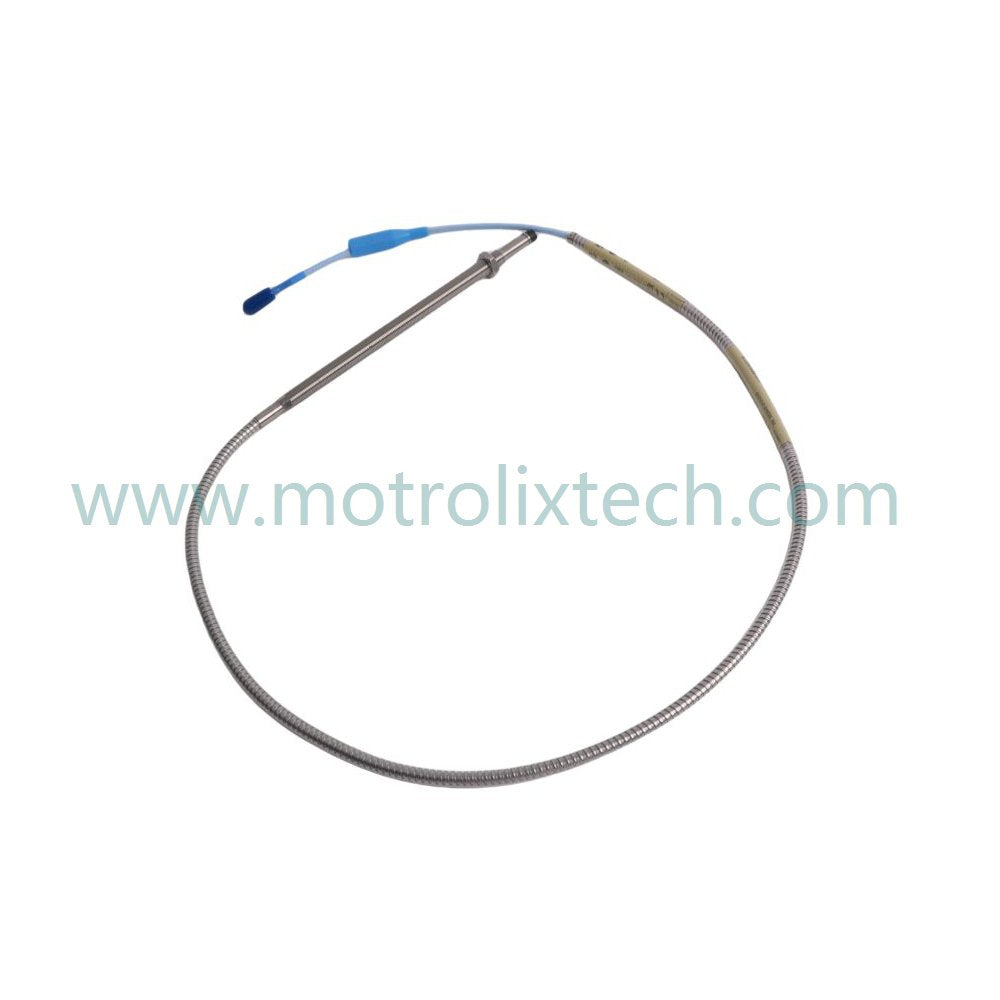

The Bently Nevada 330104-02-19-10-01-00 3300 XL 8 mm Proximity Probe is specifically engineered for precision in displacement measurements, making it essential for effective monitoring in large rotating machinery such as turbines, compressors, and pumps. This high-performance probe offers a non-contact measurement advantage, enabling accurate assessment of both static and dynamic parameters crucial for maintaining machinery health.
With its robust design and compliance with API 670 standards, this probe guarantees reliable performance even in harsh industrial environments. The system provides proportional output voltage based on the distance from the probe tip to the conductive surface, supporting vibration and position measurements, Keyphasor reference, and speed monitoring.
The model number 330104-02-19-10-01-00 signifies key features of the product:
330104: Indicates this unit is part of the Bently Nevada 3300 series, highlighting its application in high-precision monitoring.
02: Refers to specific enhancements or configurations tailored for this model.
19: Denotes the threaded standard for mounting compatibility.
10: Indicates the specifications related to the probe's cable length and connectors.
01: Identifies the version or configuration unique to this probe.
00: Specifies standard compliance for product features and operational needs.
| Parameter | Specification |
|---|---|
| Model Number | 330104-02-19-10-01-00 |
| Module Type | 3300 XL 8 mm Proximity Probe |
| Manufacturer | Bently Nevada |
| Condition | Brand New |
| Range of Product | 3300 XL Proximity Transducer System |
| Lead Time | In Stock |
| Weight | 0.14 kg |
| HS CODE | 8537101190 |
| Dimensions | 113 x 1.8 x 1.5 cm |
| Minimum Order Quantity (MOQ) | 1 |
| Product Origin | USA |
| System Compatibility | TSI |
| Discontinued | Active |
| Communication Service | Ethernet router |
| Cable Length | 0.5 meters (1.6 feet) |
| Thread Type | M10X1 |
| Compliance | API 670 standards |
To ensure optimal performance of the Bently Nevada 330104-02-19-10-01-00 Proximity Probe, follow these installation recommendations:
Mechanical Clearance: Ensure that the installation area provides sufficient space for accessibility and maintenance of the probe.
Wiring Connections: Utilize high-quality connectors for stable connections. Ensure that all wiring is maintained in a clean condition to avoid signal degradation.
Mounting Procedure: Secure the probe in position using the M10X1 thread, ensuring it is aligned correctly to measure both vibration and displacement accurately.
Environmental Considerations: Protect the probe from moisture and contaminants by employing connector protectors to maintain signal integrity.
Consult Technical Support: If any uncertainties arise during installation, seek assistance from Bently Nevada's engineers to ensure best practices are followed.
The Bently Nevada 330104-02-19-10-01-00 3300 XL 8 mm Proximity Probe is designed for high durability in extreme industrial conditions. Its robust construction can withstand high temperatures and harsh environments, making it suitable for various applications in the oil and gas, power generation, and manufacturing sectors.
This probe is compatible with the TSI system, ensuring seamless integration with existing monitoring setups. Its design allows for quick interchangeability of components without requiring bench calibration, greatly enhancing maintenance efficiency and reducing operational downtime.
By incorporating the 330104-02-19-10-01-00 Proximity Probe into your machinery monitoring systems, you leverage advanced technology to bolster asset protection and ensure optimal performance of critical equipment.
Q1: What is the primary application of the Bently Nevada 330104-02-19-10-01-00 Proximity Probe?
A1: This proximity probe is designed for precise vibration and position measurements in industrial machinery, particularly in fluid-film bearing applications.
Q2: How do I ensure secure connections with the ClickLoc connector?
A2: Ensure that the ClickLoc connections are firmly secured, avoiding any contaminants that could compromise the signal during operation.
Q3: Can this probe operate under extreme temperature conditions?
A3: Yes, the probe is built to operate effectively in harsh industrial environments, meeting the temperature stability requirements as stipulated by API 670 standards.
Q4: Is this probe compatible with previous versions of the 3300 series?
A4: Yes, the 330104-02-19-10-01-00 Proximity Probe is fully interchangeable with other components in the 3300 XL series without the need for individual calibration.
Q5: What maintenance is required for this probe?
A5: Regularly inspect the probe for secure mounting and connections, ensure that the installation area is clean, and replace any worn connectors to maintain optimal performance.
