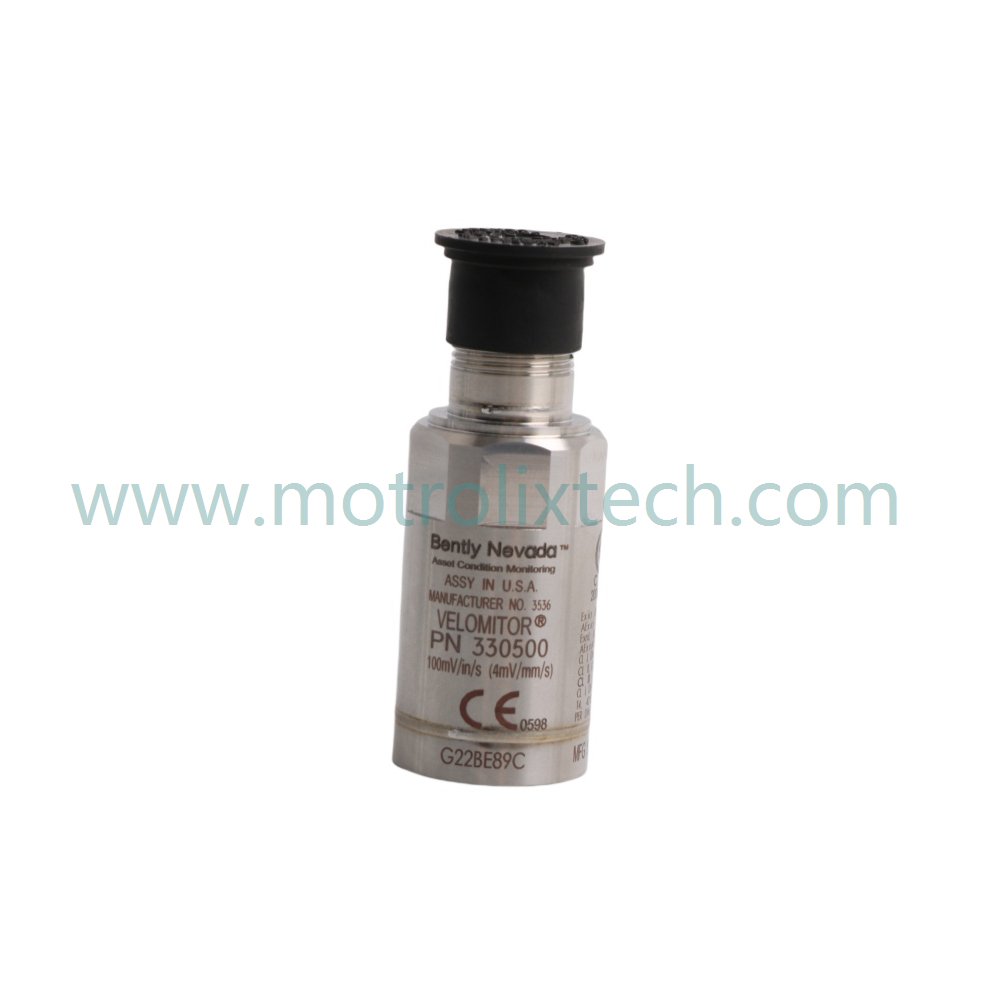

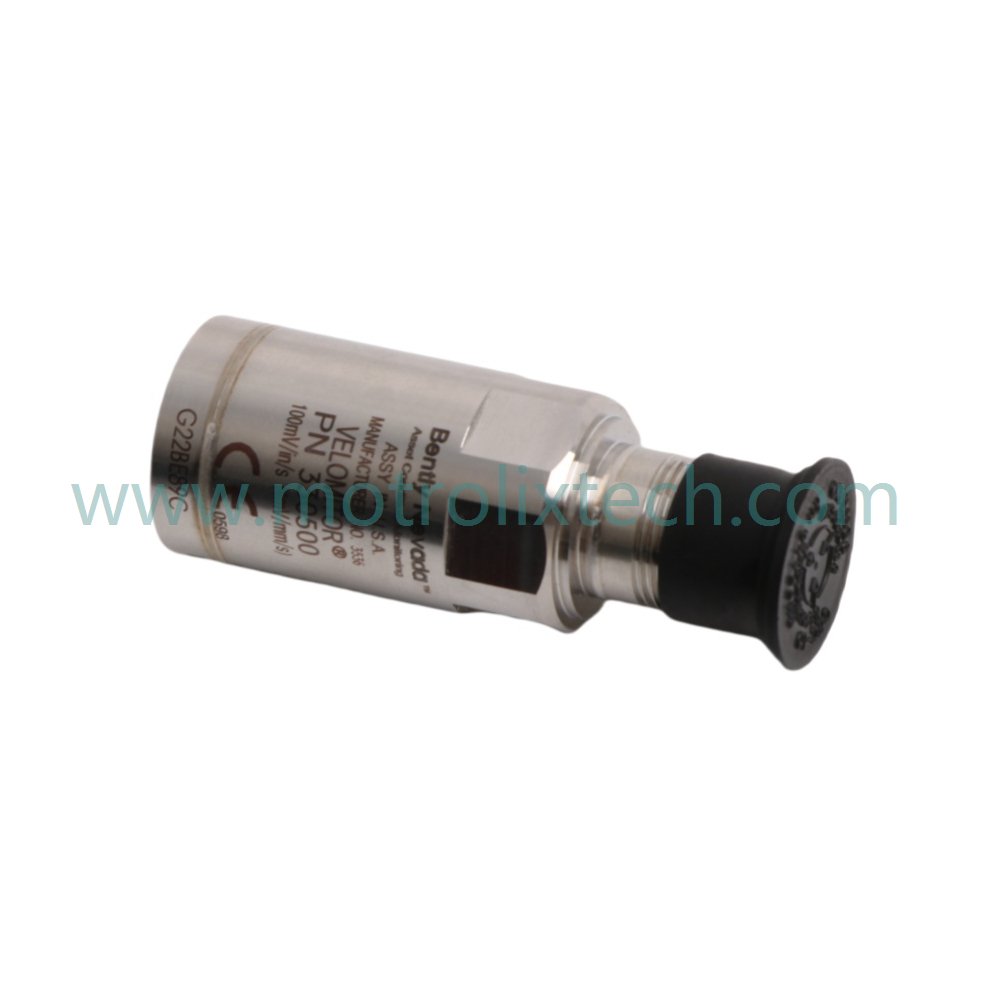

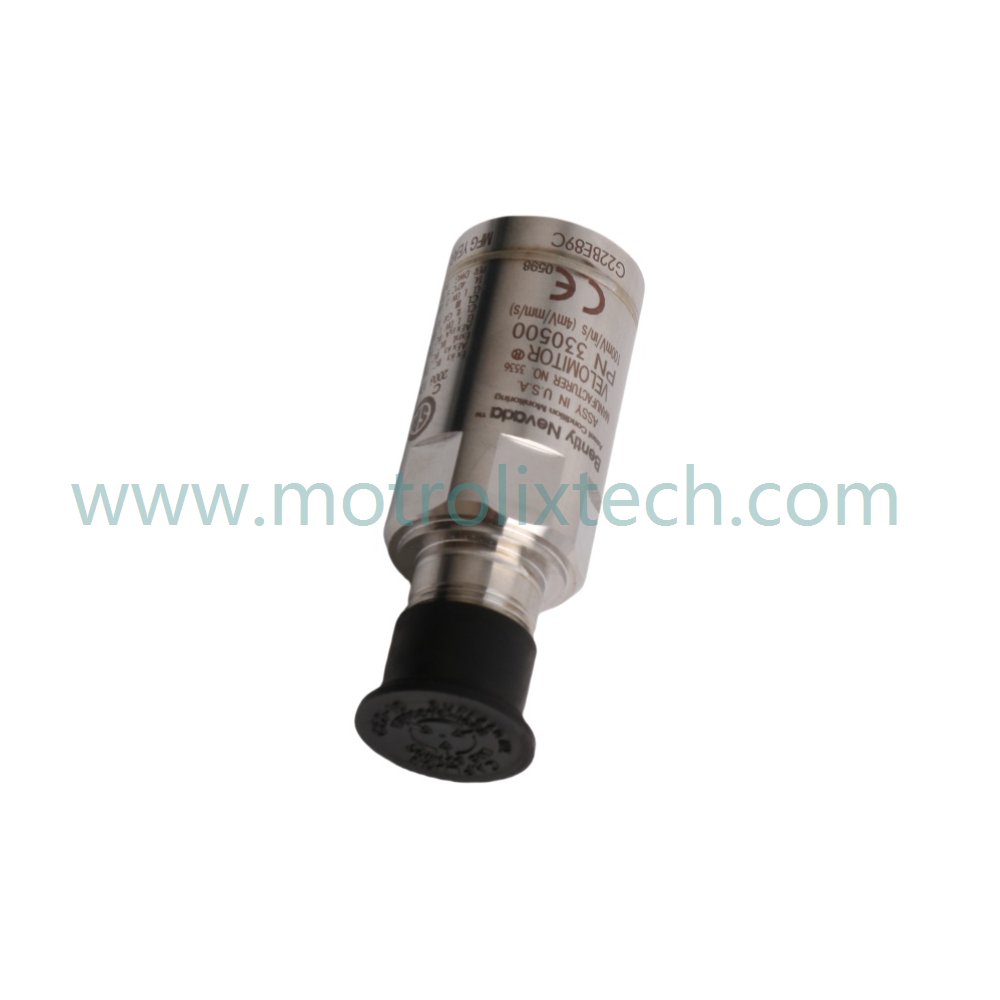

The Bently Nevada 330500-00-01 Velomitor Piezo-velocity Sensor is engineered for high-performance vibration monitoring in critical rotating machinery applications, such as turbines and compressors. This sensor measures the absolute vibration of bearing housings and structural components with remarkable precision. With solid-state electronics and no moving parts, it ensures reliability and longevity in demanding industrial environments. The robust design and superior sensitivity make it essential for capturing faults from rotor dynamics and providing data crucial for effective machine protection and proactive maintenance.
The model number 330500-00-01 contains key insights into its specifications:
330500: Identifies the specific sensor model within the Bently Nevada product line, focused on velocity measurement.
00: Indicates the standard configuration tailored for use across a variety of monitoring applications.
01: Signifies specific design optimizations for improved performance and integration.
| Parameter | Specification |
|---|---|
| Model Number | 330500-00-01 |
| Module Type | Velomitor Piezo-velocity Sensor |
| Manufacturer | Bently Nevada |
| Condition | Brand New |
| Lead Time | In Stock |
| Weight | 0.16 kg |
| Dimensions | 2.5 x 2.5 x 7.2 cm |
| Sensitivity | 3.94 mV/mm/s (100 mV/in/s) ±5% |
| Shock Survivability | 5,000 g peak |
| Operating Temperature Range | -40°C to +120°C (-40°F to +248°F) |
| Construction Material | 316L Stainless Steel |
| Mounting Orientation | Any (vertical, horizontal, or angled) |
| System Compatibility | TSI (Transducer Signal Interface) |
| HS CODE | 8537101190 |
| Product Origin | USA |
To ensure optimal performance of the Bently Nevada 330500-00-01 Velomitor Piezo-velocity Sensor, adhere to these guidelines:
Installation Orientation: The sensor can be mounted in any orientation. Ensure it is securely attached to the surface for accurate readings.
Electrical Settings: Confirm that the voltage settings are in line with the product specifications to maintain safe and reliable operation.
Wiring Considerations: Use appropriate cable management techniques to avoid excess stress on the sensor and maintain signal integrity.
Sealing and Protection: Ensure the sensor is adequately protected from environmental factors, especially if installed in harsh conditions.
The Bently Nevada 330500-00-01 Velomitor Piezo-velocity Sensor is designed for durability in extreme conditions, making it ideal for industrial applications where high temperatures, vibrations, and shocks are prevalent. Its solid-state construction eliminates issues commonly associated with mechanical degradation, resulting in consistent, accurate data collection. Featuring high shock survivability and the ability to operate effectively in various orientations, the sensor supports proactive maintenance initiatives and helps reduce unplanned downtime. Additionally, its seamless compatibility with the TSI system allows for easy integration into existing monitoring setups.
Q1: How can I ensure the optimal voltage settings during installation?
A1: Use a voltmeter to measure the voltage across the sensor terminals and confirm it aligns with the recommended operational parameters provided in the user manual.
Q2: What is the significance of the sensitivity rating?
A2: The sensitivity rating of 3.94 mV/mm/s indicates the sensor's ability to detect small changes in velocity, which is crucial for accurately monitoring vibration levels.
Q3: Can the sensor be mounted in different orientations?
A3: Yes, the 330500-00-01 can be mounted vertically, horizontally, or at an angle without affecting its performance, providing installation flexibility.
Q4: What certifications does this sensor hold for operation in hazardous environments?
A4: The Velomitor sensor is designed to meet stringent industrial standards, ensuring safe operation in a variety of environments, though specific certification details should be verified based on application needs.
