Product Overview:

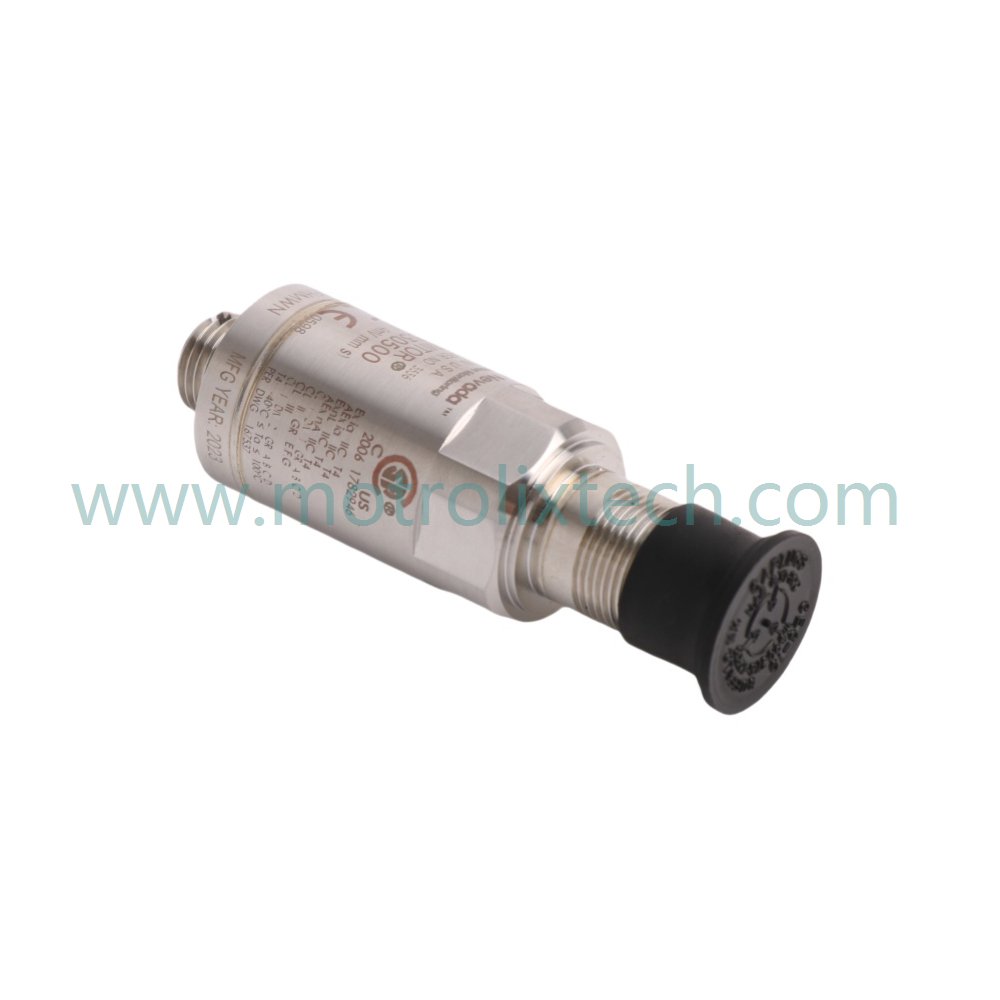

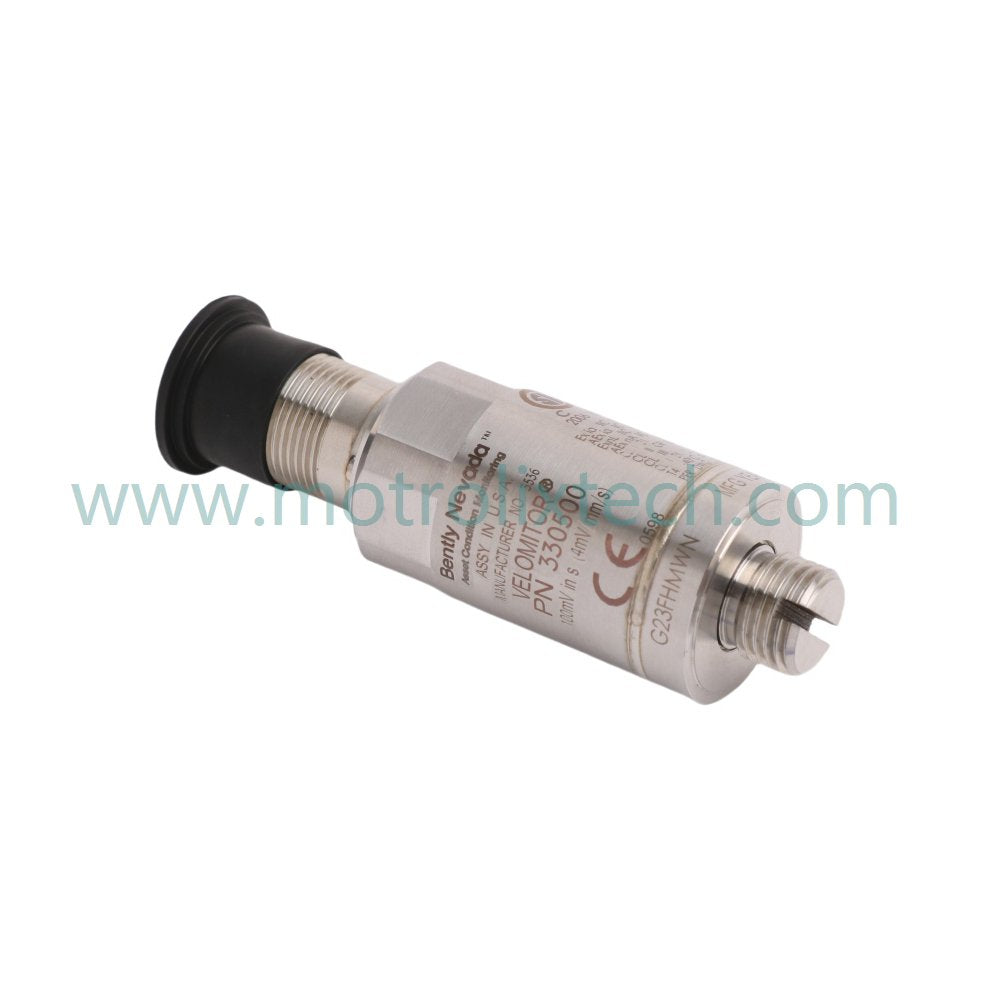

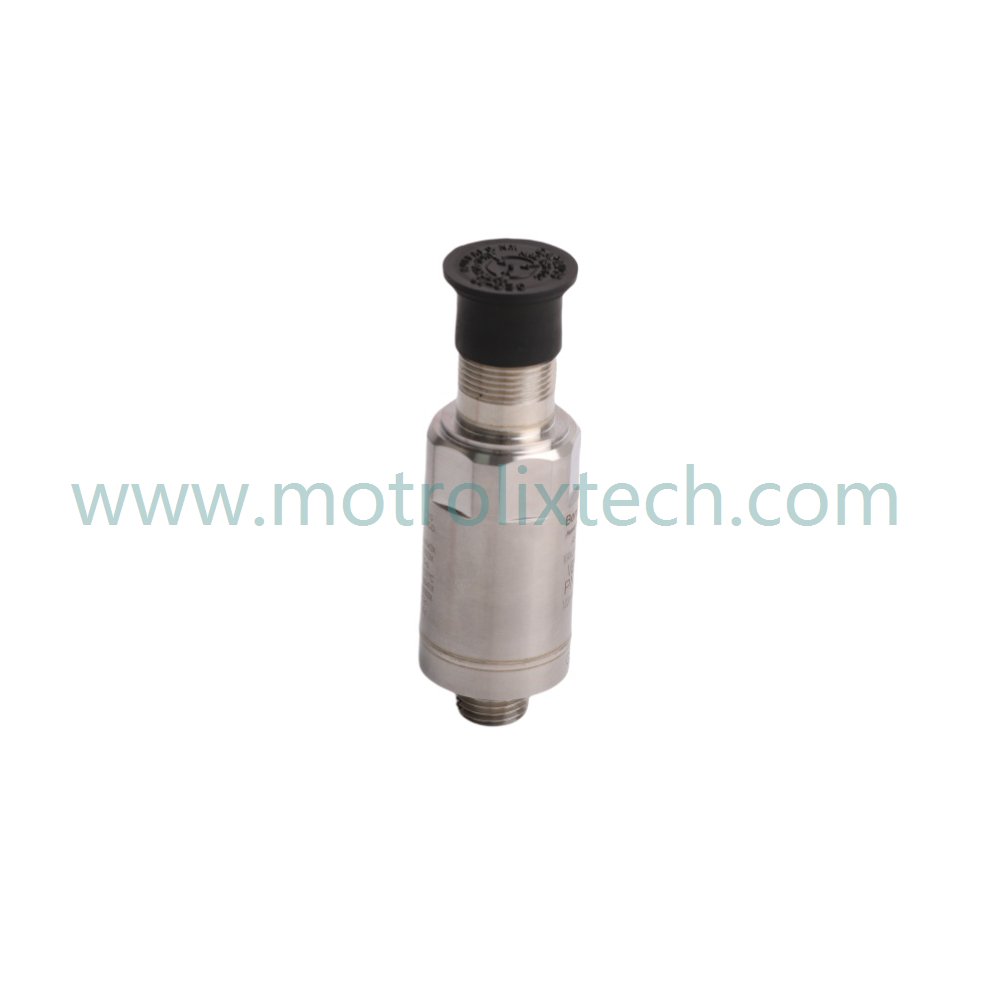

The Bently Nevada 330500-01-00 Velomitor Piezo-Velocity Sensor is engineered for accurate and reliable vibration monitoring in industrial machinery. This high-performance piezo-velocity sensor features a rugged construction with embedded electronics, making it ideal for precise measurement of absolute vibration in various applications. Its versatility and durability ensure consistent performance, even in the most demanding environments.
Technical Specifications:
Model Number: 330500-01-00
Module Type: Velomitor Piezo-Velocity Sensor
Manufacturer: Bently Nevada
Condition: Brand New
Product Range: 3300 Proximity Transducer System
Lead Time: In Stock
Weight: 0.15 kg
Dimensions: 2.5 x 2.5 x 8 cm
HS CODE: 8537101190
Product Origin: USA
System: TSI
Output Bias Voltage: -12 ±3.0 VDC
Sensitivity: 3.94 mV/mm/s (±5%)
Velocity Range: Up to 1270 mm/s peak
Mounting: 1/2-20 UNF threaded
Installation Orientation: Any
Model Code Breakdown:
330500: Indicates the specific model within Bently Nevada’s series of high-performance velocity sensors.
01: Represents the design variant, indicating that this is the standard model with no modifications.
00: Signifies the default configuration and features typical for this model series.
Installation Recommendations and Wiring Guide:
Select Installation Location: Ensure the sensor is mounted at a point that effectively captures the vibration of interest, such as bearing housings or structural points.
Use Appropriate Mounting: Utilize the 1/2-20 UNF threaded mounting to securely attach the sensor. This robust design supports installation in various orientations without compromising performance.
Connect the Output: Wire the sensor to the monitoring system, ensuring the -12 ±3.0 VDC output bias voltage is properly calibrated for stable signal transmission.
Verify Functionality: After installation, conduct tests to ensure accurate and reliable performance.
Frequently Asked Questions (FAQ):
Q: What industries can benefit from the Bently Nevada 330500-01-00 Piezo-Velocity Sensor?
A: This sensor is essential for industries requiring reliable vibration monitoring, such as manufacturing, oil and gas, and power generation.
Q: How does the embedded electronics enhance reliability?
A: The embedded electronics eliminate mechanical wear issues common in traditional velocity transducers, providing consistent signal quality and accuracy.
Q: Can this sensor be installed in any orientation?
A: Yes, the design allows for installation in any orientation without affecting its performance, offering flexible mounting options.
Q: What sensitivity does the sensor maintain?
A: The sensor has a sensitivity of 3.94 mV/mm/s (±5%), providing precise measurements across its operational range.
Q: Does this sensor have protection against overtemperature?
A: Yes, it features overtemperature protection referenced to Pin A, enhancing operational reliability in harsh environments.
