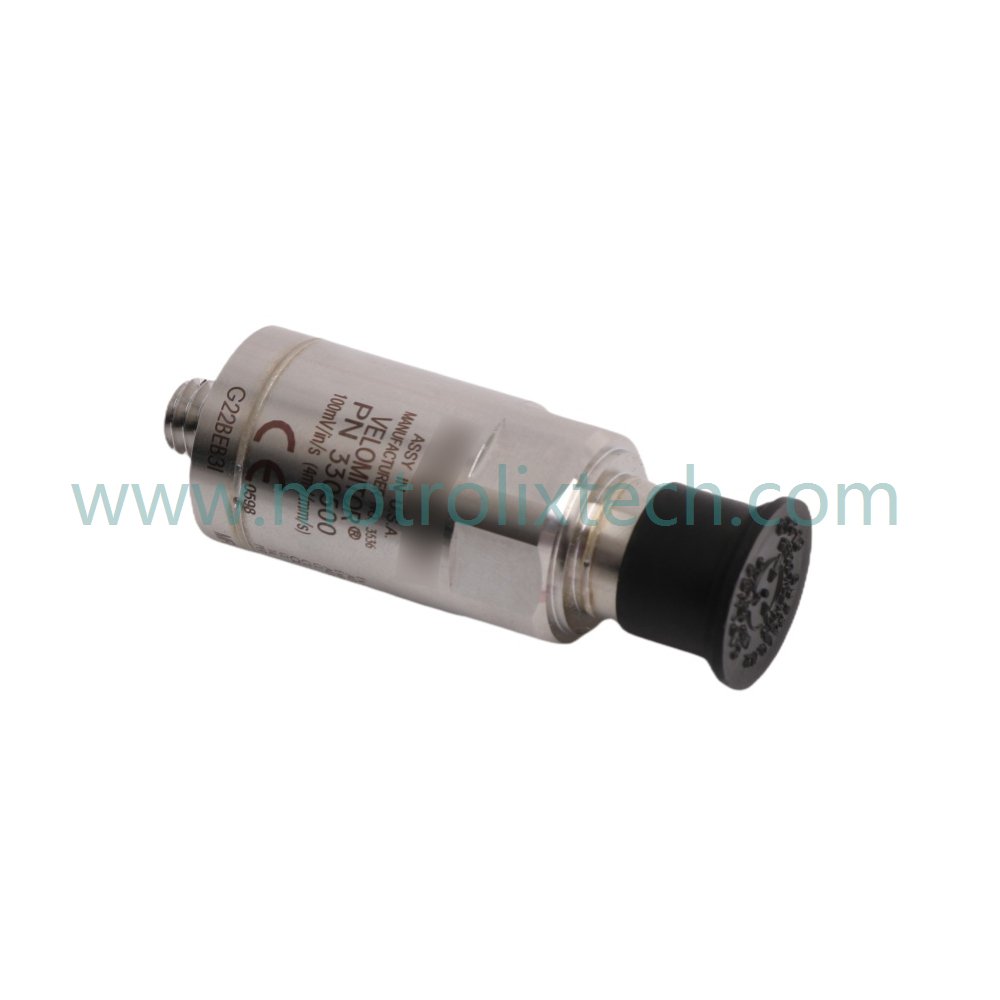

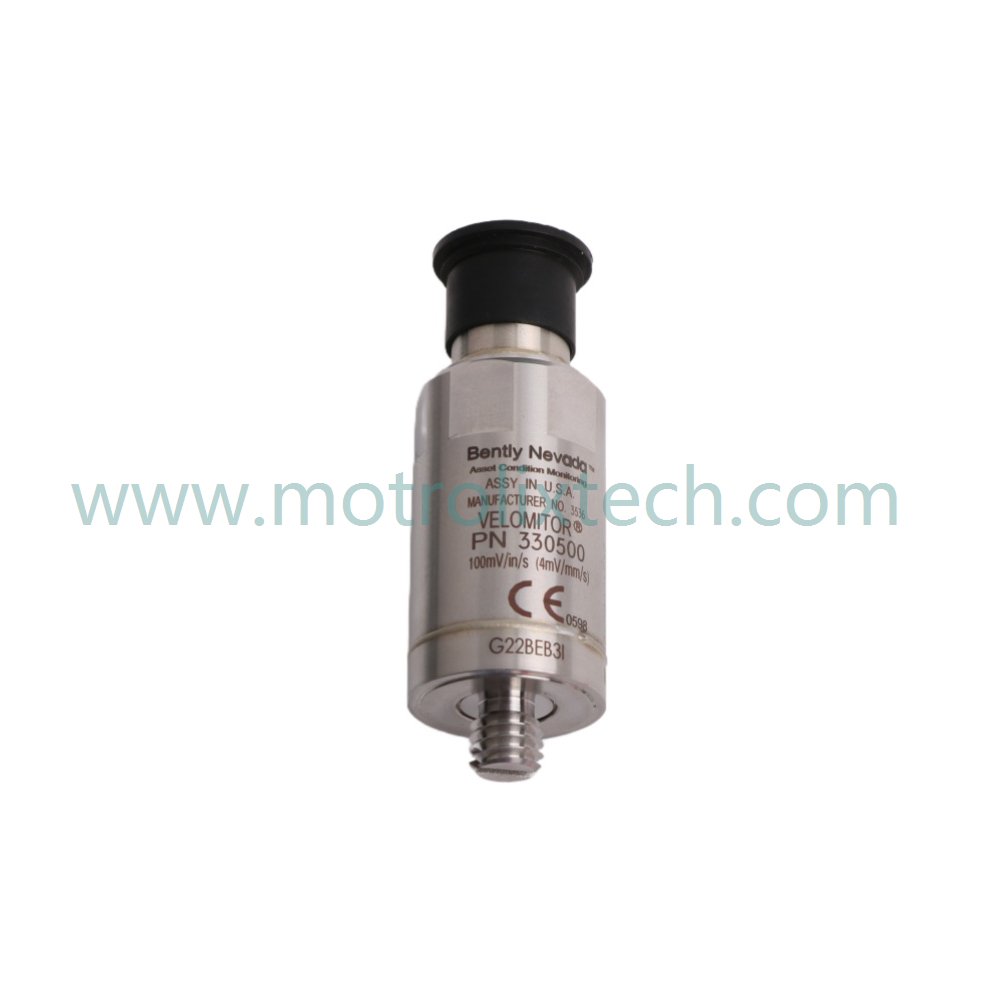

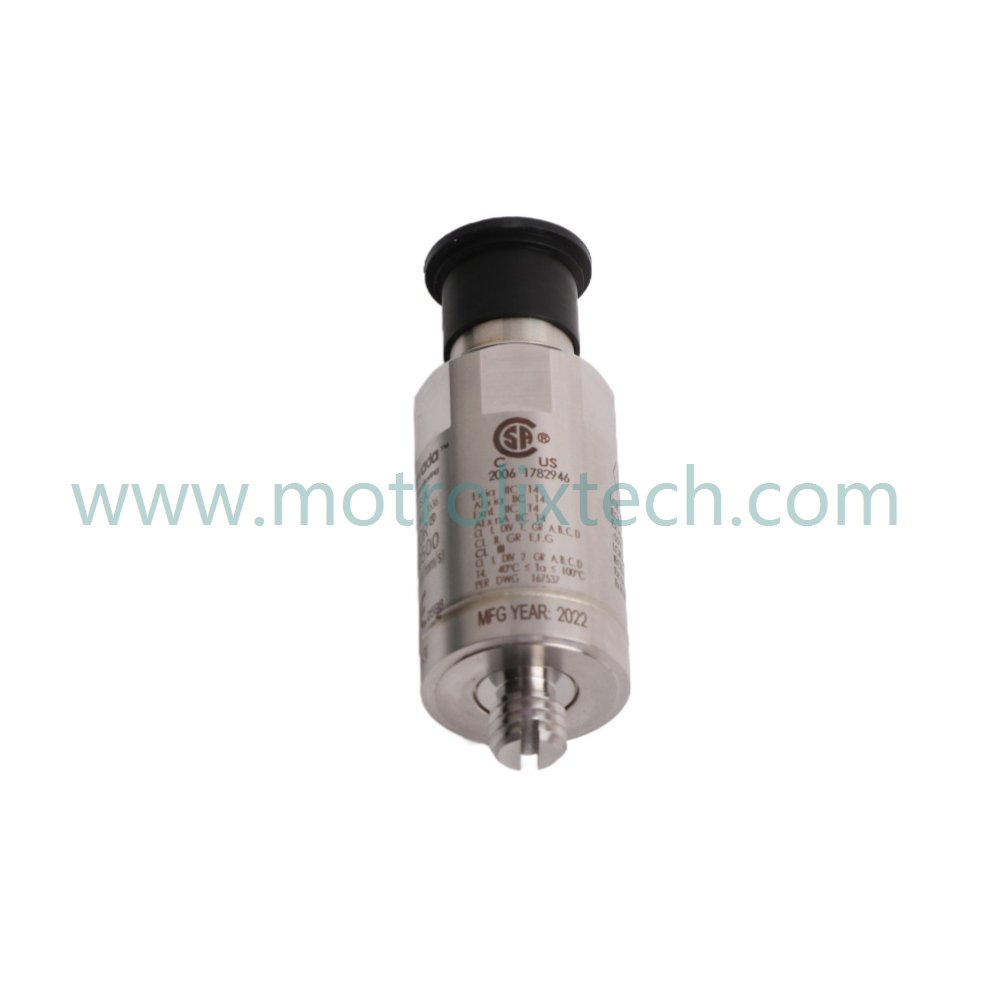

The Bently Nevada 330500-07-02 Velomitor Piezo-Velocity Sensor is engineered for high-precision vibration measurement, making it essential for monitoring large rotating machinery like turbines and compressors. This sensor provides real-time monitoring of vibrations in bearing housings, casings, and structural components. Its innovative solid-state design eliminates mechanical wear and guarantees reliability even in the most challenging industrial environments.
The model number 330500-07-02 reveals the following details about its design and capabilities:
330500: Identifies the specific series within the Bently Nevada product line, noted for its advanced measurement technologies.
07-02: Refers to the design features and specifications that enhance the sensor's performance, including its compact size and compatibility requirements.
| Parameter | Specification |
|---|---|
| Model Number | 330500-07-02 |
| Module Type | Velomitor Piezo-Velocity Sensor |
| Weight | 0.08 kg |
| Dimensions | 112 x 1.5 x 1.2 cm |
| Output Sensitivity | 3.94 mV/mm/s |
| Dynamic Output Impedance | < 2400 Ω |
| Mounting Thread | 3/8–16 UNC |
| Operating Temperature Range | -40°C to +85°C (-40°F to +185°F) |
| Compliance | ATEX Certified, FCC Part 15 |
| HS CODE | 8537101190 |
| Lead Time | In Stock |
To ensure optimal performance of the Bently Nevada 330500-07-02 Velomitor Piezo-Velocity Sensor, follow these guidelines:
Voltage Gap Settings: Adjust voltage settings according to the specifications for accurate measurements.
Cable Bend Radius: Maintain a minimum bend radius during installation to avoid damage to the cable.
Mounting Options: The sensor can be mounted vertically or horizontally, ensuring flexibility in diverse industrial applications.
Environmental Conditions: Ensure that installations occur in controlled environments to minimize exposure to extreme dust or moisture.
The Bently Nevada 330500-07-02 Velomitor Piezo-Velocity Sensor is designed for durability in extreme conditions, including high temperatures and corrosive environments. The solid-state electronics significantly reduce maintenance requirements, making it a reliable long-term solution for vibration monitoring. Compatibility with the TSI system allows for seamless integration into existing machinery setups. The sensor’s robust construction ensures accurate readings, making it ideal for predictive maintenance programs across the oil & gas, power generation, and manufacturing sectors.
Q1: How does the sensor determine vibration levels?
A1: The Bently Nevada 330500-07-02 captures vibrations as an electrical signal, providing real-time measurements of velocity in units of mV/mm/s.
Q2: What does the ATEX certification imply?
A2: ATEX certification indicates that the sensor is suitable for use in potentially explosive environments, meeting strict safety and performance standards.
Q3: Can this sensor be used with older models in the Bently Nevada line?
A3: Yes, the 330500-07-02 is designed for compatibility with various systems in the Bently Nevada family, facilitating upgrades and replacements.
Q4: What is the expected maintenance requirement for this sensor?
A4: Due to its solid-state design, the sensor requires minimal maintenance compared to traditional mechanical sensors, ensuring consistent performance over time.
