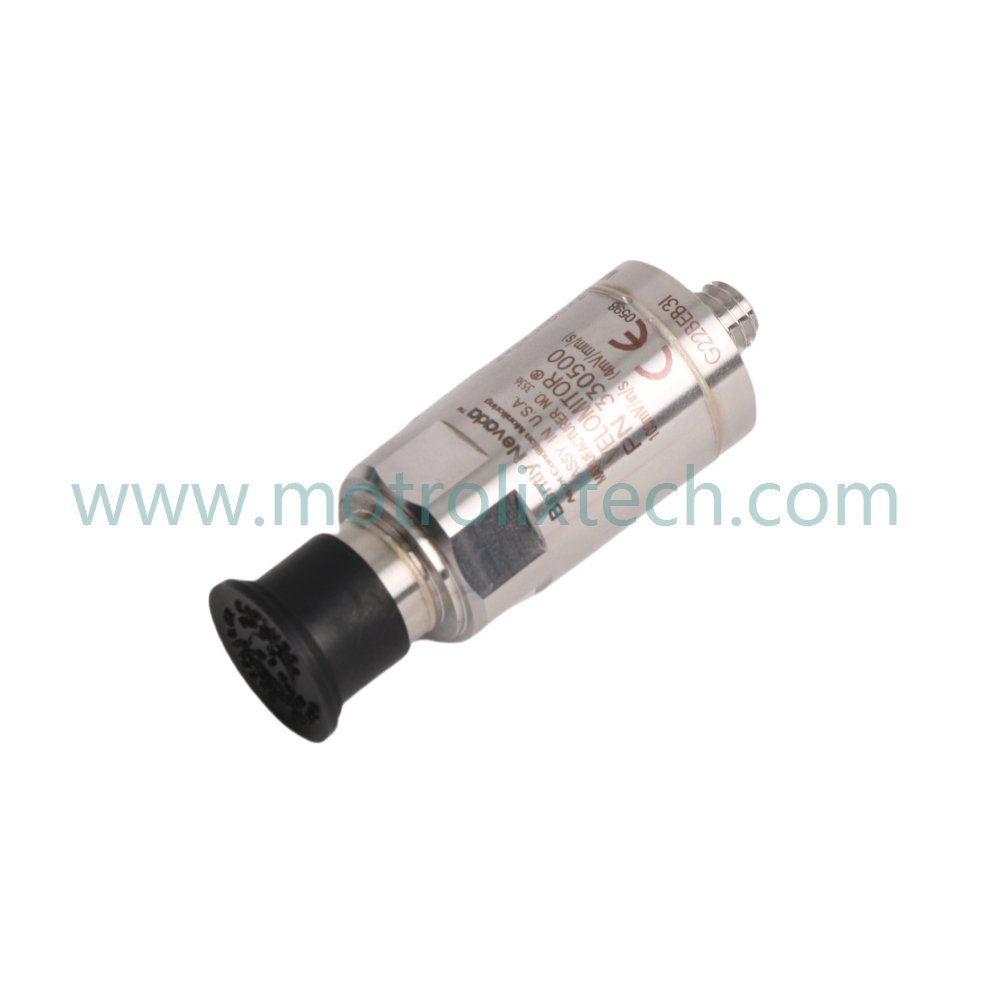

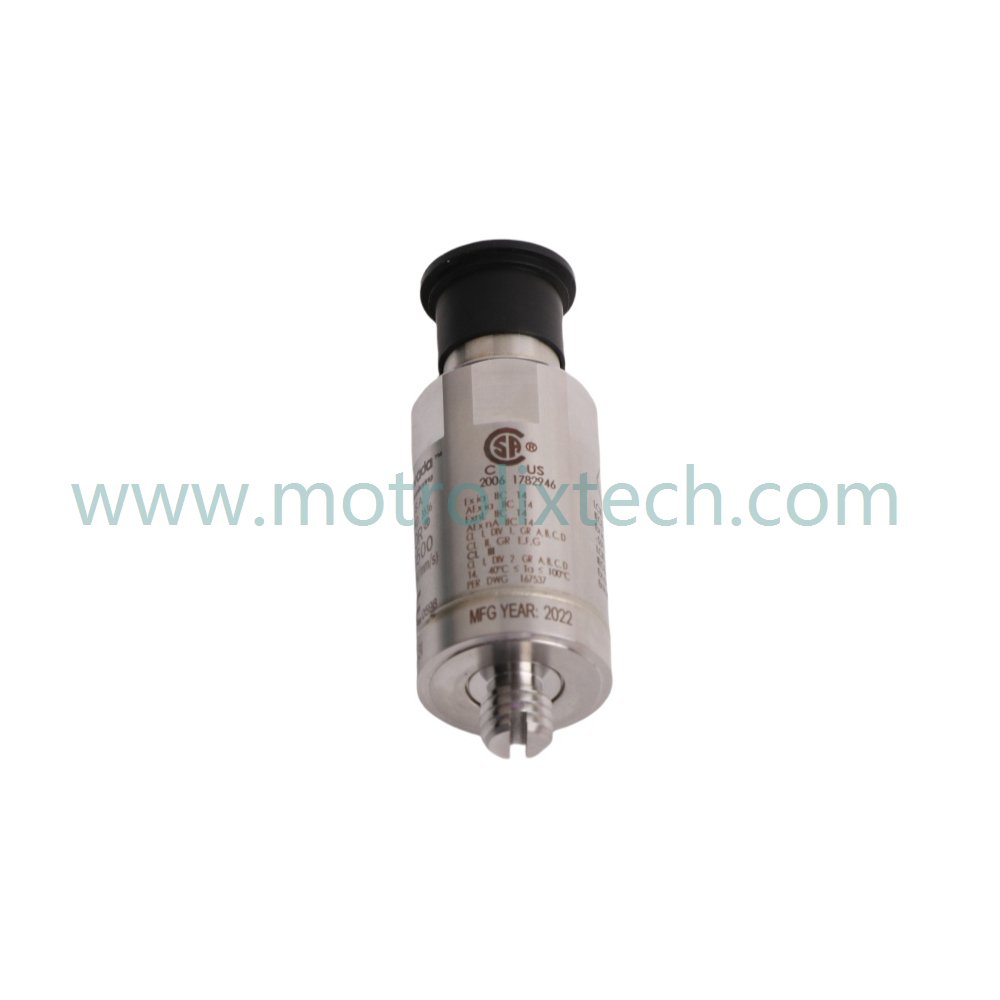

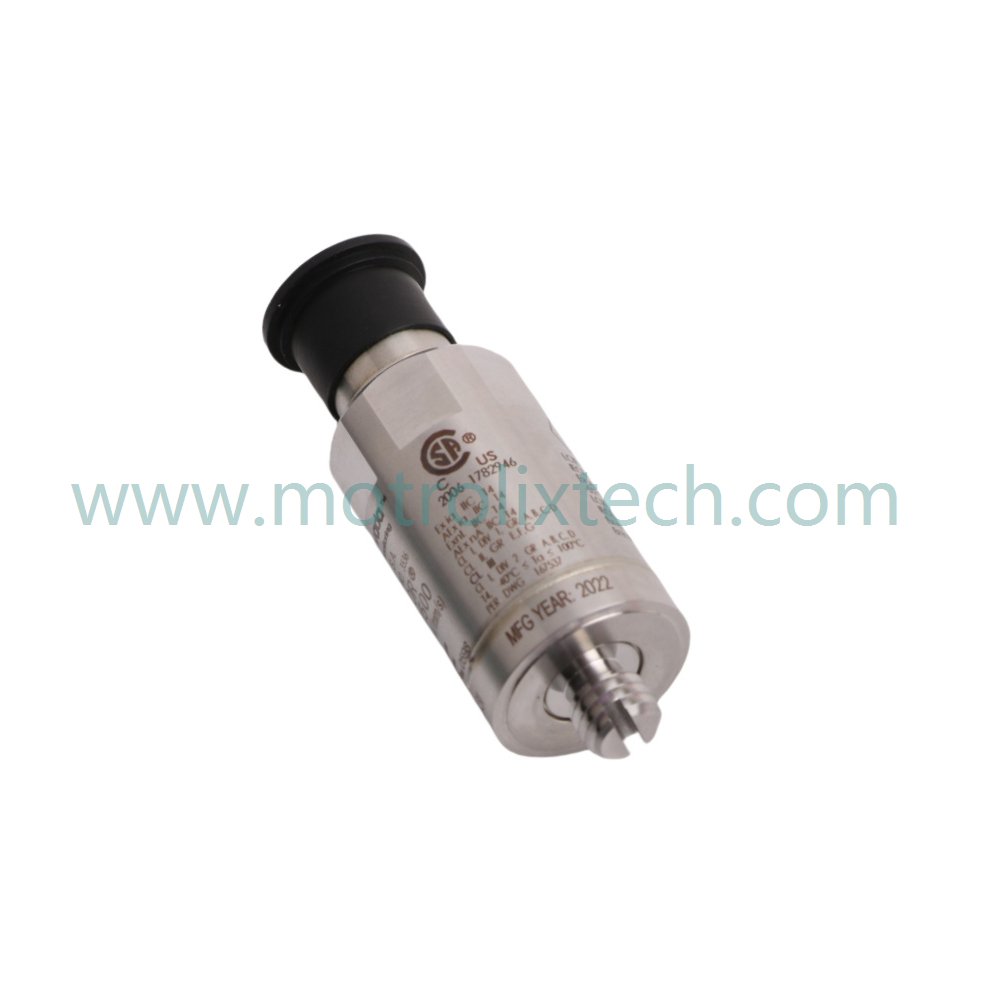

The Bently Nevada 330500-07-04 Velomitor Piezo-velocity Sensor is expertly designed for high-precision vibration monitoring in critical industrial machinery applications, including turbines and compressors. This sensor captures vital data on machinery health with a sensitivity of 3.94 mV/mm/s (100 mV/in/s) and can measure velocities up to 1270 mm/s (50 in/s) peak. Its robust construction and advanced features make it essential for detecting machine faults early, thus facilitating proactive maintenance and reduced downtime.
The model number 330500-07-04 provides insights into its specifications:
330500: Indicates the product series geared towards velocity measurement within the Bently Nevada range.
07: Shows this is a standard design optimized for reliable performance and ease of installation.
04: Represents features that are compliant with specific industrial standards for enhanced reliability.
| Parameter | Specification |
|---|---|
| Model Number | 330500-07-04 |
| Module Type | Velomitor Piezo-velocity Sensor |
| Manufacturer | Bently Nevada |
| Condition | Brand New |
| Lead Time | In Stock |
| Weight | 0.16 kg |
| Dimensions | 2.5 x 2.5 x 7.2 cm |
| Sensitivity | 3.94 mV/mm/s (100 mV/in/s) ±5% |
| Velocity Range | Up to 1270 mm/s (50 in/s) peak |
| Output Bias Voltage | -12 ±3.0 VDC |
| Dynamic Output Impedance | Less than 2400 ohms |
| Broadband Noise Floor | 0.004 g rms (10 Hz to 15 kHz) |
| Mounting Type | 1/4-28 UNF integral stud |
| Operating Temperature Range | -40°C to +121°C (-40°F to +250°F) |
| Certifications | CSA, ATEX |
| System Compatibility | TSI (Transducer Signal Interface) |
| HS CODE | 8537101190 |
| Product Origin | USA |
To ensure optimal performance of the Bently Nevada 330500-07-04 Velomitor Piezo-velocity Sensor, follow these installation recommendations:
Proper Mounting: Securely mount the sensor on bearing housings or machine casings to capture accurate vibration data. Clean the surface beforehand to avoid false signals.
Voltage Settings: Ensure the voltage settings align with the specified requirements for accurate readings.
Cable Management: Route installation cables with care, avoiding sharp bends and excessive tension that can disrupt signal integrity.
Environmental Adaptability: Make sure the installation environment is within the operating temperature range to maintain sensor performance.
The Bently Nevada 330500-07-04 Velomitor Piezo-velocity Sensor is built for robustness and reliability in even the most demanding environments. Its exceptional sensitivity and dynamic response make it indispensable for monitoring machinery health, capturing subtle changes that may indicate potential issues. The integration of specialized SpringLoc terminal strips simplifies installation, allowing for quick and secure connections. This sensor's compact design ensures that it can be effectively used in tight spaces, while its compliance with industry standards ensures that it consistently meets performance expectations. By utilizing this sensor, facilities can significantly enhance their predictive maintenance strategies and protect critical assets from unplanned failures.
Q1: How can I measure the optimal voltage settings during installation?
A1: Use a multimeter to check the voltage across the output terminals of the sensor, ensuring it adheres to the specifications outlined in the product manual.
Q2: What applications is the Bently Nevada 330500-07-04 suited for?
A2: This sensor is perfect for monitoring vibration in applications such as turbines, compressors, and other critical machinery requiring high-precision measurements.
Q3: Is this sensor compatible with previous models in the Bently Nevada range?
A3: Yes, the 330500-07-04 is designed to be compatible with existing systems in the Bently Nevada product line, making upgrades and replacements straightforward.
Q4: What certifications does this sensor hold for safety in hazardous environments?
A4: The Bently Nevada 330500-07-04 Velomitor Piezo-velocity Sensor meets several industry standards, including CSA and ATEX certifications, confirming its suitability for use in potentially explosive environments.
