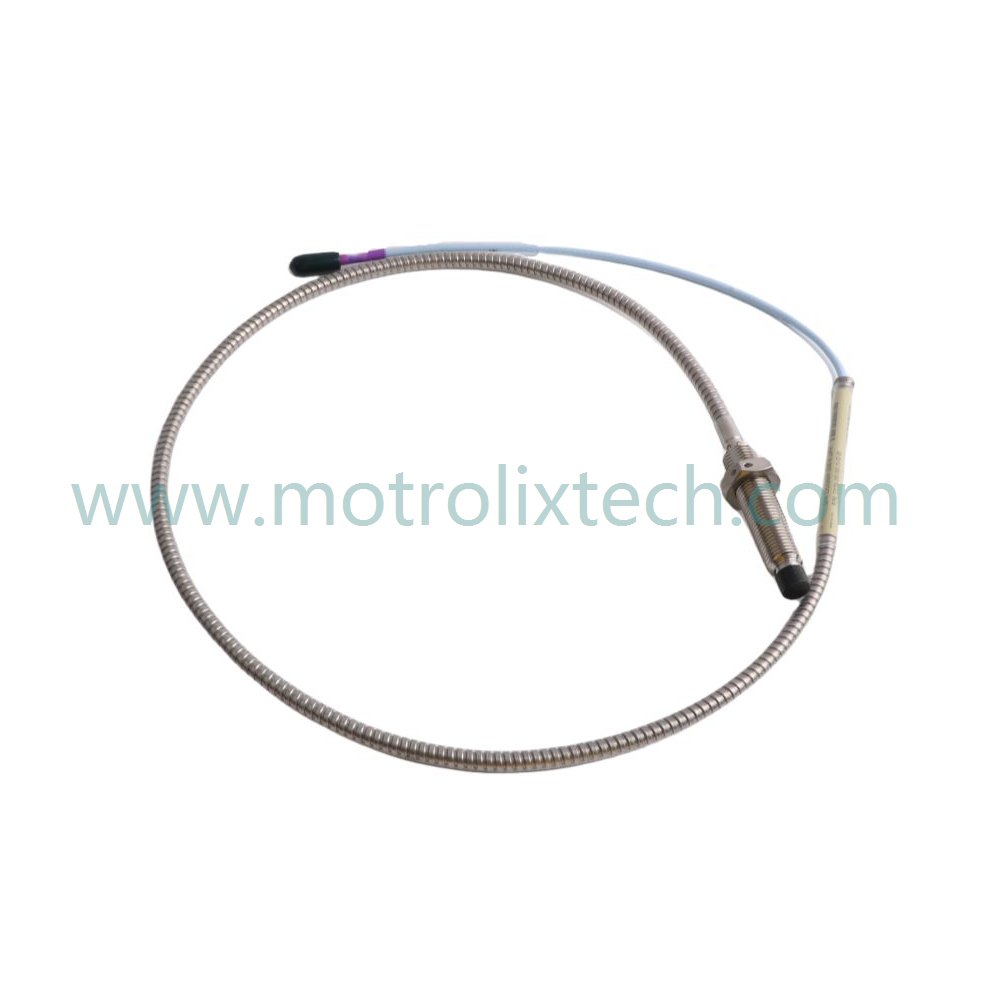

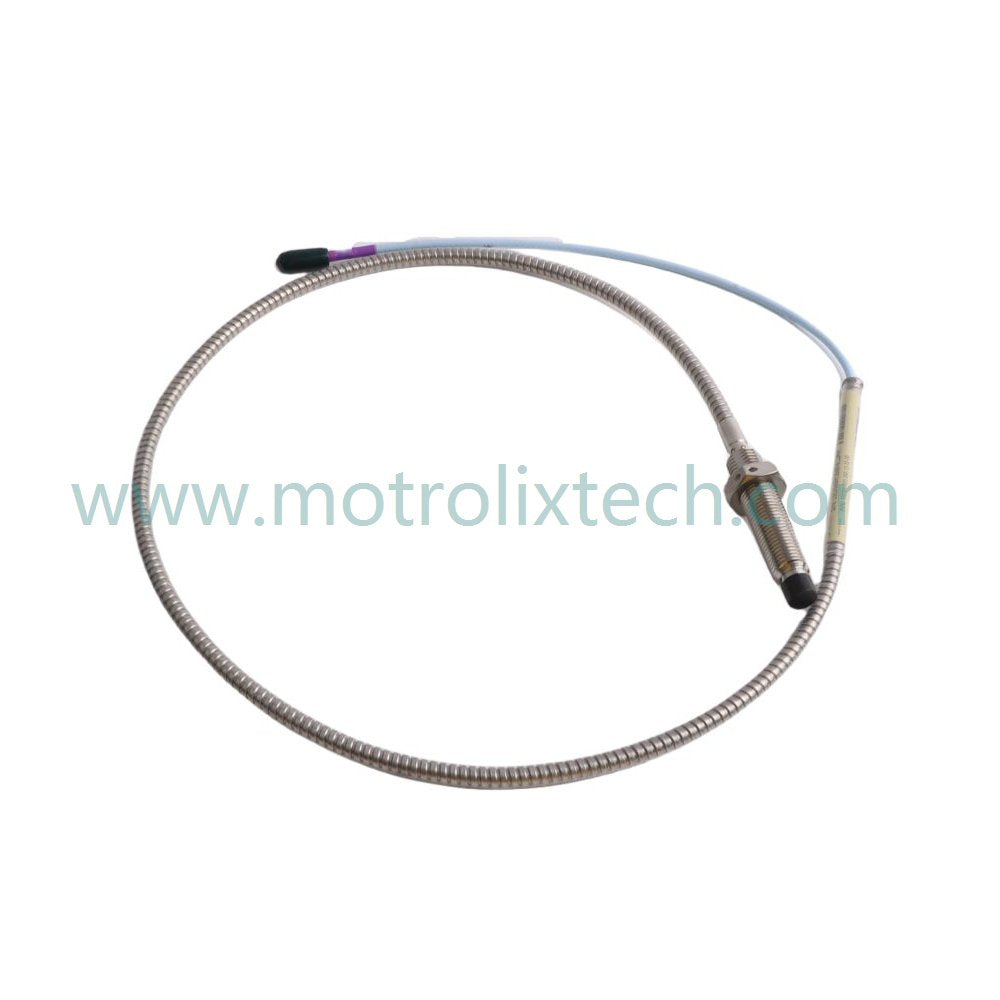

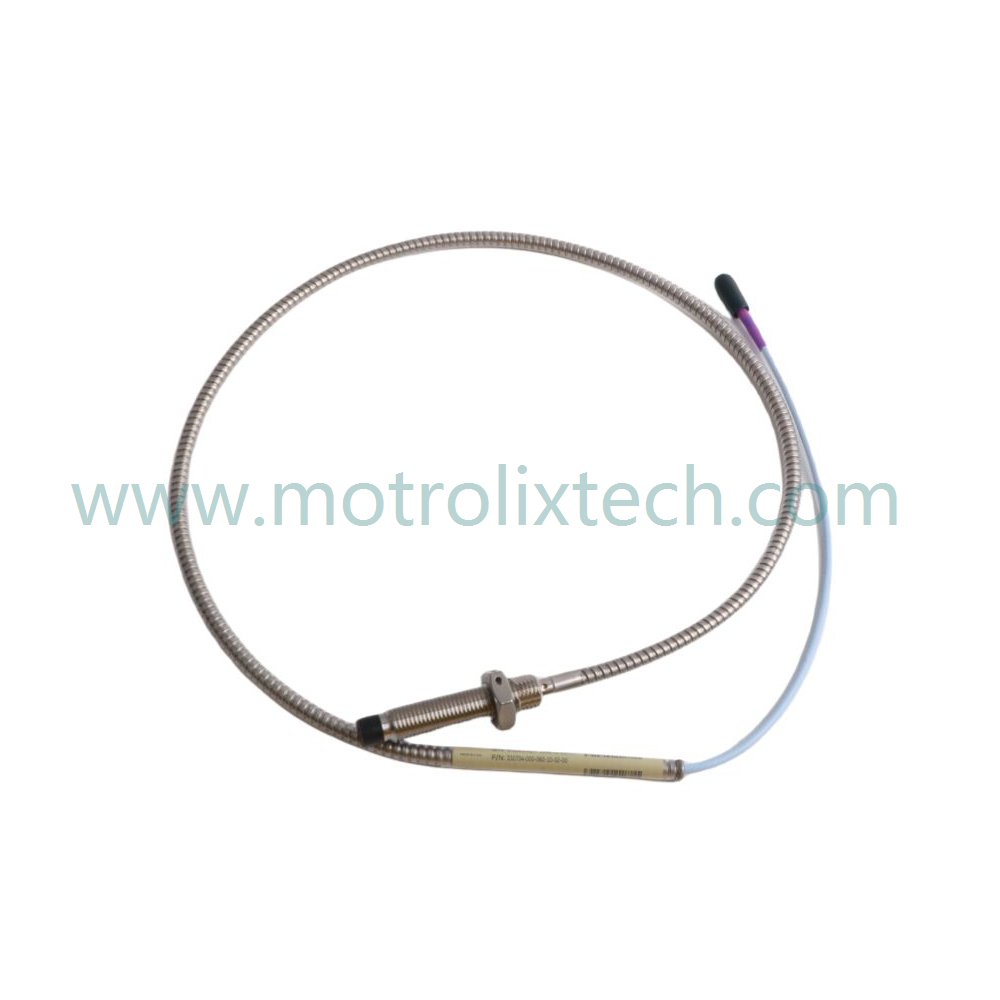

The Bently Nevada 330704-000-060-10-02-00 3300 XL 11 mm Proximitor Sensor is engineered for non-contacting vibration and displacement measurements in fluid film bearing machines. This advanced sensor is essential for monitoring large rotating equipment such as steam turbines, reciprocating compressors, and various industrial applications requiring accurate axial position measurements. It delivers a 3.94 V/mm (100 mV/mil) output, making it ideal for critical tasks where precision is paramount.
Constructed with high-quality materials and incorporating a miniature coaxial ClickLoc connector, this sensor guarantees secure and reliable connections while enhancing overall accuracy and performance. Its compatibility with the 3300 XL Proximity Transducer System ensures streamlined integration, making it a preferred choice for modern industrial monitoring setups.
The model number 330704-000-060-10-02-00 provides insights into its specifications:
330704: Indicates that the sensor is part of the 3300 series, specifically designed for high-performance applications.
000: Refers to the first variant or configuration of the sensor.
060: Represents the linear range extension, indicating robust performance compared to the standard 3300 XL 8 mm system.
10: Signifies the design features specific to this model.
02: Points to its capability and design specifications.
00: Suggests it is tailored for various applications within the industrial sector.
| Parameter | Specification |
|---|---|
| Model Number | 330704-000-060-10-02-00 |
| Module Type | 3300 XL 11 mm Proximitor Sensor |
| Manufacturer | Bently Nevada |
| Condition | Brand New |
| Range of Product | 3300 XL Proximity Transducer System |
| Lead Time | In Stock |
| Weight | 0.16 kg |
| HS CODE | 8537101190 |
| Dimensions | 114.5 x 2.5 x 2 cm |
| Minimum Order Quantity (MOQ) | 1 |
| Product Origin | USA |
| System Compatibility | TSI |
| Discontinued | Active |
| Communication Service | Ethernet router |
| Output | 3.94 V/mm (100 mV/mil) |
| Cable Type | Miniature coaxial ClickLoc connector |
To ensure optimal performance of the Bently Nevada 330704-000-060-10-02-00 Proximitor Sensor, follow these installation recommendations:
Mechanical Clearance: Allow sufficient room for the sensor installation, ensuring it does not interfere with surrounding equipment or structures.
Wiring Connections: Utilize the ClickLoc connector, ensuring a secure and stable connection to prevent signal loss. Regularly inspect for wear or damage.
Bend Radius: Follow the specified minimum bend radius guidelines during installation to maintain the integrity of the cable and sensor function.
Environmental Conditions: Protect the sensor from extreme temperatures and humidity to sustain its accuracy and prolong its lifespan.
Consult Technical Support: If questions arise during installation, reach out to Bently Nevada’s technical support team for expert assistance.
The Bently Nevada 330704-000-060-10-02-00 Proximitor Sensor is designed to offer exceptional reliability in extreme industrial environments, including high temperatures, corrosive atmospheres, and mechanical vibrations. Its robust construction and advanced technology enhance measurement accuracy, ensuring optimal performance in critical machinery monitoring tasks.
The ability to replace older 7200-series transducers with this updated 3300 XL 11 mm system simplifies upgrades and maintains system relevance. The sensor supports seamless integration with existing TSI monitoring systems, allowing operators to benefit from enhanced features and performance with minimal downtime.
Q1: What applications is the Bently Nevada 330704-000-060-10-02-00 Proximitor Sensor best suited for?
A1: This sensor is ideal for non-contacting vibration and displacement measurements in fluid film bearing machines, particularly in steam turbines and reciprocating compressors.
Q2: What is the output specification of this Proximitor Sensor?
A2: The sensor delivers an output of 3.94 V/mm (100 mV/mil), enabling precise measurements critical for effective monitoring.
Q3: How does the ClickLoc connector improve functionality?
A3: The ClickLoc connector ensures secure and reliable electrical connections, reducing the risk of disconnections or signal loss during operation.
Q4: Can this sensor replace older models?
A4: Yes, the 330704-000-060-10-02-00 is specifically designed to replace older 7200-series 11 mm and 14 mm transducer systems, making upgrades straightforward.
Q5: Is this sensor compatible with the 3500 Monitoring System?
A5: Yes, when upgrading to the 3300 XL 11 mm system, the configuration software for the 3500 Monitoring System must be updated for compatibility.
