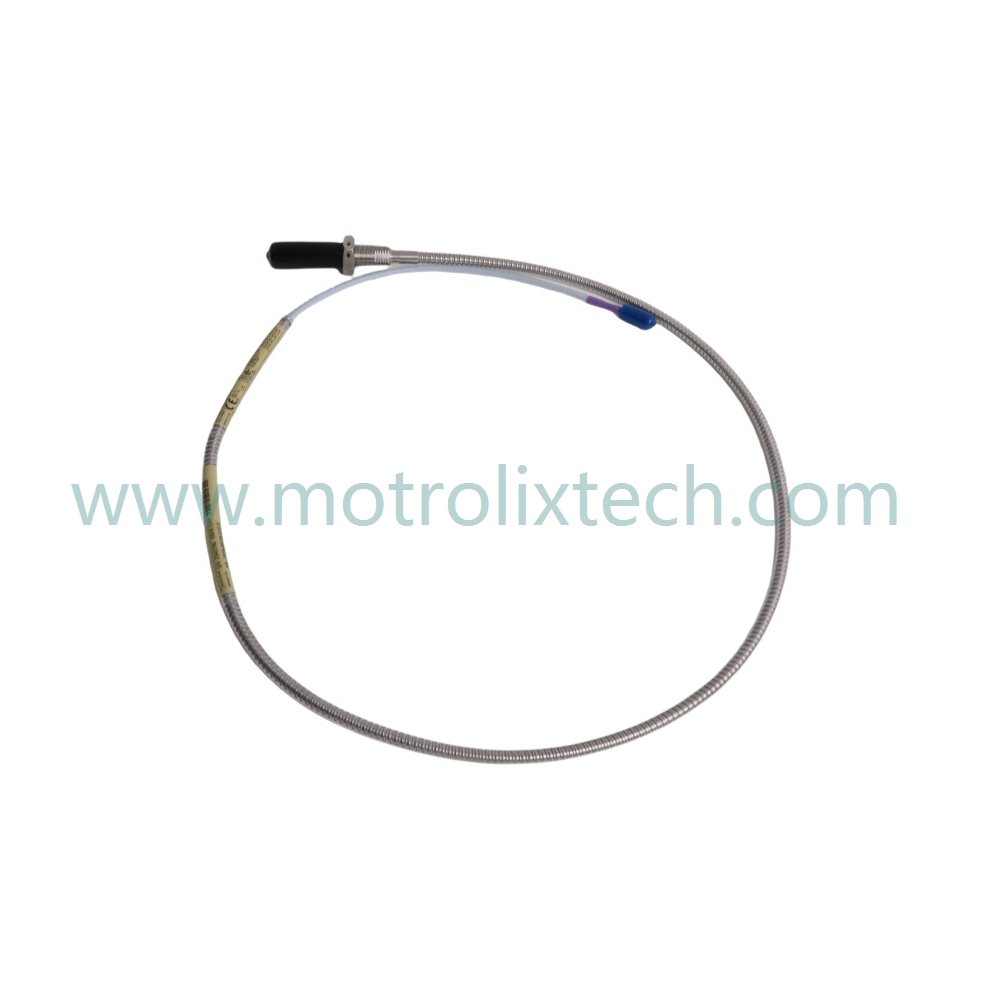

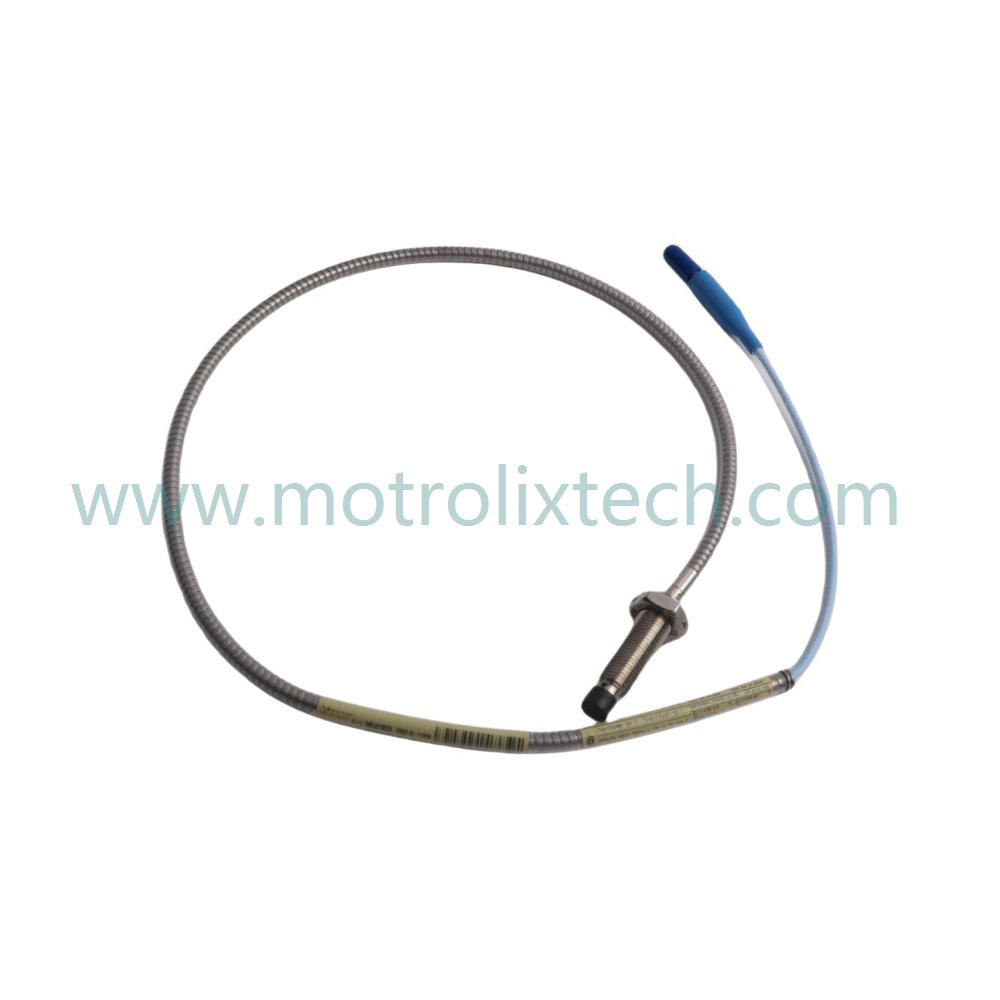

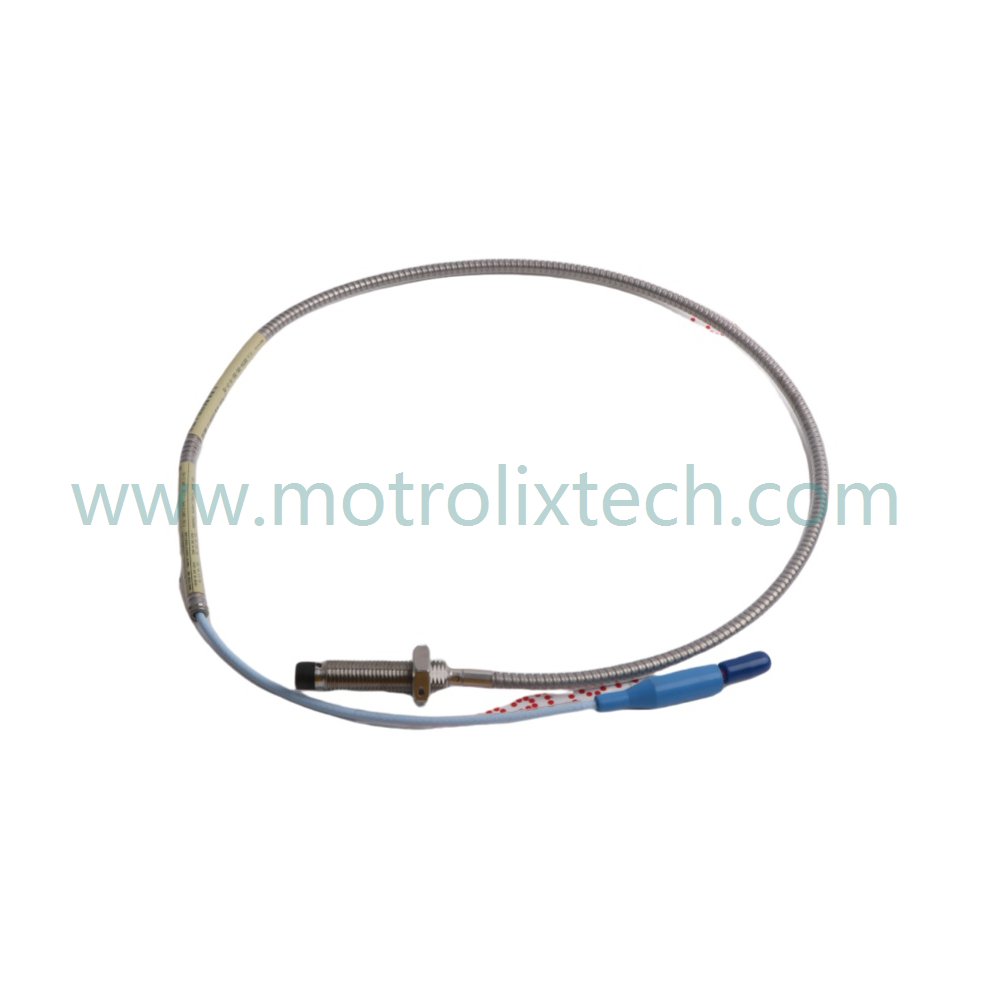

The Bently Nevada 330704-000-100-10-02-00 3300 XL 11 mm Proximity Probe is a high-precision vibration monitoring device designed for critical rotating machinery protection. Featuring dual-channel processing and wide frequency range (0.5 Hz to 15 kHz), it delivers comprehensive condition monitoring capabilities. Its robust design and advanced EMI/RFI immunity ensure reliable performance in electrically noisy industrial environments, supporting predictive maintenance and safeguarding operational efficiency.
Model Number: 330704-000-100-10-02-00
Product Series: 3300 Proximity Transducer System
Module Type: 3300 XL 11 mm Proximity Probe
Weight: 0.16 kg
Dimensions: 115.5 × 2.5 × 2 cm
Lead Time: In Stock – ready for immediate shipment
HS Code: 8537101190
Product Origin: USA
Frequency Range: 0.5 Hz – 15 kHz
Power Supply: 18 – 30 VDC
Output Signals: 4-20 mA analog output, relay contacts
Temperature Range: -40 °C to +85 °C
Dynamic Range: 110 dB
Mounting Options: DIN rail or panel mount
Connection: Tool-less SpringLoc terminals for easy wiring
Compatibility: Supports 11 mm and 8 mm proximity sensors
Certifications: CE compliant, suitable for hazardous environments
Applications: Turbines, compressors, and critical rotating equipment in power generation and process industries
330704: 3300 XL Series Proximity Probe base model
-000: Mechanical configuration
-100: Frequency and output specification
-10: Mounting and connection type
-02: Power supply and environmental rating
-00: Factory or regional variant
This model code defines the probe’s mechanical design, frequency range, output capabilities, mounting, and environmental suitability.
Mounting: Select appropriate DIN rail or panel locations with sufficient ventilation. Secure the unit firmly to avoid vibration-induced faults.
Wiring: Use tool-less SpringLoc terminals for fast, reliable connections. Follow polarity and wiring diagrams carefully to ensure signal integrity.
Power Supply: Ensure stable 18–30 VDC power input for optimal operation.
Environmental Protection: Suitable for harsh and hazardous environments, verify compliance with local installation standards.
Integration: Compatible with Bently Nevada 3300 XL system components and TSI monitoring platforms for seamless data acquisition.
Q: What frequency range does this proximity probe cover?
A: It operates across 0.5 Hz to 15 kHz, supporting comprehensive vibration diagnostics.
Q: Is this probe suitable for hazardous environments?
A: Yes, it is CE compliant and designed for hazardous area installations.
Q: What outputs are available?
A: It provides 4-20 mA analog outputs coupled with relay contacts for alarm and trip functionality.
Q: Can it work with existing 8 mm probes?
A: Yes, it supports both 11 mm and 8 mm proximity sensors for versatile applications.
Q: Is this product genuine and in stock?
A: Yes, it is an authentic Bently Nevada product, currently available with fast shipping.
For detailed installation procedures and technical support, please refer to official Bently Nevada manuals or authorized distributors.
