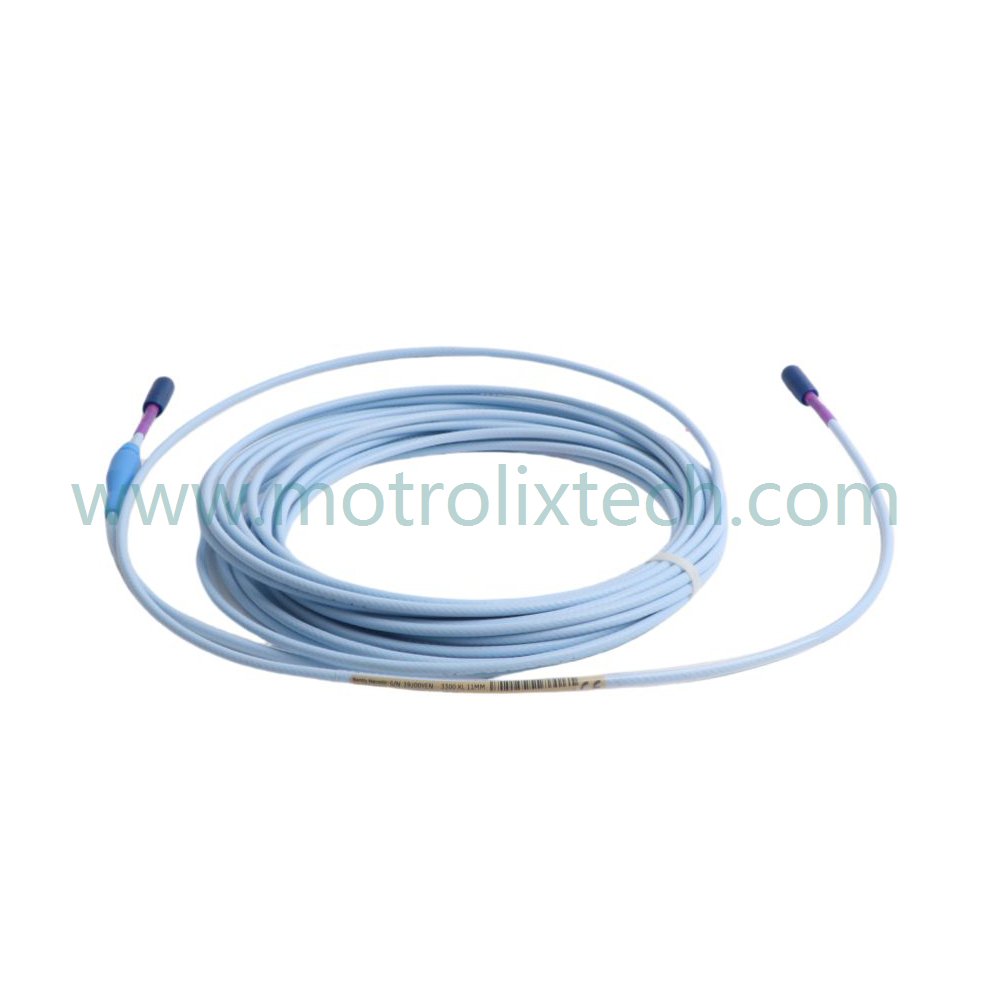

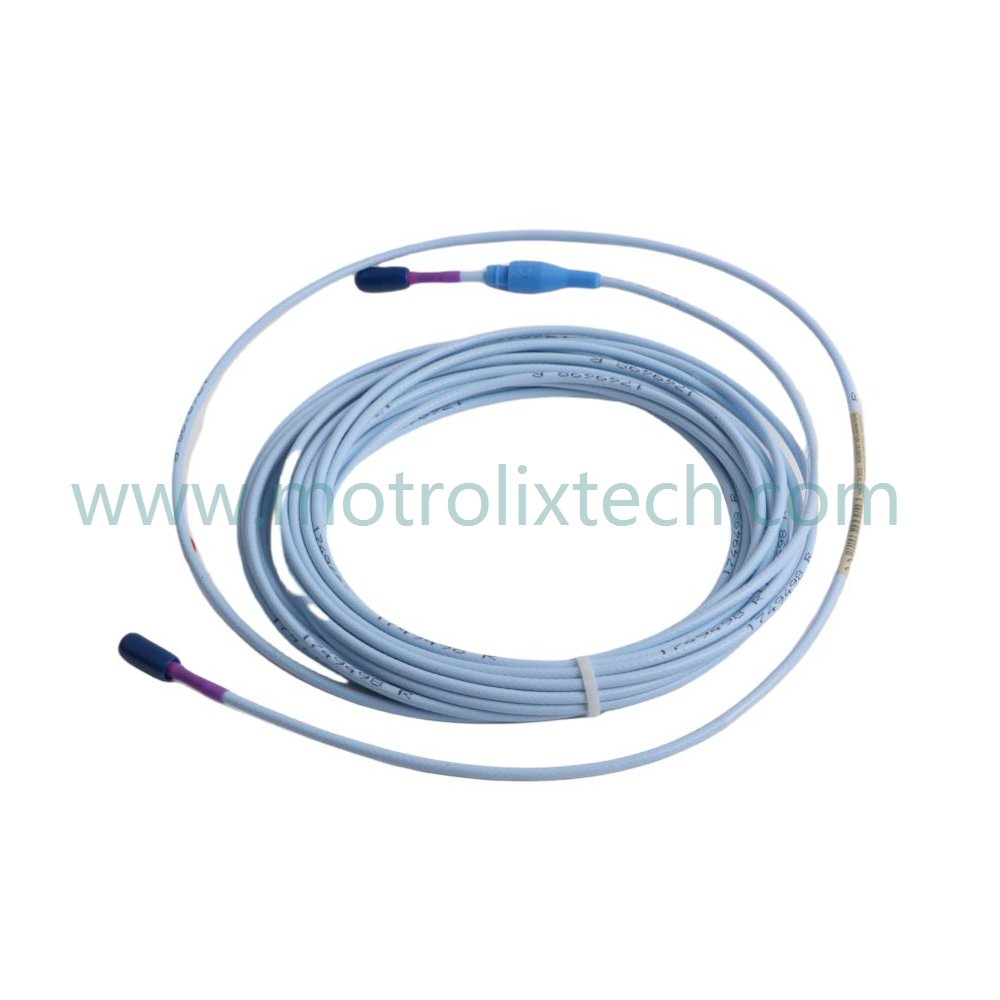

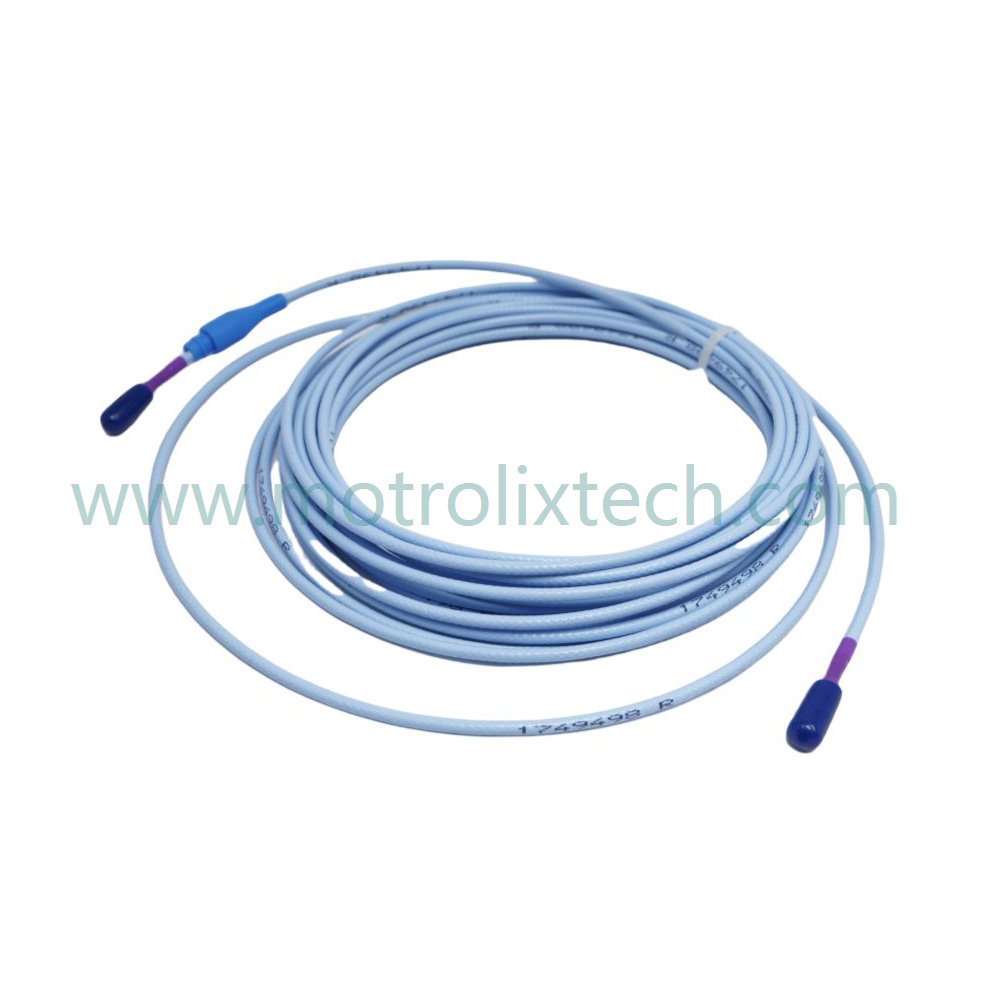

The Bently Nevada 330730-080-02-05 3300 XL 11 mm Extension Cable is a high-precision component of the 3300 XL Proximity Transducer System, specifically designed for critical vibration and position monitoring in industrial machinery. This extension cable provides a non-contacting output voltage of 3.94 V/mm (100 mV/mil), making it ideal for applications that require extended linear range measurements compared to standard probes.
With a length of 8.0 meters (26.2 feet), the 3300 XL 11 mm Probe enhances the ability to perform axial position measurements, ramp differential expansion measurements on steam turbines, and other key applications in demanding environments. Built to withstand harsh industrial conditions, this extension cable ensures reliable operation and supports the monitoring needs of industries such as power generation, manufacturing, and mechanical systems.
The model number 330730-080-02-05 highlights the specific features of this extension cable:
330730: Identifies the product series within the Bently Nevada range, optimized for high-performance applications.
080: Refers to specific design features related to the cable and sensor system.
02: Indicates compatibility or special functionality associated with this model.
05: Represents certification levels or compliance with industry standards.
| Parameter | Specification |
|---|---|
| Model Number | 330730-080-02-05 |
| Module Type | 3300 XL 11 mm Extension Cable |
| Manufacturer | Bently Nevada |
| Condition | Brand New |
| Range of Product | 3300 XL Proximity Transducer System |
| Lead Time | In Stock |
| Weight | 0.96 kg |
| HS CODE | 8537101190 |
| Dimensions | 31 x 31.5 x 4.5 cm |
| Minimum Order Quantity (MOQ) | 1 |
| Product Origin | USA |
| System Compatibility | TSI |
| Discontinued | Active |
| Communication Service | Ethernet router |
| Cable Length | 8.0 meters (approximately 26.2 feet) |
| Output Signal | 3.94 V/mm (100 mV/mil) |
To ensure optimal performance of the Bently Nevada 330730-080-02-05 Extension Cable, adhere to these guidelines:
Installation Clearance: Maintain adequate space for the sensor and wiring to avoid interference with surrounding equipment.
Bend Radius: Follow recommended cable bend radii to prevent damage and maintain signal integrity.
Connector Protection: Utilize the connector protector option to safeguard the system from environmental contaminants during installation.
Environmental Conditions: Ensure installation in a location that minimizes exposure to extreme temperatures, moisture, and physical damage.
Technical Support: For any installation challenges or assistance, contact Bently Nevada's technical support for expert guidance.
The Bently Nevada 330730-080-02-05 Extension Cable is engineered for improved durability and precision, making it suitable for harsh industrial environments. Its robust construction enables reliable signal transmission, while the 11 mm probe diameter allows for effective measurements over larger distances compared to standard probes.
This extension cable seamlessly integrates with the 3300 XL Proximity Transducer System, ensuring full compatibility with existing setups. The cable’s ability to perform in demanding conditions and its compliance with multiple international standards deliver confidence in monitoring applications across various industries.
Q1: What is the main function of the Bently Nevada 330730-080-02-05 Extension Cable?
A1: This extension cable enables high-precision vibrations and position monitoring for industrial applications, supporting a longer linear range than standard models.
Q2: What is the length of the 330730-080-02-05 Extension Cable?
A2: The cable measures 8.0 meters (approximately 26.2 feet), providing flexibility in installation.
Q3: How does the probe's output signal work?
A3: The probe generates a non-contacting output voltage of 3.94 V/mm (100 mV/mil), which accurately reflects the distance between the probe tip and the target surface.
Q4: What industries benefit from using this extension cable?
A4: The cable is ideal for industries such as power generation, manufacturing, and mechanical systems, particularly for monitoring applications involving rotating machinery.
Q5: Is there protection against harsh environmental conditions?
A5: Yes, the extension cable features robust environmental protection, including optional connector protectors to ensure reliable operation in challenging environments.
