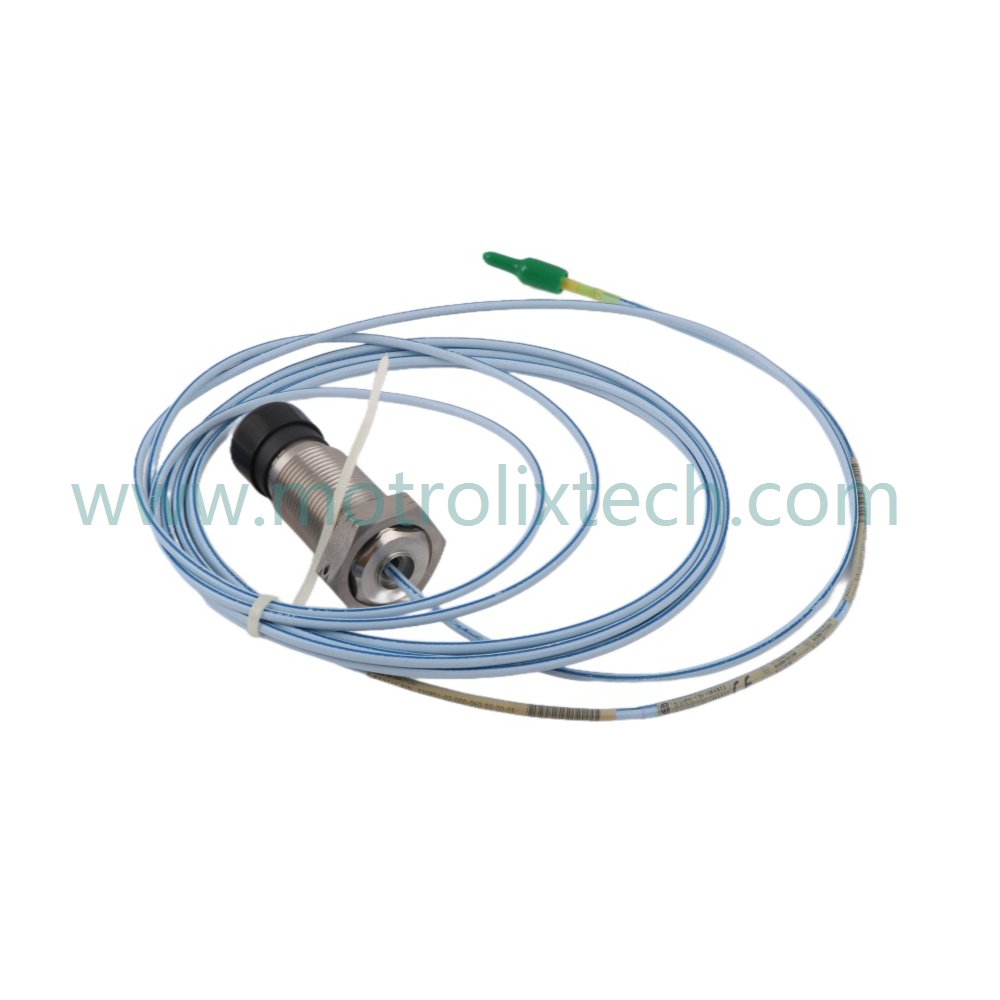

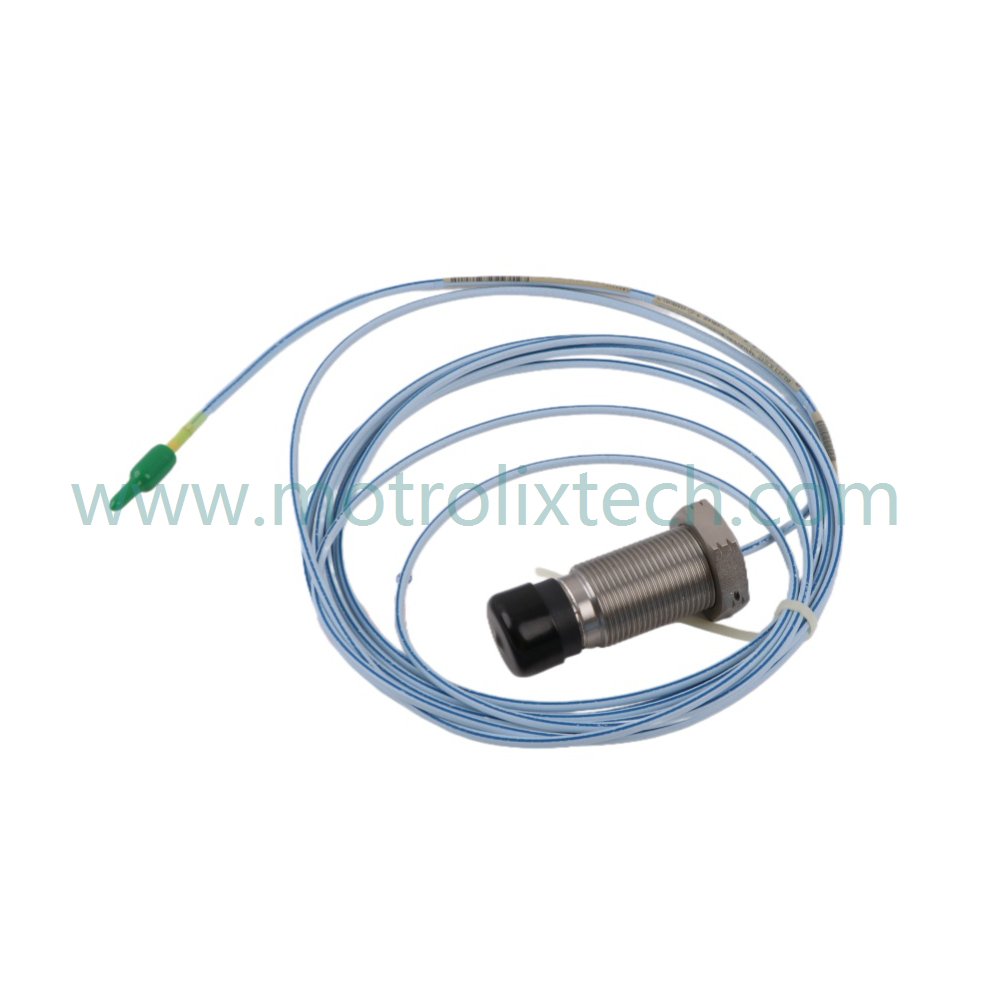

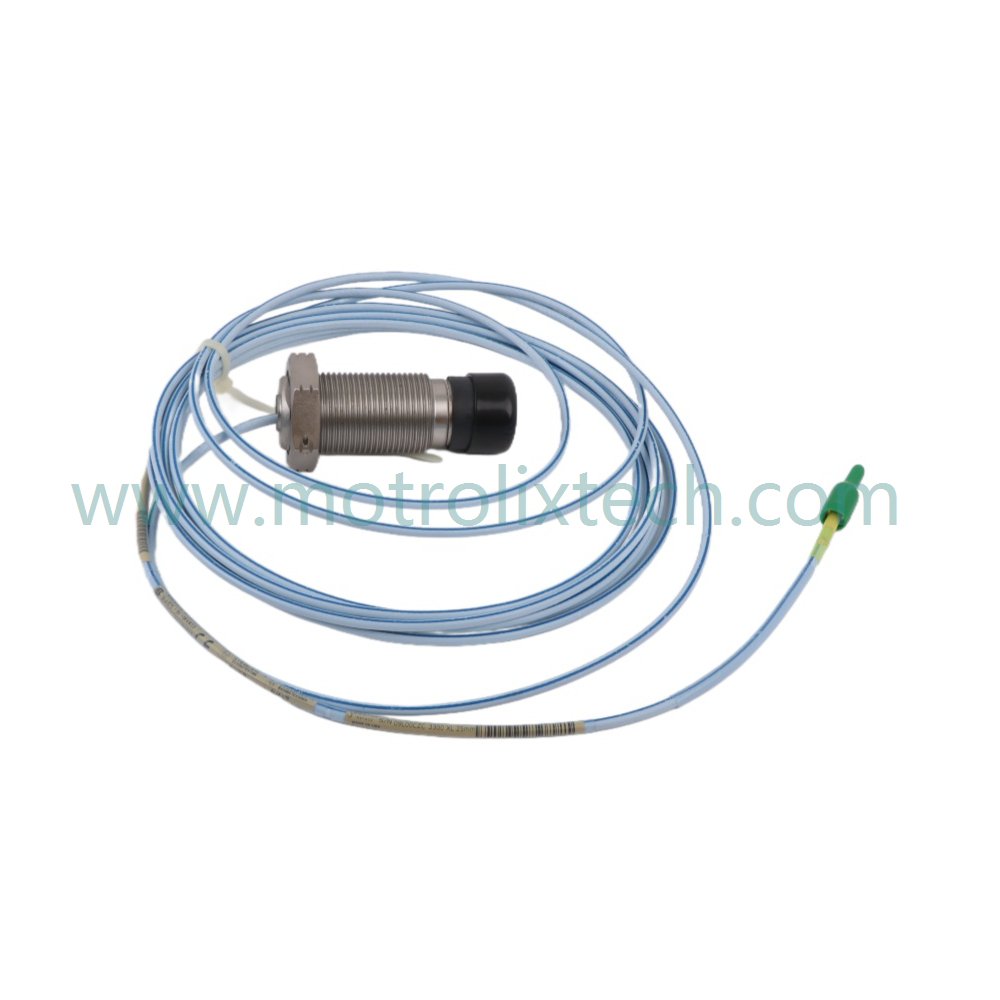

The Bently Nevada 330851-02-000-60-10-00-05 3300 XL 25 mm Proximity Probe is a vital instrument for precision monitoring of critical machinery conditions in industrial applications. Designed for use in large rotating machinery, such as steam turbines and compressors, this high-performance probe provides accurate non-contact measurements that significantly enhance operational reliability. Its wide temperature range and robust construction make it suitable for demanding environments, ensuring the longevity and safety of your equipment.
The model number 330851-02-000-60-10-00-05 contains key specifications that define its functionality:
330851: Designates the probe as part of the 3300 XL series, a line recognized for advanced monitoring capabilities.
02: Indicates the specific configuration of the probe for optimized performance.
000: Represents standard designs meant for plug-and-play installation without additional modifications.
60: Specifies the minimum unthreaded length of the probe, providing standard compatibility.
10: Refers to the thread configuration to ensure secure mounting.
00-05: Represents enhancements in manufacturing and performance features.
| Parameter | Specification |
|---|---|
| Model Number | 330851-02-000-60-10-00-05 |
| Module Type | 3300 XL 25 mm Proximity Probe |
| Weight | 0.08 kg |
| Dimensions | 112 x 1.5 x 1.2 cm |
| Output Sensitivity | 0.787 V/mm (20 mV/mil) |
| Operating Temperature Range | -35°C to +200°C (-31°F to +392°F) |
| Thread Type | M30 x 2 |
| Linear Range | 12.7 mm |
| Integral Cable Length | 1.0 meter |
| System Compatibility | TSI (Transducer Signal Interface) |
| HS CODE | 8537101190 |
| Lead Time | In Stock |
To ensure the optimal performance of the Bently Nevada 330851-02-000-60-10-00-05 Proximity Probe, consider the following installation guidelines:
Voltage Gap Settings: Adjust the voltage settings to conform with specifications for accurate readings.
Cable Bend Radius: Maintain the recommended cable bend radius during installation to prevent damage.
Mounting Position: Securely mount the probe using the M30 x 2 threading to ensure stability and prevent misalignment.
Environmental Considerations: Install away from extreme dust, moisture, or interference to maintain the probe's accuracy and longevity.
The Bently Nevada 330851-02-000-60-10-00-05 Proximity Probe excels in environments with high temperatures and potential corrosive elements. Its robust design accommodates extreme conditions, making it a reliable choice for industries such as oil and gas and power generation. The probe’s seamless integration with TSI systems enhances its adaptability to modern control systems, ensuring optimal performance and durability. This capability provides crucial feedback for predictive maintenance strategies, preventing costly machinery failures.
Q1: How do I determine the appropriate voltage gap when installing the probe?
A1: You should measure the voltage across the probe terminals with a multimeter to ensure compliance with specified operational levels.
Q2: What does the "M30 x 2" thread indicate?
A2: This specifies the major diameter and pitch of the thread, ensuring proper fit and secure mounting of the probe.
Q3: Can the 330851-02-000-60-10-00-05 probe replace older models in the Bently Nevada series?
A3: Yes, this probe is designed to be backward compatible, allowing for straightforward upgrades without extensive recalibration.
Q4: What is the significance of the probe’s temperature range of -35°C to +200°C?
A4: This wide temperature range ensures that the probe operates effectively in various challenging environmental conditions, making it suitable for diverse industrial applications.
