Product Overview:

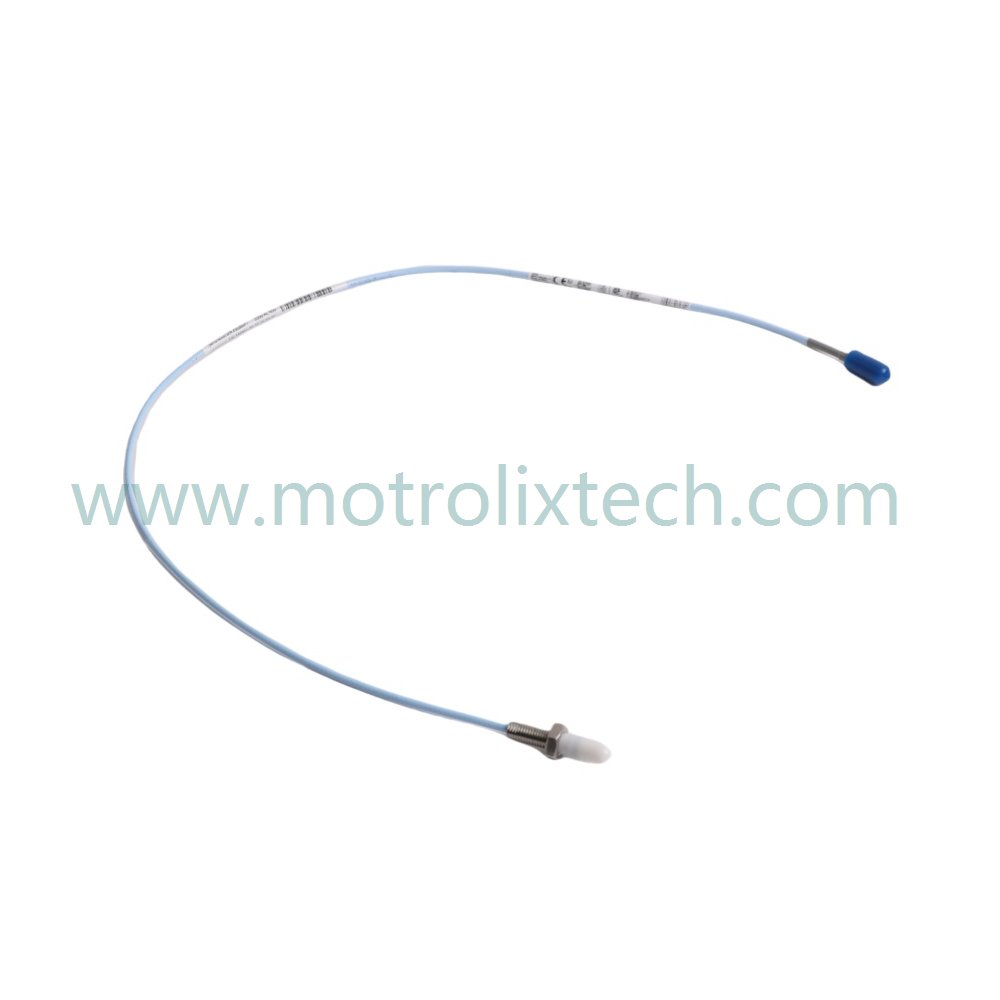

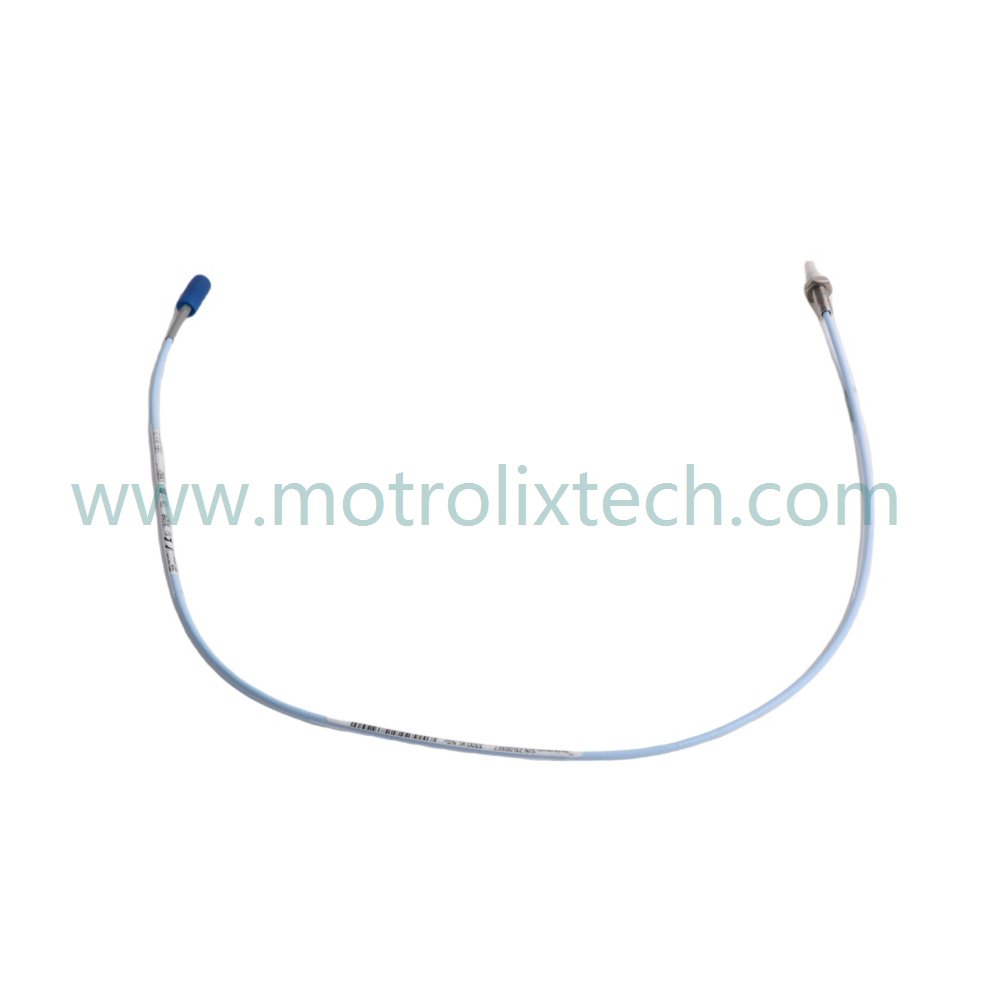

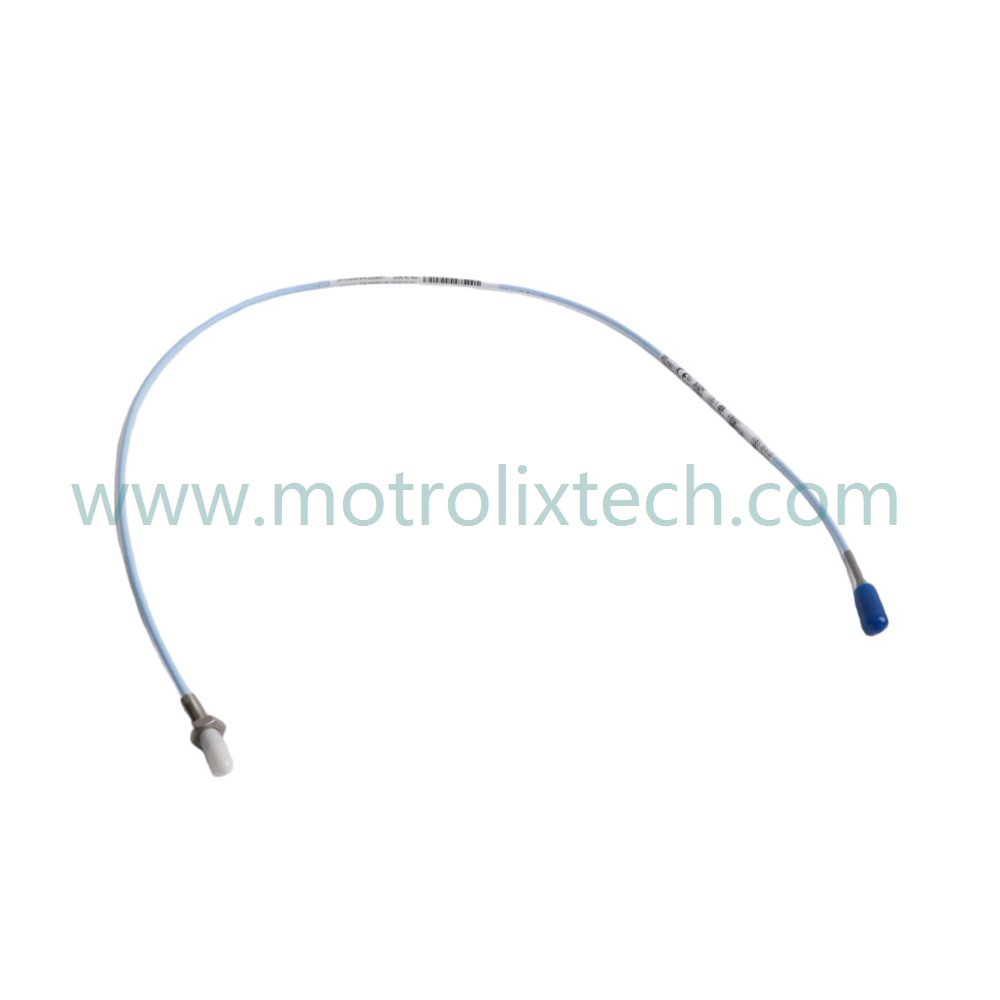

The Bently Nevada 330901-20-32-10-02-05 3300 NSv Proximity Probe is a high-performance monitoring solution designed for precise vibration measurement in challenging industrial environments. This probe features a robust design with superior chemical resistance, making it ideal for applications in process compressors and other settings where exposure to harsh chemicals is a concern. With exceptional reading accuracy and compatibility with existing Bently Nevada systems, it ensures optimal operational safety and efficiency in critical machinery monitoring.
Technical Specifications:
Model Number: 330901-20-32-10-02-05
Module Type: 3300 NSv Proximity Probe
Manufacturer: Bently Nevada
Condition: Brand New
Product Range: 3300 Proximity Transducer System
Lead Time: In Stock
Weight: 0.15 kg
Dimensions: 20.4 x 22.2 x 3.7 cm
HS CODE: 8537101190
Product Origin: USA
System: TSI
Communication Service: Ethernet Router
Thread Design: 1/4-28 UNF
Unthreaded Length: Minimum of 2.0 inches
Cable Length: 1.0 meter (39 inches)
Connector Type: Miniature coaxial ClickLoc connector
Model Code Breakdown:
330901: Identifies this specific model as part of the Bently Nevada 3300 series of NSv Proximity Probes.
20: Indicates specific design features that enhance performance and durability under chemical exposure.
32: Refers to the dimensions and configurations that affect the installation of the probe.
10: Signifies the application focus and performance standards relevant to this probe type.
02: Denotes enhancements that ensure compatibility with Bently Nevada’s existing systems and features.
05: Indicates the latest design iteration, ensuring that the probe incorporates the most current technology.
Installation Recommendations and Wiring Guide:
Choose Installation Location: Identify the appropriate mounting point to ensure optimal proximity to the target machinery, allowing for accurate measurements.
Mounting the Probe: Install the probe using its 1/4-28 UNF thread design, ensuring a secure fit.
Connecting the Cable: Use the provided 1.0 meter integrated cable, connecting it to the monitoring system using the ClickLoc connector for a secure and tool-free connection.
Conduct Verification: After installation, verify the probe's output and functionality to ensure that it is operating accurately and effectively.
Frequently Asked Questions (FAQ):
Q: In what environments is the Bently Nevada 330901-20-32-10-02-05 most effective?
A: This probe is ideal for environments such as process compressors and any industrial applications where there is potential exposure to harsh chemicals.
Q: How does this probe compare to older models?
A: The 330901-20-32-10-02-05 offers better chemical resistance and more consistent readings compared to older 3000-series probes, ensuring improved accuracy in tight tolerances.
Q: Is the probe compatible with existing Bently Nevada systems?
A: Yes, it is fully compatible with the 3300 RAM systems, allowing for easy integration and upgrades without extensive reconfiguration.
Q: What is the significance of the ClickLoc connector?
A: The ClickLoc connector provides a secure and corrosion-resistant connection, promoting reliable operation in demanding environments without the need for special tools.
Q: Can the probe handle high-temperature conditions?
A: While specifically designed for chemical resistance, it also maintains operational stability in various temperature conditions typical of industrial environments.
