Product Overview:

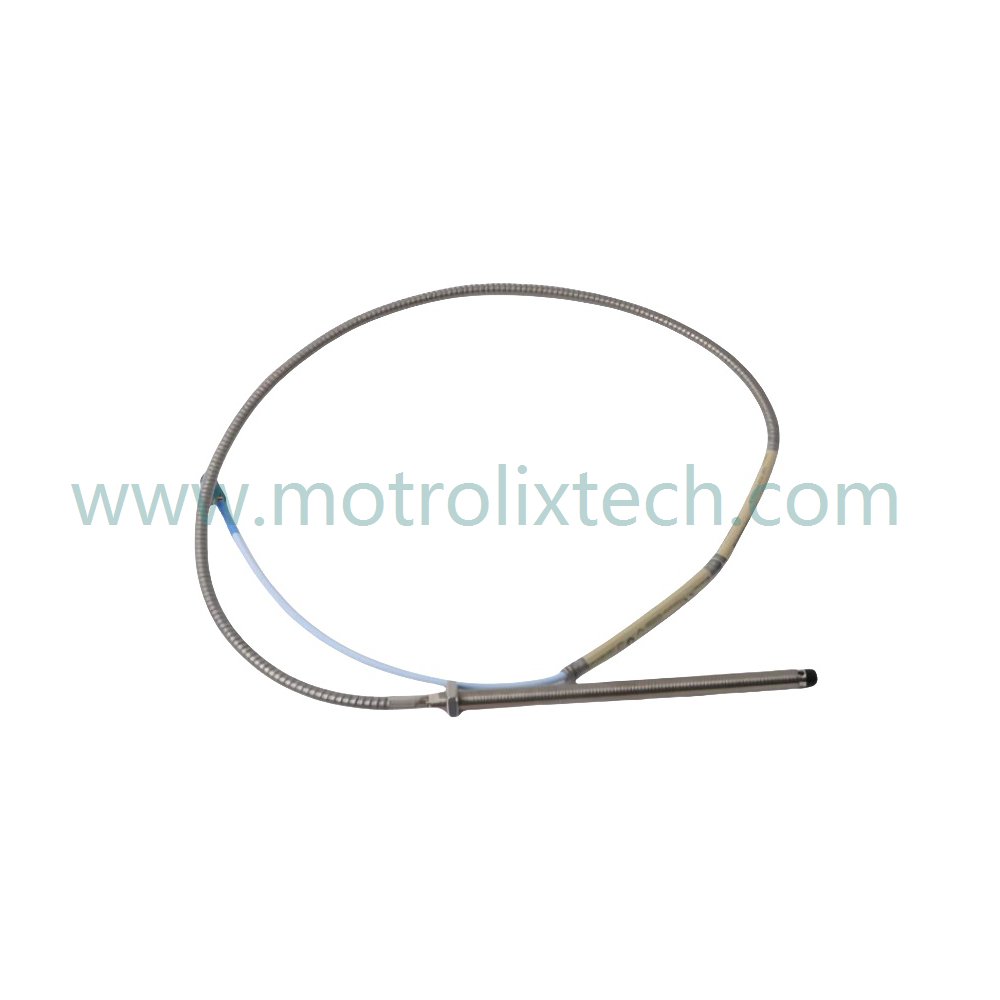

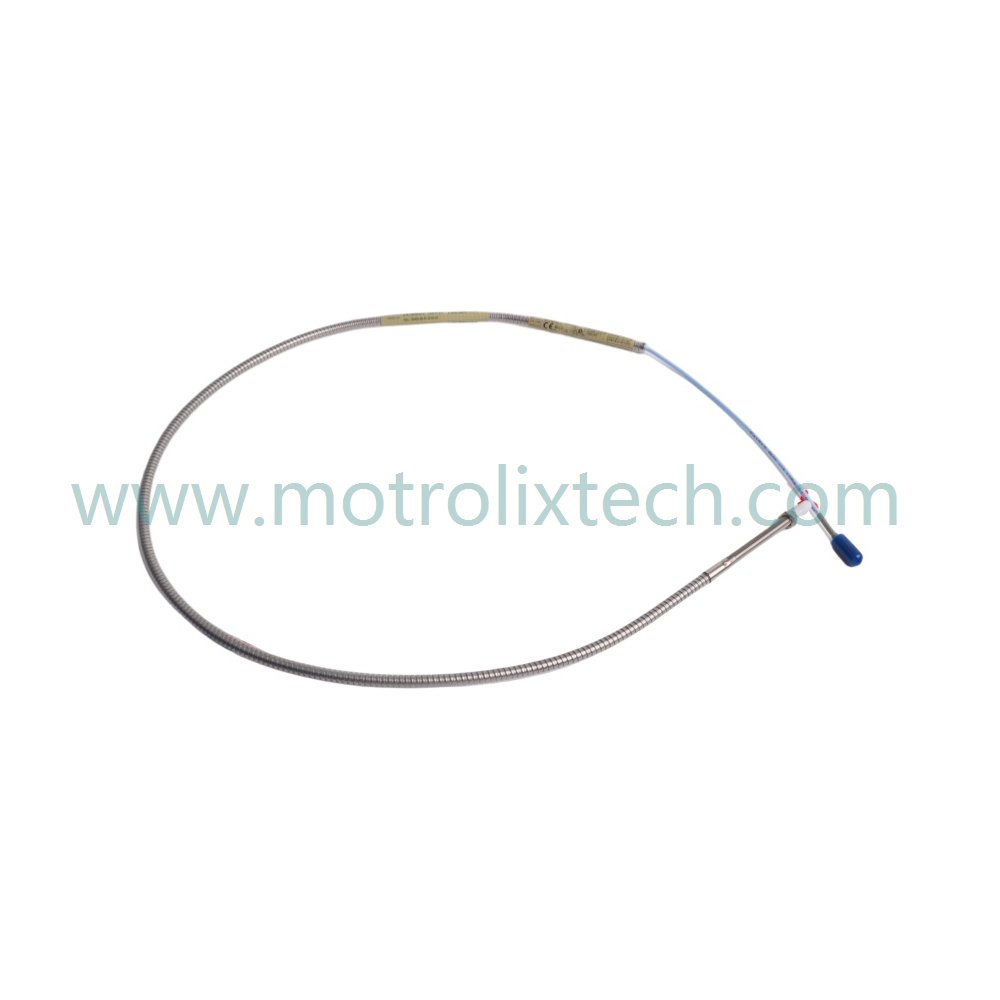

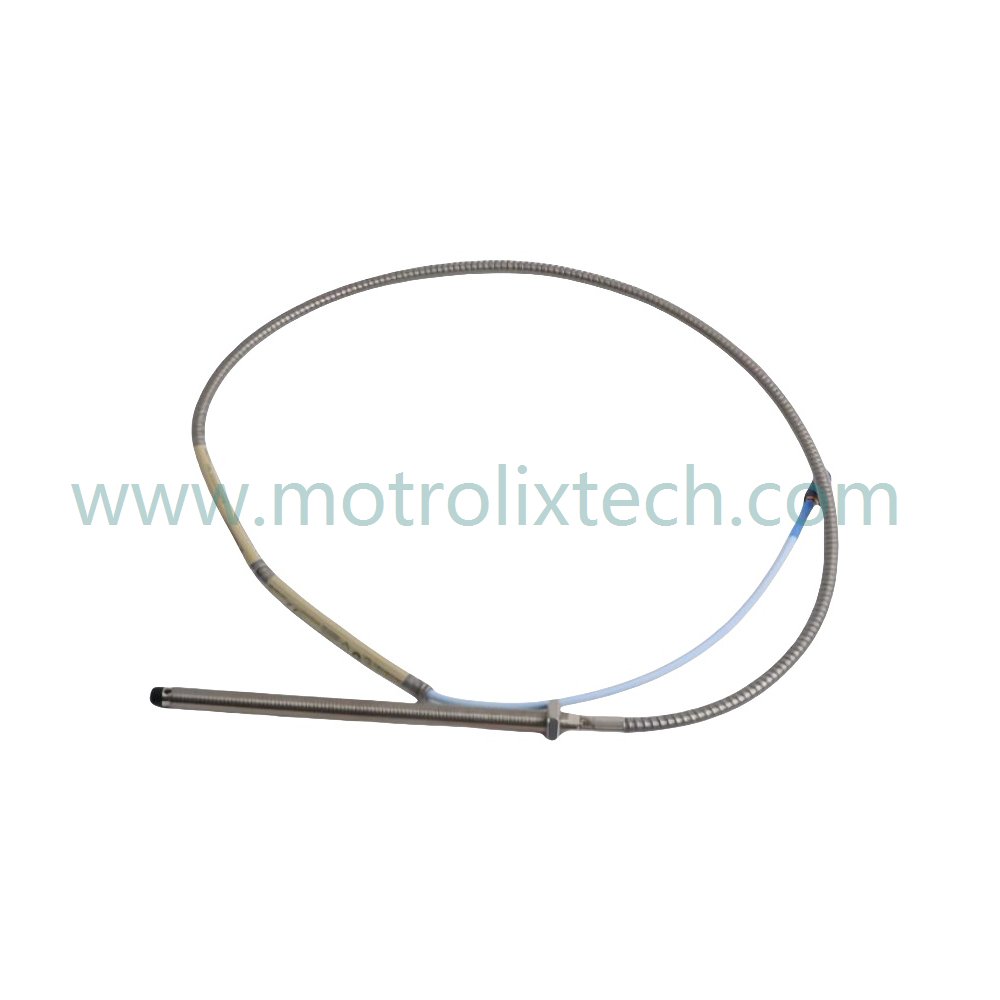

The Bently Nevada 330902-00-60-10-02-05 3300 NSv Proximity Probe is a specialized transducer system engineered for precise monitoring in tight installation areas, such as centrifugal compressors and small-shaft applications. This innovative probe includes an NSv probe, an armored extension cable, and an XL NSv Proximitor sensor, allowing for accurate vibration and thrust measurements on shafts as small as 51mm (2 inches). Its compact design and enhanced features make it ideal for challenging industrial environments where space is limited.
Technical Specifications:
Model Number: 330902-00-60-10-02-05
Module Type: 3300 NSv Proximity Probes
Manufacturer: Bently Nevada
Condition: Brand New
Product Range: 3300 Proximity Transducer System
Lead Time: In Stock
Weight: 0.1 kg
Dimensions: 1.3 x 1.1 x 116 cm
HS CODE: 8537101190
Product Origin: USA
System: TSI
Communication Service: Ethernet Router
Linear Range: 1.5 mm
Scale Factor: 7.87 V/mm (200 mV/mil)
Model Code Breakdown:
330902: Identifies the specific model within the Bently Nevada 3300 series of NSv proximity probes, tailored for high-precision measurements.
00: Indicates the standard configuration of the probe without modifications.
60: Refers to the specific variant that enhances performance in small-target applications.
10: Represents design features related to the probe's functionality and installation capabilities.
02: Denotes a standard configuration and compatibility with various systems.
05: Signifies no special modifications, indicating a standard version of the product.
Installation Recommendations and Wiring Guide:
Select Installation Site: Choose a location that provides optimal alignment with the machinery being monitored and allows for easy access.
Mount the Probe: Securely install the probe using appropriate hardware, ensuring it is stable for accurate readings.
Connect the Armored Extension Cable: Attach the armored extension cable to the probe and Proximitor sensor, ensuring that all connections are secure and protected from environmental factors.
Conduct Initial Testing: After installation, perform functionality tests to verify the accuracy of measurements and ensure proper operation within the monitoring system.
Frequently Asked Questions (FAQ):
Q: What types of applications are suited for the Bently Nevada 330902-00-60-10-02-05 probe?
A: This probe is ideal for applications in refrigeration, gas processing, and other environments with tight installation constraints.
Q: How does the probe maintain reliability in harsh conditions?
A: The probe's design features include armored components and API-compliant performance, ensuring durability even in challenging industrial environments.
Q: What advantages does this probe have compared to legacy models?
A: The NSv probe offers enhanced side-view capabilities and improved temperature stability, outperforming older 3000-series transducers.
Q: Can this probe easily integrate into existing systems?
A: Yes, it supports seamless upgrades from 3300 RAM systems while maintaining backward compatibility, making integration straightforward.
Q: What is the significance of the scale factor?
A: The scale factor of 7.87 V/mm allows for precise measurements of radial and axial positions, making it suitable for applications that require high sensitivity.
