Product Overview

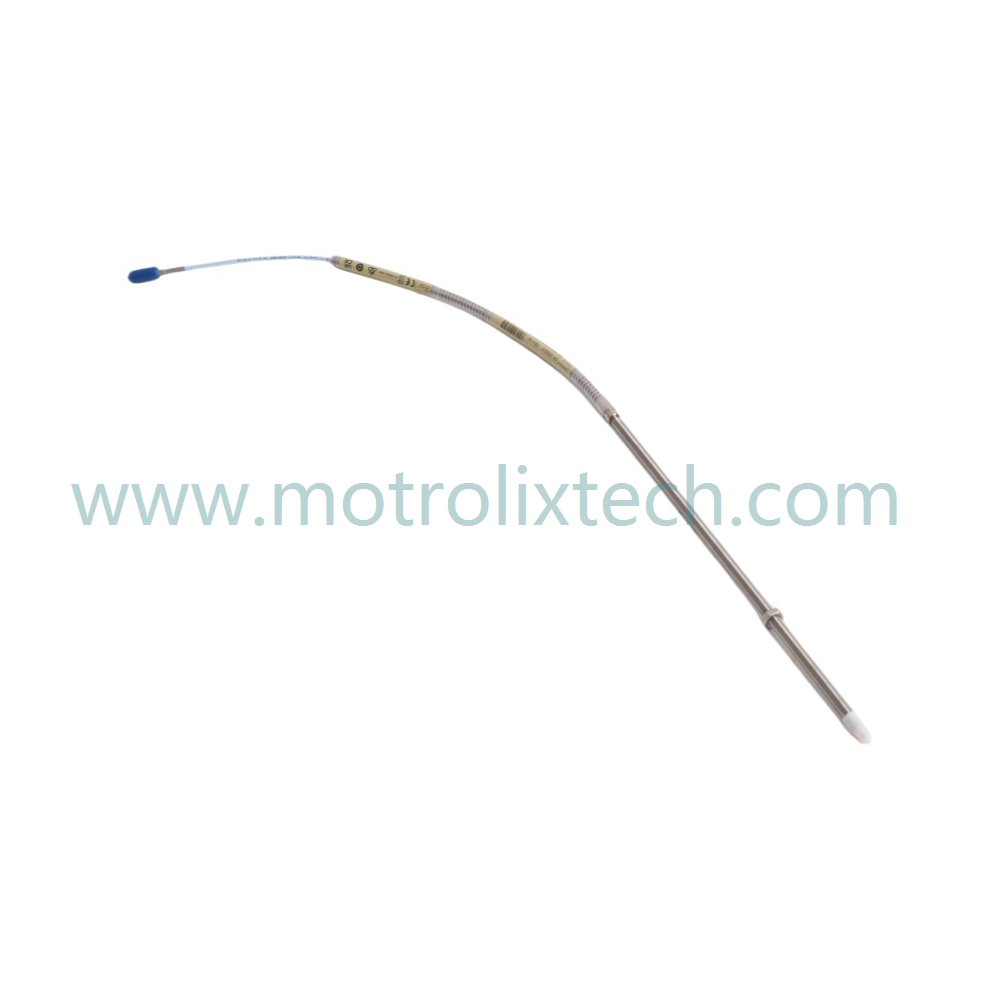

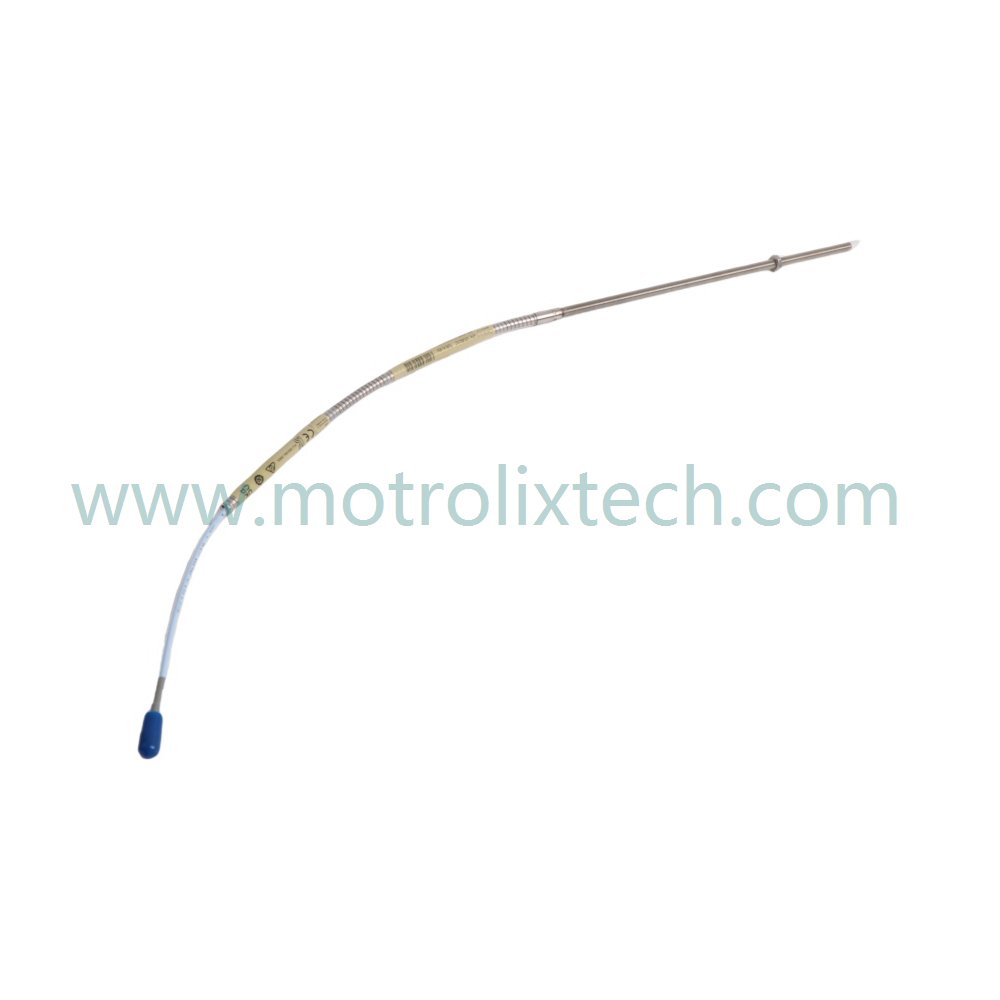

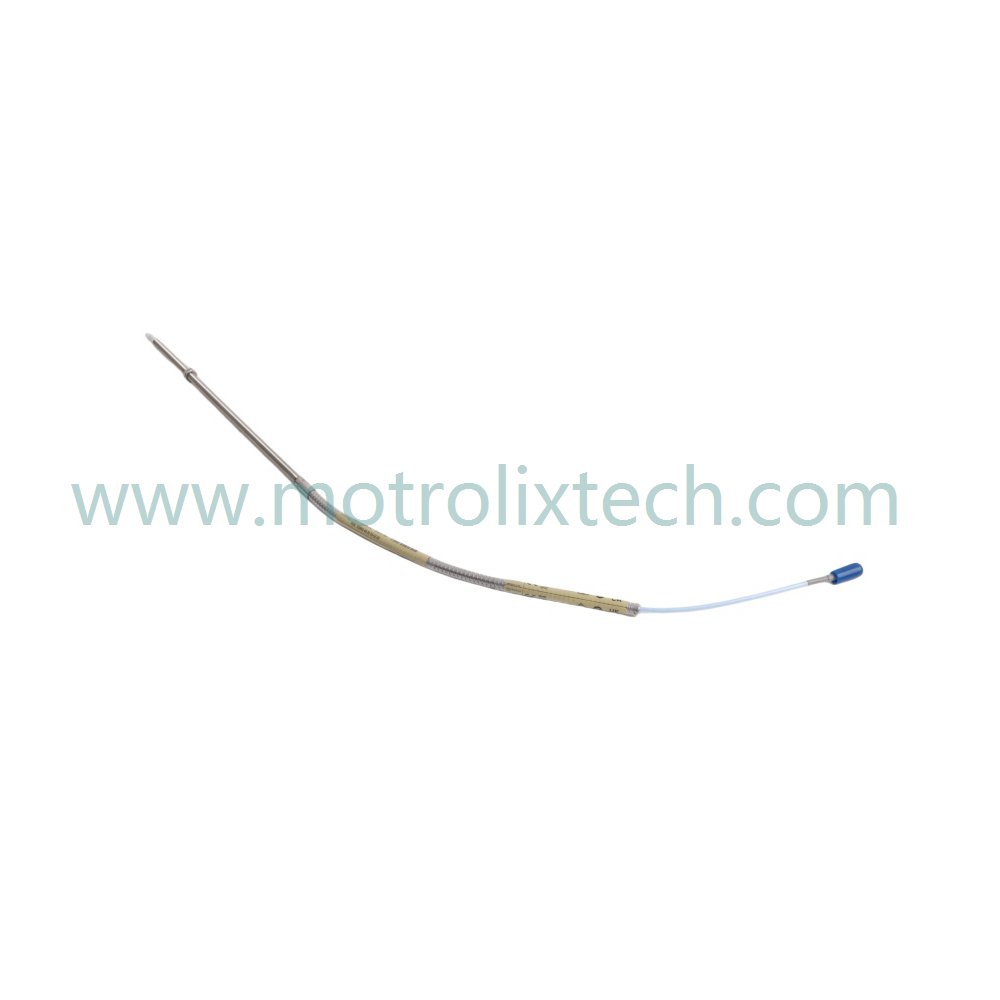

The Bently Nevada 330902-00-95-10-02-05 3300 NSv Proximity Probe is engineered for robust vibration and thrust monitoring in process compressors and small-shaft machinery. Featuring a durable 95-inch (2.4m) armored cable and gold-plated ClickLoc connectors, it ensures reliable signal transmission in corrosive and space-constrained industrial environments. Backward compatible with legacy 3300 RAM probes, this probe delivers superior sensitivity and API 670 compliance for critical machinery protection.

Technical Specifications

• Model Number: 330902-00-95-10-02-05

• Product Series: 3300 Proximity Transducer System

• Module Type: 3300 NSv Proximity Probe

• Weight: 0.08 kg

• Dimensions: 1.3 × 1.2 × 66 cm

• Lead Time: In Stock – immediate shipment available

• HS Code: 8537101190

• Product Origin: USA

• Cable Length: 95 inches (2.4 meters), armored stainless steel

• Connector: Gold-plated ClickLoc connectors

• Thread Options: 1/4-28, M8x1, M10x1

• Sensitivity: 7.87 V/mm

• Cable Retention: 220N pull strength

• Environmental Resistance: Chemical resistant, optional connector protection for liquid ingress

• Compliance: Meets API 670 standards for vibration and thrust monitoring

• Applications: Refrigeration compressors, turbomachinery, small-shaft machinery

Model Code Breakdown

• 330902: 3300 NSv proximity probe base model

• -00: Mechanical/housing variant

• -95: Cable length specification (95 inches)

• -10: Electrical output and connector configuration

• -02: Thread and mounting option

• -05: Factory or regional variant

This model code defines the probe’s cable length, connector type, mounting threads, and environmental adaptability designed for demanding industrial use.

Installation Recommendations & Wiring Guide

• Mounting: Employ proper clearance and alignment for reverse mount placement in tight spaces, following API 670 guidelines.

• Cable Management: Handle armored cable carefully; avoid sharp bends and protect cable from mechanical stress to preserve signal integrity.

• Connector Use: Ensure gold-plated ClickLoc connectors are fully engaged to maintain low resistance, corrosion-free connections.

• Environmental Protection: Utilize optional connector protectors in wet or chemical environments to prevent ingress and prolong probe life.

• System Integration: Compatible with Bently Nevada 3300 XL and RAM monitoring systems for straightforward upgrade and replacement.

FAQ — Common Questions

Q: What is the cable length of this probe?
A: It comes with a 95-inch (2.4 meter) armored stainless steel cable for extended reach.

Q: Is this product compatible with older 3300 RAM probes?
A: Yes, it offers full mechanical and electrical backward compatibility.

Q: What degree of environmental protection does it offer?
A: Armored cable and optional connector protectors provide high resistance to chemicals and liquid ingress.

Q: What industries commonly use this probe?
A: Ideal for refrigeration compressors, turbomachinery, and small-shaft process machinery.

Q: Is this an authentic Bently Nevada component?
A: Yes, it is brand new, genuine, and available for fast shipping.

For further installation guidance or technical support, please consult official Bently Nevada documentation or contact authorized distributors.
