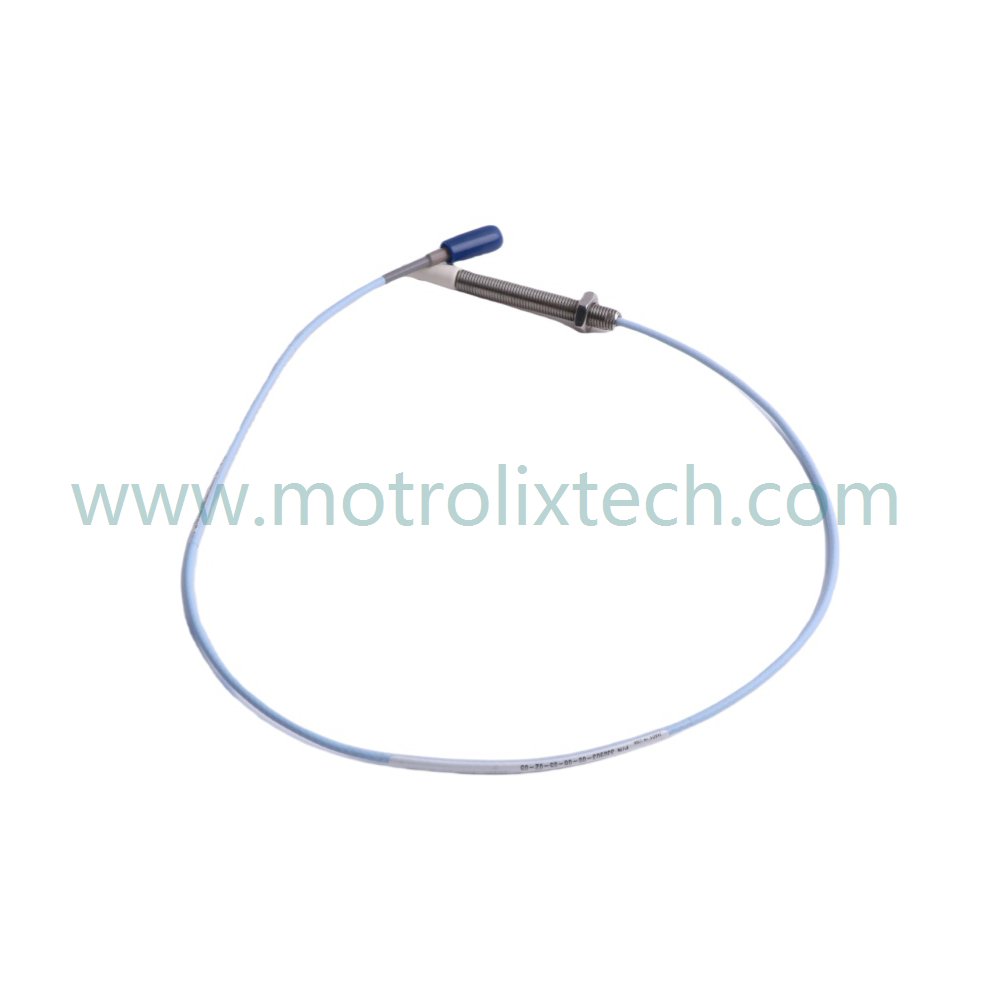

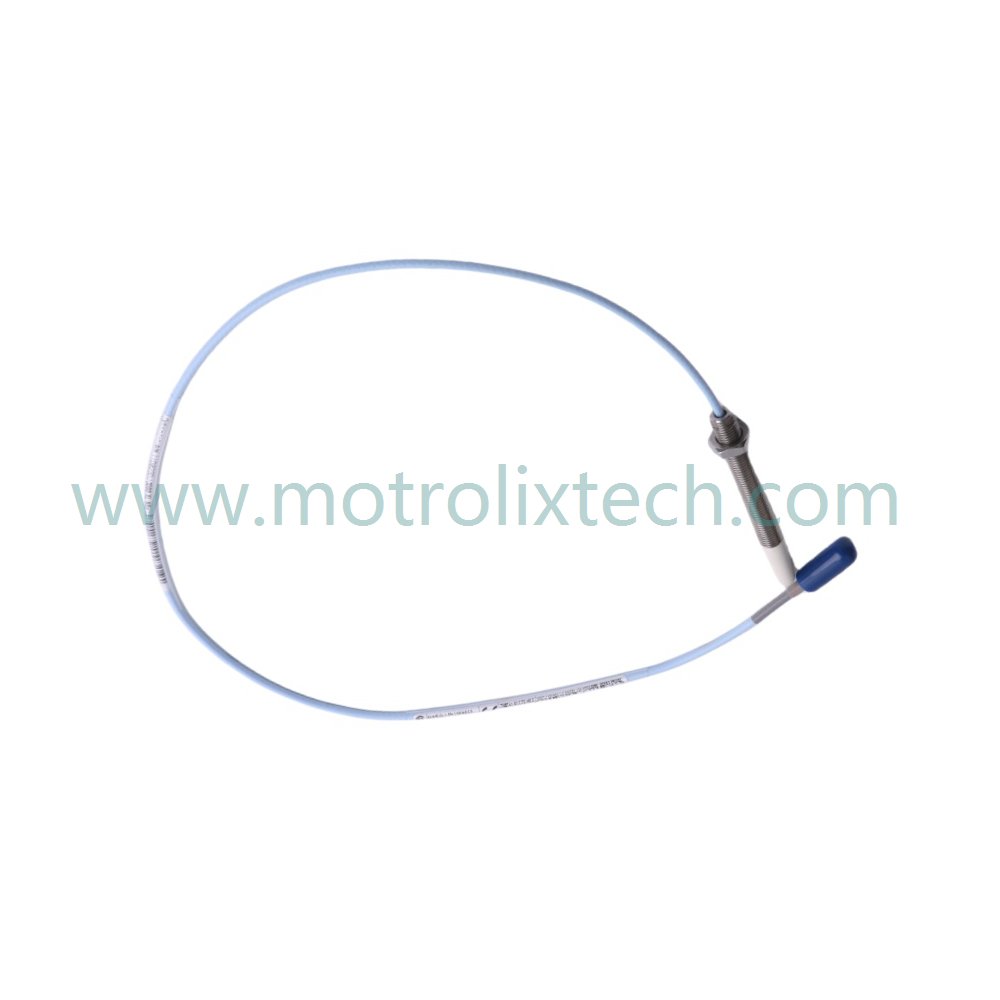

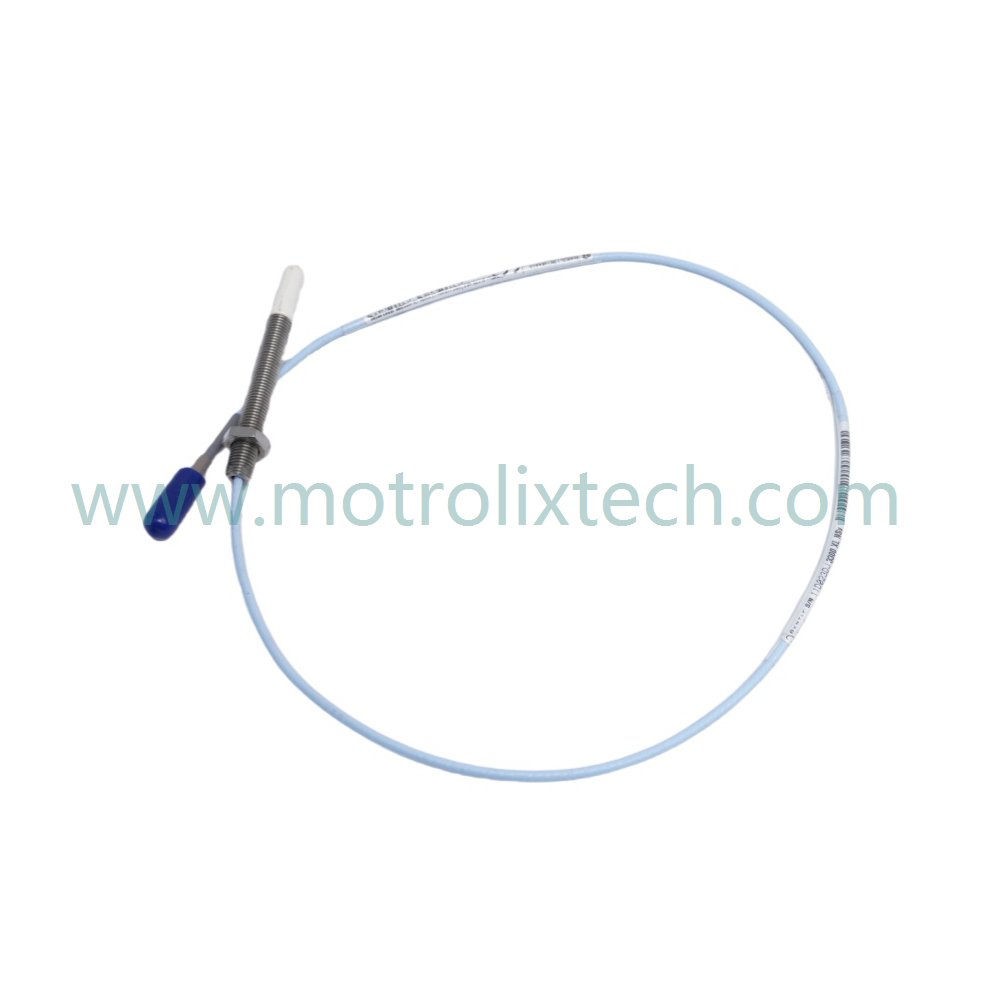

The Bently Nevada 330903-00-04-05-02-05 3300 NSv Proximity Probe is designed to deliver precise vibration monitoring in tight-clearance machinery applications, making it essential for efficient operation in environments where space is limited. With its compact M8×1 threaded design, this probe is ideal for centrifugal compressors, refrigeration systems, and process gas compressors. It excels in measuring radial vibration on shafts smaller than 51 mm (2 inches) and axial position on targets under 15 mm (0.6 inches).
This probe integrates seamlessly with the 3300 XL NSv Transducer System, providing exceptional performance in conjunction with extension cables and Proximitor sensors. The miniature coaxial ClickLoc connector guarantees secure and reliable connections, ensuring consistent signal integrity even in high-vibration environments.
The model number 330903-00-04-05-02-05 indicates specific features of this probe:
330903: Identifies this unit as part of the Bently Nevada 3300 series, optimized for precision monitoring.
00: Refers to standard model identifiers used in production.
04: Indicates the configuration of this specific probe model.
05: Represents the standard cable length of 0.5 meters (20 inches).
02: Signifies a design feature or version of this probe.
05: Indicates further enhancements or configurations specific to this model.
| Parameter | Specification |
|---|---|
| Model Number | 330903-00-04-05-02-05 |
| Module Type | 3300 NSv Proximity Probe |
| Manufacturer | Bently Nevada |
| Condition | Brand New |
| Range of Product | 3300 Proximity Transducer System |
| Lead Time | In Stock |
| Weight | 0.16 kg |
| HS CODE | 8537101190 |
| Dimensions | 115.5 x 2.5 x 2 cm |
| Minimum Order Quantity (MOQ) | 1 |
| Product Origin | USA |
| System Compatibility | TSI |
| Discontinued | Active |
| Communication Service | Ethernet router |
| Cable Length | 0.5 meters (20 inches) |
| Thread Type | M8×1 |
| Measurement Capabilities | Radial vibration, axial position, Keyphasor signals |
| Approvals | Certified for hazardous environments |
To ensure optimal performance of the Bently Nevada 330903-00-04-05-02-05 Proximity Probe, consider the following installation practices:
Mechanical Clearance: Ensure sufficient space is available for installation, especially in tight-clearance areas, to facilitate easy access and maintenance.
Wiring Connections: Use the miniature coaxial ClickLoc connector for secure and stable connections. Check that connections are tight and free from contaminants to avoid signal interference.
Mounting Procedure: Install the probe securely using the M8×1 threaded design, ensuring proper alignment to accurately capture measurements of both vibration and position.
Environmental Protection: Protect against moisture ingress by using connector protectors to maintain signal integrity and prevent contamination.
Consult Technical Support: If uncertainties arise during installation, consult with Bently Nevada engineers for guidance on best practices and configurations tailored to your application.
The Bently Nevada 330903-00-04-05-02-05 Proximity Probe is designed for durability and reliability in demanding industrial conditions. Its compact design accommodates space-constrained environments while providing precise measurements essential for monitoring the health of rotating equipment.
This probe is fully compatible with the TSI system, allowing seamless integration into existing monitoring setups. It offers a cost-effective solution for upgrading legacy systems without the need to replace probes or cables. The ability to operate in hazardous environments, combined with proven accuracy, makes it an invaluable asset in sectors such as oil and gas, power generation, and industrial compression.
With a commitment to enhancing operational efficiency, the Bently Nevada 330903-00-04-05-02-05 exemplifies the company's dedication to solving unique vibration monitoring challenges.
Q1: What is the primary application of the Bently Nevada 330903-00-04-05-02-05 Proximity Probe?
A1: This probe is specifically designed for vibration and position monitoring in tight-clearance machinery, making it ideal for centrifugal compressors and refrigeration systems.
Q2: How does the ClickLoc connector benefit installation?
A2: The ClickLoc connector ensures secure, reliable, and slip-resistant connections, which are crucial for maintaining signal integrity in high-vibration environments.
Q3: Can this probe be used in hazardous environments?
A3: Yes, the 330903-00-04-05-02-05 is certified for use in hazardous environments and adheres to industry safety standards for reliable operation.
Q4: What types of measurements can this probe perform?
A4: This proximity probe can measure radial vibration, axial position, and Keyphasor signals in fluid-film bearing machines.
Q5: What maintenance practices should be followed for this probe?
A5: Regularly inspect connections for tightness, ensure the installation area is clean and free from contaminants, and utilize protective covers for connectors to maintain optimal performance.
