Product Overview:

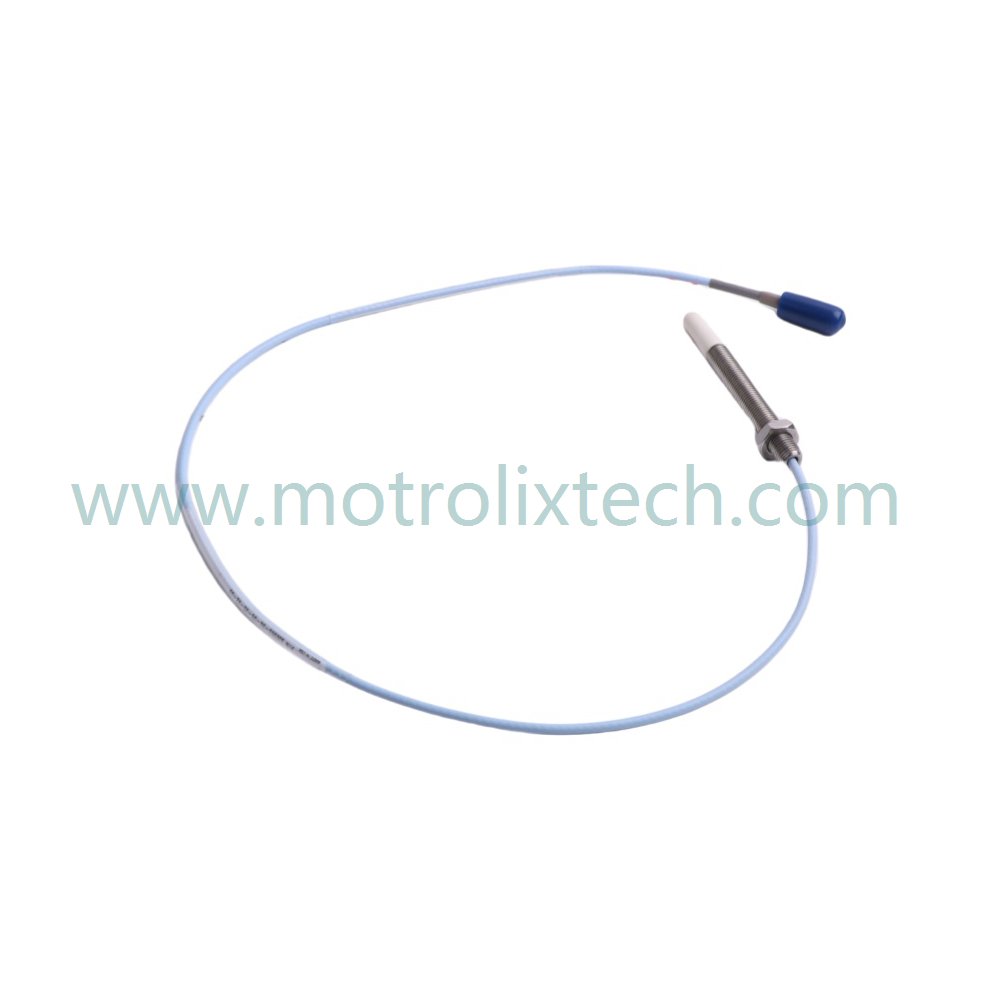

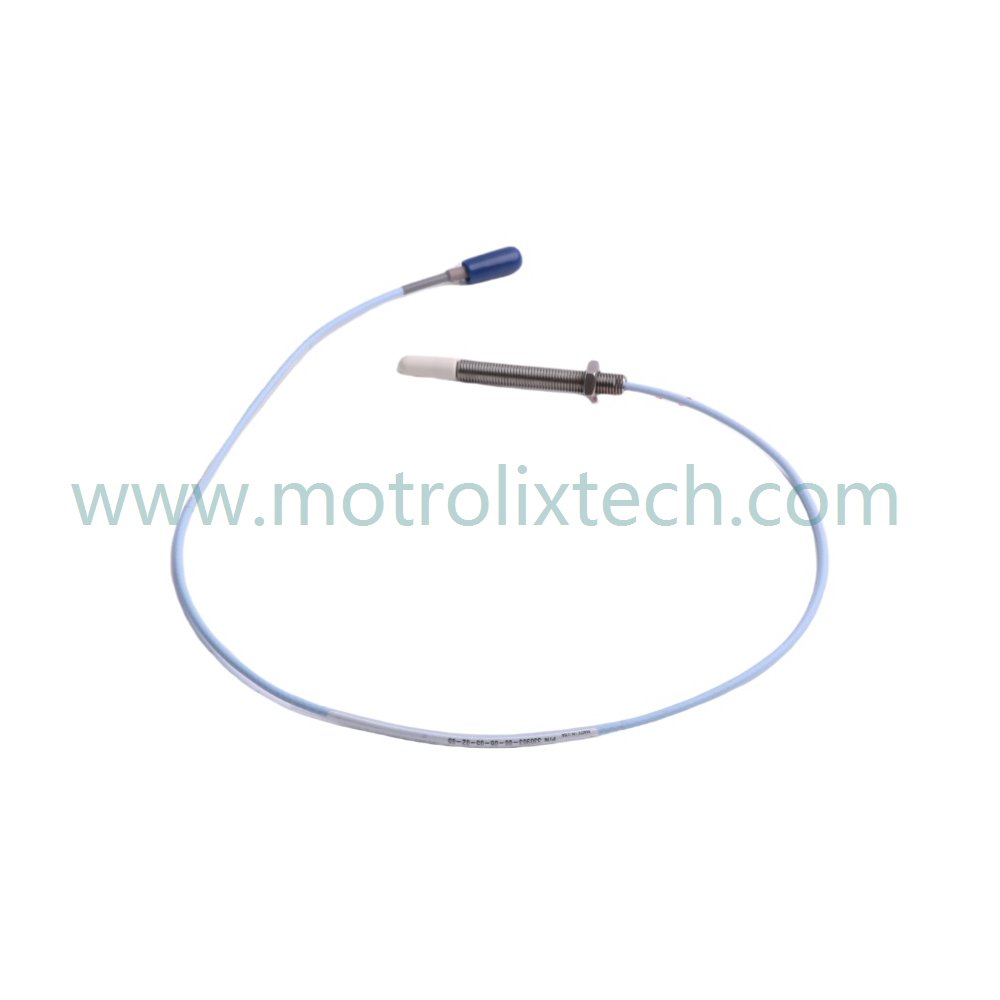

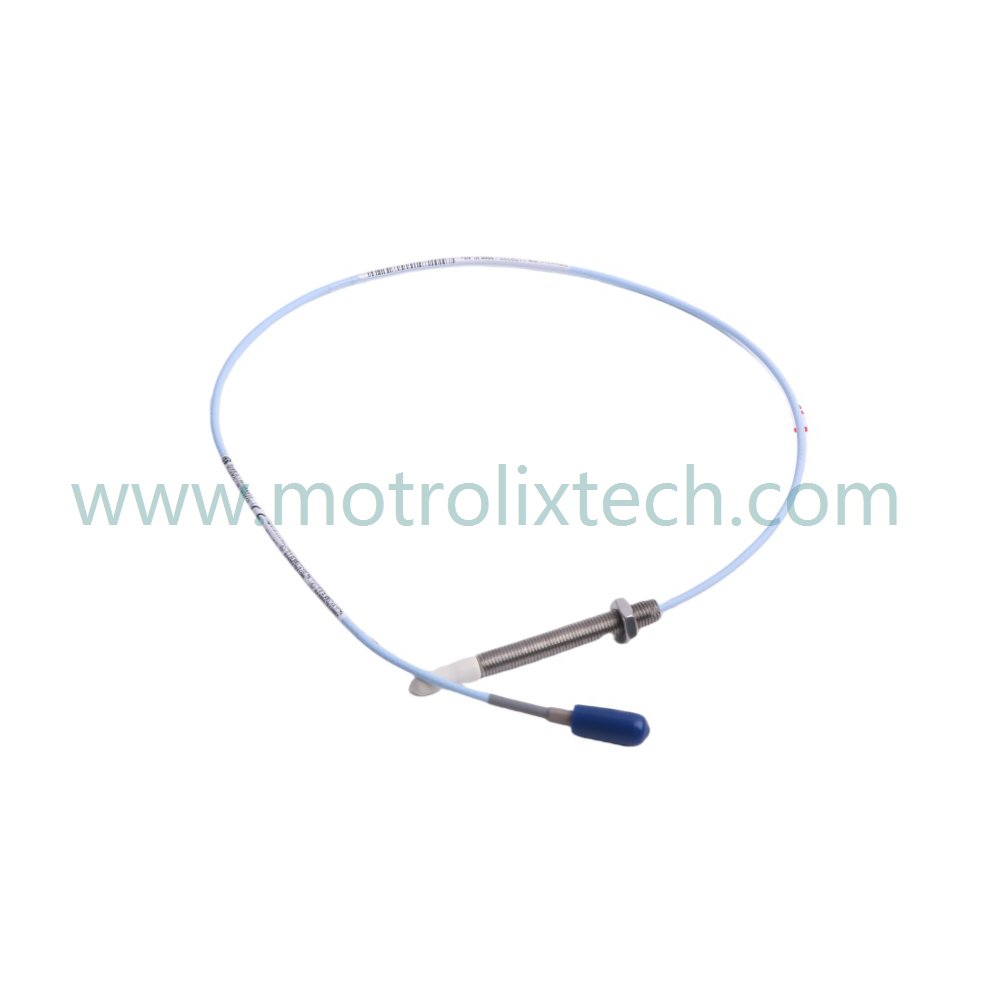

The Bently Nevada 330903-00-04-10-02-05 3300 NSv Proximity Probe is engineered specifically for space-constrained industrial machinery applications, such as centrifugal compressors and other processes with limited installation clearances. This advanced proximity transducer system features an 8mm probe with an integrated 9-meter armored cable, providing reliable vibration and position measurements even in the most demanding environments.
Technical Specifications:
Model Number: 330903-00-04-10-02-05
Module Type: 3300 NSv Proximity Probes
Manufacturer: Bently Nevada
Condition: Brand New
Product Range: 3300 Proximity Transducer System
Lead Time: In Stock
Weight: 0.14 kg
Dimensions: 20.3 x 22 x 3.5 cm
HS CODE: 8537101190
Product Origin: USA
System: TSI
Communication Service: Ethernet Router
Output Range: -18V to -26V
Thread Type: M20x1.5
Model Code Breakdown:The model number 330903-00-04-10-02-05 can be analyzed as follows:
330903: Identifies the specific model within the Bently Nevada 3300 series.
00: Refers to the basic version of this proximity probe without special variations.
04: Denotes essential design features particular to this probe's configuration.
10: Indicates details related to operational capabilities or enhancements.
02: Serves as an identifier for specific applications or features that set this model apart.
05: Represents design adaptations suitable for particular use cases.
Installation Recommendations and Wiring Guide:To achieve optimal performance with the Bently Nevada 330903-00-04-10-02-05 Proximity Probe, follow these installation guidelines:
Choose Installation Location: Identify an appropriate and accessible position to mount the probe, ensuring it aligns accurately with the machinery for effective monitoring.
Secure the Probe: Use the M20x1.5 threaded connection to firmly attach the probe without risking misalignment.
Connect the Wiring: Utilize the integrated armored cable for protection and ensure a secure connection to the monitoring system to prevent signal degradation.
Perform Functionality Checks: After installation, conduct thorough testing to ensure the probe operates correctly and integrates seamlessly with your existing systems.
Frequently Asked Questions (FAQ):
Q: What is the primary function of the Bently Nevada 330903-00-04-10-02-05 Probe?
A: This probe is designed for accurate vibration and position monitoring in space-limited industrial machinery.
Q: Are these probes suitable for harsh industrial environments?
A: Yes, the robust armored cable and low-profile design enhance its suitability for demanding operating conditions.
Q: How does the NSv configuration differ from standard proximity probes?
A: The NSv configuration maintains measurement accuracy while significantly reducing the overall footprint for installation.
Q: Can this probe be retrofitted into older equipment?
A: Yes, the compact design is ideal for retrofitting applications where standard probe installations are not feasible.
Q: What output voltage range does this probe operate within?
A: The probe operates within a standard output range of -18V to -26V, providing reliable measurements.
