Product Overview:

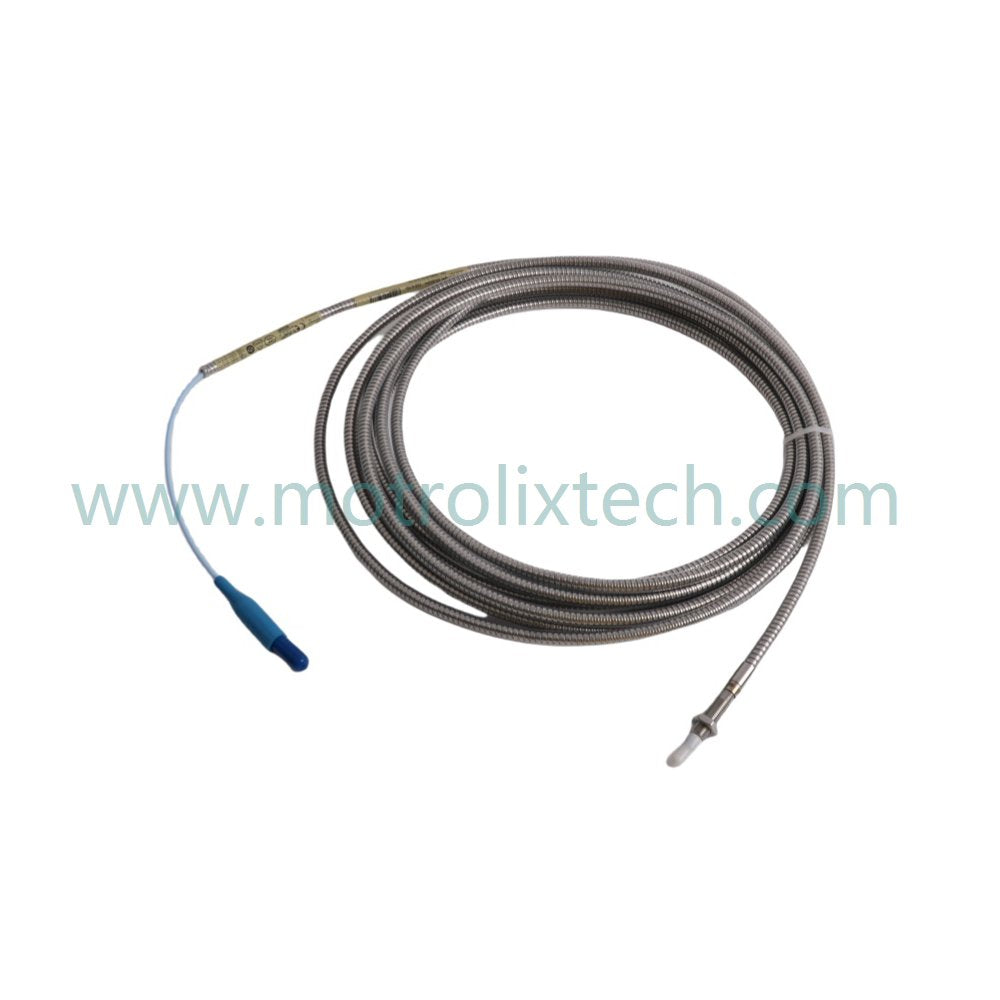

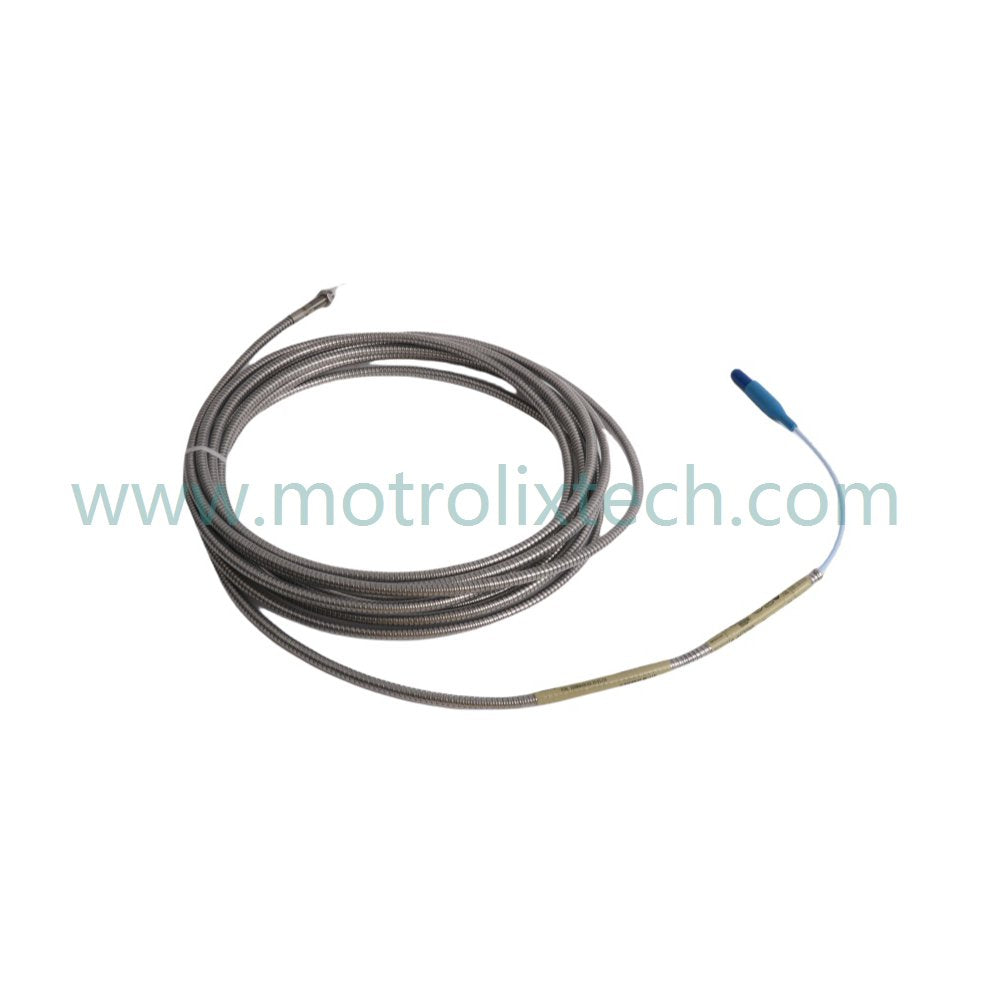

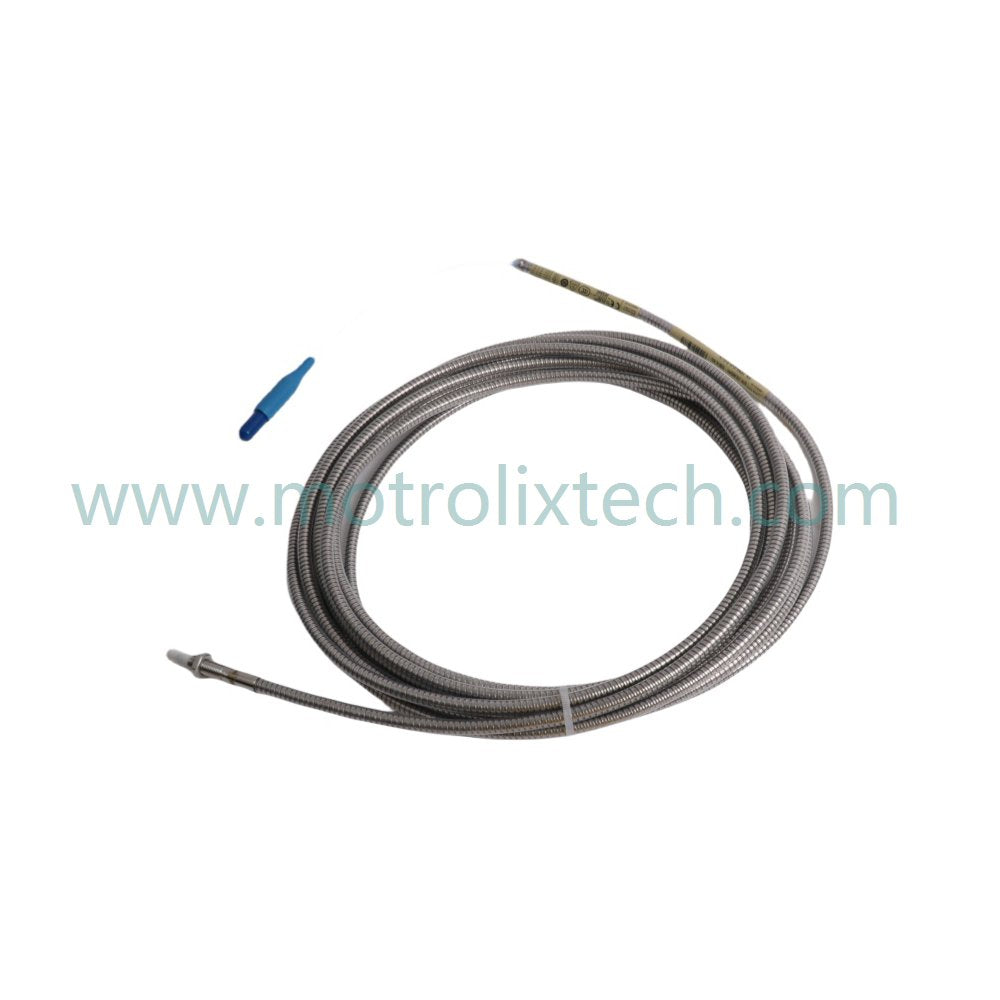

The Bently Nevada 330904-00-25-50-02-00 3300 NSv Proximity Probe system is specifically designed for the reliable monitoring of shaft vibration and position in industrial rotating equipment. This robust probe is engineered for harsh environments, providing exceptional performance with a wide operational temperature range of -40°C to +150°C while maintaining a measurement accuracy of ±1%. Ideal for use in oil & gas, power generation, and heavy industrial applications, this proximity probe ensures critical data collection for early fault detection in machinery.

Technical Specifications:

• Model Number: 330904-00-25-50-02-00

• Module Type: 3300 NSv Proximity Probe

• Manufacturer: Bently Nevada

• Condition: Brand New

• Product Range: 3300 Series

• Lead Time: In Stock

• Weight: 0.18 kg

• Dimensions: 20.3 x 22 x 3.5 cm

• HS CODE: 8537101190

• Product Origin: USA

• System: TSI

• Communication Service: Ethernet Router

• Temperature Range: -40°C to +150°C

• Integral Cable Length: 5 meters

• Measurement Accuracy: ±1%

• Hazardous Area Certification: ATEX/IECEx

Model Code Breakdown:

• 330904: Identifies the specific model within the Bently Nevada 3300 series, focusing on NSv proximity probes designed for industrial applications.

• 00: Indicates the standard configuration of the probe without modifications.

• 25: Refers to the specific design features that enhance its functionality in harsh environments.

• 50: Signifies certain operational specifications aimed at optimizing performance.

• 02: Denotes compatibility with other Bently Nevada monitoring instrumentation and components.

• 00: Indicates that this is a standard version without specific alterations or custom features.

Installation Recommendations and Wiring Guide:

1. Select Installation Location: Ensure the probe is aligned with the rotating shaft to optimize measurement accuracy. Use a mounting method compatible with the rotary equipment.

2. Secure the Probe: The durable stainless steel construction allows for robust mounting, ensuring stability in high-vibration environments.

3. Connect to Monitoring System: Connect the integral 5-meter cable to the required monitoring systems and ensure all connections are tight and secure.

4. Conduct Functionality Tests: After installation, perform tests to confirm that the probe functions correctly and provides accurate shaft position and vibration measurements.

Frequently Asked Questions (FAQ):

• Q: What industries benefit from the Bently Nevada 330904-00-25-50-02-00 Proximity Probe?
  A: This probe is ideal for oil & gas, power generation, and heavy industrial settings where reliable machinery monitoring is crucial.

• Q: How does this probe handle extreme environmental conditions?
  A: With a temperature range of -40°C to +150°C and a robust stainless steel construction, the probe is designed to operate reliably in harsh conditions.

• Q: What types of measurements can this probe obtain?
  A: The probe utilizes advanced eddy current technology to provide non-contact measurements of both shaft position and vibration.

• Q: What are the advantages of its hazardous area certifications?
  A: The ATEX/IECEx certifications allow safe operation in potentially explosive environments, making it suitable for refinery and petrochemical applications.

• Q: Can the probe be used with other Bently Nevada instruments?
  A: Yes, it is designed for compatibility with other components in the Bently Nevada monitoring system, allowing for flexible integration.
